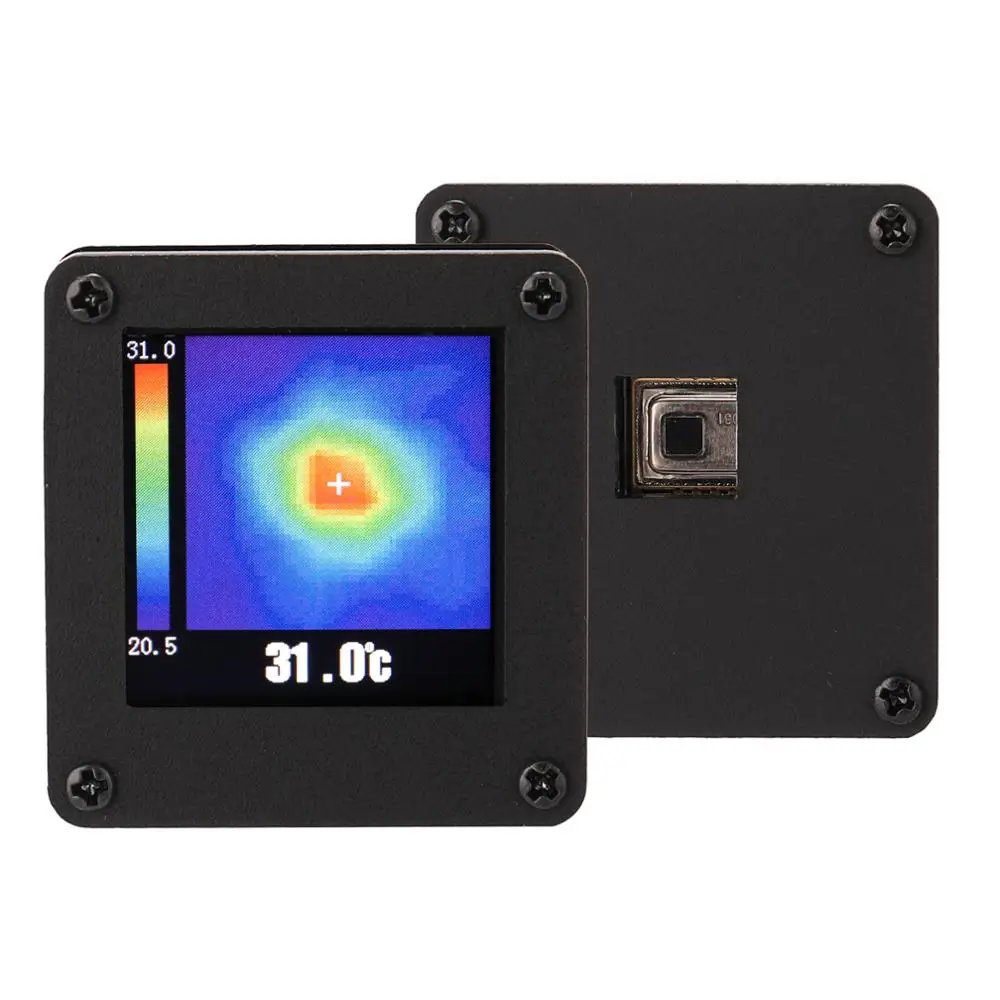

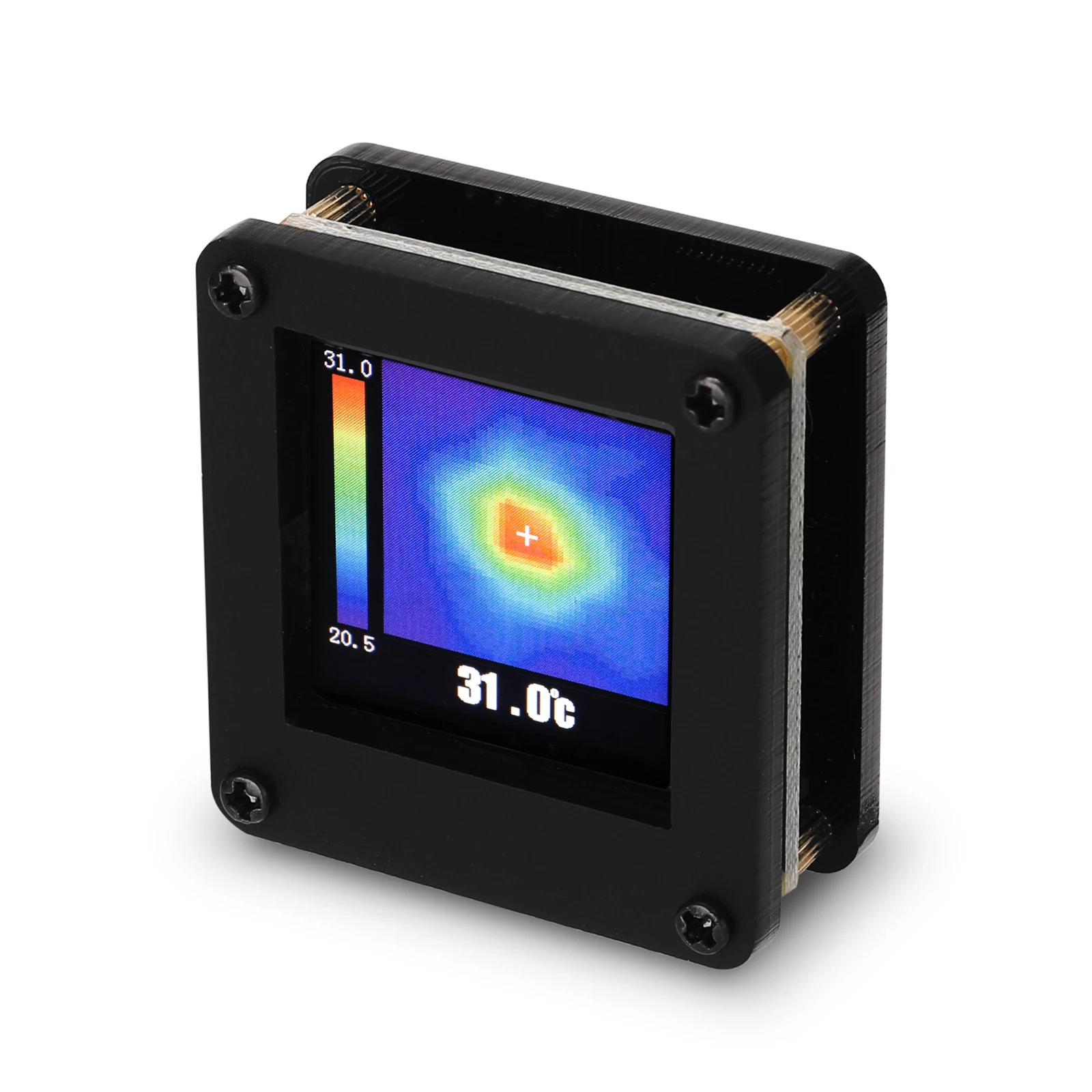

AMG8833IR no battery

Specification:
Material: PCB
Temperature accuracy:
High performance type high gain: typical ±2.5℃ ±4.5℉
High performance type low gain: typical ±3.0℃ ±5.4℉
Human detection distance: 7m or less (reference value) 22.966 ft
NETD:
Typ. 0.05℃ 32.900℉ 1Hz
Typ. 0.16℃ 32.288℉ 10Hz
Viewing angle: typical 60°
Optical axis gap: within typical ±5.6°
Current consumption:
Typical 4.5mA (normal mode)
Typical 0.2mA (sleep mode)
Typical 0.8mA (stand-by mode)
Setup time:
Typical 50ms (time to enable communication after setup)
Typical 15s (time to stabilize output after setup)
Number of pixel: 64 (vertical 8 * horizontal 8 matrix)
External interface: 1⊃2;C (fast mode)
Frame rate: typical 10 frames/sec or 1 frame/sec
Operating mode: normal, sleep, stand-by (10 sec or 60 sec intermittence)
Output mode: temperature output
Calculate mode: no moving average or twice moving average
Temperature output resolution: 0.25℃ / 32.45℉
Number of sensor address: 2 (1⊃2;C slave address)
Thermistor output temperature range: -20℃~80℃ (-4℉~176℉)
Thermistor output resolution: 0.0625℃ / 32.1125℉

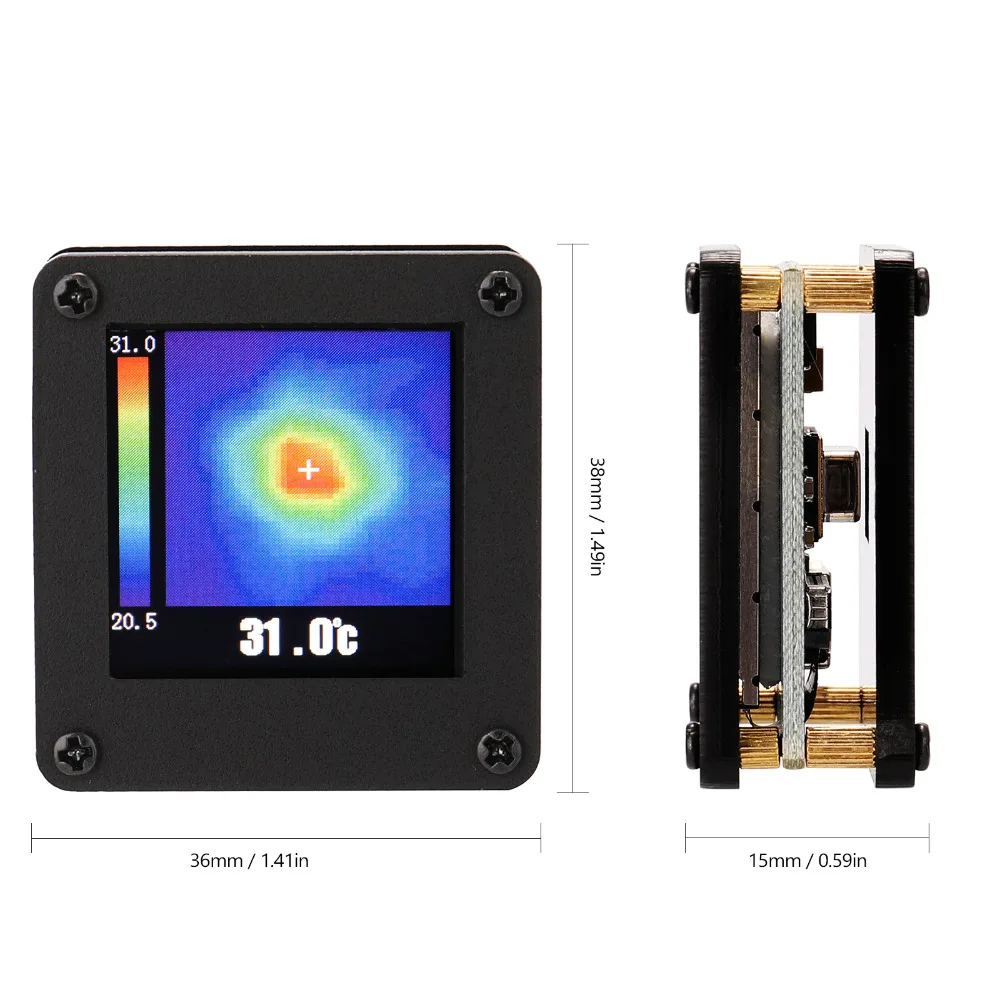

Item size: 38 * 36 * 17mm / 1.5 * 1.4 * 0.7in
Item weight: 17g / 0.6ounce
Package size: 90 * 80 * 20mm / 3.5 * 3.1 * 0.8in
Package weight: 19g / 0.7ounce

Packing List:

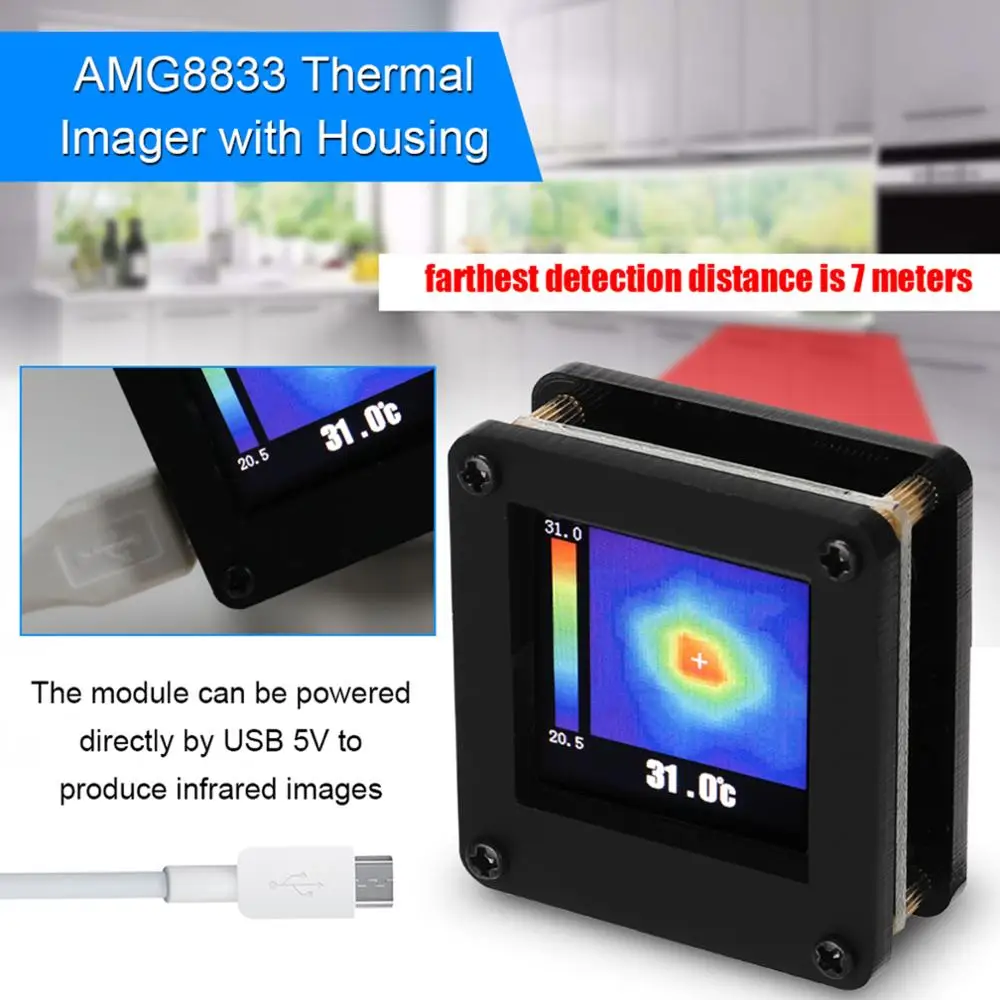

1 * AMG8833 Thermal Imager with Housing

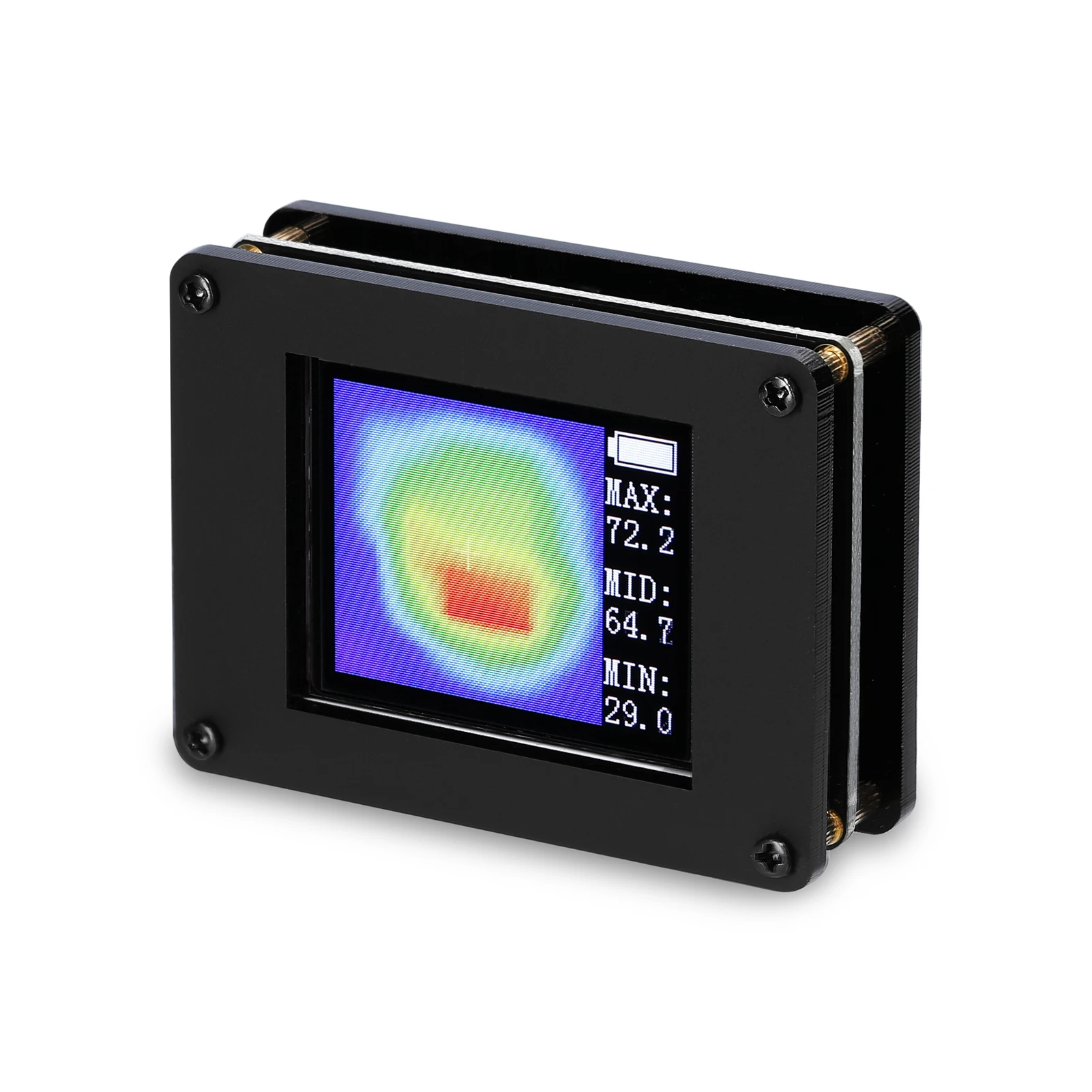

AMG8833CP battery

Features:

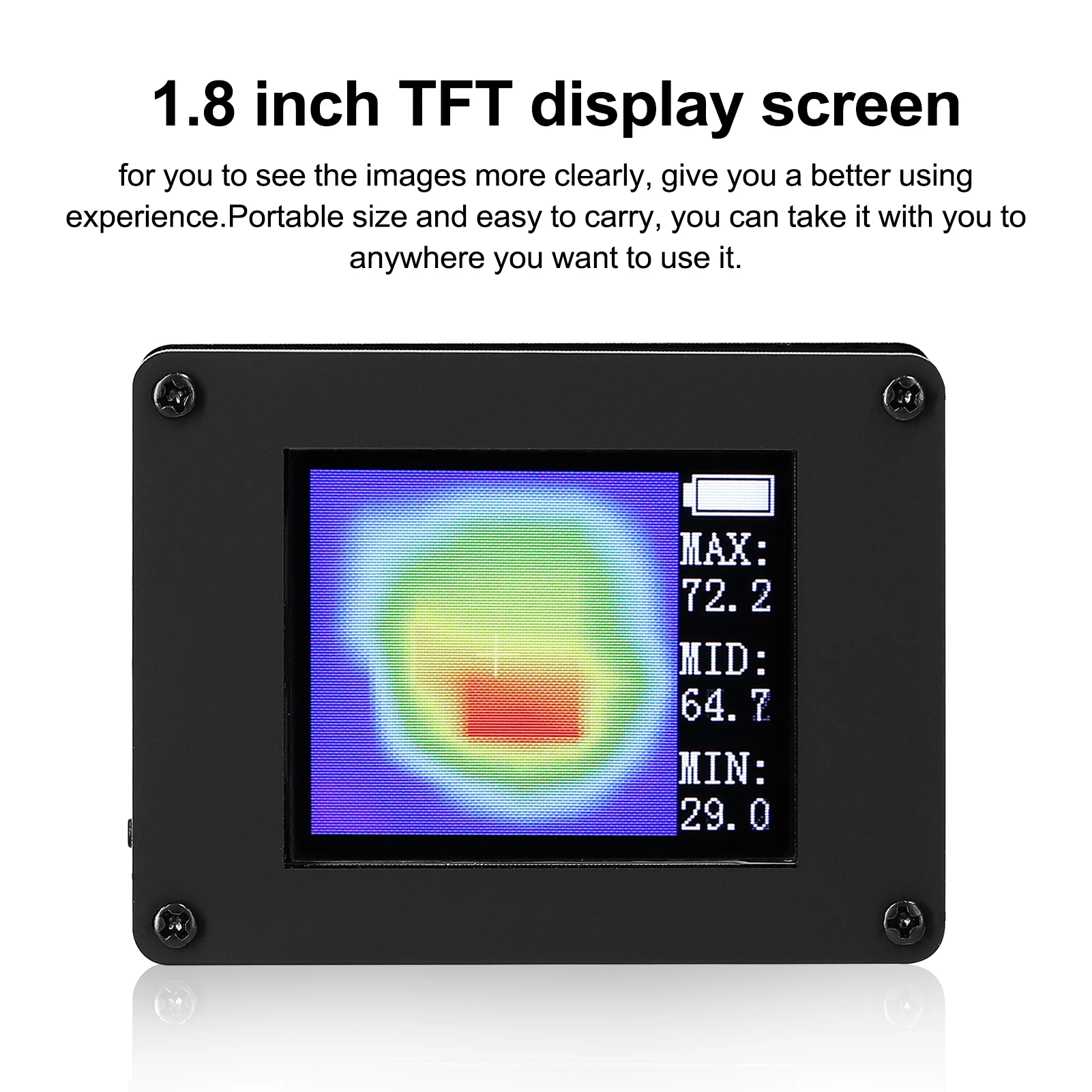

1.8 inch TFT display screen for you to see the images more clearly, give you a better using experience.
Temperature measurement ranges is 0~80℃ that can meet your most needs.

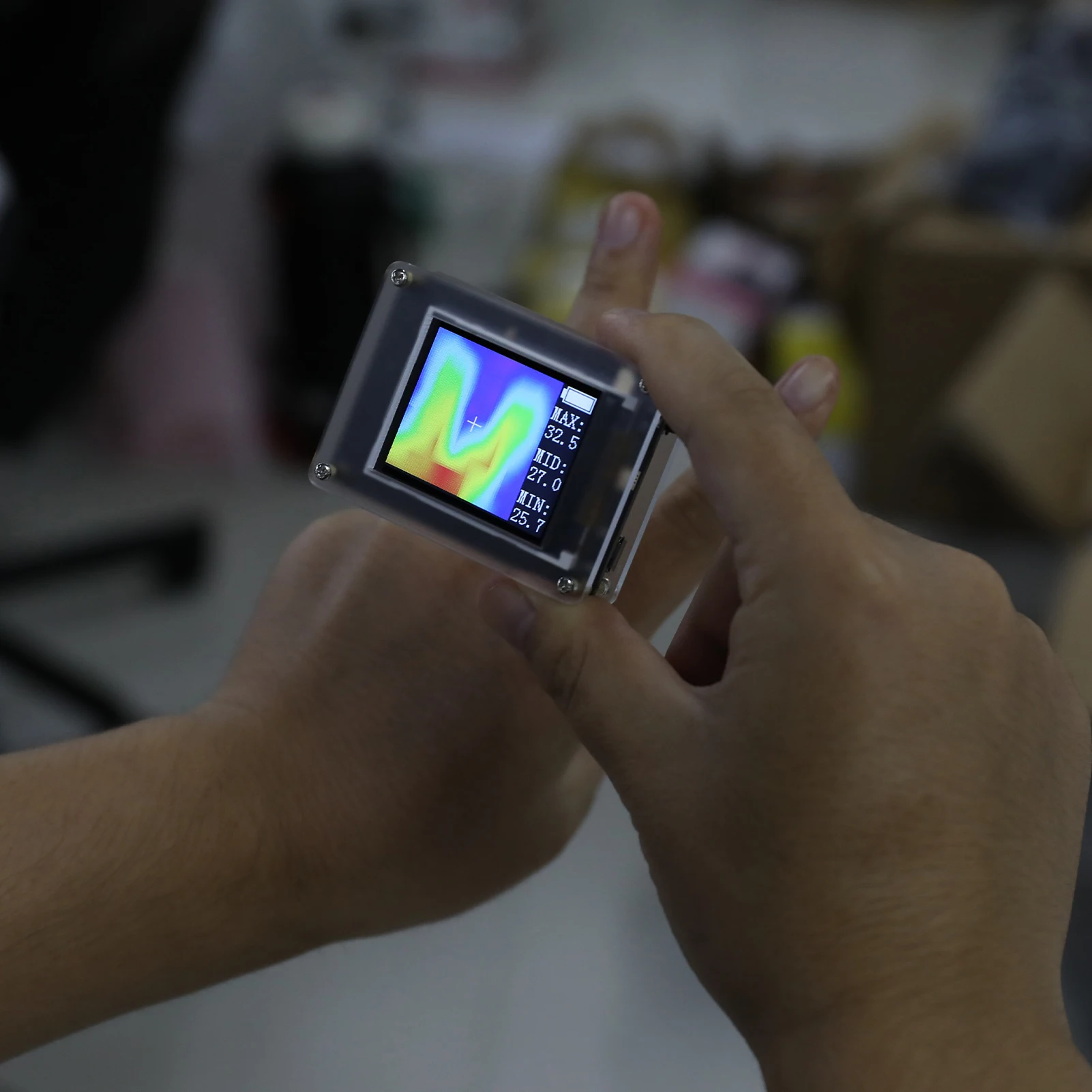

Portable size and easy to carry, you can take it with you to anywhere you want to use it.

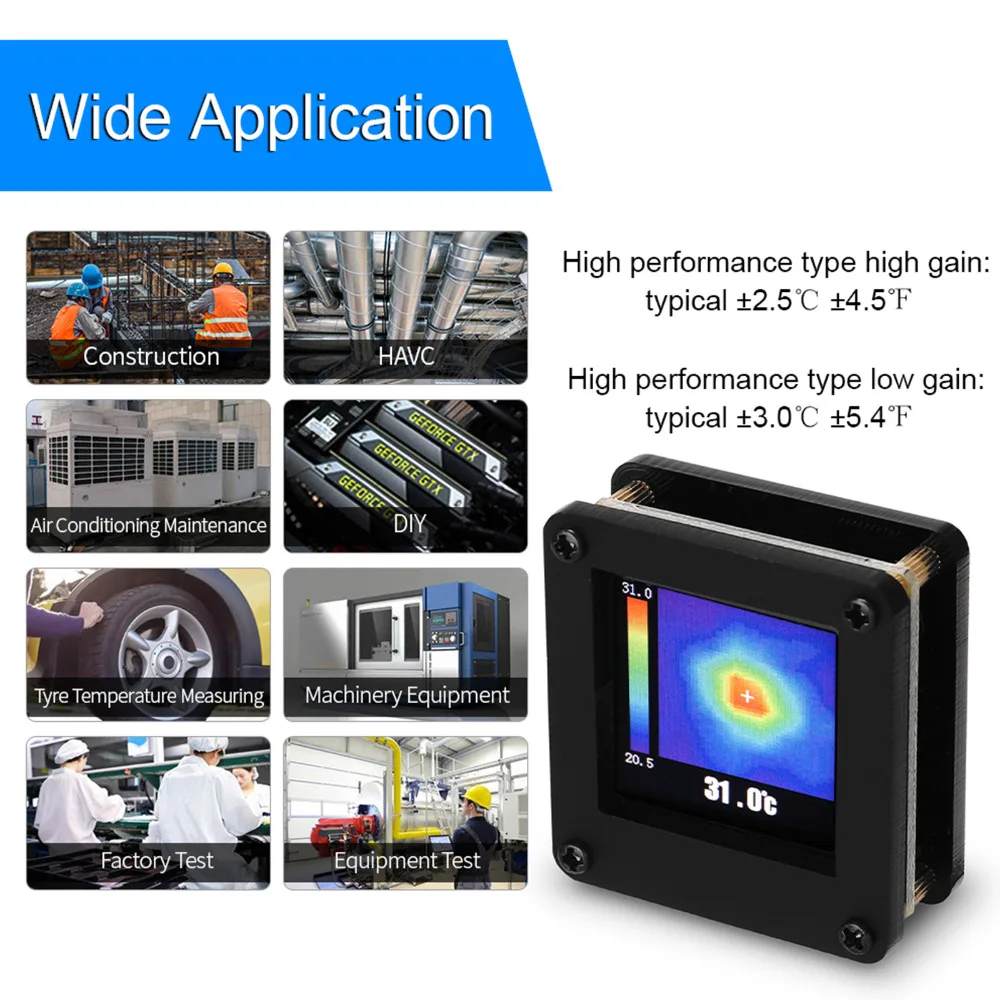

It can be applied to check electronic products and has a wide applications.
Built-in lithium battery, so you can recharge in time when there is no electricity, no need to worry about the sudden power failure affecting the use.

Specifications:
Material: PCB
Color: black
Resolution: 8*8
Temperature measurement ranges: 0℃~80℃
Measurement accuracy: ±3.5℃(Central point, 20~50℃)
Operate temperature : 10℃~50℃
Operate humidity: ≤70%
Refresh rate: 10Hz
FOV: 60°*60°
Power port: USB 5V
Battery: 1 * lithium battery, 200mAh (included)

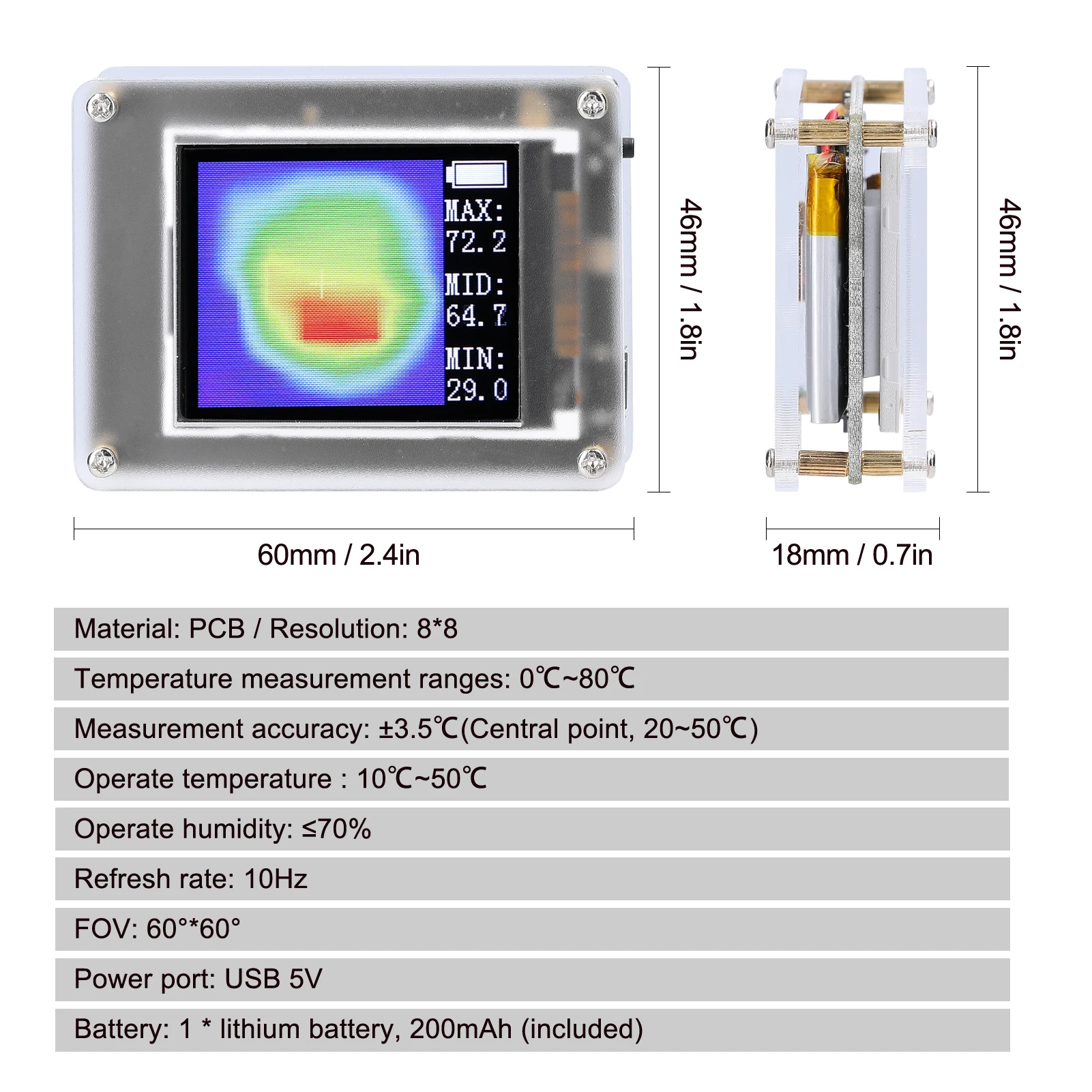

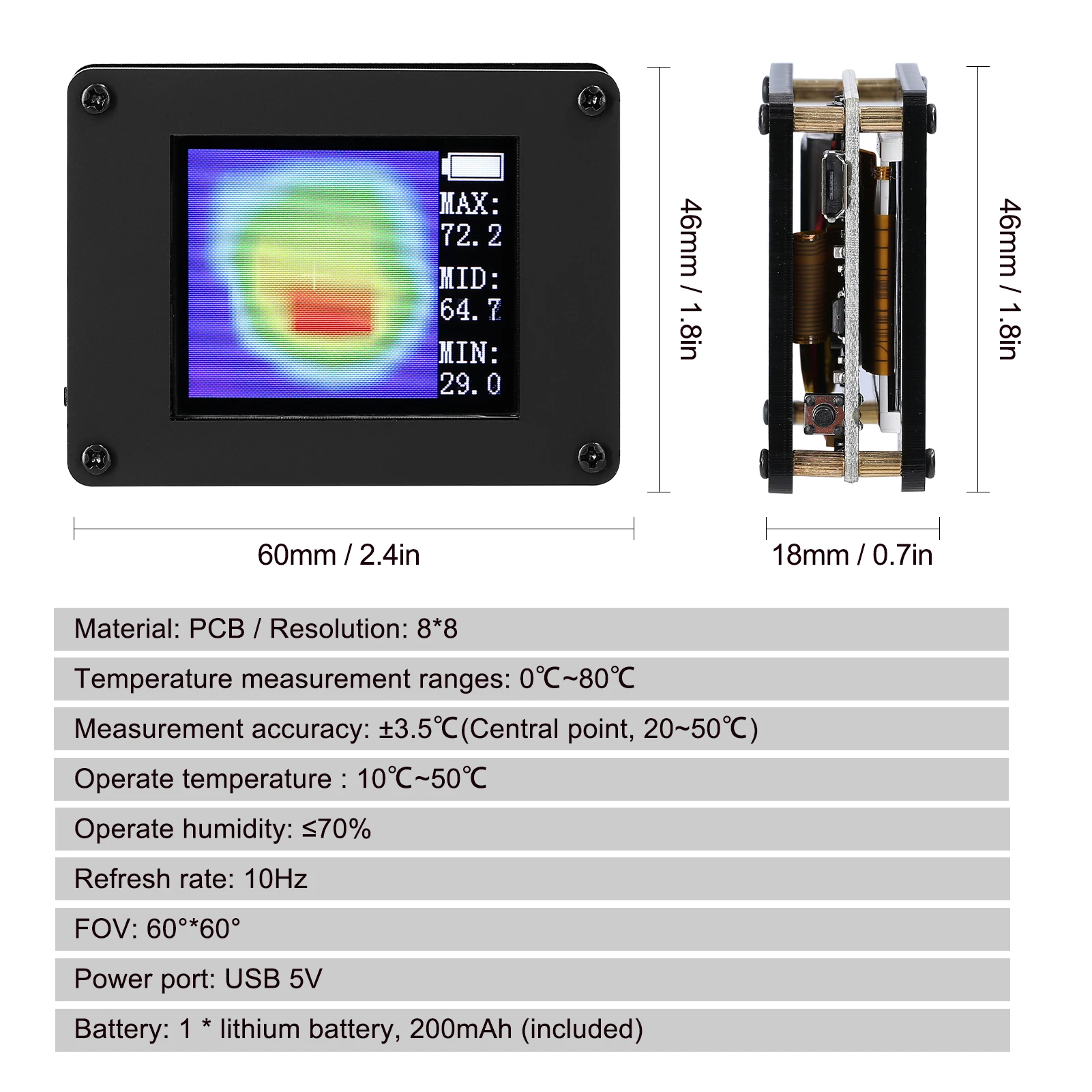

Item size: 60 * 46.0 * 18mm / 2.4 * 1.8 * 0.7in
Item weight: 37g / 1.3ounce
Package size: 85 * 60 * 30mm / 3.3 * 2.4 * 1.2in
Package weight: 52g / 1.8ounce

Packing list:
1 * Simple Infrared Thermal Imager
