AC Electric Regulator Motor Speed Controller 220V 4000W SCR Temperature Voltage With Fan Big Power Brightness Dimmer | Обустройство

Description:
This is a easy-to use voltage regulator for controlling light brightness, speed or temperature. The big power voltage regulator is equipped with two-way silicon controlled rectifier, which is very convenient and practical. The voltage regulator has a large power and can be used for large household or small industrial electrical appliances of which power is less than 4000W(for resistive loads only, power should be reduced for inductive or capacitive loads).

Features:
This item has two-way large power silicon controlled rectifier and the current can be up to 20A, which is a good solution to over current of electric stove wire caused by low resistance during cooling
Convenient to use, simply connect input terminals to either live wire or neutral wire(110V to 220V) and output to load, then rotate knob to control voltage
With a wide voltage regulating range, the output voltage can be easily adjusted from 0V to 220V
Could be widely used as heat controller on electric stoves, water heaters, light dimmer on lamps, speed controller on small motors, or temperature controller on electric soldering iron, etc
The resistive load power should be less than 4000W, and power should be largely reduced(half or more) for inductive or capacitive loads, otherwise controller and load will burn out

Specifications:
Input Voltage: AC110V to 220V
Max Power: 4000W (resistive load)
Output Voltage: Variable from 0V to 220V AC

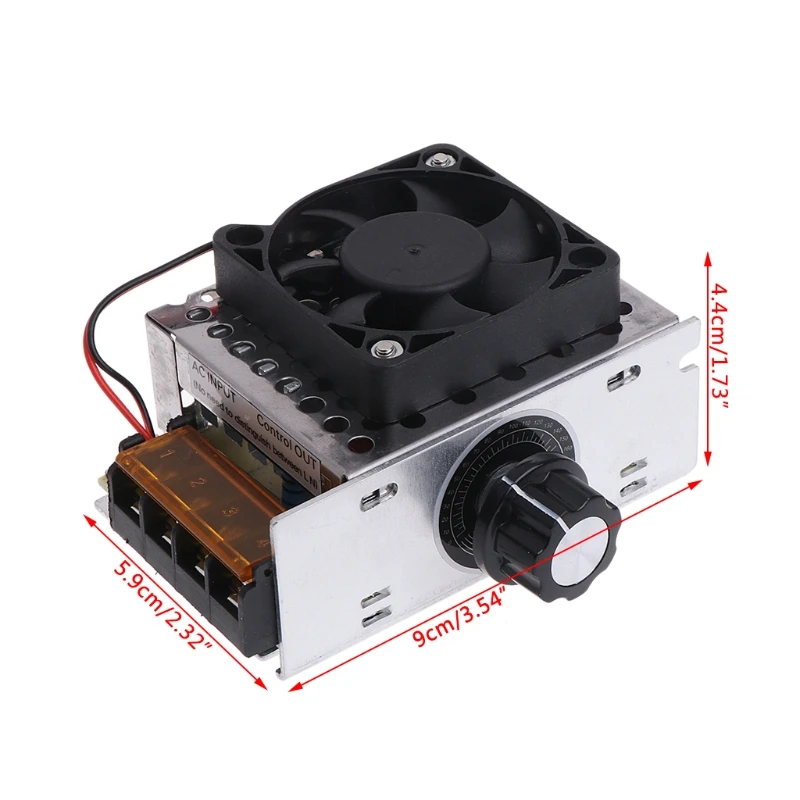

Size: 9x5.9x4.4cm/3.54x2.32x1.73"
Quantity: 1 Pc

Note:
Please allow 0-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

No Retail Package
Package Includes:
1 x Voltage Regulator
