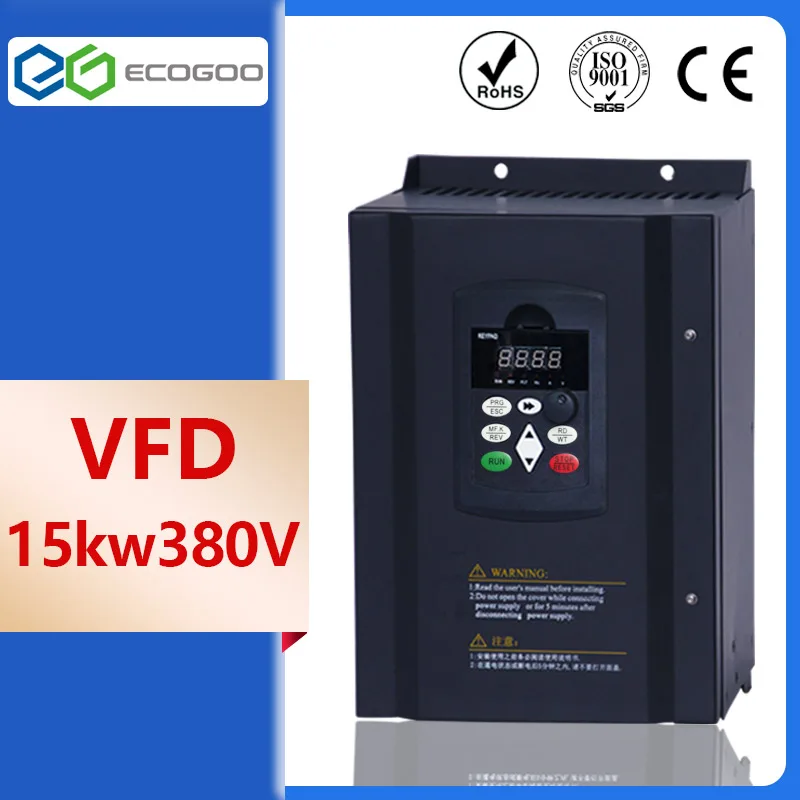

15KW/3 Phase 380V/32A VSD Inverter- Free Shipping-Shenzhen EG vector control 15KW Frequency inverter/ Vfd 15KW

Package include:

1.Output Power:15kw

2.Rated current:32A

2.Rated Frequency :50hz/60hz

3.Output Frequency Range:0~650Hz

4.Input Voltage Range:3 phase  380V±15%

5.Output Voltage Range:3 phase 380V±15%

6.Control way: Open loop vector control(SVC)      V/F control

7.Starting Torque: G type machine:0.5Hz/150%( SVC)

8.Main function: Control and adjust the speed of the ac motor

+Advantages of  Frequency inverters

We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:
01 V/F control, vector control  and output torque control;
02 Built-in RS-485 communication interface

03 Compact size, easy to install;
04 With a speed potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed control modest,Can run automatically;
07 Can choice multiple running commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
10 6 digital opto-isolated inputs, 100 kinds of ways optional;
11 3 analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile
      equipment;
13 Built-in user timer / counter;
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,
      pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake
      function,instead foreign inverter application on freight elevator and crane.

​
