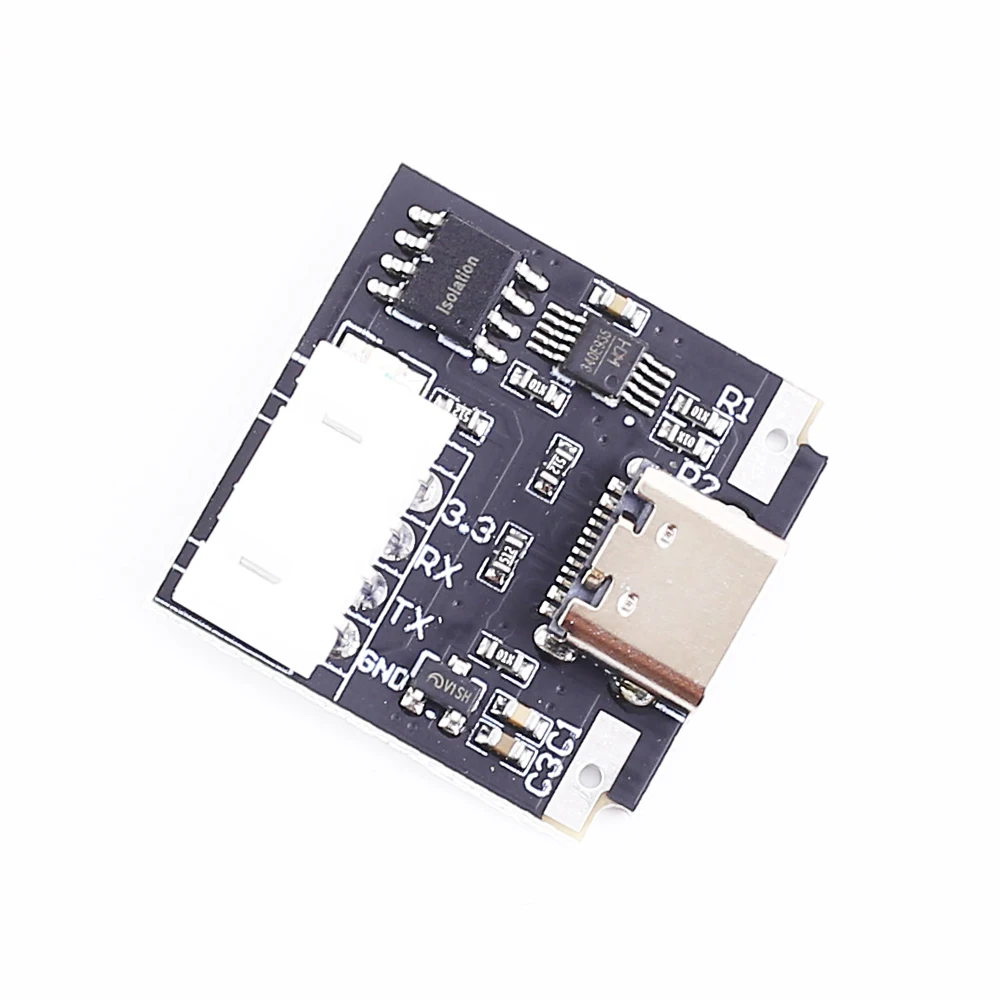

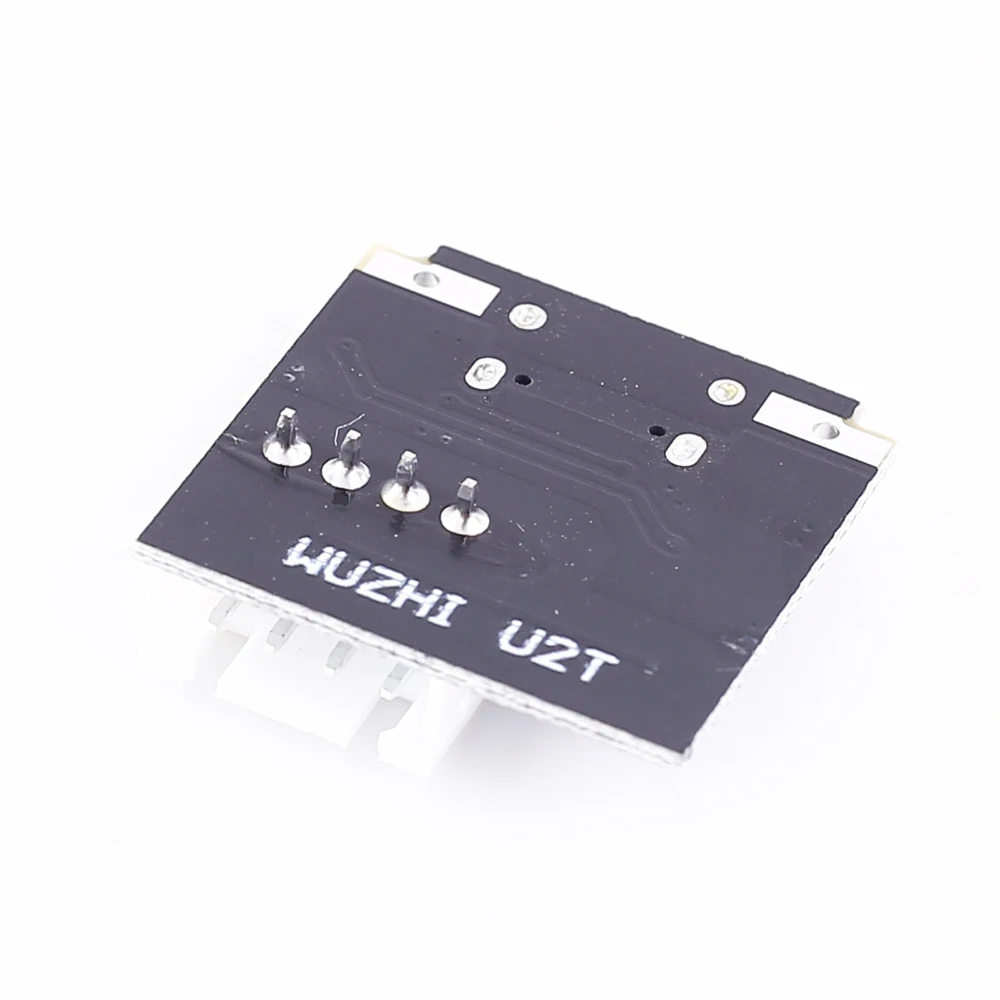

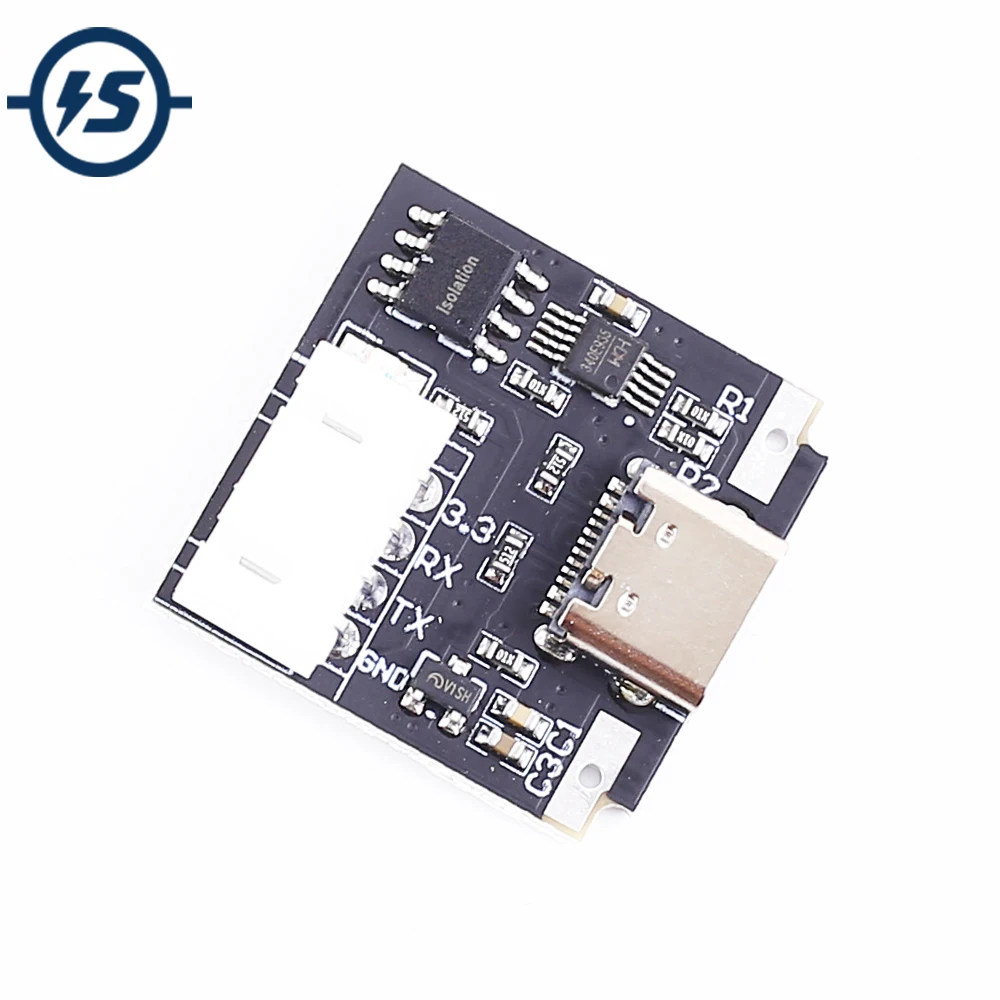

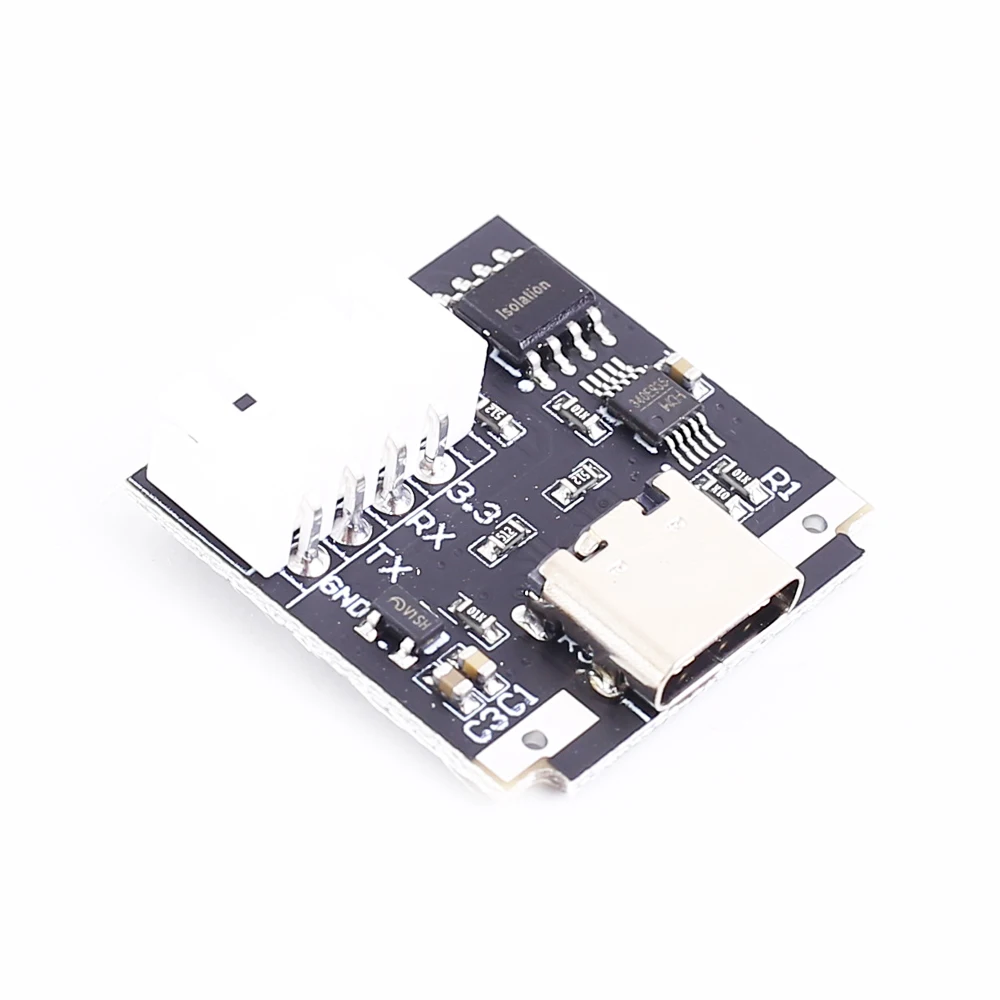

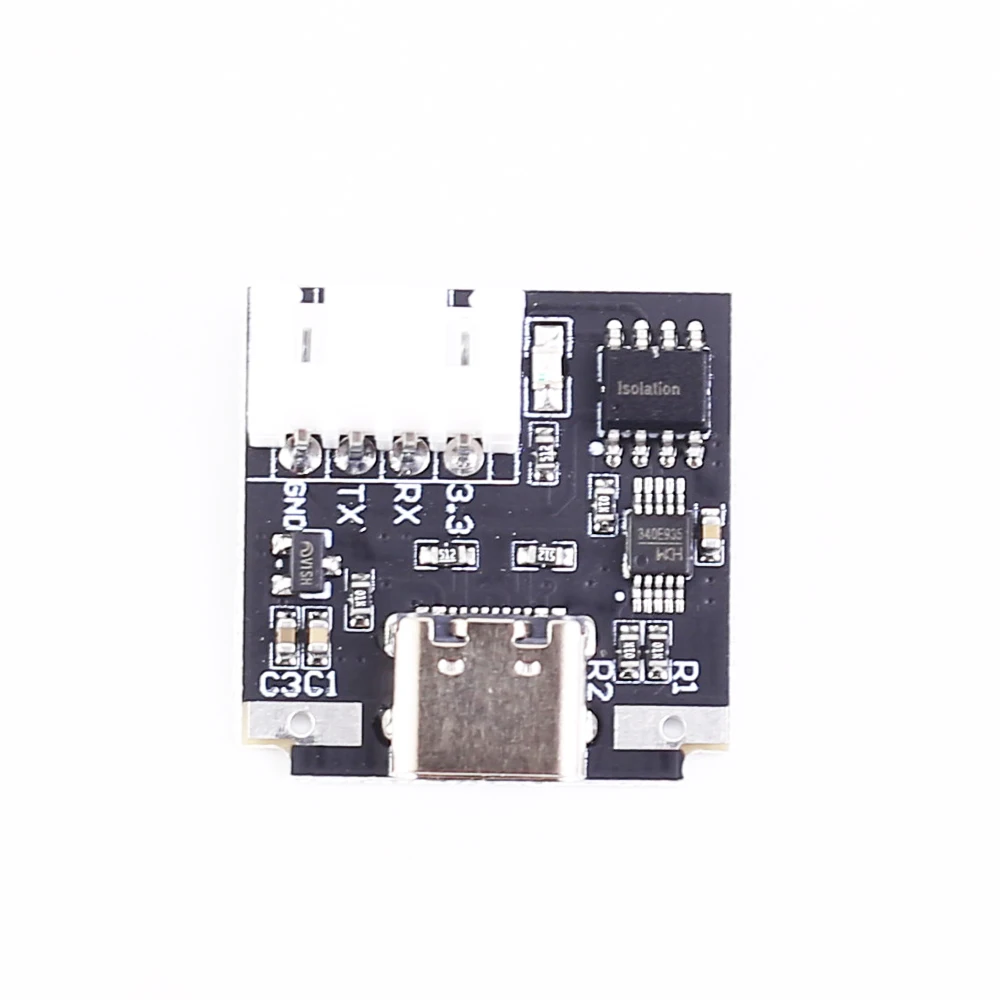

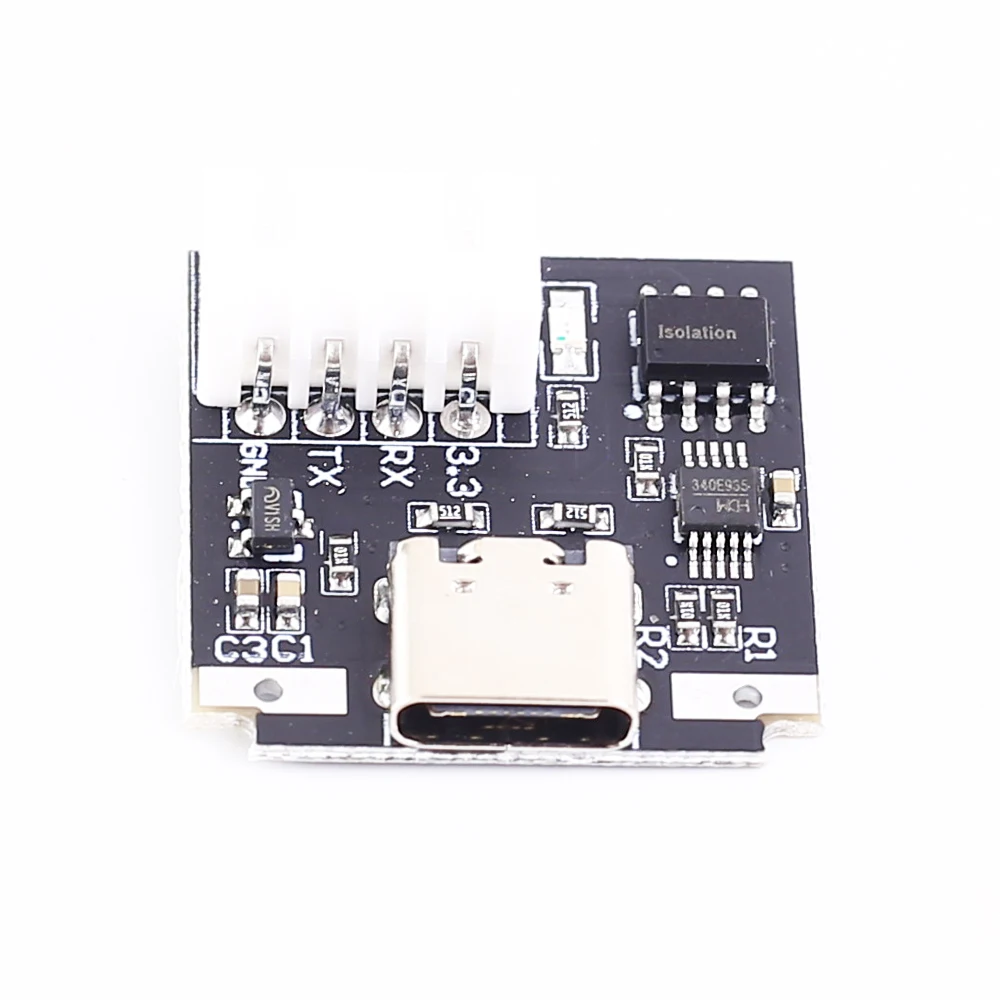

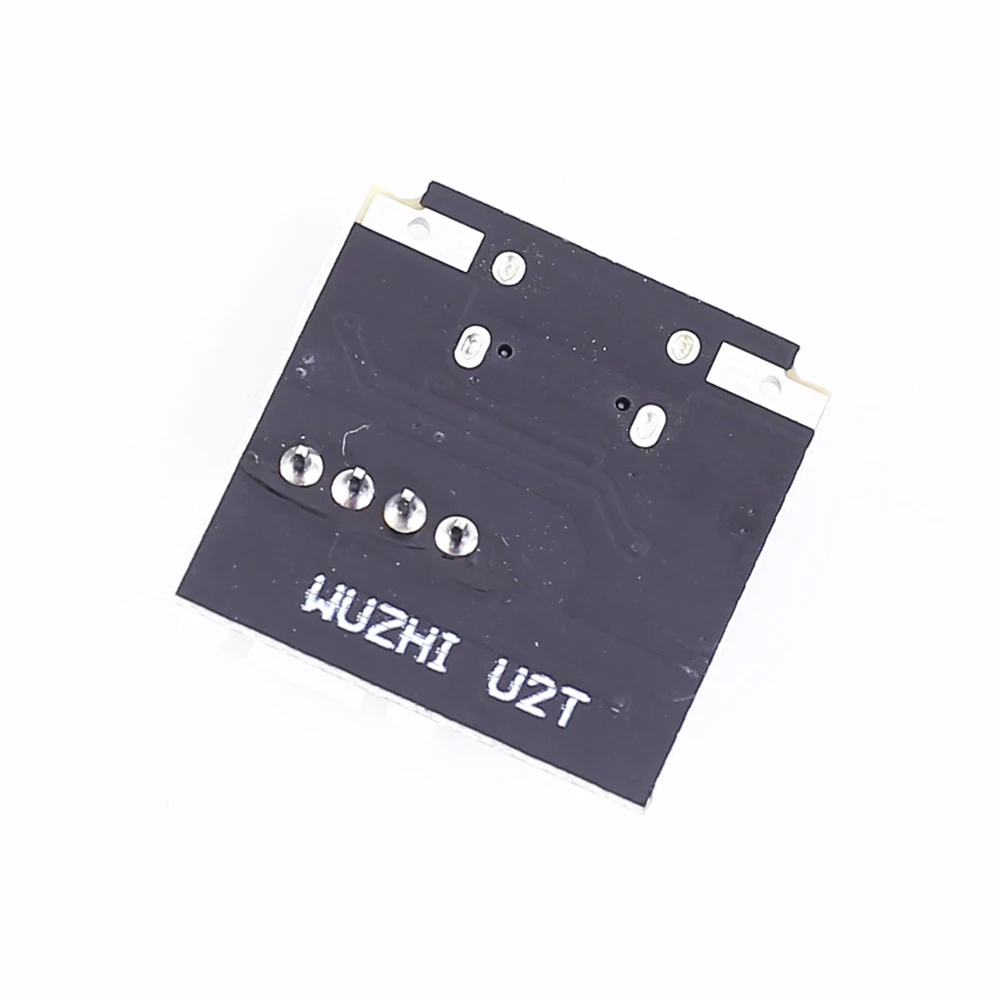

ZK-U2T Isolated USB to TTL Converter Module

1.Description:

ZK-U2T is a Isolated USB to TTL Signal Converter Module.It can be used to convert between USB and TTL signals to achieve smooth communication between different devices.Its driver IC is CH340 and Built-in Type-C USB Female socket.

2.Features:

1>.Isolated input and output signals

2>.3.3V signal output

3>.Pure hardware equipment

4>.Built-in power indicator

3.Parameters:

1>.Product name:ZK-U2T Isolated USB to TTL Converter Module

2>.Model:ZK-U2T

3>.Work Voltage:DC 5V

4>.Signal Voltage:3.3V

5>.USB output type:Type-C Female Socket

6>.Controller IC: CH340E

7>.Protocol:Pure hardware equipment

8>.Baud rate:25600bps(Max)

9>.Isolation level:voltage and signal both are isolated

10>.Support OS: Win98/CE/2000/2003/2008/XP/Win7/Win8/Win10/Vista/Linux/MAC

11>.Work Temperature:-40℃~85℃

12>.Work Humidity:0%~95%RH

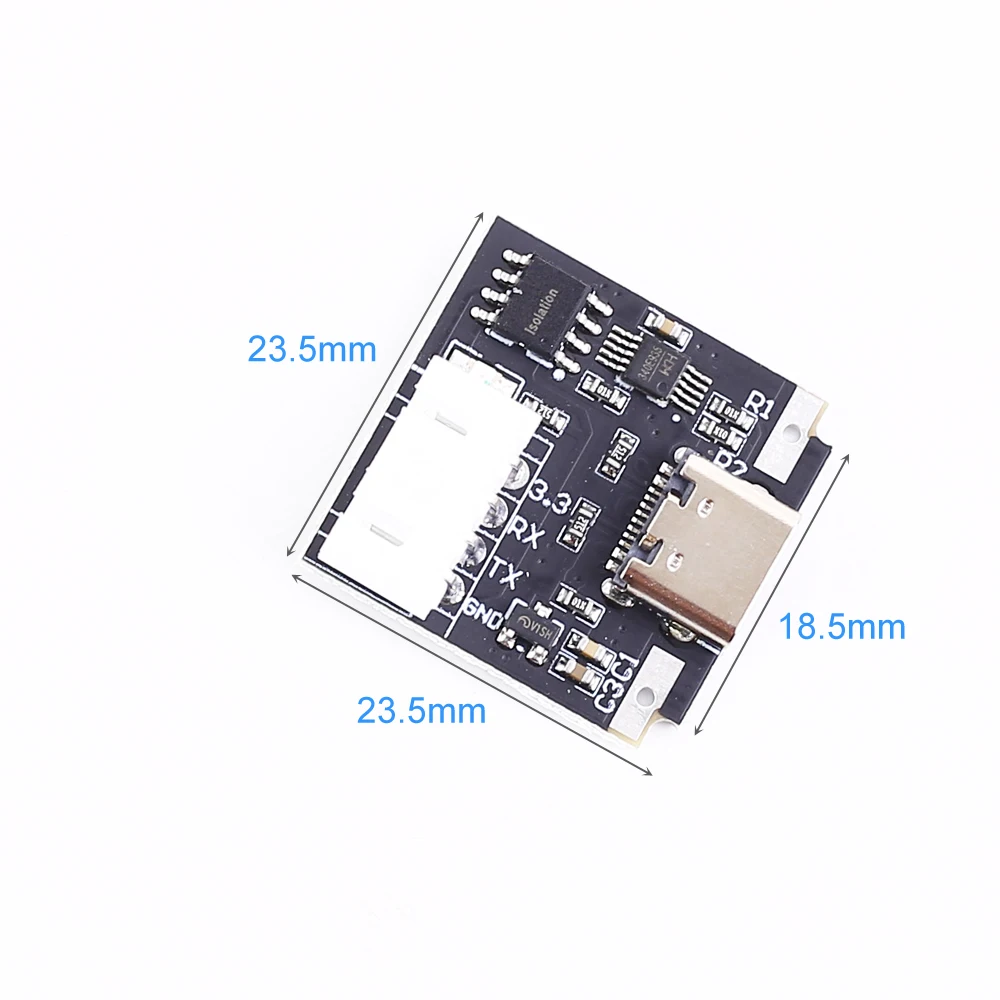

13>.Module Size:23.5*23.5*9mm

4.Use steps:

1>.Install CH340 driver.We can provide driver software and please connect to us.

2>.Connect ZK-U2T to PC by USB cable.

5.Application:

1>.Data collection

2>.Signal conversion

6.Note:

1>.Its work voltage is 5V but input/output signal is 3.3V.The signal can not supply 5V.

2>.Please don’t use too long wires to avoid signal interference.

3>.Please read use manual and description before use.

7.Frequently Asked Questions:

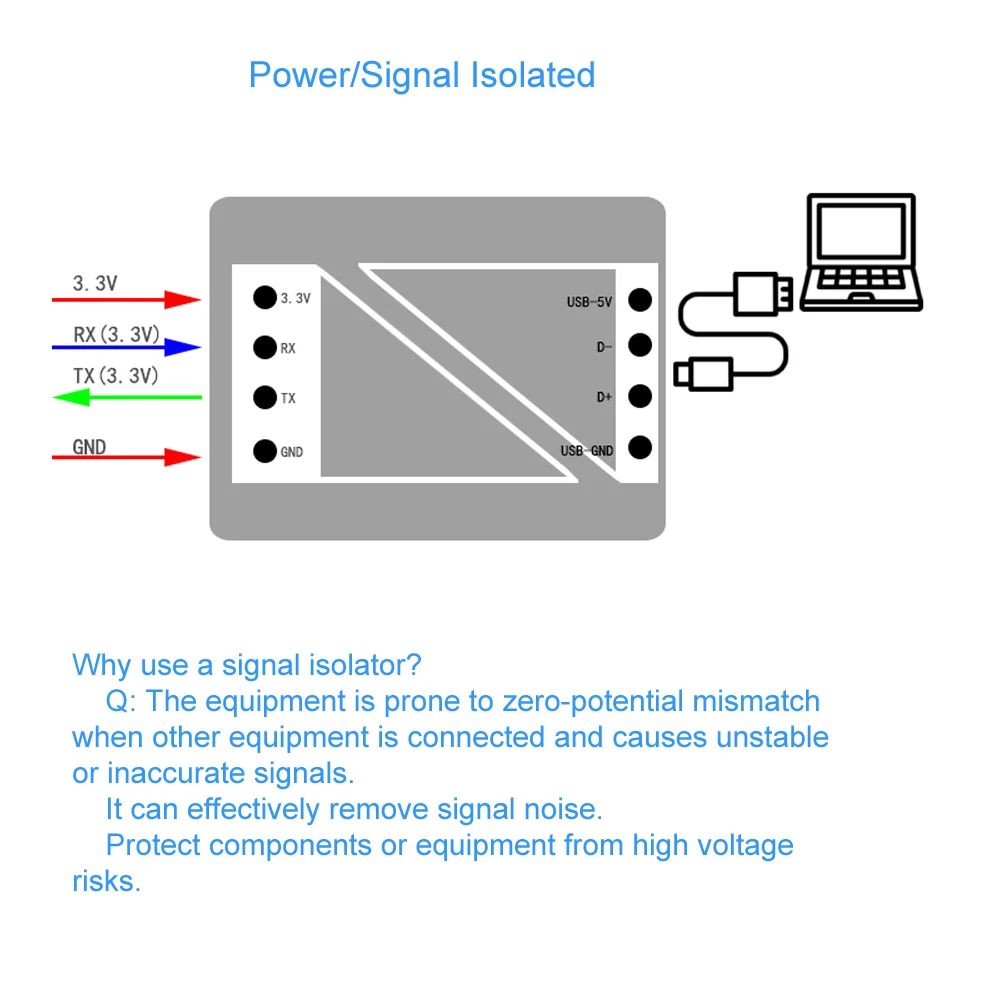

1>.Why use a signal isolator?

Q: The equipment is prone to zero-potential mismatch when other equipment is connected and causes unstable or inaccurate signals.

It can effectively remove signal noise.

Protect components or equipment from high voltage risks.

8.Package:

1>.1pc ZK-U2T Isolated USB to TTL Converter Module
