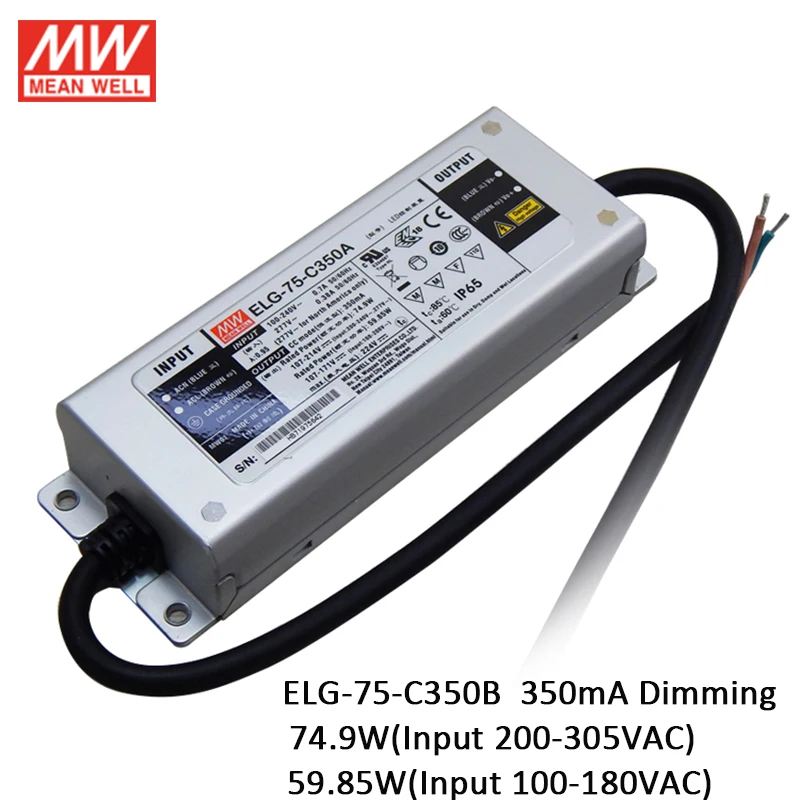

MEAN WELL ELG-75-C350B 3Y 75W 350mA 107~214V Constant Current Dimming led driver 110V/220VAC waterproof Dimmable Power Supply |

MEAN WELL ELG-75-C350B 3Y 75W 350mA 107~214V Constant Current Dimming led driver 110V/220VAC waterproof Dimmable Power Supply |

For your reference, please follow the steps below to check the validity of our products.

Step1: Open the official website of MeanWell at www.meanwell.com Step2: Click on the "Service" button at the top of the page and find the "Quality Control Inspection Report" Step3: Enter the serial number and click search

Features

1.Constant Current mode output 2.Metal housing design with functional Ground 3.Built-in active PFC function 4.No load / Standby power consumption50000 hours 8.5 years warranty

Applications

LED street lighting LED harbor lighting LED bay lighting LED greenhouse lighting LED flood lighting Type “HL” for use in Class I, Division 2(Classified) location

Description

ELG-75-C series is a 75W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-75-C operates from 100~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks t othe high efficiency up to 91%,with the fanless design, the entire series is able to operate for -40 ~+85°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allowsthis series to fit both indoor and outdoor applications. ELG-75-C is equipped with various functionoptions, such as dimming methodologies, so as to provide the optimal design flexibility for LEDlighting system.
