Linear length sensor cable pulse encoder displacement 2500 line | Электронные компоненты и принадлежности

Model 1: NPN 1000mm Model 2: NPN 1500mm Model 3: NPN 2000mm Model 4: NPN 2500mm Model 5: NPN 3000mm Model 6: NPN 4000mm Model 7: NPN 5000mm Model 8: PNP 1000mm Model 9: PNP 1500mm Model 10: PNP 2000mm Model 11: PNP 2500mm Model 12: PNP 3000mm Pull line encoder-400 line Large quantity and many discounts

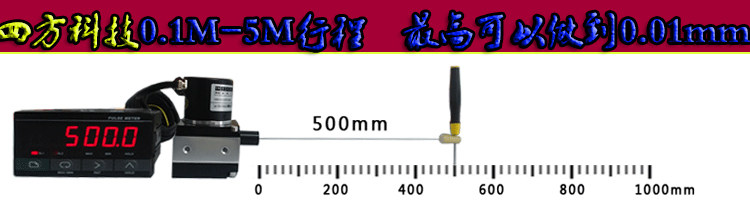

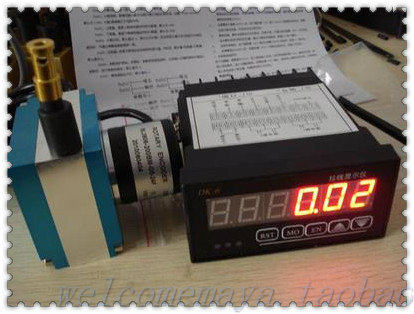

Pull-line encoder practical test and application

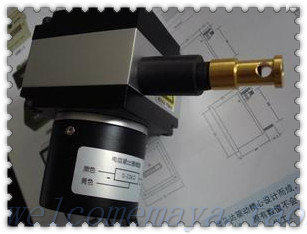

Anatomy of the internal structure of a pull-wire encoder

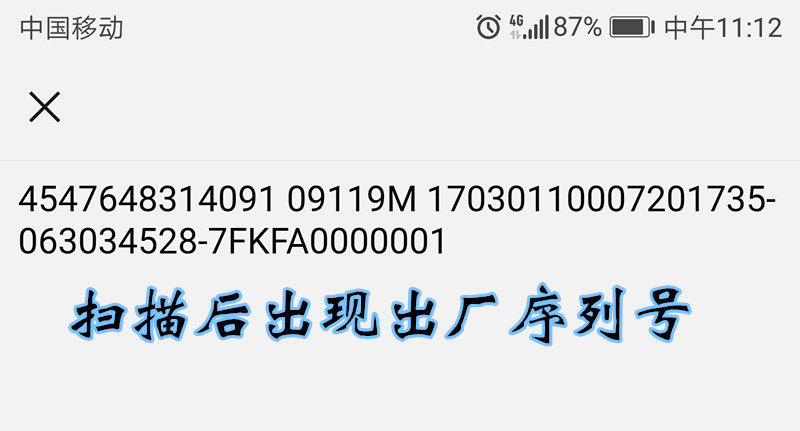

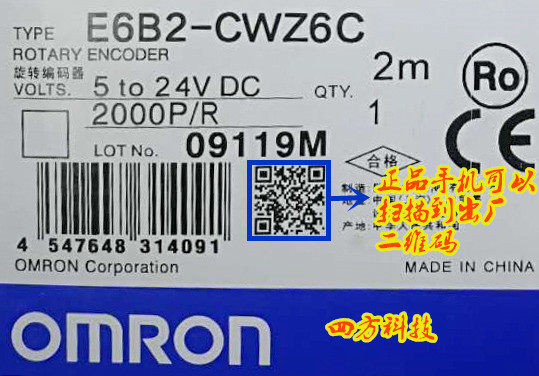

Two-dimensional code of the original manufacturer's encoder box   Scan the factory serial code with your mobile phone









Exquisite workmanship with imported bearings



全部采用合金构架坚固牢靠

















The all-metal structure is not only compact and stable. Because it is super wear-resistant, the accuracy is very high. It is not subject to measurement errors caused by wear and tear, so do n’t try to buy a plastic pull cord encoder cheaply.

We have the following advantages with the 400 pulse encoder:          1. Because 400 can be divisible by all lengths. It eliminates technical errors caused by inexhaustible division from the source.         2. The accuracy corresponds to the error of +/- 0.2mm in general occasions, which has fully satisfied the production requirements.         3. High pulses will cause pulses to be easily lost during accelerated motion, which will result in magnified motion errors.

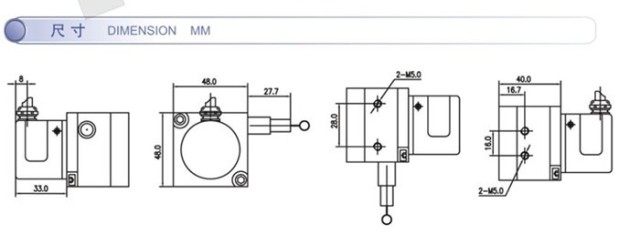

Pull wire encoder parameters:   Characteristics and uses ● Miniaturization, shape 50 * 50mm, total thickness Ф76mm, inner circumference of the retracted hub is 80MM ● All-metal casing design, durable and exquisite appearance. ● A variety of encoder pulse numbers and output circuits are available. ● Economical, easy to install, suitable for all kinds of guide rail system, hydraulic cylinder system, telescopic system, pressure machine, paper machine, textile machine, sheet metal machine, packaging machine, printing machine, level controller, construction machine And position control, industrial machinery, automation control, etc. 说明 Model description: WF20-S — ○ ○ ○ ○ B M — G ○ ○ ○     Basic cable length pulse number A B Two-way cable Power output Model 0-1200mm 1 / 10th phase difference 90 ° side out voltage method ▉ Optional pulse number: (Note: Vibration and impact resistant plastic code disc, high temperature resistant metal code disc, and high-precision glass code disc)



10、20、30、50 、60 、100、 120、 125  、200 、300 、360 、400、 500、600 、720 、900 、1000 、1024、1200、1800、2000、2500 或根据用户要求定做



 Electrical parameters Technical parameters





类型

技术数据

类型

技术数据

检测方式

增量型编码器

编码器分辨率

 10-2500线

钢丝绳

进口涂塑0.7毫米钢丝绳

轮毂周长

80毫米

拉线速度

2000mm/sMAX

重量　　　

500g

测量行程

最大1200毫米

拉力

3.5N

解析

0.008 mm/pulse

工作溫度

-25℃～+85℃

输出相

ABZ（增量型）

工作电压

DC5-24v

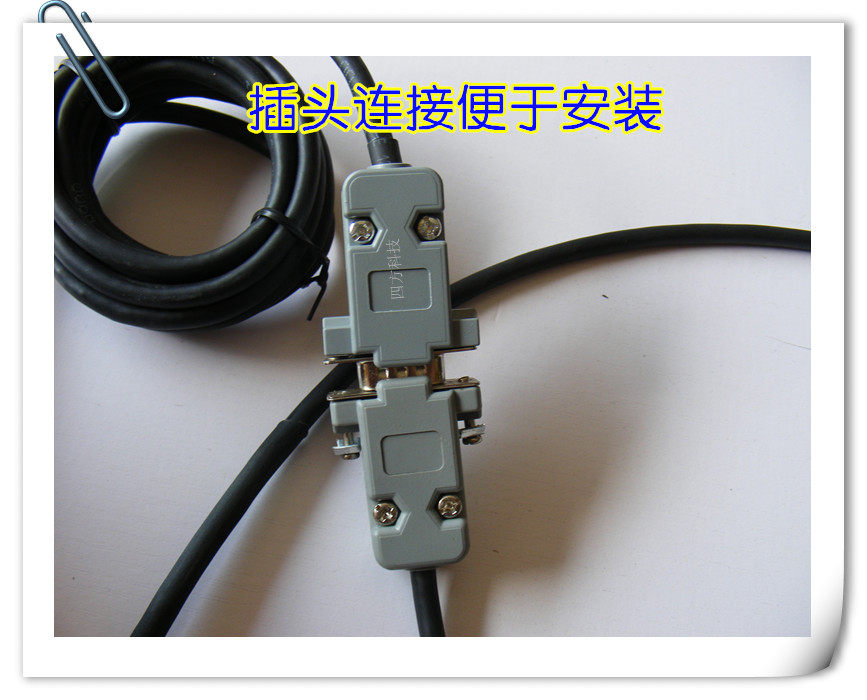

Installation method:   In operation, the displacement sensor is installed in a fixed position, and the pull rope is tied to a moving object. The linear movement of the pull rope is aligned with the moving axis of the moving object. When the exercise takes place, the drawstring stretches and contracts. An internal spring keeps the tension of the drawstring constant. The threaded hub drives the precision rotation sensor to rotate and outputs an electrical signal proportional to the distance the rope is moved. Measure the output signal to get the displacement, direction or velocity of the moving object.
