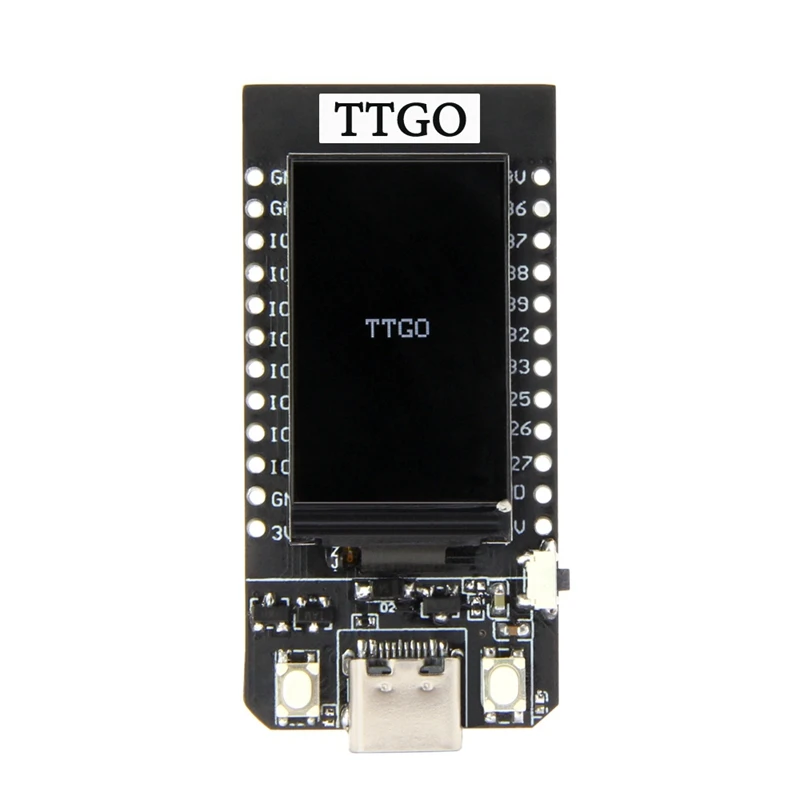

Ttgo T-Display Esp32 Wifi and Bluetooth Module Development Board for Arduino 1.14 Inch Lcd | Электроника

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; }

Bluetooth
Protocol Meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency CVSD&SBC audio frequency
Product Description
Hardware Specifications
Chipset ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASH QSPI flash 4MB
SRAM 520 kB SRAM
Button Reset
USB to TTL CP2104
Modular interface UART,SPI,SDIO,I2C,LED PWM,TV PWM,I2S,IRGPIO,ADC,capacitor Contact sensor,DACLNA pre-amplifier

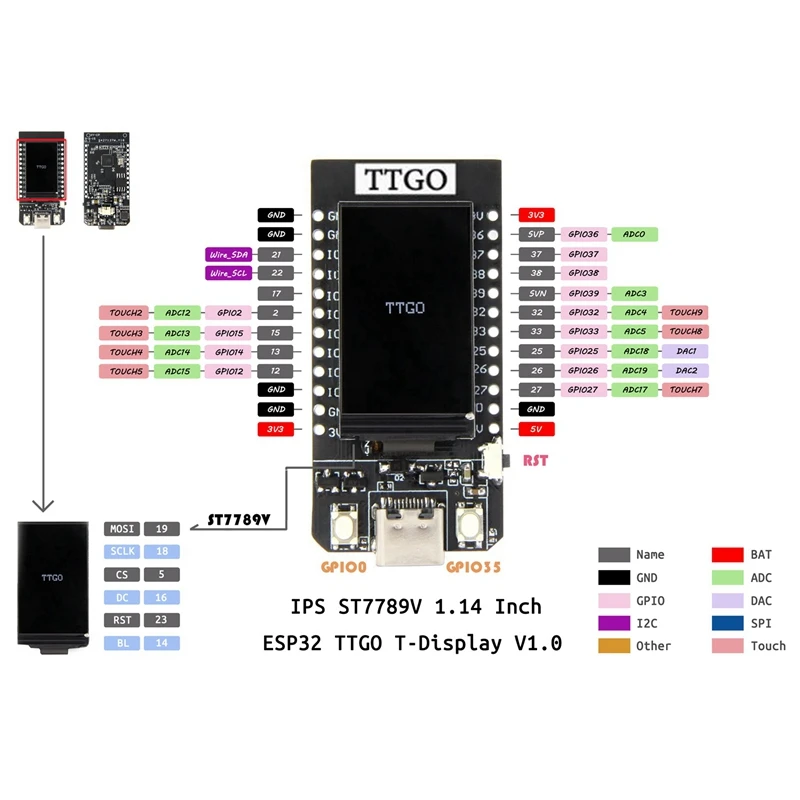

Display IPS ST7789V 1.14 Inch
Working voltage 2.7V-4.2V
Working current About 60MA
Sleep current About 120uA
Working temperature range -40℃ ~ +85℃
Power Supply Specifications
Power Supply USB 5V/1A
Charging current 500mA
Battery 3.7V lithium battery
JST Connector 2Pin 1.25mm
USB Type-C
Wi-Fi
Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
Protocol 802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Frequency range 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power 22dBm
Communication distance 300m
colour: black
Material: metal + PC

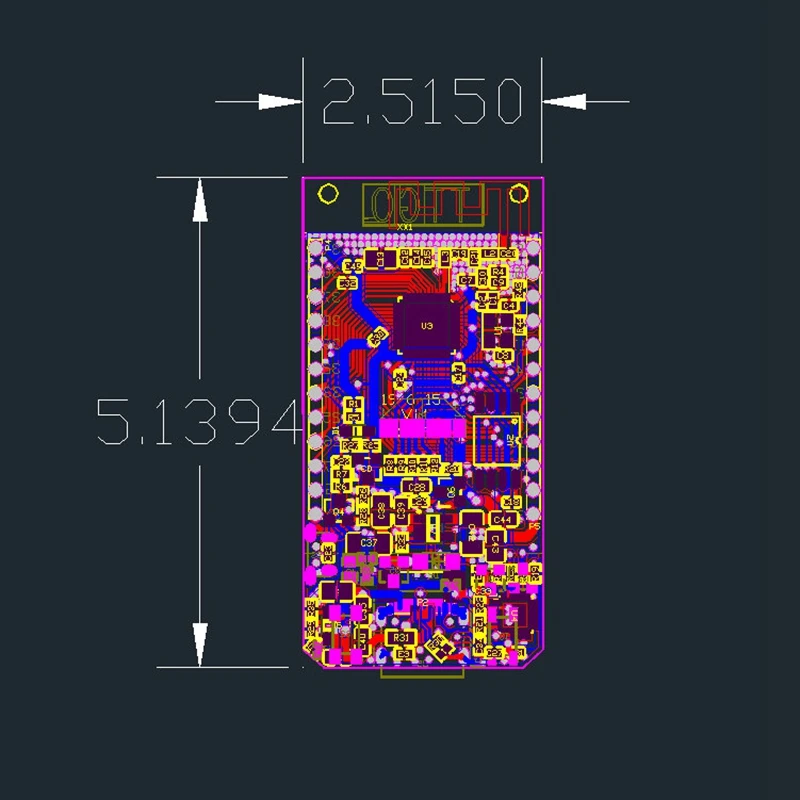

size: 51.52x25.04x8.54mm

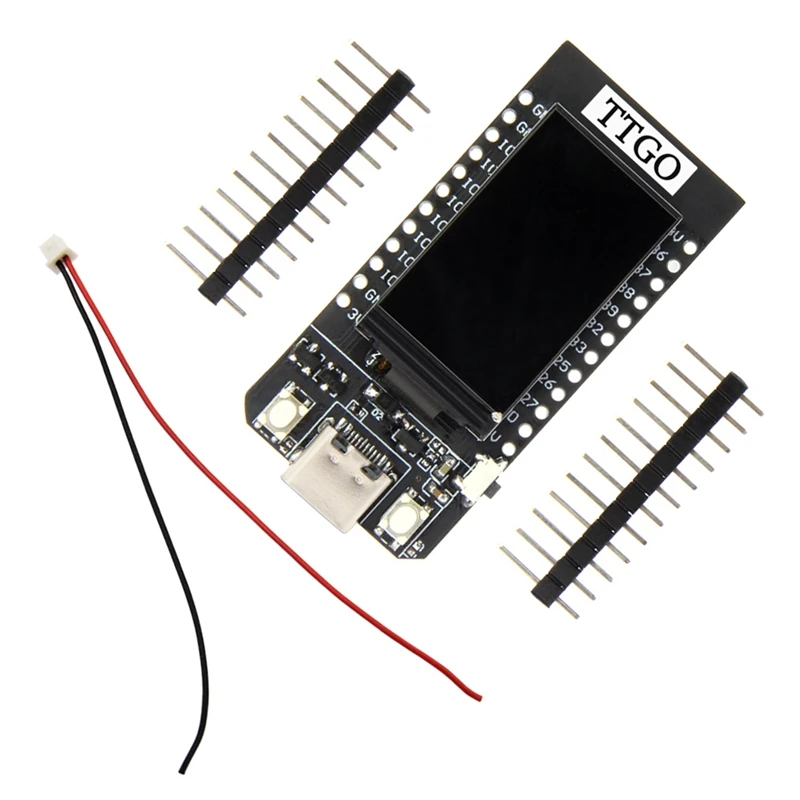

Package Contents:
1 x T-Display
1 x charging cable
2 x PIN pins
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
