13.3 inch display module kit HDMI1920X1080IPS full viewing angle built-in audio external headset 3.5

Common parameters of the LCD panel:
Model N133HSE-EA3 (CMN1361)
Diagonal size 13.3 inch
Type a-Si TFT-LCD , LCD Module
Resolution 1920 (RGB) × 1080 [FHD]
Display area 293.76 (horizontal) × 165.24 (vertical) mm
Appearance size 305.35 (horizontal) × 193.77 (vertical) × 3 (thickness) mm
Open Area - Surface Treatment Matte, Hard coating (3H)
Display brightness 350 cd/m2 (Typ.)
Contrast 700:1 (Typ.) (transmission)
Recommended perspective
Response time 14/11 (Typ.)(Tr/Td) ms
Viewing angle 89/89/89/89 (Typ.) (CR≥10) Left/Right/Up/Down
Display mode AAS, always black display, transmissive
Support color 16.7M, 72% NTSC
Light source type WLED, 15K hours, with LED driver
Interface Type 30 pins eDP (2 Lanes) , Terminal
Voltage supply 3.3V (Typ.)
Application environment Operating temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 60 °C

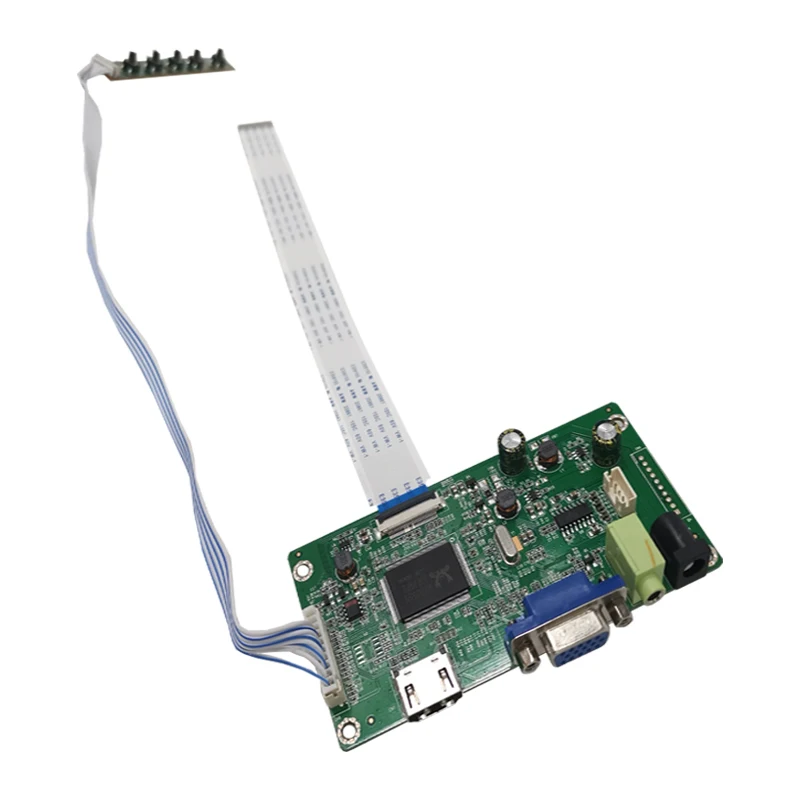

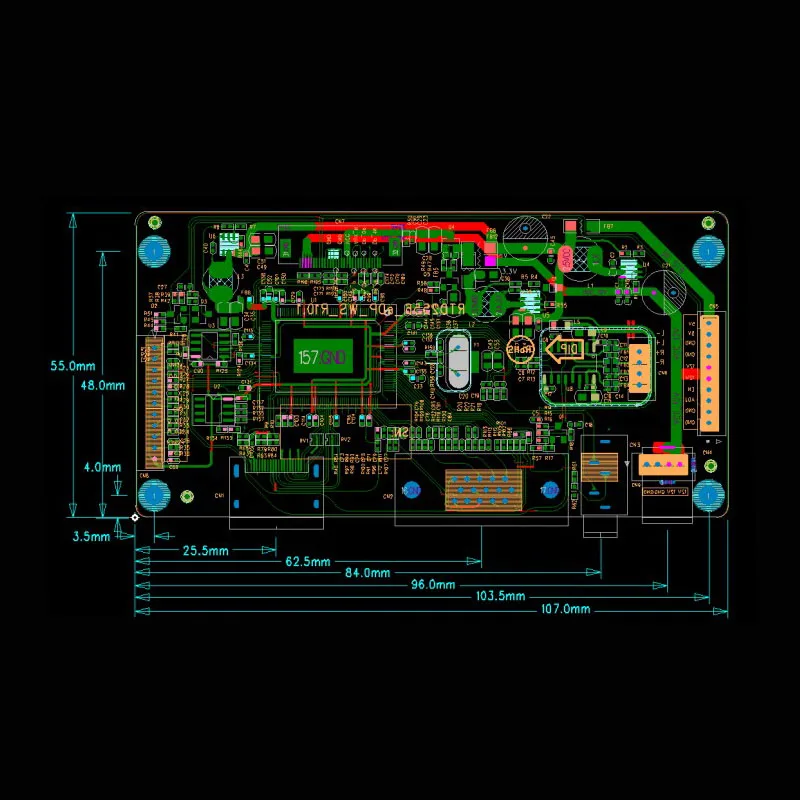

Brief description of the drive board:

1: standard HDMI type A terminal input;
2: External power input, DC voltage: 12V 1A
3: Support 1 channel audio amplifier output, the speaker specifications are: 4 ohms / 2W or 8 ohms / 1.5W;
4: Screen backlight interface: BLO (backlight enable), ADJ (backlight dimming);
5: screen line interface, EDP signal output;
6: Button interface, 5 keys, effective to ground (with button)

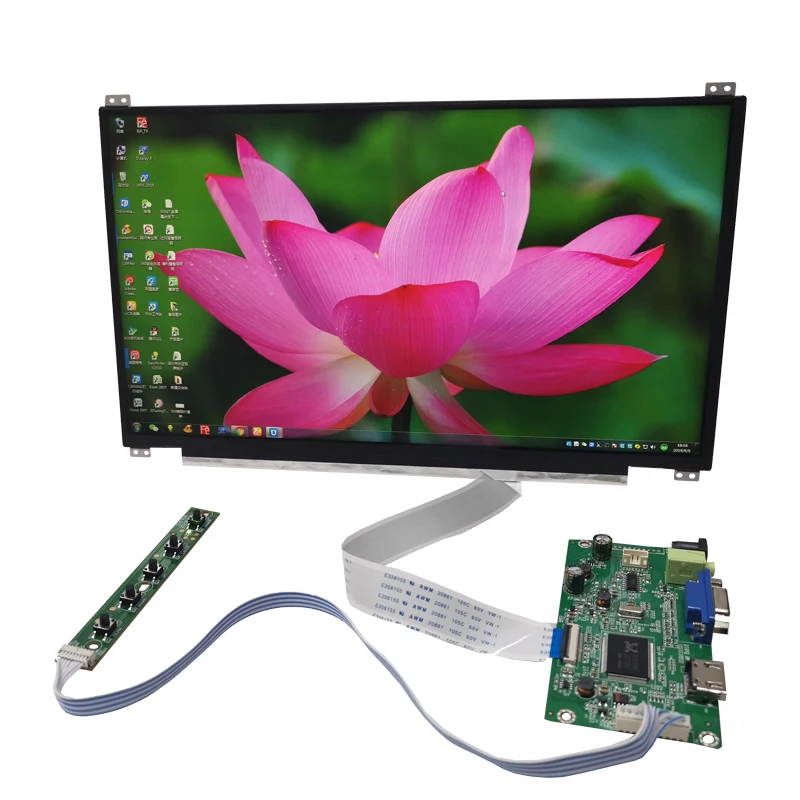

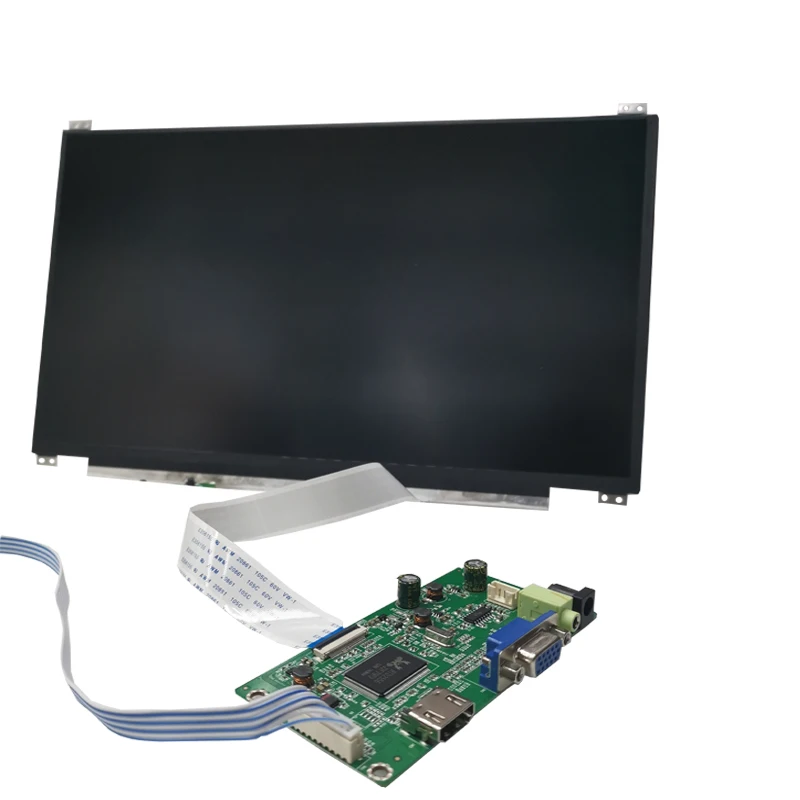

Configuration list: The picture is the actual delivery of the delivery
