100% brand new and high quality

Features:
It is a fully CNC programmable step-down power supply with small size, high power, high efficiency and stable operation. It adopts a 1.8-inch TFT color liquid crystal display to provide comprehensive and clear display data. The power supply is controlled by an advanced microprocessor and can be precisely adjusted. And display voltage and current; using buttons and knobs with the operation, set the parameters convenient and fast, very suitable for debugging, maintenance and experimental power supply.

The instrument characteristics:
The use of advanced microprocessors can accurately regulate and display the output voltage and current.

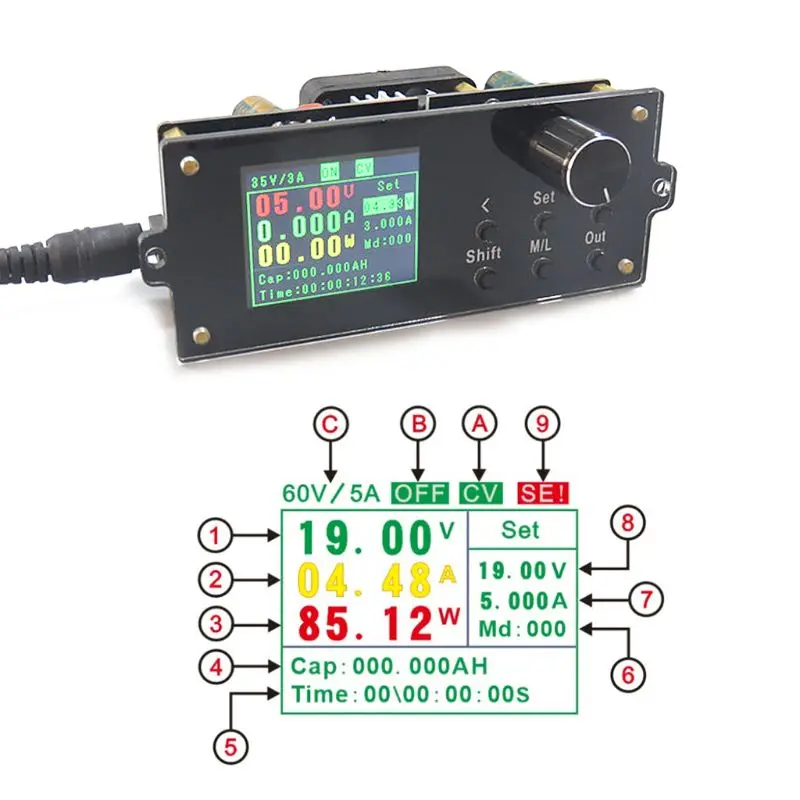

Using 1.8-inch color LCD display, real-time display of voltage, current, capacity, time and power supply operating status;
It is convenient and quick to adjust and read parameters through the cooperation of buttons and knobs, especially when saving and recalling parameters.
Can set the output overvoltage (Ovp), over current (Ocp), over power protection (Opp), the output can be turned off when the output exceeds the set value;

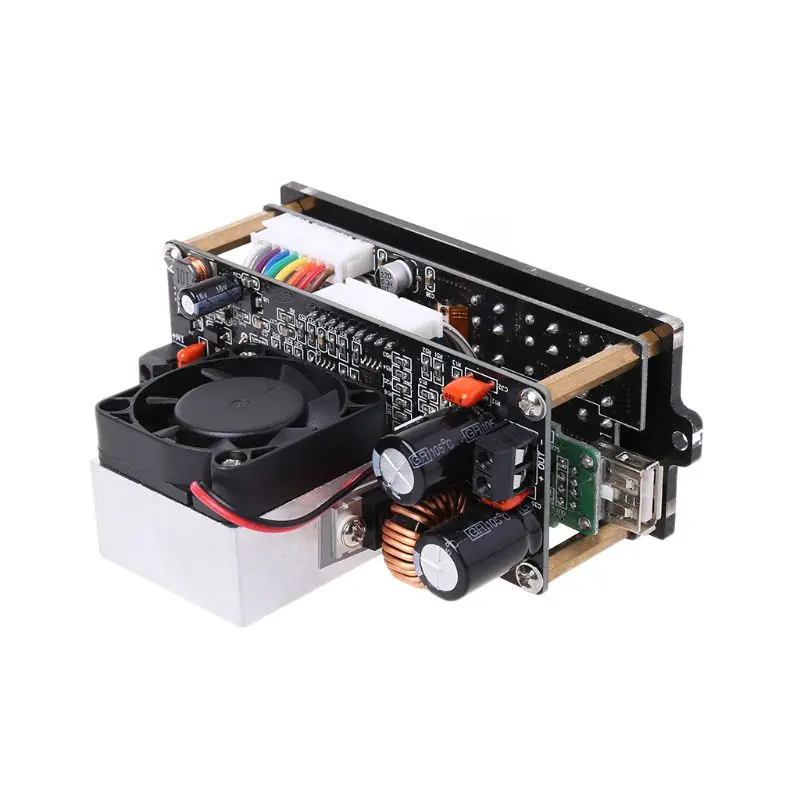

With its own cooling fan to ensure that power devices will not be damaged due to overheating;
Can constant pressure, constant current output;
With input reverse polarity protection function, it can prevent damage to the power supply due to reverse input;

Technical parameters:
DPX6005 (with communication)
Input voltage range: 6-65V
Output voltage adjustment range: 0-60V (input must be greater than the output)
Output current adjustment range: 0-5A
Input protection method: reverse protection
Output protection: (0vp) overvoltage, (0cp) overcurrent, (0pp) overpower
Output power: 0-300W
Output voltage setting resolution: 10mV
Output current setting resolution: 10mA
Output ripple: <100mVpp (input 48V, output 24V, current 5A)
100Hz fluctuation transmission ratio: <1/10000
Voltage and current display accuracy: 10mV, 10mA
Voltage display error: ±1%+20mV
Current display error: ±2%+20mA
Response time <50ms
Storage operation: M0-M9 a total of 10 sets of parameter storage
Cooling method: onboard radiator and cooling fan
Cooling fan startup conditions: output current greater than 1.5A or output power greater than 40W
Operating environment temperature: 0-60 degrees Celsius
Storage environment temperature: -20-70 degrees Celsius
Applicable environment: indoor applicable design, maximum humidity 80%

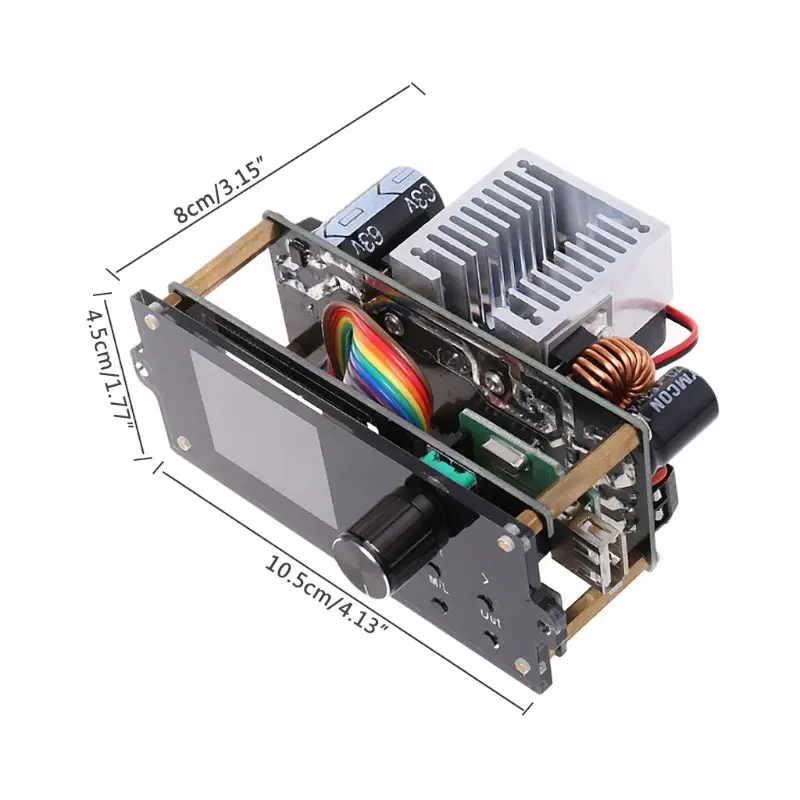

Dimensions: 10.5x4.5x8.2cm/4.13x1.77x3.23inch
Color: As shown
Quantity: 1 Pc
Note: 1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:

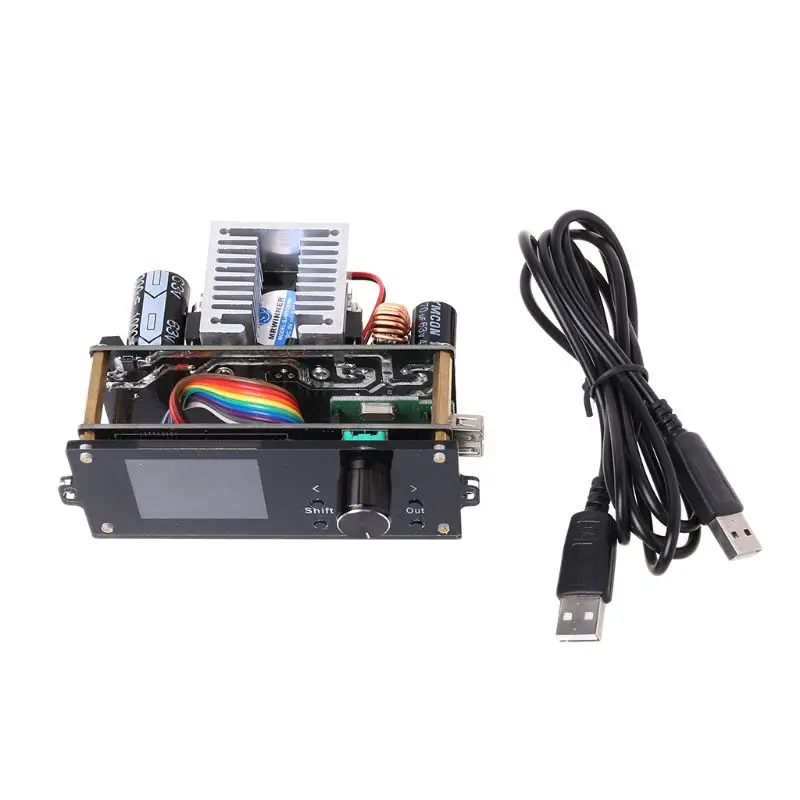

1 x Power Supply Module (without retail package)
