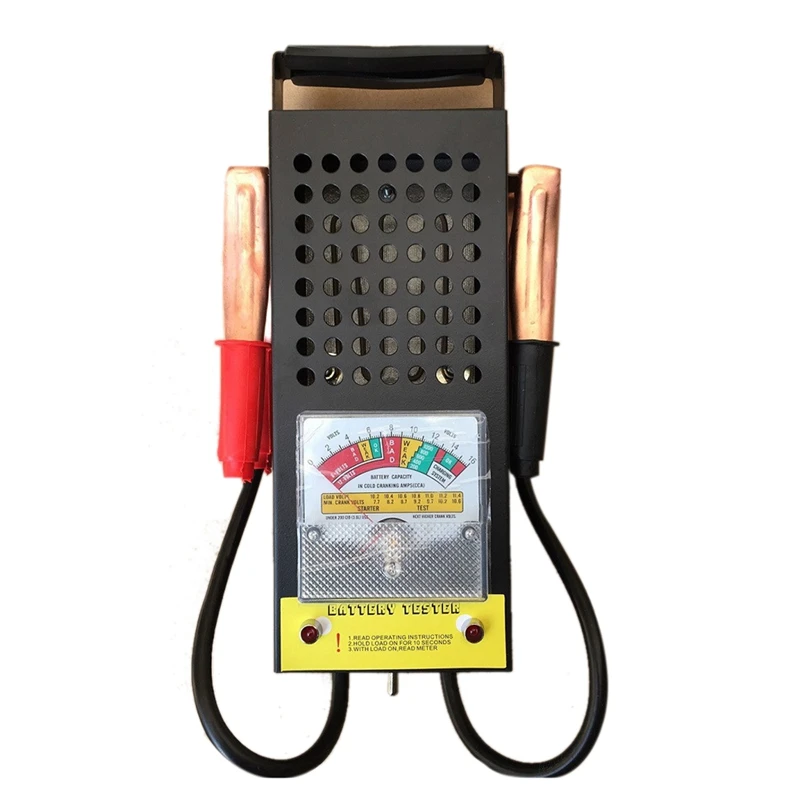

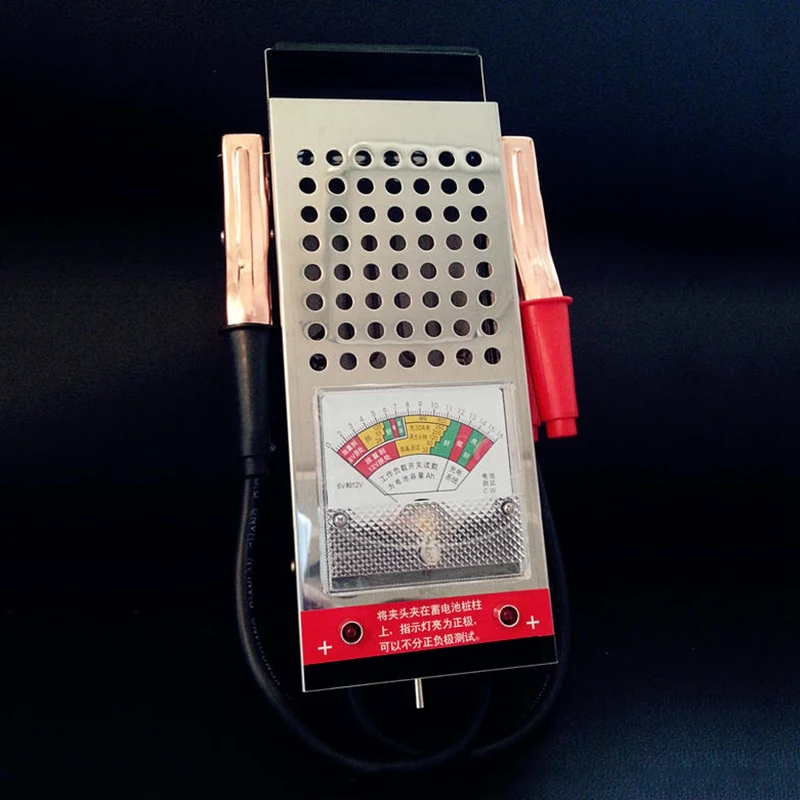

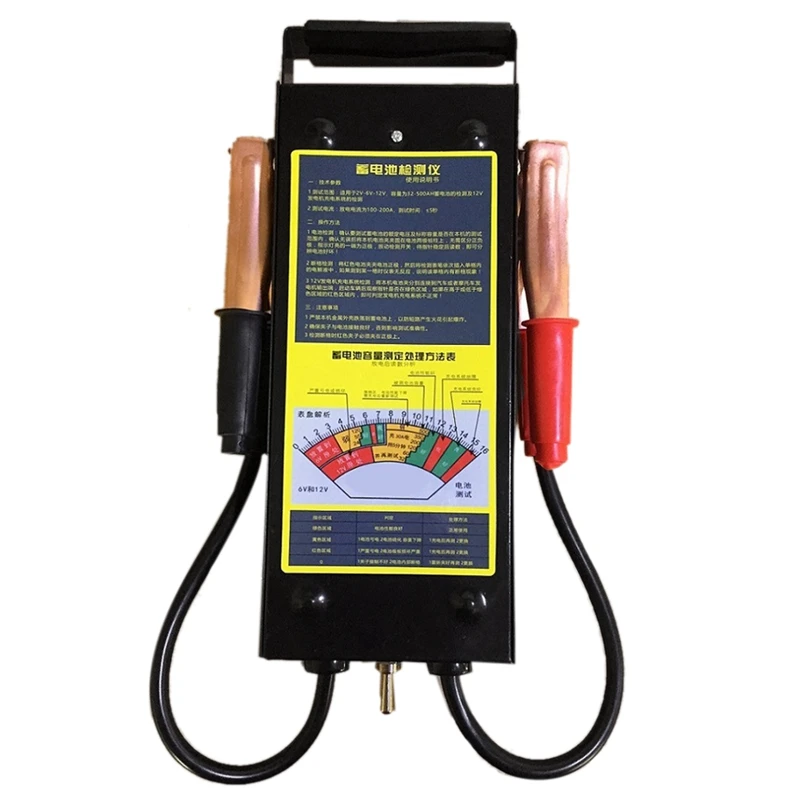

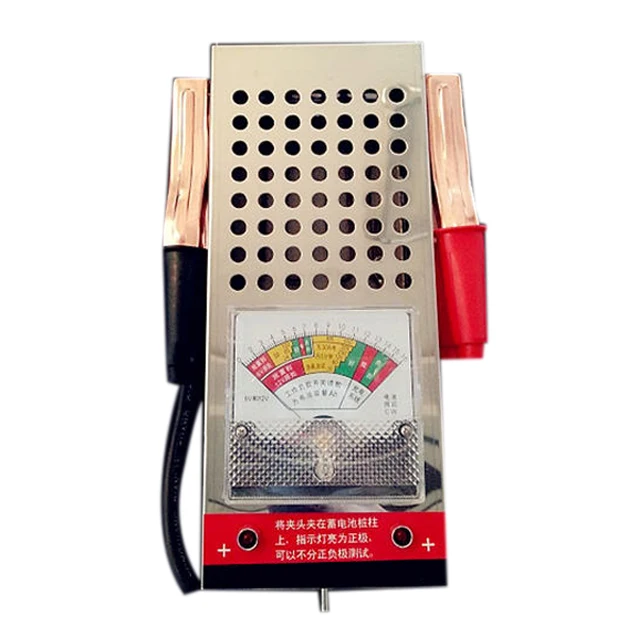

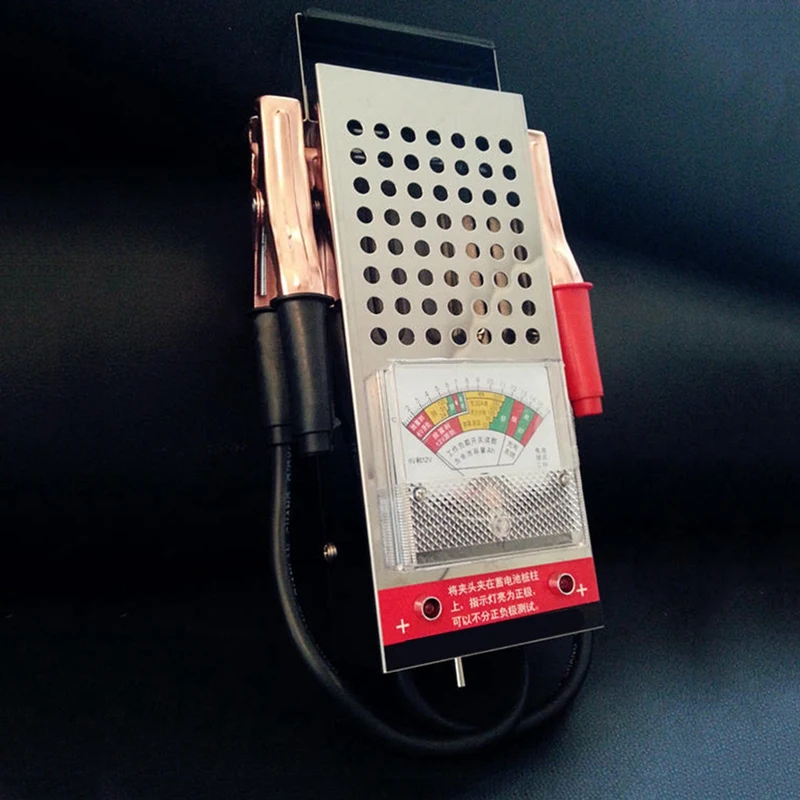

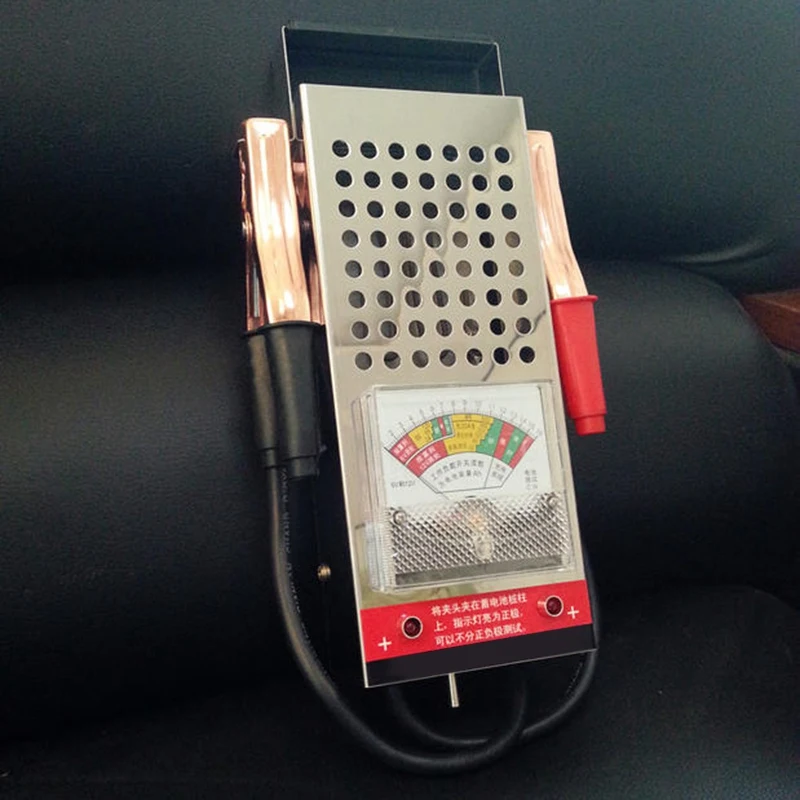

Car And Motorcycle Battery Capacity Detector Tester Discharge Fork High Power Meter |

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Instructions for use:1. Clip the two clips of the tester to the positive and negative poles of the battery. At this time, the indicator light is on (the end of the clip on the side of the lamp is the positive pole of the battery), and the voltmeter indicates the voltage of the battery. At this time, it is a virtual voltage (no-load voltage).
2. If the lamp does not light or the voltmeter pointer does not move, check that the tester clip is in good contact with the battery post.3. Twist the toggle switch for a period of no more than 5 seconds, the rated capacity of the battery is 32-500 amps, and the discharge current is 100-120. (At this time, the tester discharges the battery with 100A), the pointer of the voltmeter is shifted to the left, and the battery state of the battery is determined according to the offset position.

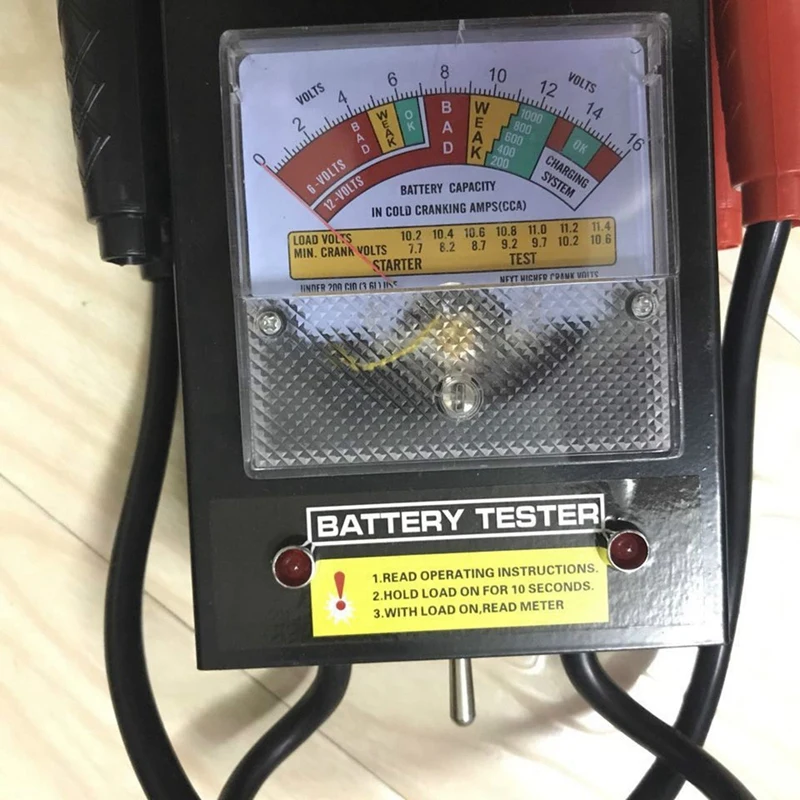

a. The pointer indicates sufficient power in the green zone.
b. The pointer is in the yellow zone and the pointer is stable indicating that the battery is low and needs to be charged.
c. The pointer falls back to the left, indicating that the battery is not stored.d. The pointer returns to zero, indicating that the battery may be broken.e. The pointer in the red zone indicates that the battery is very low and the battery may be damaged.
Type: Vehicle Battery Tester
DIY Supplies: Electrical
Test for 6V-12V batteries and charging system output (Less than 16V).

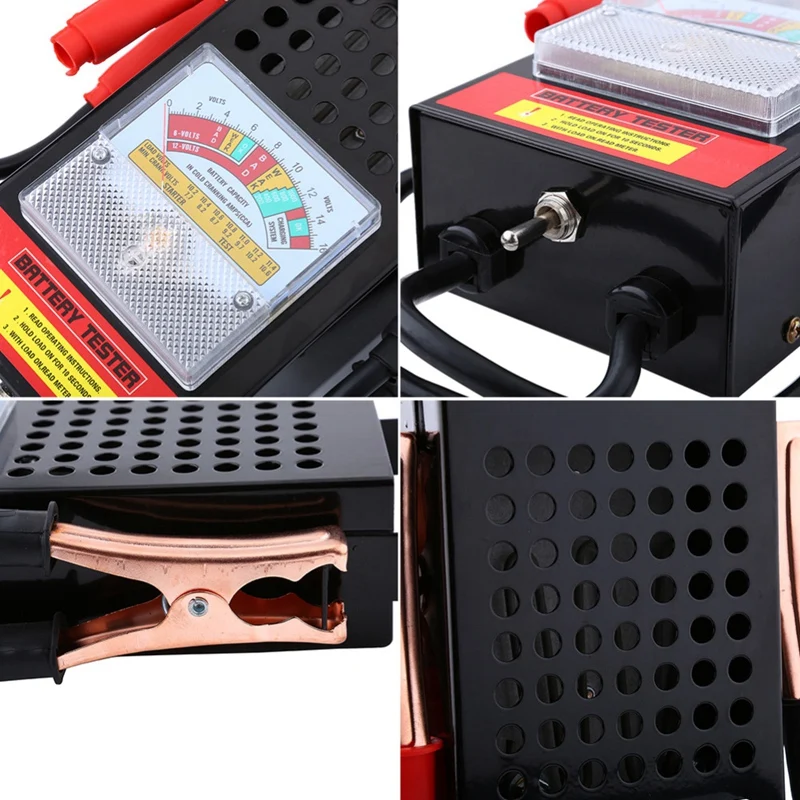

Color coded voltmeter analog display for easy to read.
Suitable to test Lead-acid batteries.

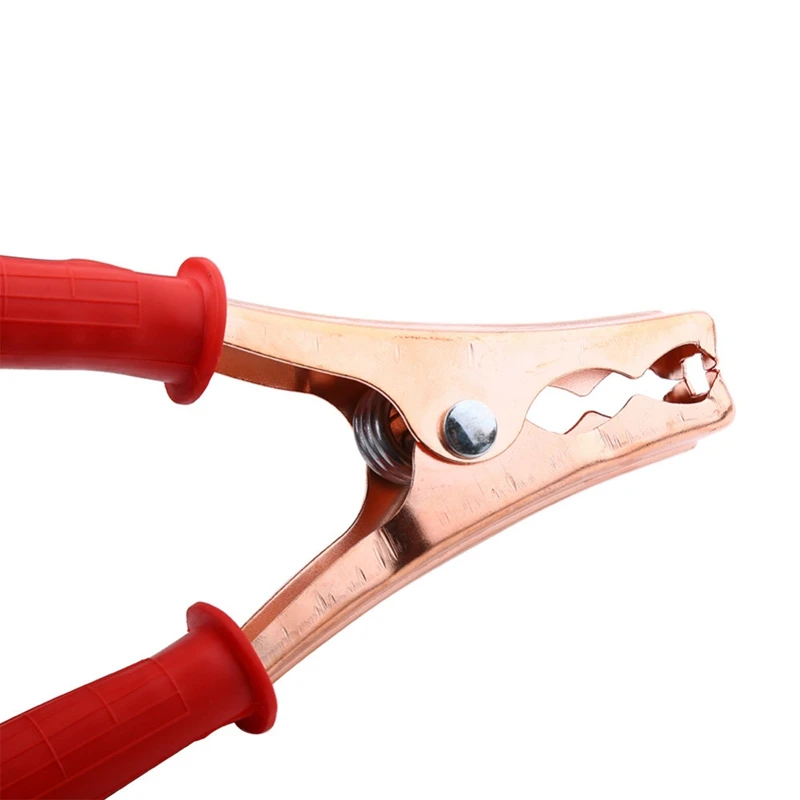

copper wire and copper plated clamp, durable in use.
Designed with handle, it is very convenient to carry.
Voltage Measurement Range: 6-12V
Voltage Measurement Accuracy: 0.2V
Current Measurement Accuracy: 0.1A
Current Measurement Range: 0-100A
Package Weight: approx. 1300g
colour:black
Material:stainless steel
size:31*15.5*7.5cm
Package Contents:
1*Battery Tester
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
