AmScope 7X-45X Black Trinocular Stereo Zoom Microscope on Single Arm Boom Stand + 144 LED Ring-light with 3MP USB3.0 Camera | Инструменты

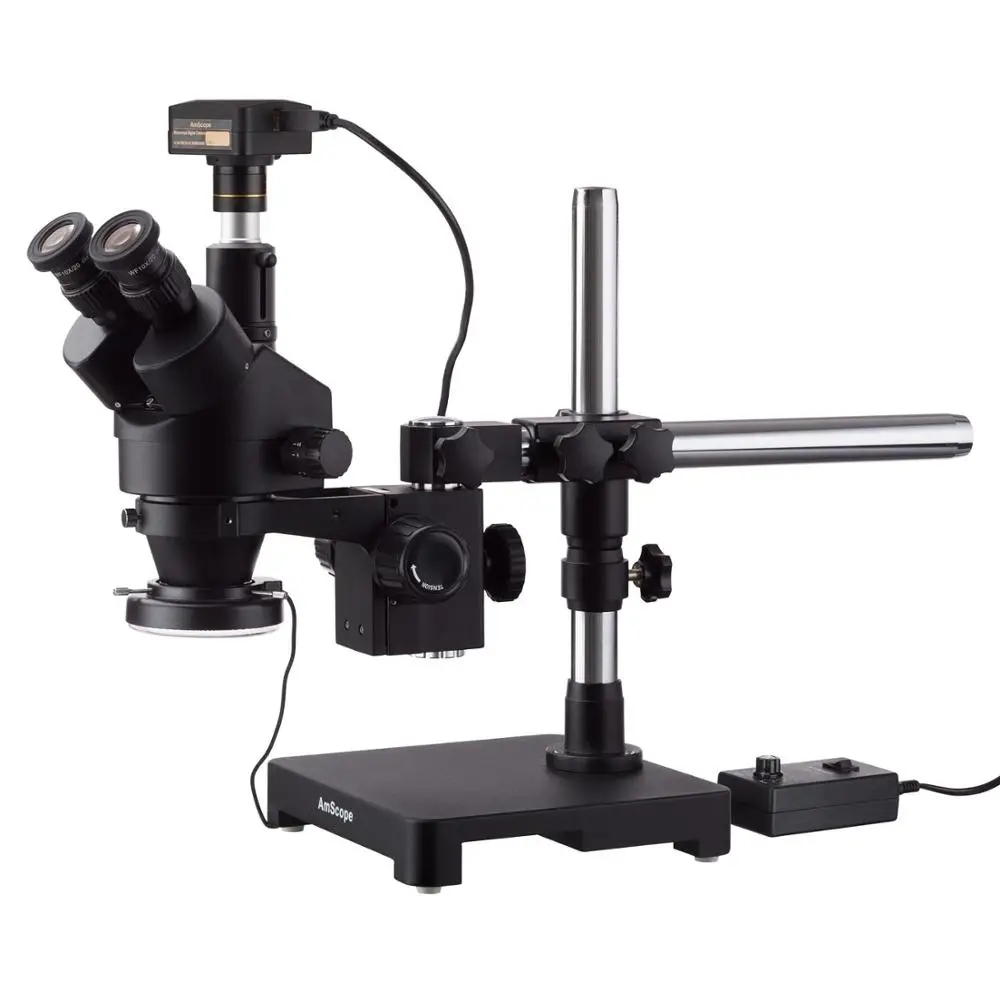

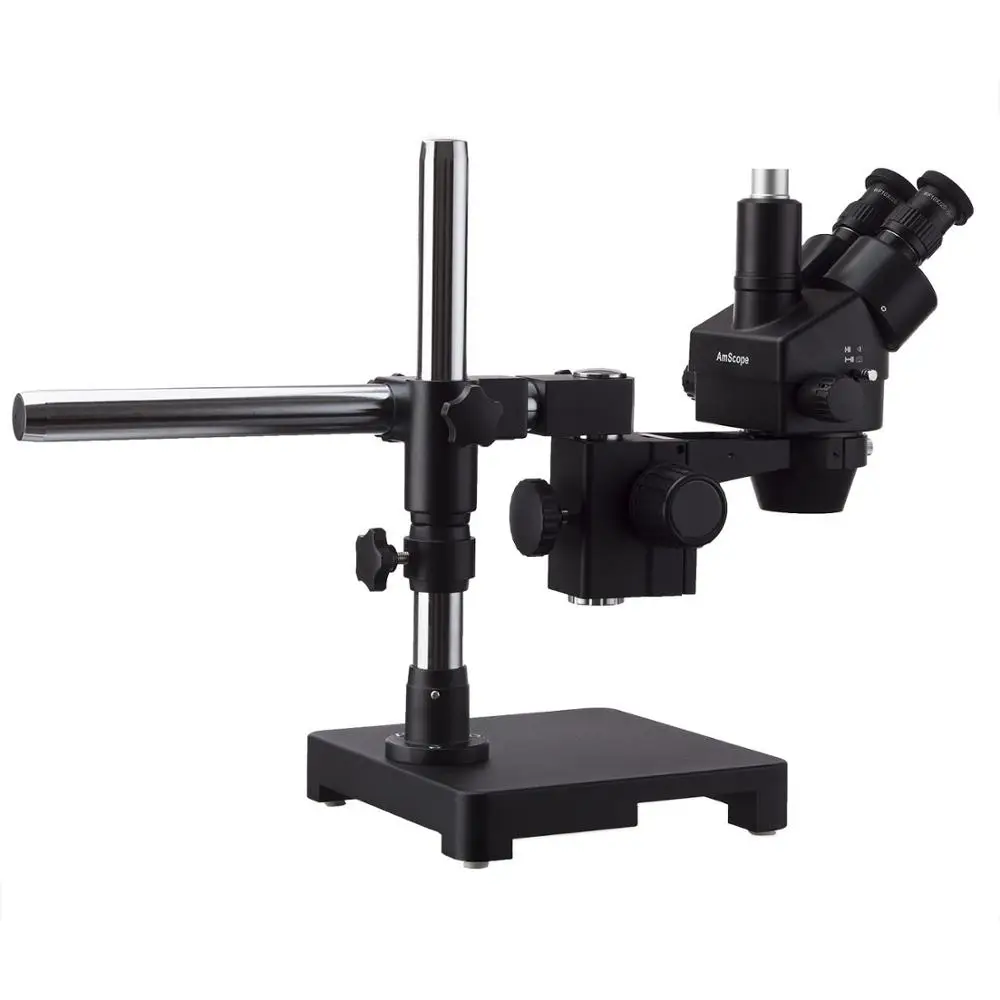

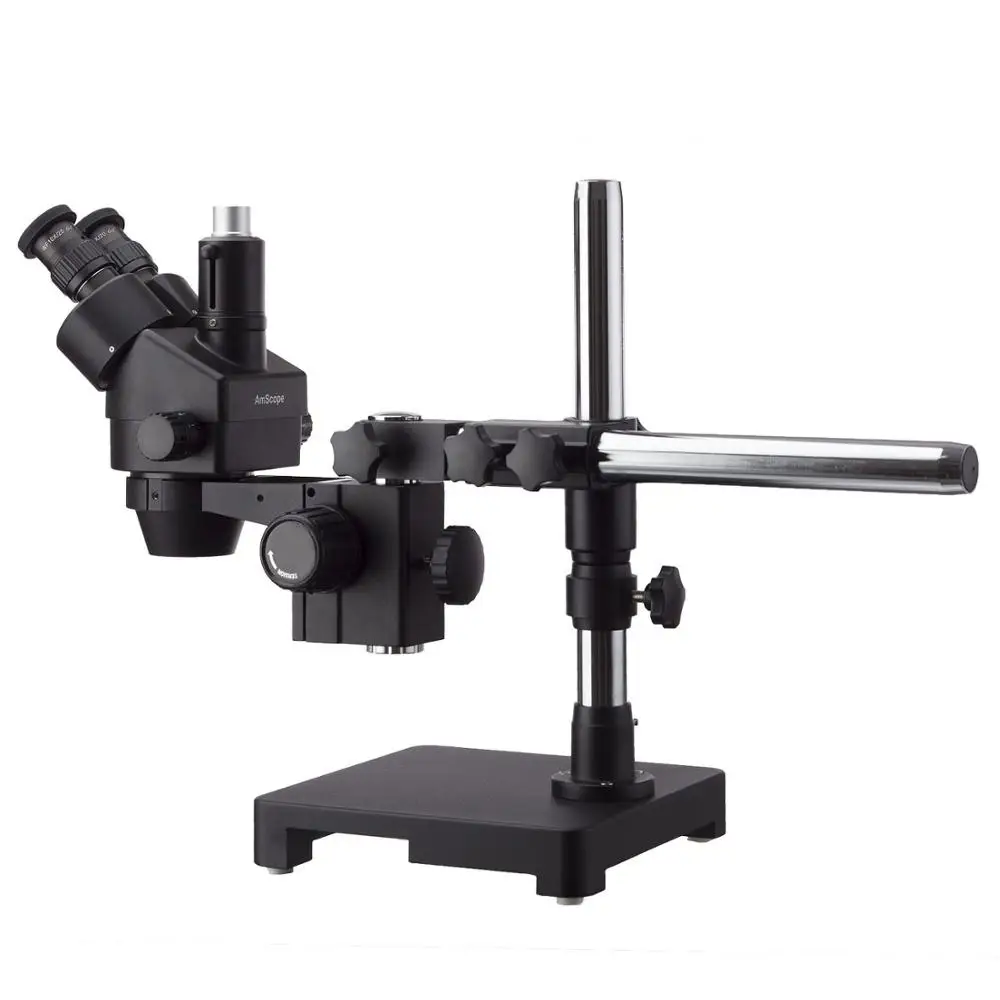

This is a black version of our popular 7X-45X zoom stereo microscope mounted on a single-arm boom stand. It comes with a trinocular head with super widefield optics, 10X eyepieces, for a zoom ratio of 6.5:1, a sturdy single-arm boom-stand, and a 144-LED ring-light with controller. The trinocular port enables to add photographic or video capability to the microscope. Its 45 degree inclined trinocular oculars and high-eyepoint optical design ensures a comfortable observation for all kinds of users including eyeglass wearers. The single-arm boom stand allows to turn the microscope head around two different axes, allowing you to point microscope head in various directions. This microscope offers high resolution, super widefield of view, large magnifying zoom range and long working distance. It is an ideal instrument for researchers, gemologists, engravers, and anyone in semiconductor and/or electronics industry.

The 3MP USB3.0 digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features

Features:

7X-45X Zoom Stereo Microscope with Super Widefield Optics Trinocular Design for High Quality Photographs or Video 30mm Super Widefield 10X Eyepieces with 20mm Field of View 4 inch (100mm) Large Working Distance 45 Degree Inclined Trinocular Head Sharp Stereo Erect Images over a Wide Field View Crystal Clear Original True Color Images High Resolution with Great Flatness and Contrast Eye Tube with Adjustable Diopter Adjustable Interpupillary Distance High-eyepoint Optic Design Ensuring an Easy and Comfortable Viewing, Especially for Eyeglass Wearers Accurate Alignment Ensuring a Fatigue-Free Comfortable Observation Rubber Eyeguards Providing Further Comfort Full Optical Glass Elements Precise Ground Glass Lens Sturdy Boom Stand for Versatility and Large Working Area Stand Finished with Stain Resistant Enamel 1.5" Rugged Solid Cast Metal Stand Base All Metal Mechanical Components Manufactured under ISO 9001 Quality Control Standard Excellent Five (5) Year Manufacturer Warranty



Specifications:

Head: 45 degree inclined 360 degree swiveling trinocular Eyepiece: 30mm super widefield high-eyepoint WF10X/20 Objective: 0.7-4.5X Zoom Range: 6.5:1 Maximum Field of View: 1-1/4" (32mm) Minimum Field of View: 3/16" (4.75mm) Diopter Adjustment: +/-5dp Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm) Working Distance: 4" (100mm) Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base Ring-light LED Count: 144 Power Input: 110-240V, 50-60HZ, auto-switching



Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0



Camera Specifications:

Sensor: Aptina AR0330 (Color) Sensor Type: CMOS Sensor Size: 1/3" (diagonal 6.0mm) Pixel Size: 2.2µm x 2.2µm Resolution: 3.0MP Frame Rate: 53fps @1024x770, 28fps @2048x1534 (Multiple Speed Level) Sensitivity: 2v / lux-sec (550nm) Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux



Packing List :

One Trinocular Stereo Zoom Head One Pair of Super Widefield 10X Eyepieces One Single-Arm Boom-Stand One Focus Rack One Pair of Eye-Guards One 144-LED Ring-light One Control Box for Ring-light One AC cord for Ring-light One Ring-light Mounting Adapter One 3MP USB3.0 Microscope Digital Camera with Reduction Lens Three Mounting Adapters One USB Cable One CD with Driver, Software and User's Instructions
