body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } after enable ENA ENB Driving DC motor Because the module is drived by double H bridge,it can drive two motors simultaneously.
Input the following driving timing from IN1-IN4 then the speed and direction of the stepper motor can be controlled

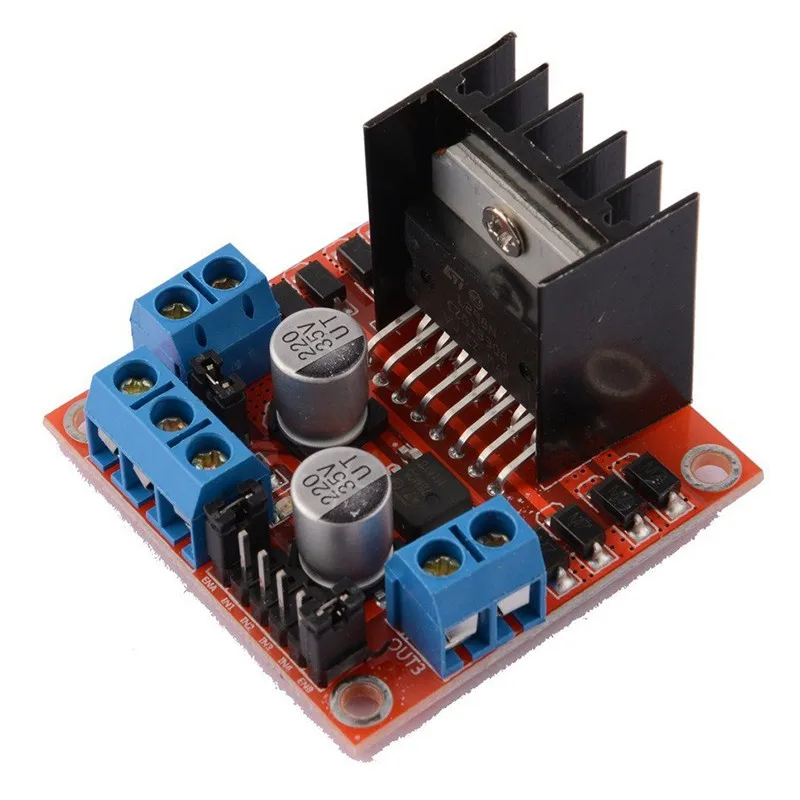

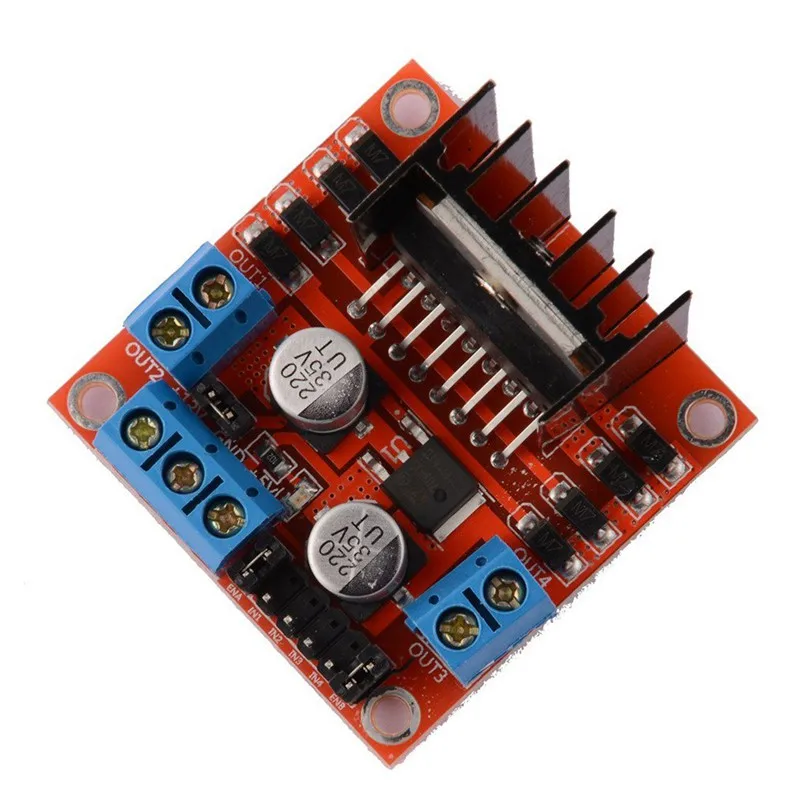

L298N is a kind of high voltage,high current motor driver chip produced.Having 15 pins as package, this chip has such features as high working voltage(maximum voltage up to 46V),large output current(instantaneous peak current up to 3A,continuous working current 2A) and 25W of rated power.
Two built-in H birdge high voltage and large current full bridge drivers can be used to drive the DC motor and stepper motor,relay coil and so on.Using standard logic level signal control,it has two enable control ends.
It permits or prohibites device having a logic power supply input without the impact of input signal,which enables the internal logic circuit part works at low voltage.The chip can connects to external detecting resistor to give the variations to the control circuit.Using L298N chip to drive the motor,this chip can drive a stepping motor or four phase stepping motor,and two DC motors as well.
Colour:red
Material:ABS
This module can use built-in 78M05 for electric work via a driving power supply part.

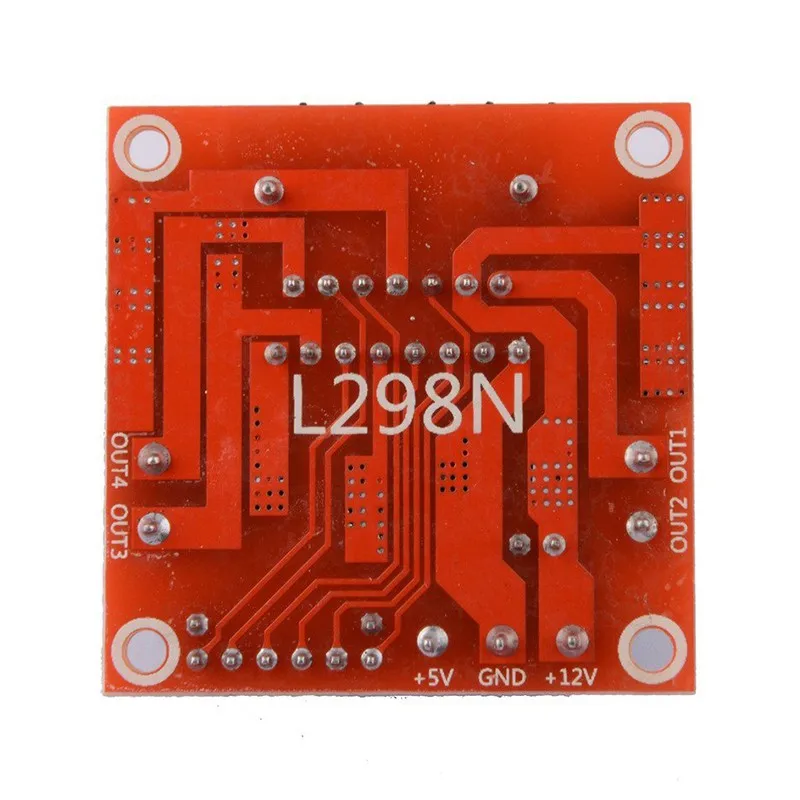

This module is integrated with a built-in 5V power.When the drive voltage is 7V-35V, it can enable the onboard 5V logic power supply;afterthe power supply,don't input voltage in the interface+5V power supply,but you can lead the 5V for external use.
when ENA enable IN1 IN2 control OUT1 OUT2
when ENB enable IN3 IN4 control OUT3 OUT4
Applied cases:Driving stepper motor

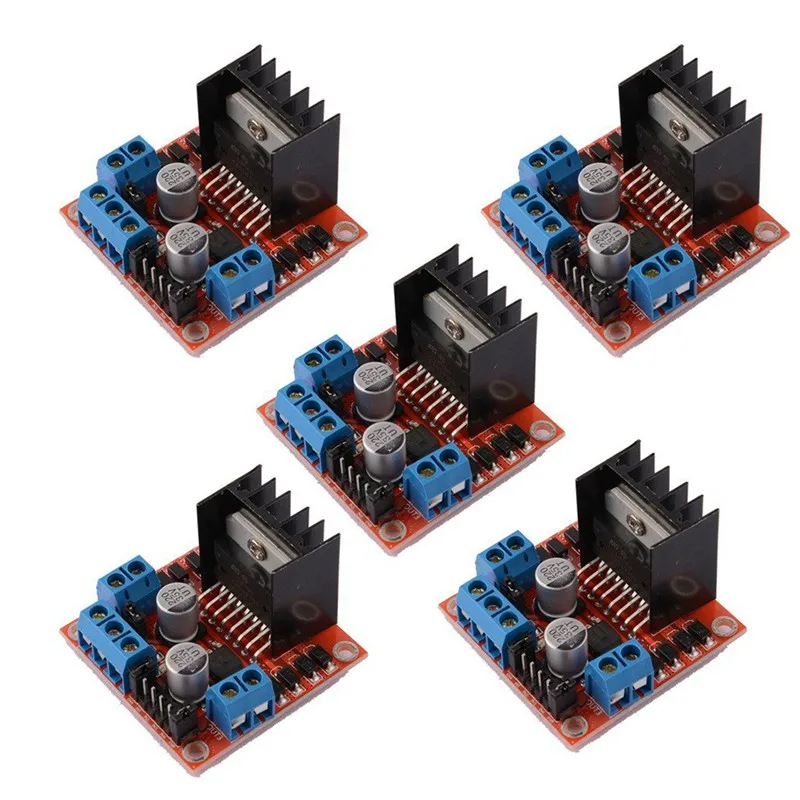

Package Contents:5 X L298N Motor Drive Controller Module
