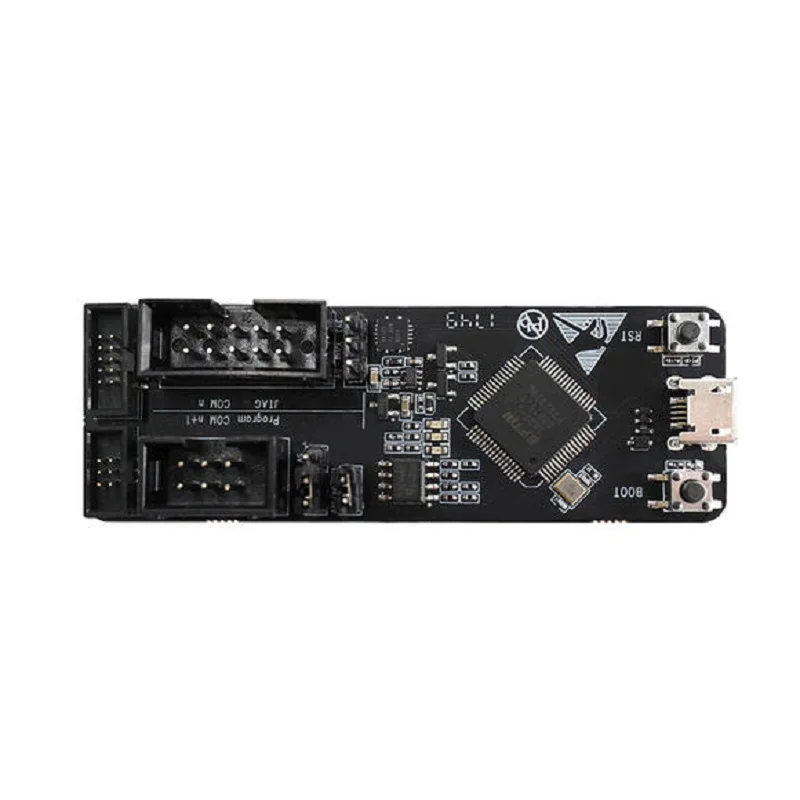

ESP-Prog (JTAG Debugging &amp Program Downloader) | Инструменты

ESP-Prog is a debugging tool developed by Lexin. It has the functions of downloading firmware automatically, serial communication, JTAG online debugging and so on. Automatic download firmware and serial communication functions are suitable for ESP8266 and ESP32 platforms. JTAG online debugging function is suitable for ESP32 platform. ESP-Prog is simple and convenient to use. It can connect to the computer with only one USB cable. The computer can identify two ports corresponding to download function and JTAG function. ESP-Prog can be connected with user board by wiring arrangement. Connectors can be packaged with 2.54 mm and 1.27 mm spacing. It has anti-stall design. Program (6-Pin) and JTAG (10-Pin) connectors need to be placed in corresponding order on the user board. Considering that the power supply voltage of different user boards may be different, the two interfaces of ESP-Prog can choose 5V or 3.3V power supply through Pin Header, which has strong power compatibility. Product Description: Dimension: 73.4mm * 25.1mm Interface: Program; JTAG Reference Design: //www.espressif.com/sites/default/files/documentation/ESP-Prog_reference_design.zip For more information, please visit ESP GitHub for: //github.com/espressif/esp-iot-solution/blob/master/documents/evaluation_boards/ESP-Prog_guide_cn.md
