asy to operate, no need to make any setting, plug and play, automatically add and allocate IP address by keyboard;Powerful hardware decoding capabilities, the first to achieve industry IP dome unlimited access for large safe City projects;
Support 5.0 inch LED LCD HD real-time display, Support ONVIF2.4, back-end PTZ not restricted, wide compatibility, with PTZ tour, A-B scan, 360°, pattern and so on functions;
Support HDMI output to achieve the main console screen and control equipment screen salvo (comes matrix switching function), reducing installation costs!Standard equipped with dimensional control, 1-64 grade speed limit, precise position, control sensitively.
This network control keyboard is a powerful three-dimensional with multi-function, easy to operate, no need to make any setting,plug and play; powerful hardware decoding capabilities, the first to achieve industry IP dome unlimited access for large safe City projects, support 5.0 inch LED LCD HD real-time display; Support HDMI output to achieve the main console screen and control equipment screen salvo (comes matrix switching function), reducing installation costs!
To support ONVIF2.4, back-end PTZ not restricted by manufacturer , wide compatibility, with PTZ tour, A-B scan, 360°, pattern and so on functions.
Features
1. Supports Tour,360 Scan and A-B Scan and so on functions
2. To support ONVIF2.4,not limit for back-end PTZ, easy to realize PTZ tour, A-B scan, pattern, play and plug, without any set, automatically add and allocate IP address by keyboard
3. Standard equipped with dimensional control, 1-64 grade speed limit, precise position, control sensitively
4. To support USB, HDMI interface output, can be realize main screen picture any switch on control board
5. To support 5.0”HD LED , real display image on control device
Specification
Product Name: Network keyboard controller
Control Mode: Network
Controllable Device: Network High Speed Dome
Screen display: 5.0 inch HD LED Display

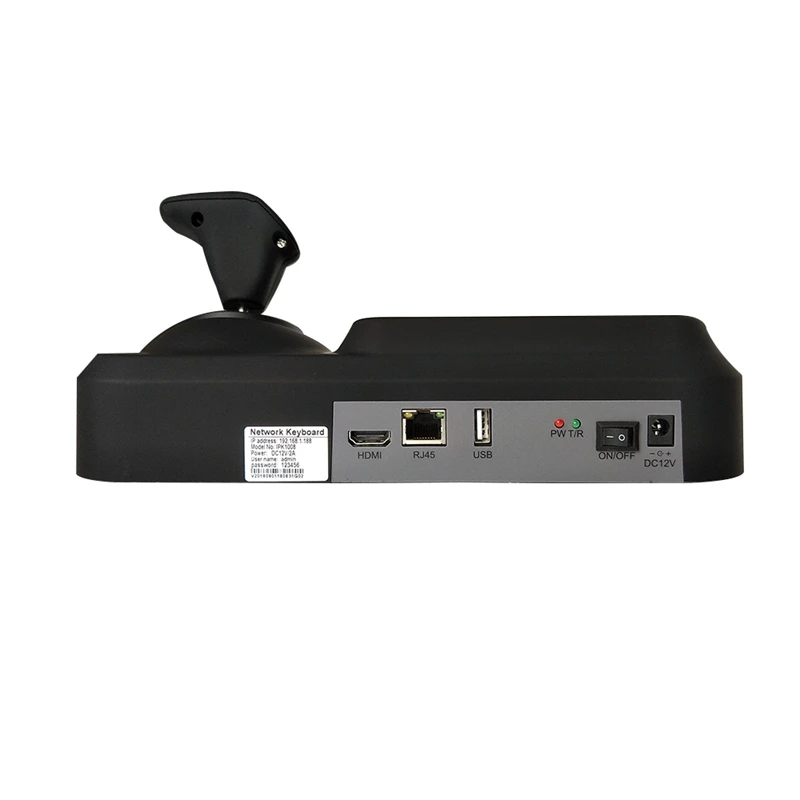

Interface: 1 RJ45, 2 RS485( reserved ), 1 DC12V, 1 HDMI output, 1 USB port
Ambient Temp.: -20°~55°
Power Supply: DC12V/3A
ONVIF: ONVIF2.4
Joystick: Three-dimensional joystick
Language: Chinese/English
Access Device No.: No upper limit (display by single picture)
Image Switch Mode: Serial number or mouse
Colour: Black
material: plastic

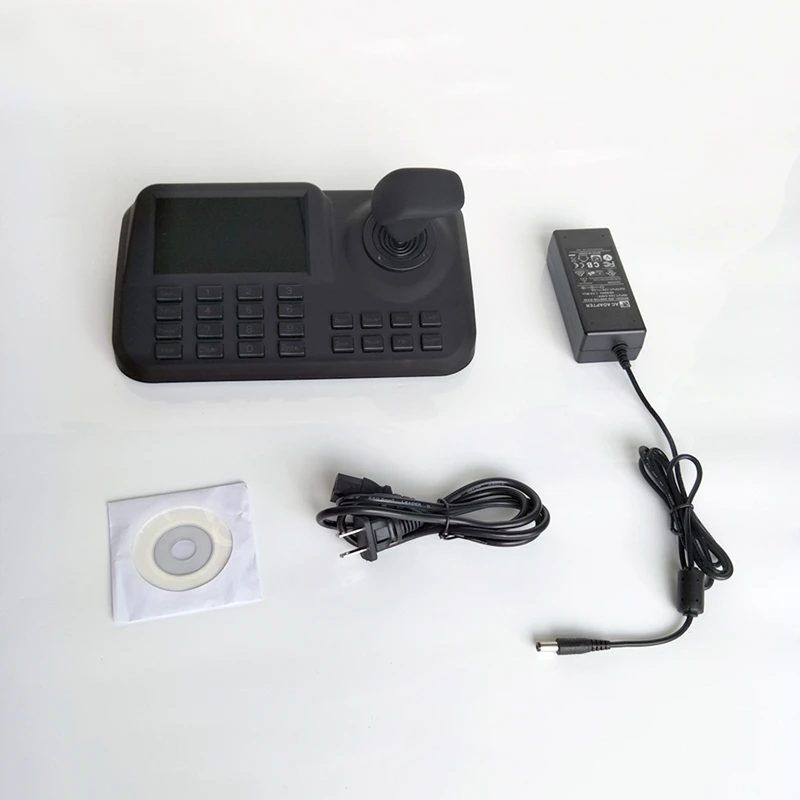

Package Contents:
1 * IP Keyboard controller
1 * Power Adaptor
1 * CD
1 * User Manual
Plug Type :EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on. /US Plug,it applies to Canada, India, Japan, Mexico, Thailand, the United States, the Philippines and so on.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
