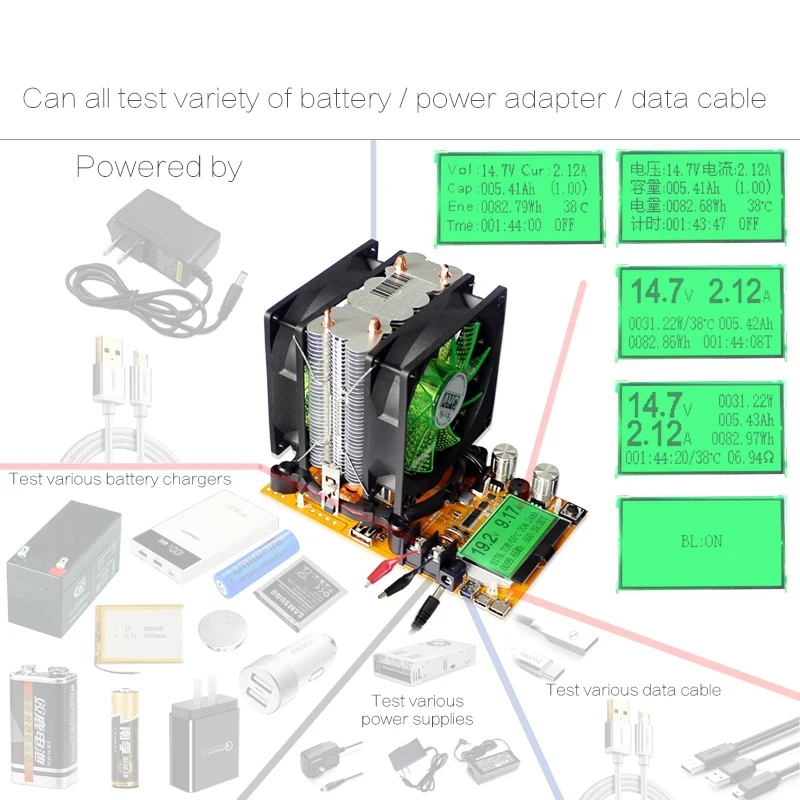

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Multi-function DC power tester for voltage, current, capacity, time, temperature testing
Power supply: DC 6-12V; DC 5.0 or Mini USB; A big cooling fan (started at Greater than 0.5A and Greater than 45℃)

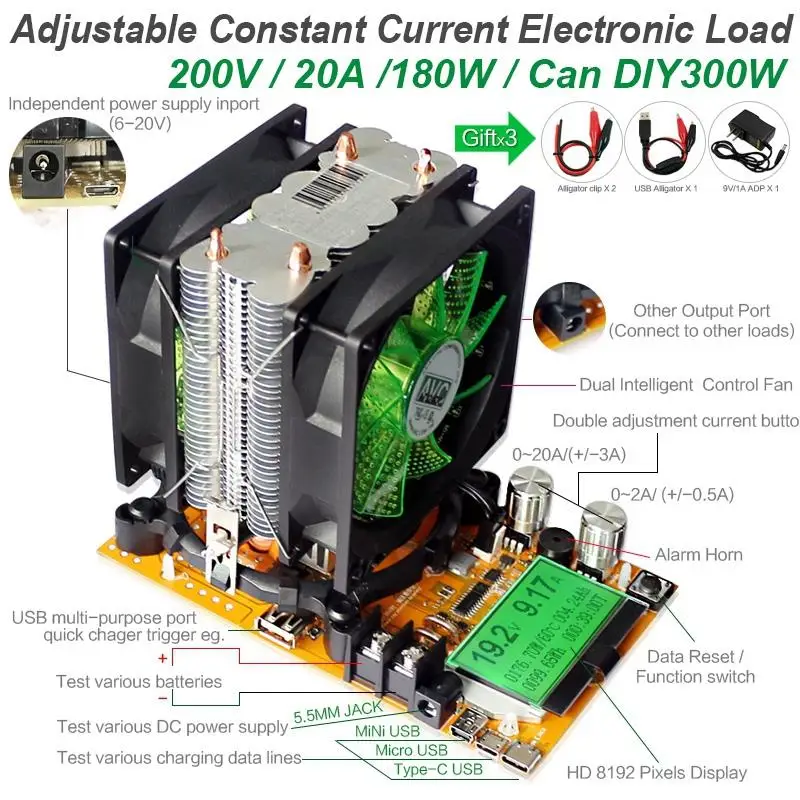

Equipped with Mini USB; USB; Type-C USB input ports; DC input wiring terminal and DC 5.0 jack

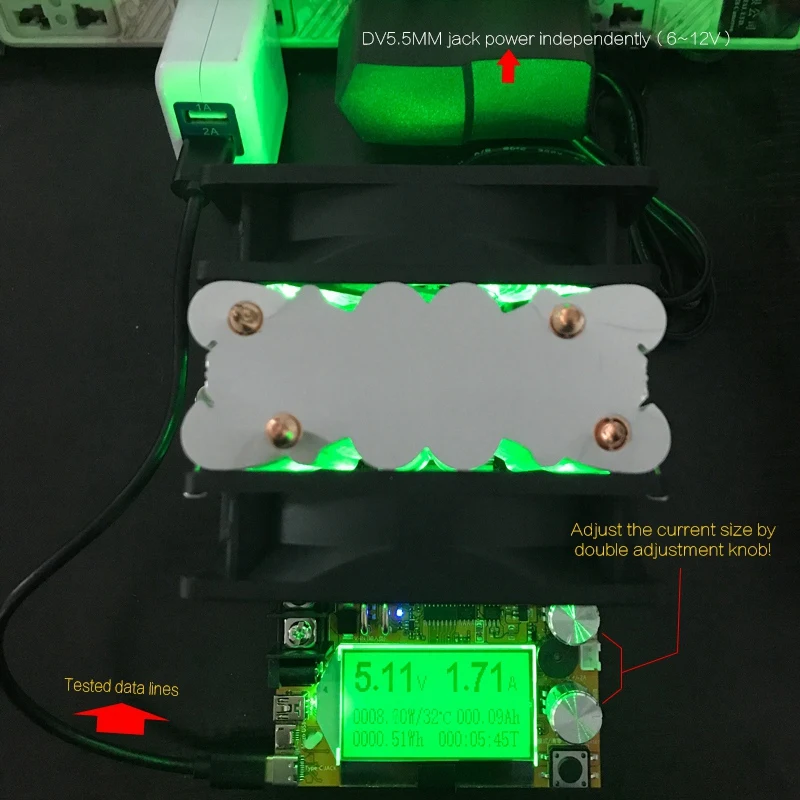

Two current knobs provided for fine current adjusting and coarse current adjusting; A multi-function key can be used for function switch; zero data and parameter setup
Specifications:Color: black + green; Material: plastic + metal; Voltage supply: DC 6-12V/ DC 5.0 or Mini USB
Voltage measuring range: 0.00V-200V Accuracy: 0.05V
Current adjustable range: 0.00A-20A Accuracy: 0.05A
Capacity measure range: 0-999.999Ah Accuracy: 0.01Ah
Power cumulative range: 0-99999.9Wh Accuracy: 0.01Wh
Power measure range: 0-2999.99W Accuracy: 0.01W
Impedance measure range: 0-99℃ Accuracy: 1℃
Max timing: 999H 59M 59S Accuracy: 1S

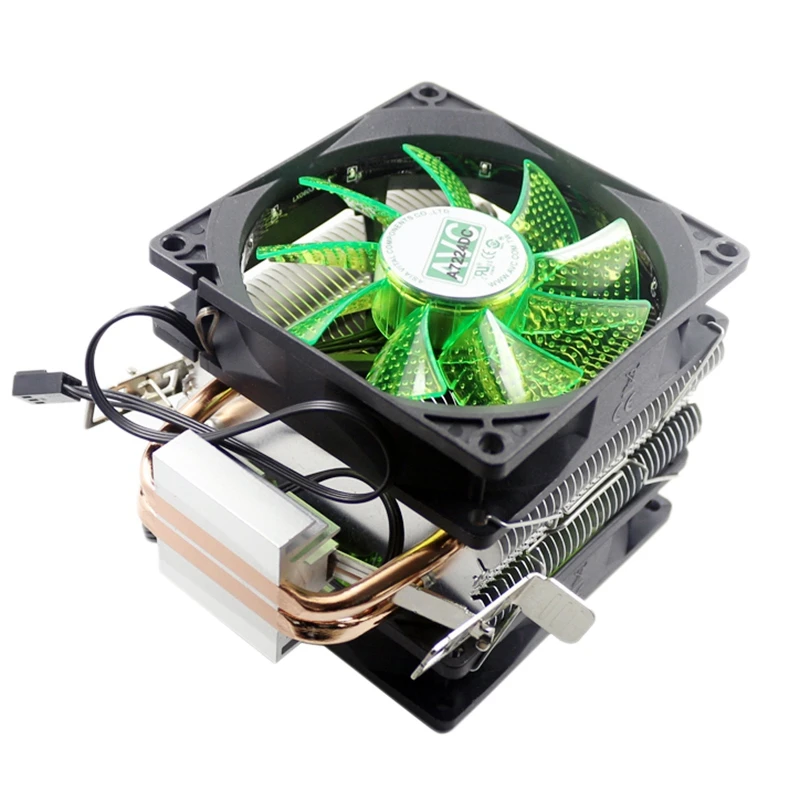

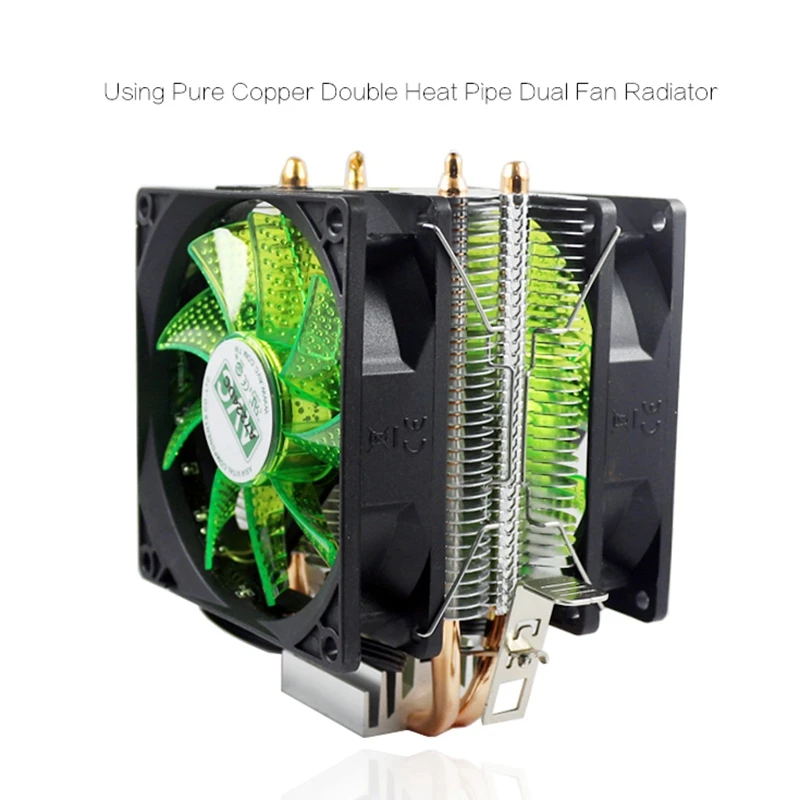

Cooling fan power: Less than 180W (fan could be changed for different cooling power)
Fan controlling gate: The cooling fan auto-started while the currentGreater than 0.5A or the temperature Greater than 45℃
Input/ Output: 20A biting screw + USB
Refresh time: Greater than 500mS/time
Measure rate: about 2s/time
Over voltage and over current alert method: Display warning window and voice warning
Protecting voltage setting range: 0-300V
Low voltage setting range: 0-149V
Protecting current setting range: 0.2-100V
Protecting power setting range: 180W
Display type: Mini power consumption, LCM module, black font, green backlit, Chinese & English language

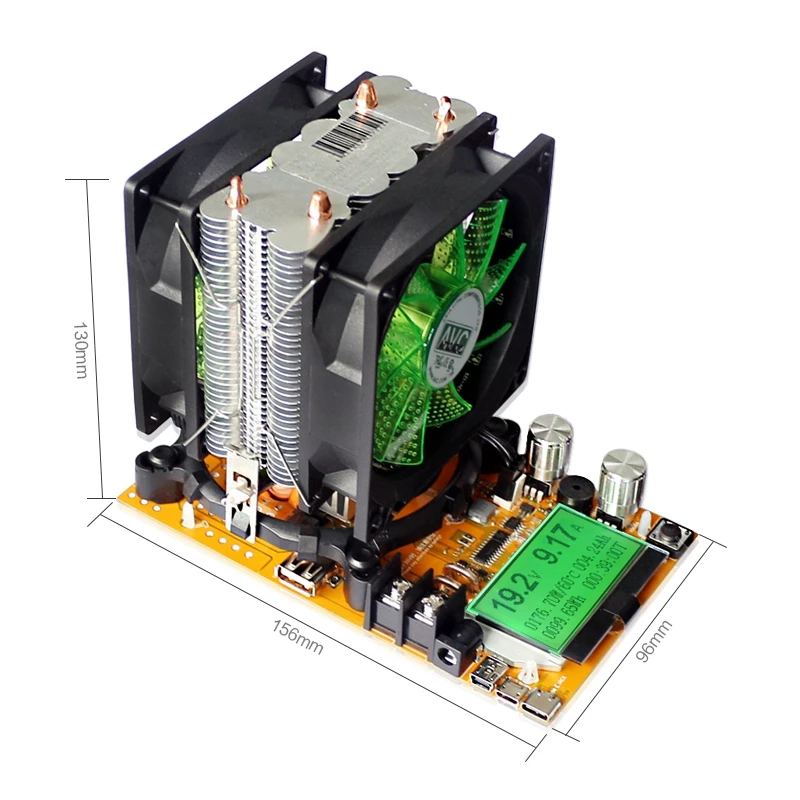

Size: 156*96*130mm
Consunption current: Less than 1.5A
Operating temp: -10~+60℃
Operating Humidity: 10~80℃(Condensation)
Operating pressure: 80-106KPa
Plug Type :EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
Package contents:
1* power supply tester
2* connection lines
1* European standard plug
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
