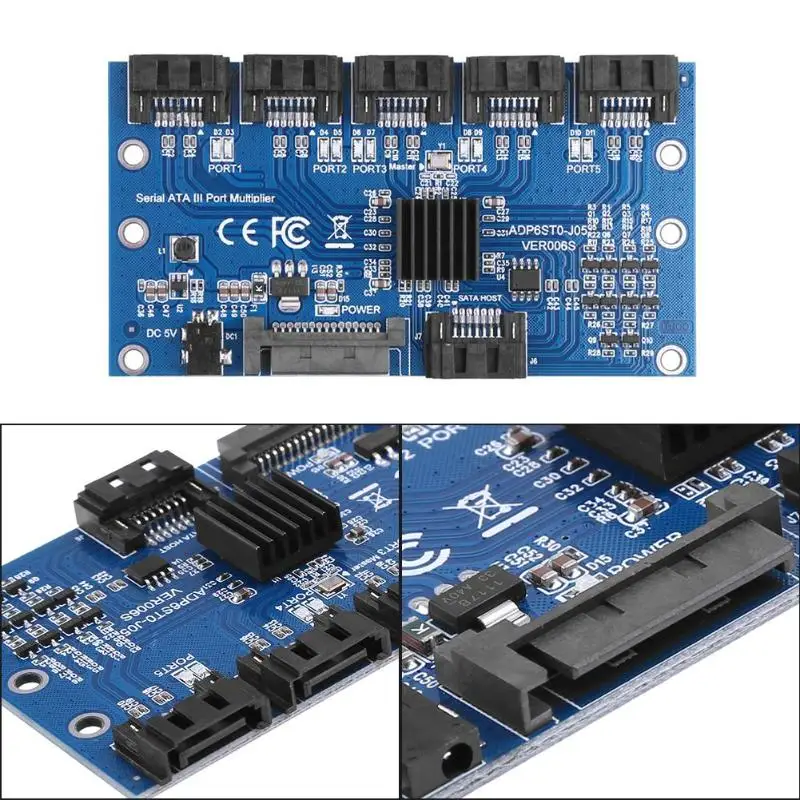

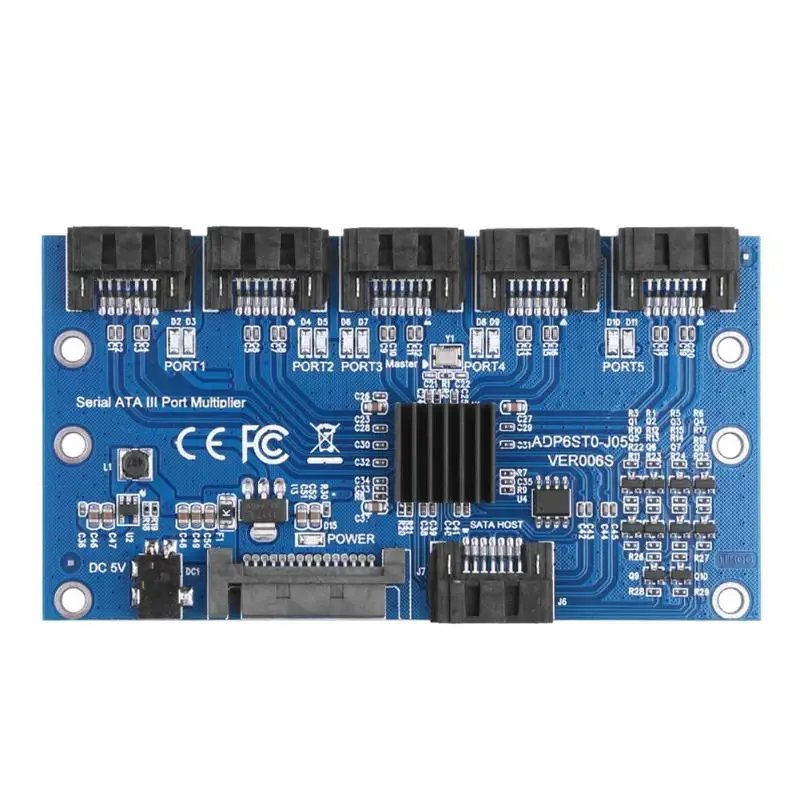

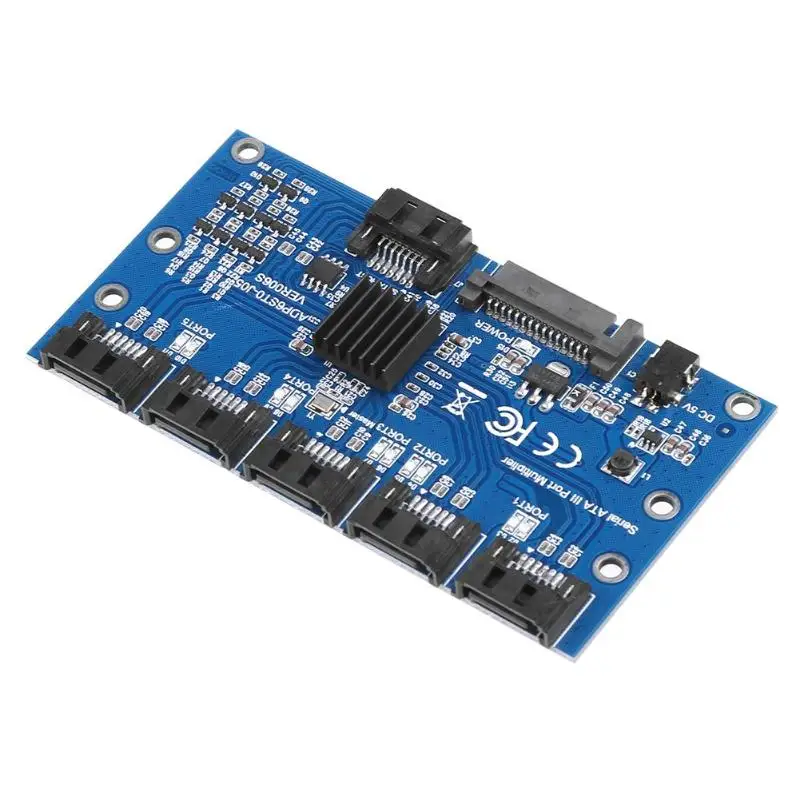

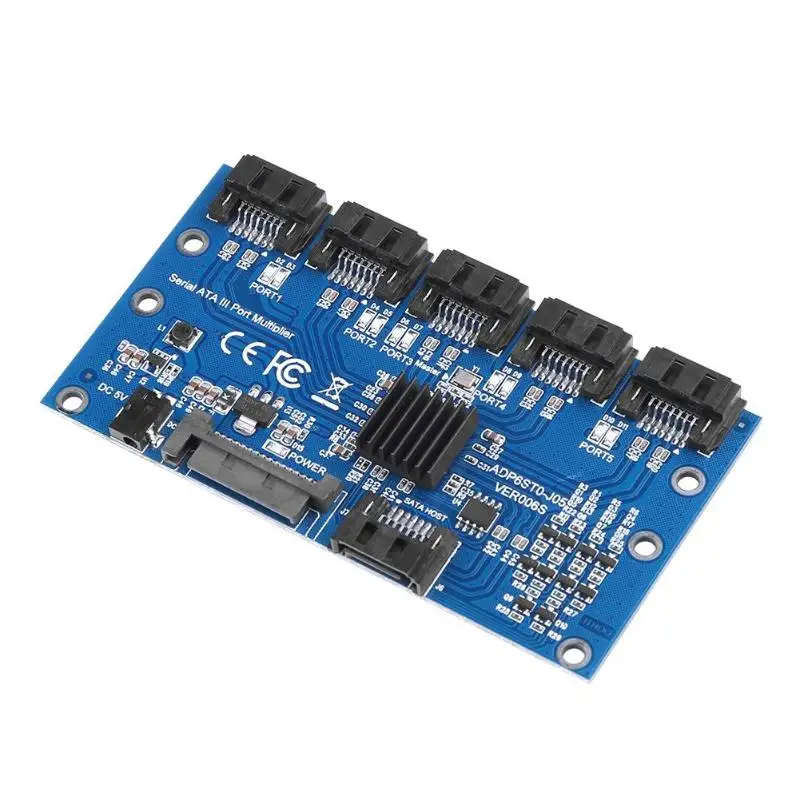

Controller Card Motherboard Sata Expansion 1 To 5 Port Sata3.0 6Gbps Multiplier Riser Adapter For Computer | Компьютеры и офис

body { font-size: 100%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Model Number: SATA Expansion Card
Interface: PCI
1. Supports 6-port 6.0 Gbps SATA III interface
2. Output balance control and auto calibration impedance for SATA III PHY.
3. supports asynchronous recovery signal.
4. supports spread spectrum overclocking.
5. Supports partial / slumber power saving mode.
6. Speed negotiation automatically.
7. supports BIST and loopback mode.
8. Supports staggered spin-up (Optional).
9. Supports Hot-Plug.
10. supports asynchronous notification.
11. Supports ATAPI units.
12. Supports base-based command and FIS-based switch.

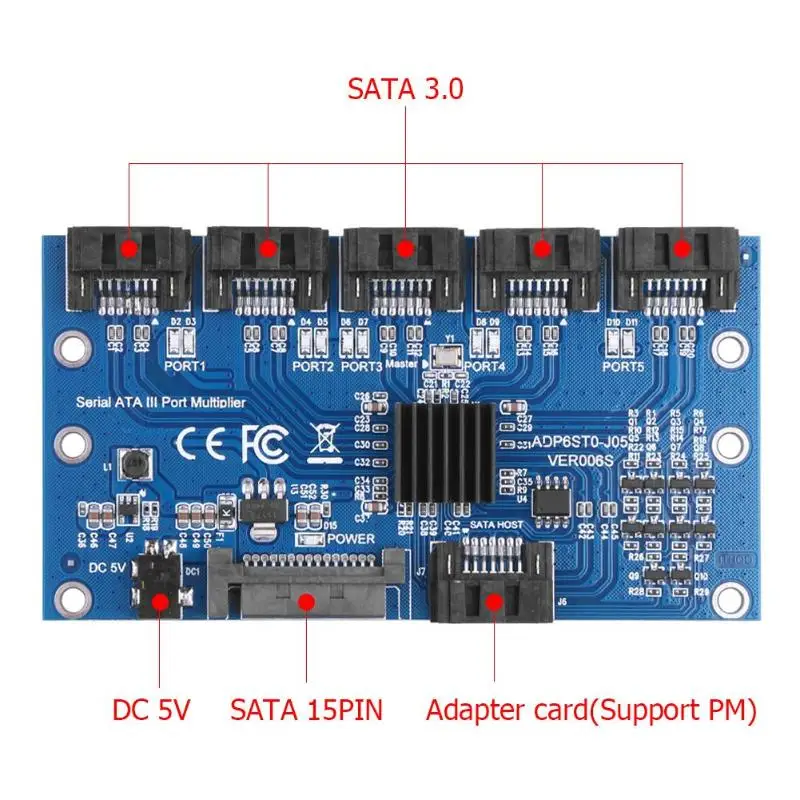

Interface: SATA 7PIN
Support Systems: WINXP, WIN7, WIN8, WIN10

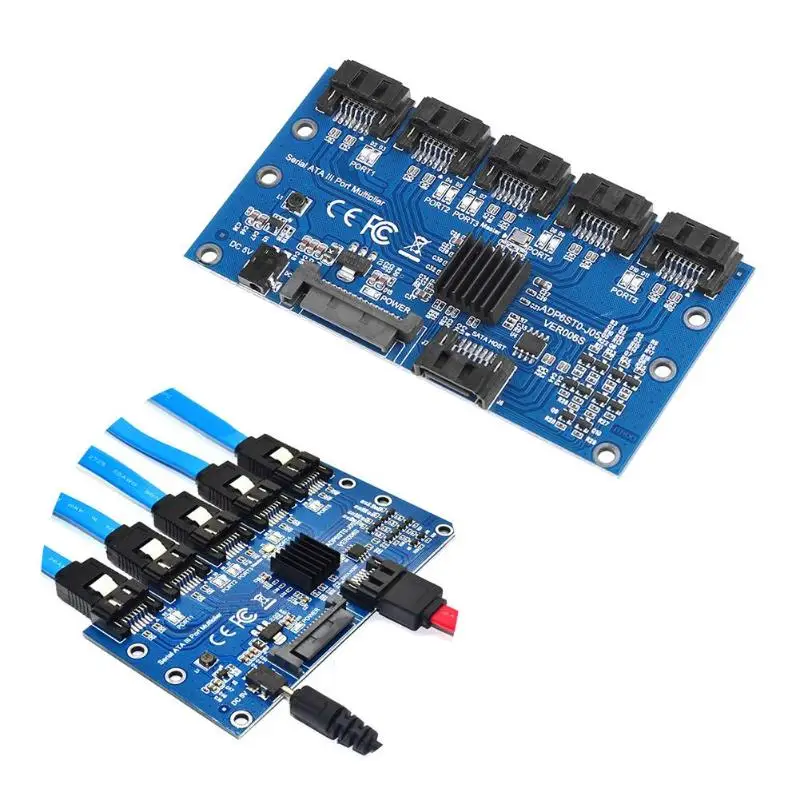

Connection mode: plug into the power supply and SATA SATA line in to the motherboard or expansion card.
Hot Tips:
1. This card extension should support the PM (SATA PORTABLE MULTIPLICATOR) function of the board or the extension board to recognize 5 hard drives.
2. The main SATA motherboard does not support this function. If it is not supported, only one card can be recognized.
3. You must connect the SATA or DC2.5 power supply to the expansion card.
note:
Please wait slight size differs due to manual measurement.
Due to different display and different light, the image can not show the actual color of the item. Thank you for your understanding.
Colour:Blue
Material:Metal & PC
Package Contents:
1 * SATA Expansion Card
1 * USB-DC Power Cable
1 * SATA Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
