provideCDecoded source code of language

Provide the schematic diagram of the remote control transmitter andPCB

Provide the schematic diagram of the receiver andPCB

Standard mode scroll code

This development board adoptsSTM8S103F3P6Decoding Using Low Power Single Chip Microcomputer，Especially suitable for battery power supply products，Providing criteriaCLanguage decoding program，And revised the original factory providedCA piece of assembly code embedded in it，All adoptedCTo write，Fang transplanted to other platforms。providekeeloqLearning materials。Writing Pad ProvisionUSBTransfer Serial Port Interface。User-friendly debugging and use，Can be treated as separateUSBTurn Serial Port，It can also be used as a writing board.，Flexible selection through jumper

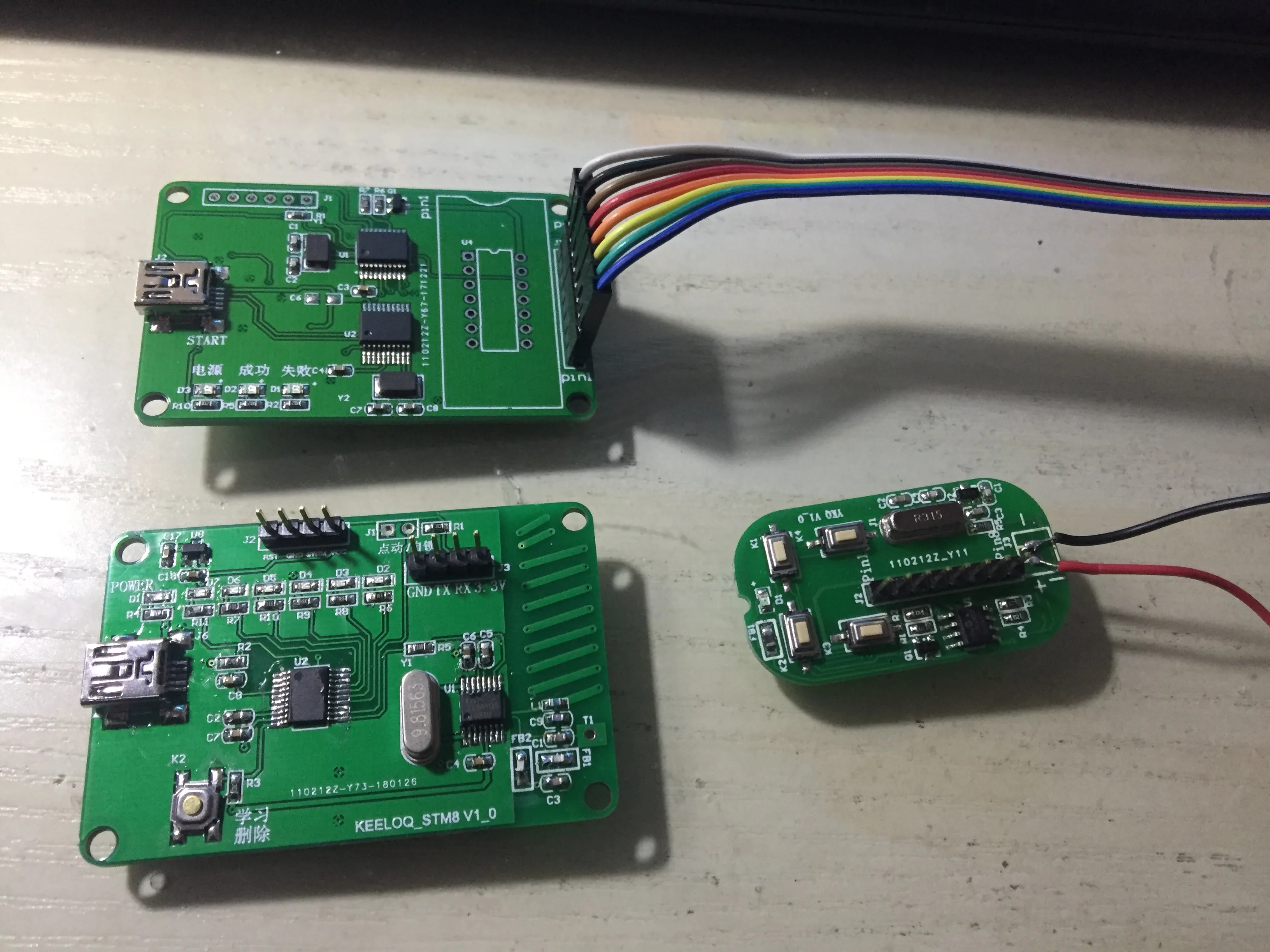

Development Board Matching：

1、Remote Controlled Launcher

Keep a burn-write interface，Easy to develop and use。

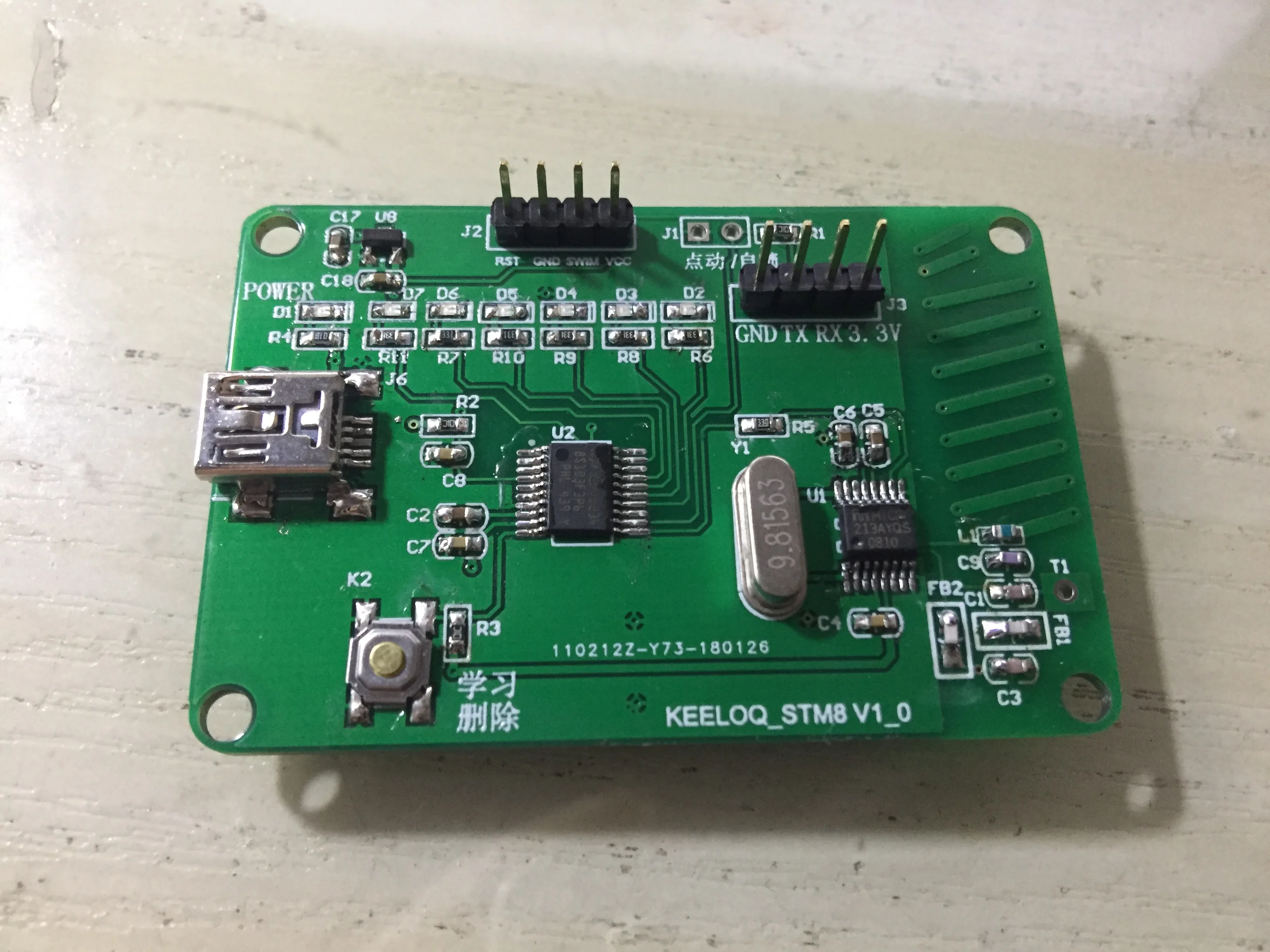

2、Remote control receiver STM8S103F3P6

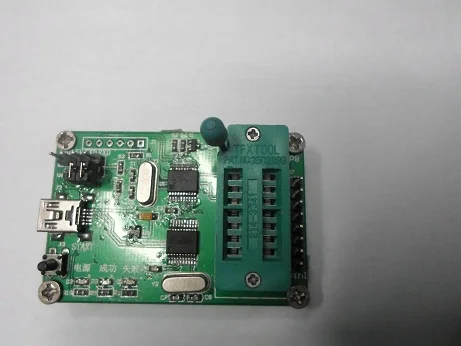

3、Burner

4、USBLine

'
