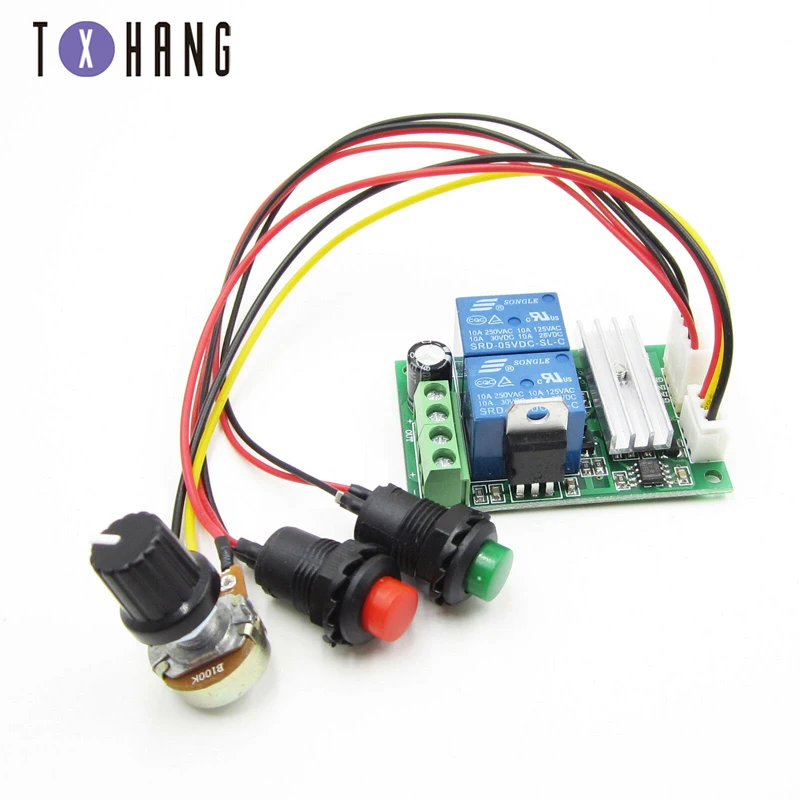

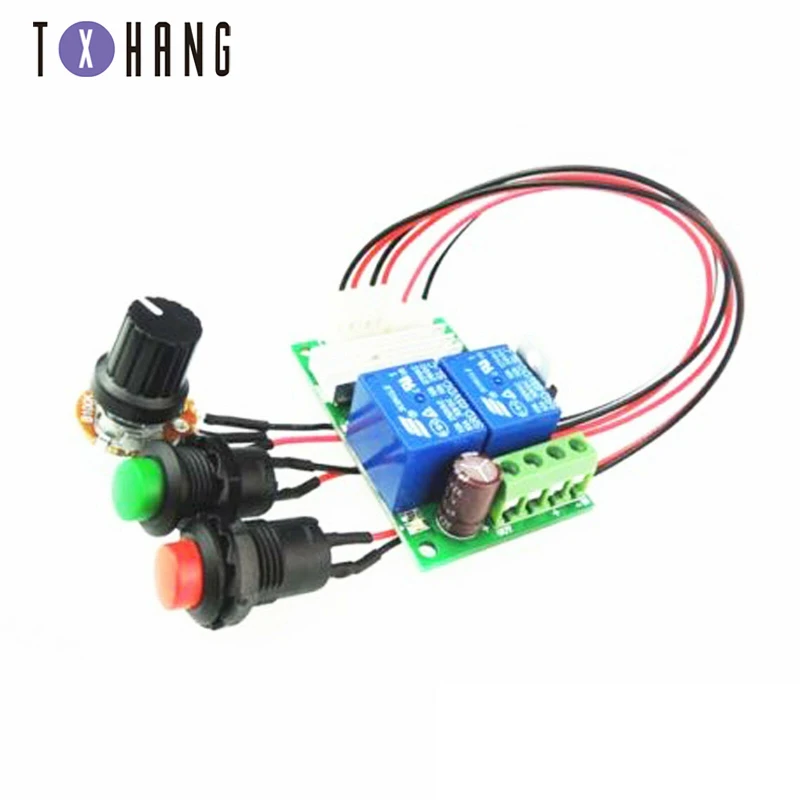

  This Brand New 1203BS DC Motor Speed Controller allows controlling the direction of a DC the motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully the product adjust from 0%-100%.
Enable to provide a continuous current of 3A to your DC motor or other DC load.

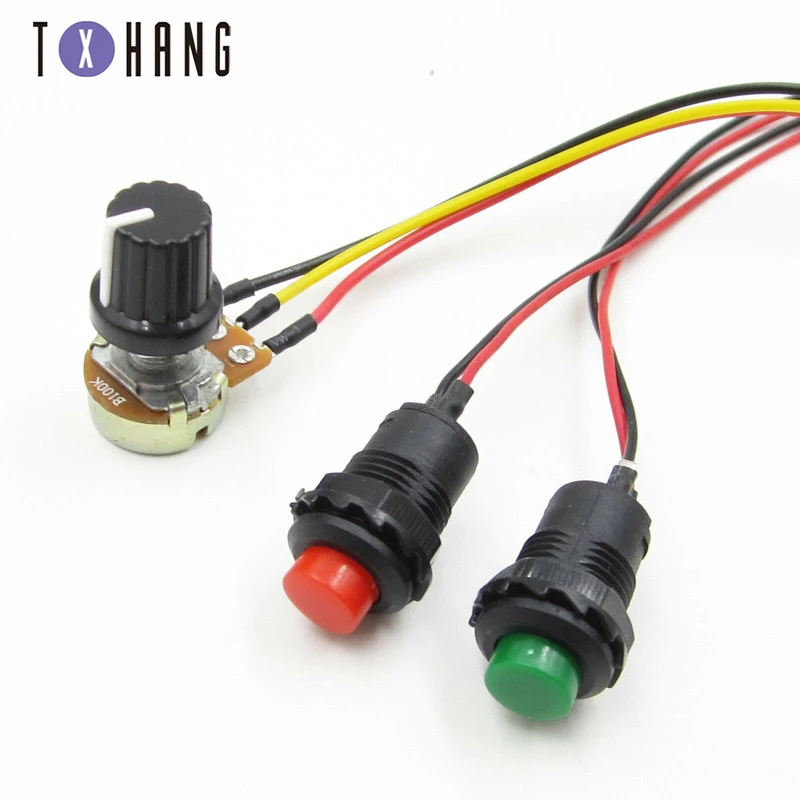

Control the forward or reverse direction and the stop of DC motor by button switch.
Press the red button, the motor reverses rotates; and release the button, the motor stops.
Press the green button, the motor clockwise rotates; and release the button, the motor stops.


Specification:

Input supply voltage:DC6V-24V
The max continuous output current :3A
Duty Cycle adjustable: 0%-100%
Size:57*37*21mm


Operating instruction:

Before you attempting to wire the controller, make sure power is off.

WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER.

1. Connect wires refer to the "wiring diagram"

2. Turn on the power, and adjust the potentiometer.

3. The LED indicates the power up and the speed of motor.


4. Control the forward or reverse direction of DC motor by button switches.
Package includes:

1PCS DC 6V 9V 12V 24V 3A DC Motor Speed Controller Forward Backward Reversible Switch NEW
