КБ 1704A PTX4 315 868 МГц Электрический клонирование ворота дистанционного управления

Feature:
Four keys can copy four different types of chips, that is, a remote controller can operate four different types of facilities. Frequencies range from 270 MHz to 434 MHZ and so on. Copy data faster, not easy to lose code, long distance.

Specification:
Product Material: ABS
Product size: 60*35*10mm/2.36*1.37*0.39''

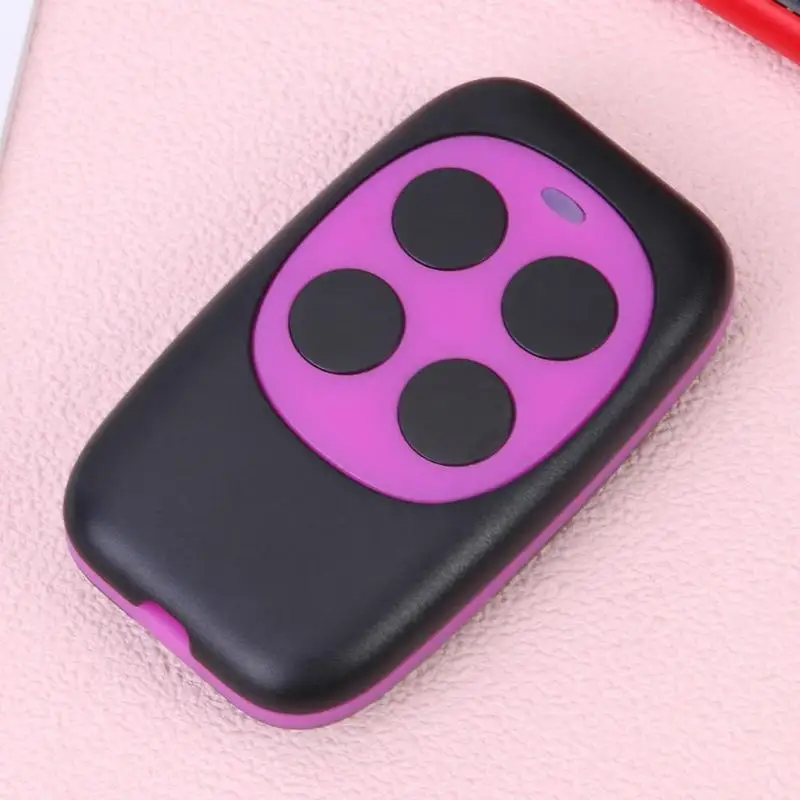

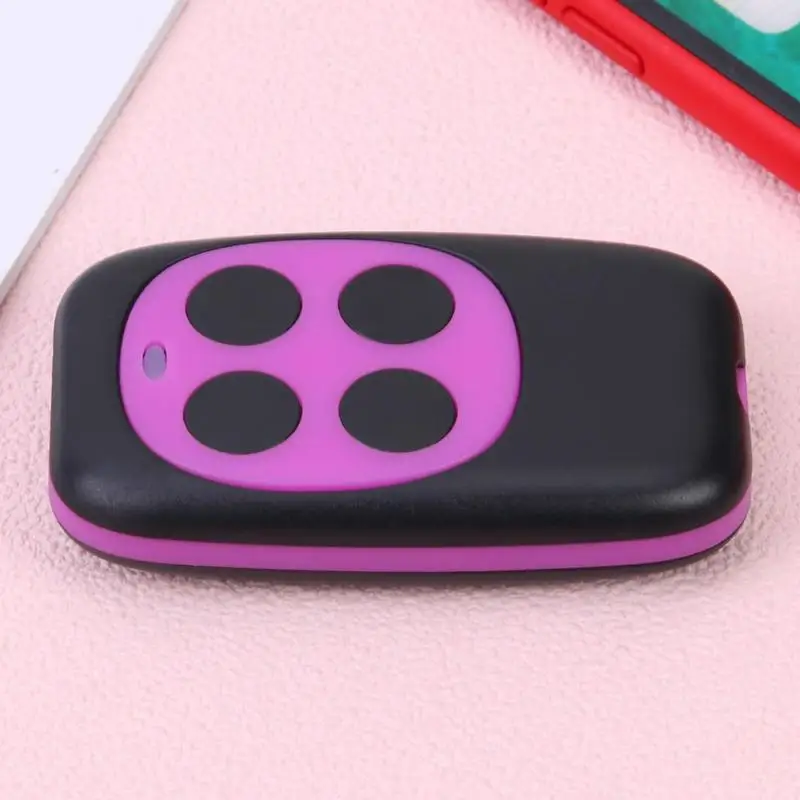

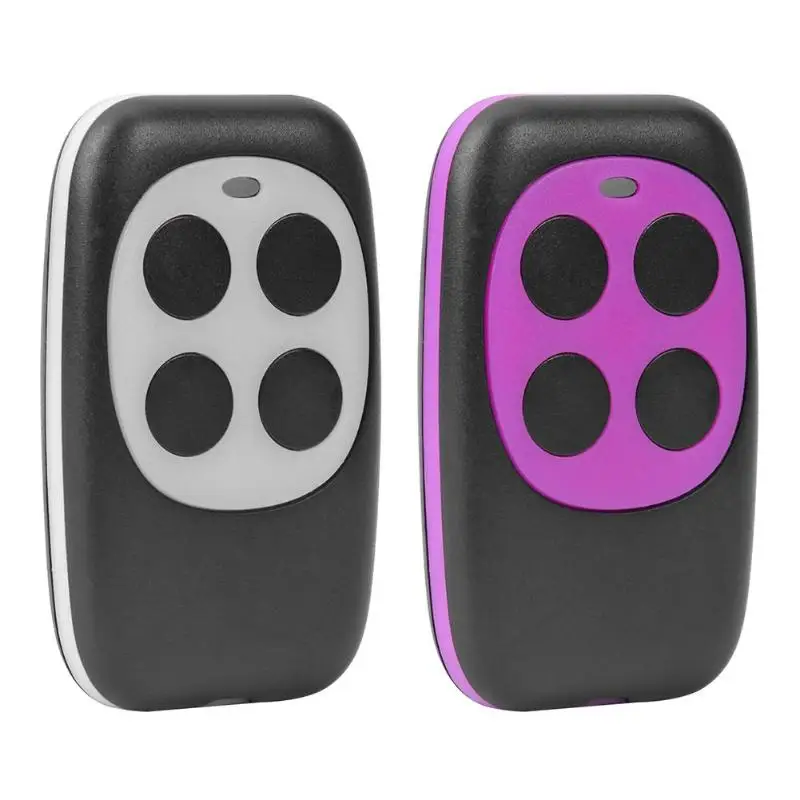

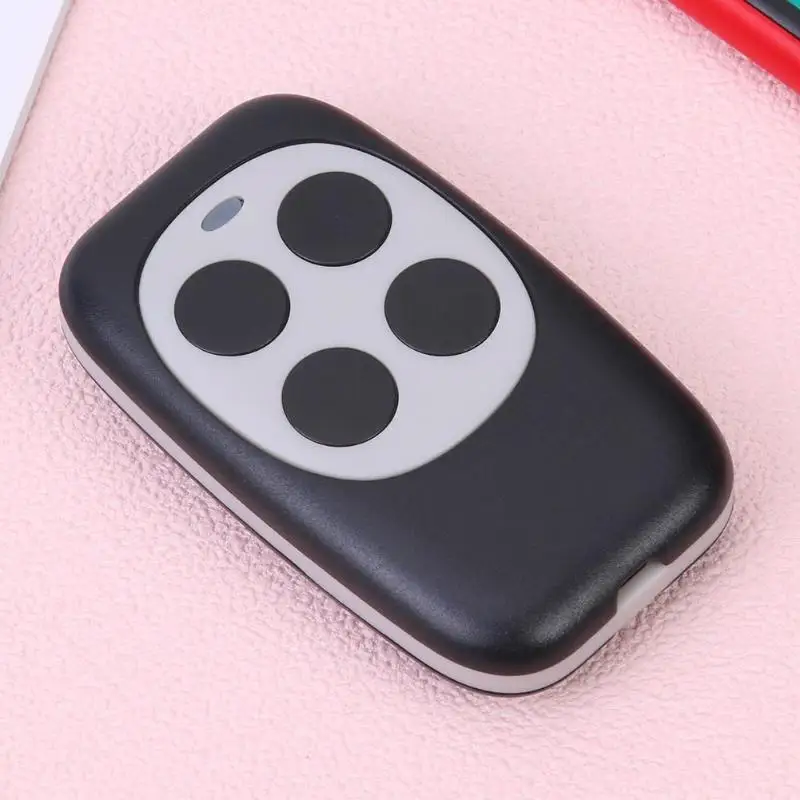

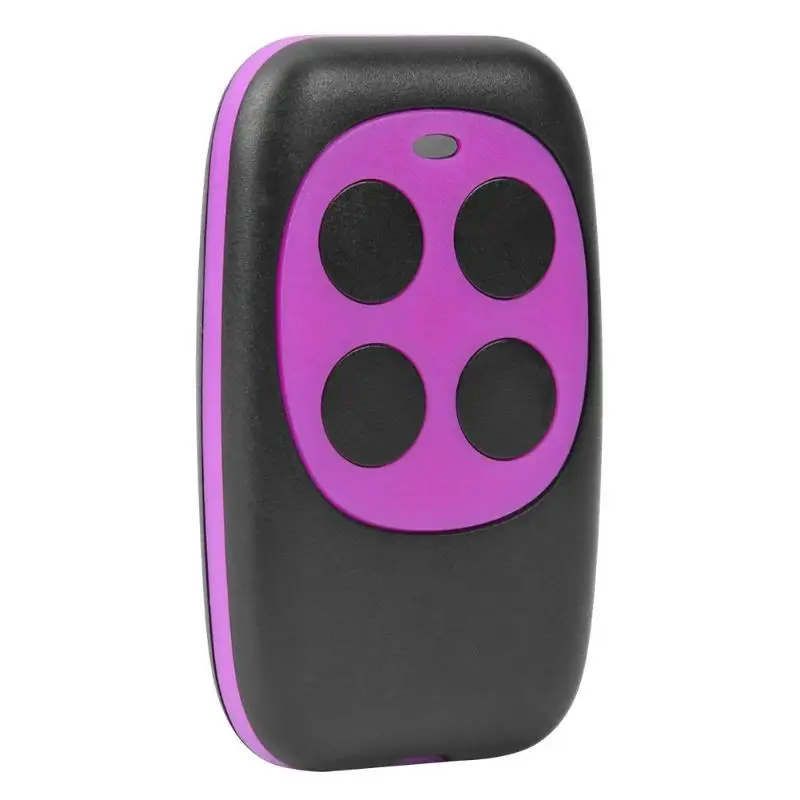

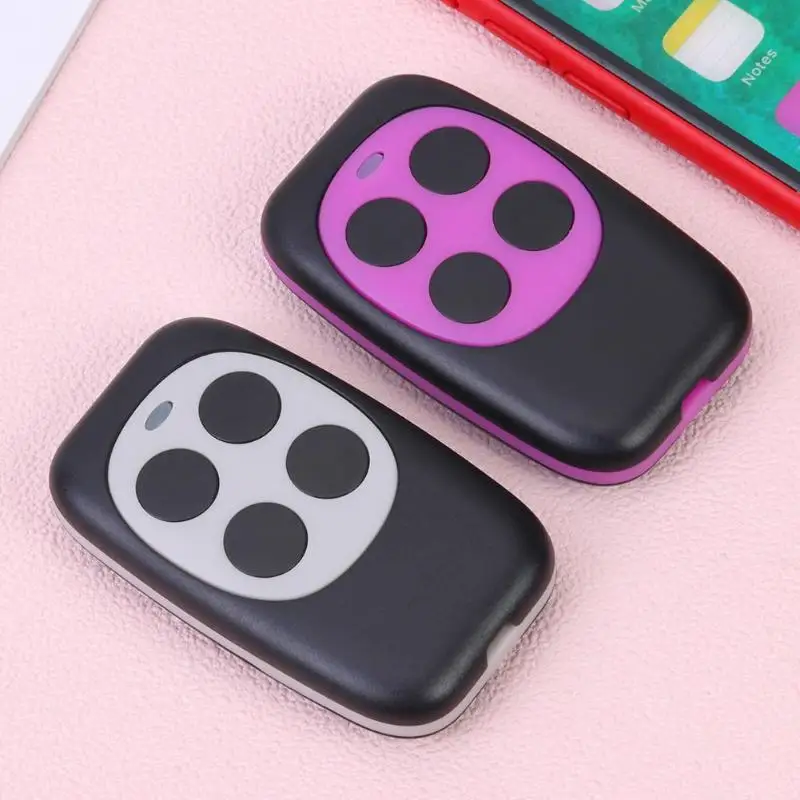

Product color: Purple, Grey
Rated voltage: 12 (V)
Rated current: 10 (mA)
Installation mode: wireless
Corresponding frequency: 280-868MHZ
Learning frequency range: 300MHZ 306MHZ 310MHZ 315MHZ 315.5MHZ 330MHZ 360MHZ 390MHZ 418MHZ 430.5MHZ 433.42MHZ 868.35MHZ 286-361MHZ 384-400MHZ
Wireless transmission distance: 50-100m (open area)

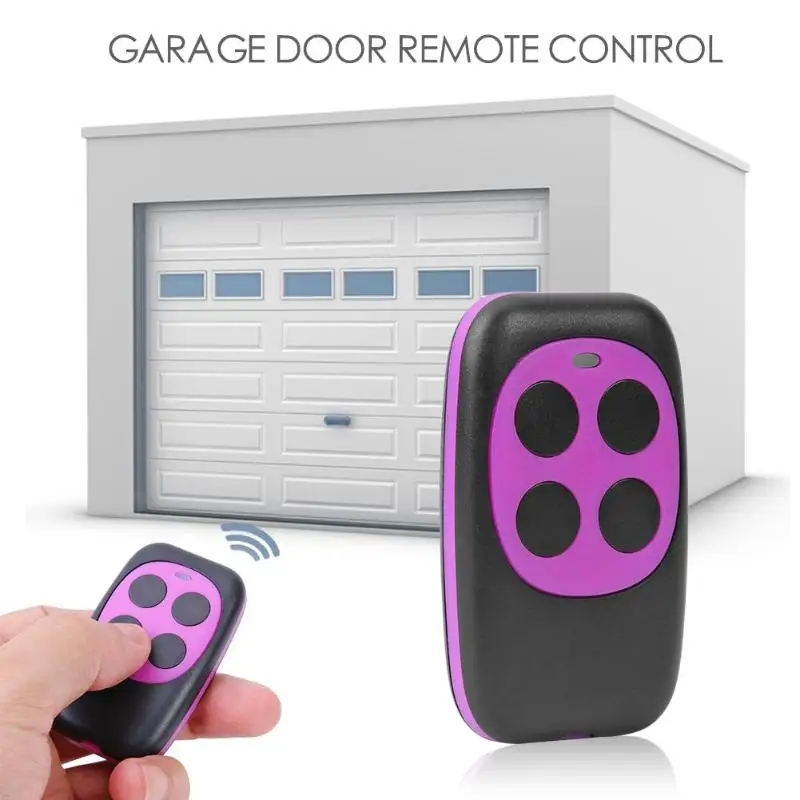

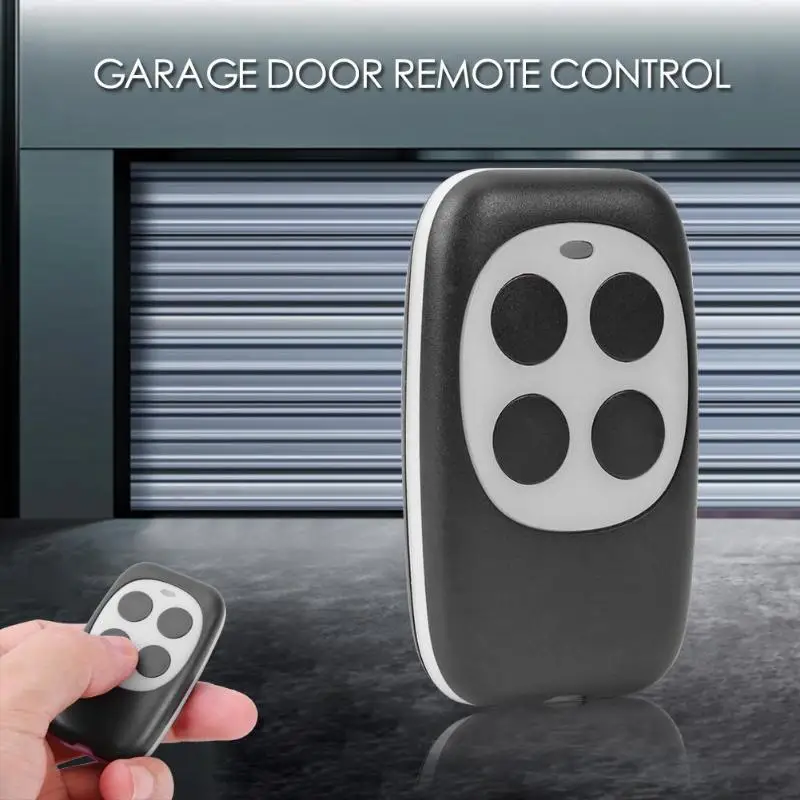

Scope of application: garage door, alarm, automatic door, curtain door, etc.

Copy Manual:
1. Copy-able chips:
2260 (all manufacturers), 2262 (all manufacturers), PT2264, 5326 (all manufacturers), SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918 series, 527 (all manufacturers), 1527 (all manufacturers), 2240 (all manufacturers), HCS 101, HCS 200 HCS 201 (part code), HCS 300 HCS 301 (part code), some single chip microcontrollers....
2. Coding method:
At the same time, hold down the two keys of unlocking and closing (some cases are up and down keys), the LED indicator flashes three times, release any one of the keys pressed, the other is not loose, click the three keys unlocked, the LED indicator enters a fast flashing state, at this time, all the data in memory is cleared, the remote control after clearing the data, no matter which key is pressed, the LED indicator is not on.
3. Copying methods:
One hand-held original remote controller, the other hand-held copy remote controller, two remote controllers as close as possible, (ideally the two remote controllers zero distance side by side on the desktop) press the required copy buttons separately, the LED indicator flickers quickly after three flickers, copy success, the other key operation method is the same. Some remote controllers have low transmitting power, so they should be equipped with remote controllers and back-to-back operation of copying remote controllers to cope well. If there is interference in some operating environments, interference operation should be avoided. If copying is not good, copying should be done again after code clearance.
4. Common garage doors, telescopic doors, gate, parking locks and anti-theft devices can be copied.
For Dalian Xisaide Series (including New Soma), for Hangzhou Menren Series,for  Shenzhen Zhongtian A, Zhongtian B, for Foshan Horst White, for Horst Blue, for Horst Transparent Horst Shift Gate, for Ningbo Duya 1, Duya 2, Ideal Series, for Yantai Shengda Series, for Shenyang Haitong Series, for Shenyang Future Wright Red Lamp (including welding code and learning code), for Xuji S60, S66 Series, for Red Gate Series Column, for Extreme Speed Series, for Changshun Series, for Master Series (including Learning Code), for Shenzhen Shunchang Series, for Jiangxi Baisheng Hercules Series (including Welding Code, Learning Code, Rolling Code), for Juguang Series, for Haizhu Series, for Haiyou Series (including Sharp 315MHz), for Jiahe Series (including Jiahe 315 Special Rolling Code), for Tiejun Fixed Code Series

Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

1 X пульт дистанционного управления
