Bluetooth 4.2 Subwoofer Audio Amplifier 100W Hifi Stereo Tpa3116 Digital 2.1 Channel Desktop Power Amp 50Wx2 | Электроника

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Maximum Power Per Channel: 100W
Model Number: TPA3116 * 2 NE5532
Channels: 3 (2.1)
Package: Yes
Colour: Black
Material: aluminum alloy
Features:
1. Using original TPA3116
2. Using classic op amp, 5532, removable
3. The resistor is made of precision patch to ensure a good signal-to-noise ratio of the whole machine.
4. PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and spray tin full process to ensure good passing performance of large and small currents. First-class PCB quality.
5. With fully enclosed dustproof potentiometer, the performance is more stable, more durable than ordinary potentiometer!
6. Use high-current inductors for red and gray ring audio to ensure the sound is crisp and powerful.
7. This machine adopts all-aluminum chassis, the surface of the chassis is all processed by brushed oxidation coloring process, all aluminum knobs, feel very good!

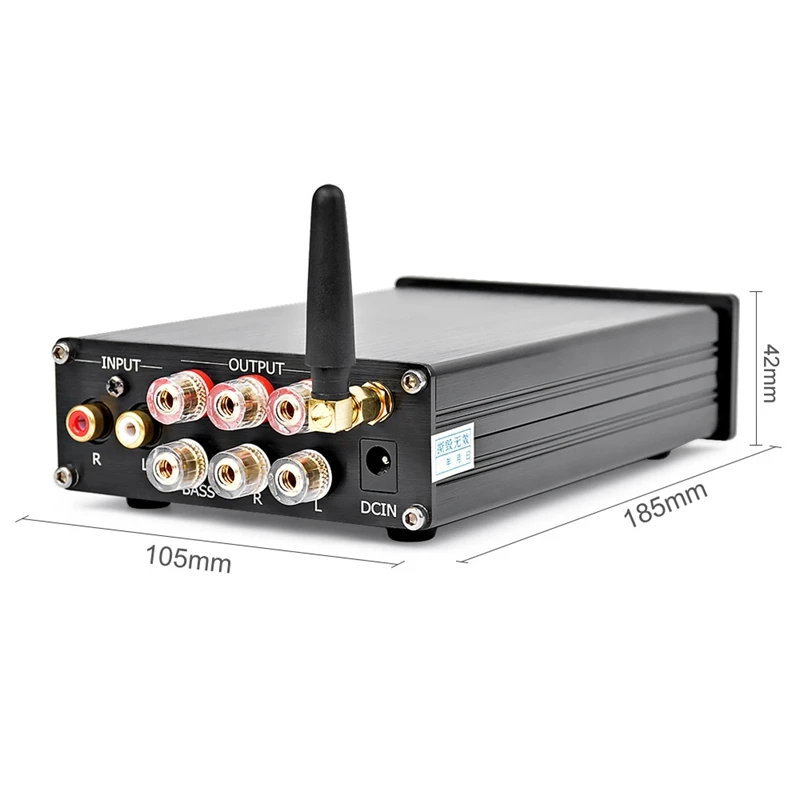

8. Appearance size: 185 * wide 105 * high 43MM

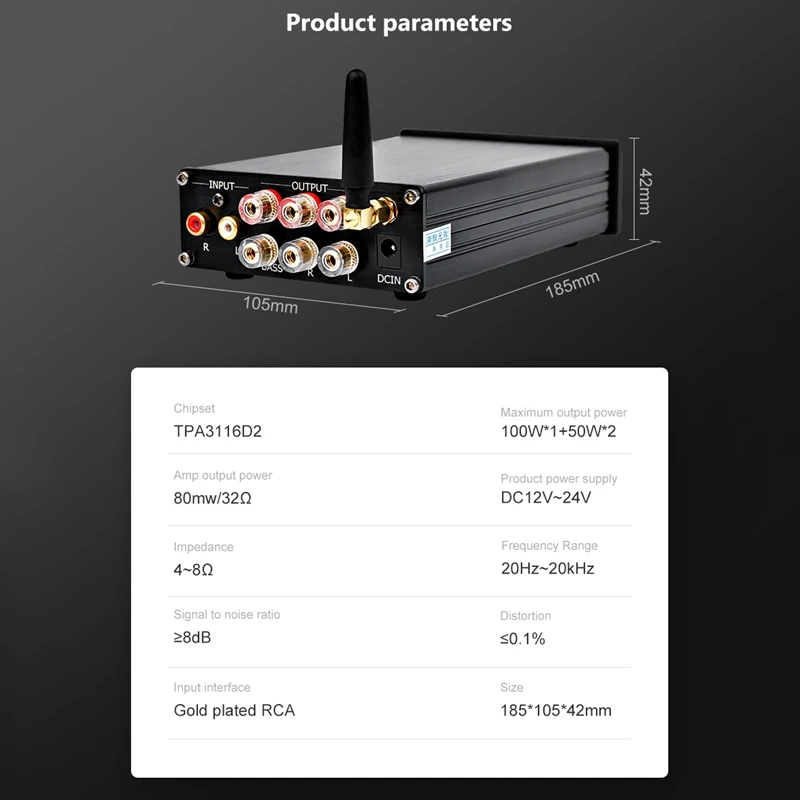

Basic parameters:
1. Working method: Class D
2. Quiescent current: 50mA
3. Work efficiency: 90%
4. Rated output power: 2 * 50W+1 * 100W
5. Frequency response: 20Hz to 20KHz
6. Working voltage: DC18V to DC24V(recommend to use DC24V without supply power)
7. Min output current: 3A

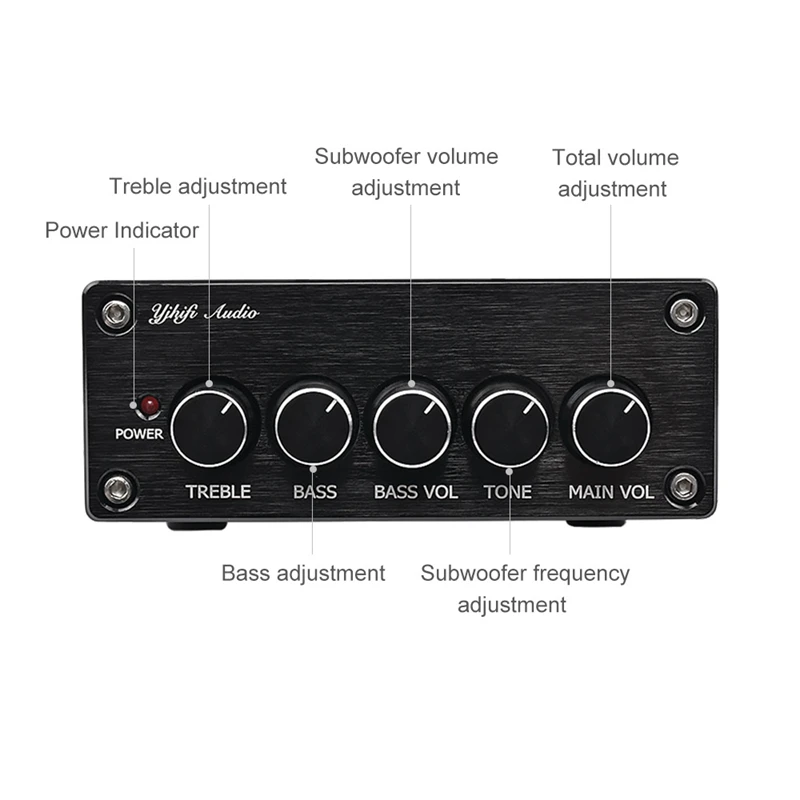

The function of the knob from left to right is: left and right channel treble adjustment, left and right channel bass adjustment, subwoofer volume adjustment, subwoofer frequency adjustment, total volume adjustment
Package included:
1PC * Power Amplifier
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
