STM32 Board Core407I STM32F407IGT6 STM32F407 ARM Cortex-M4 STM32 Development Core Board with Full IOs



STM32 small board with the STM32F407IGT6 MCU, full IO expander, JTAG/SWD debug interface

Overview

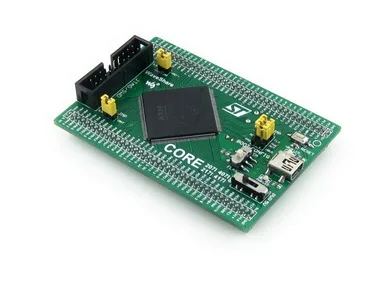

Core407I is a small STM32 development board that features an STM32F407IGT6 device as the microcontroller, supports further expansion. It is ideal for starting application development with STM32F family.

As a minimal ready-to-run system, the Core407I integrates USB communication interface, JTAG/SWD programming/debugging interface, clock circuit, USB power management, boot mode selection, and so on.

Furthermore, pin headers on the backside allow the Core407I to be plugged-in your application board and act as the MCU core circuit in your system. All the I/O ports are accessible on the pin headers, and the header pitch is designed as 2.0mm to achieve smaller pcb size.

---

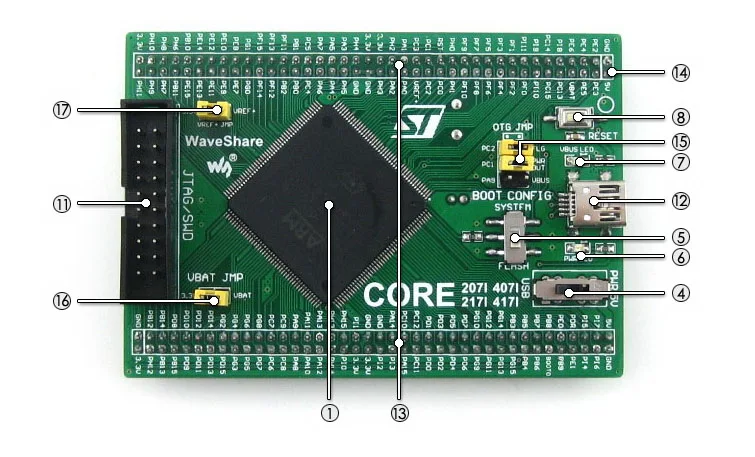

What's On Board

STM32F407IGT6: the high performance STM32 MCU which features: Core: Cortex-M4 32-bit RISC Feature: a full set of single-cycle DSP instructions Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz Operating Voltage: 1.8V-3.6V Package: LQFP176 Memories: 1024kB Flash, 192+4kB SRAM MCU communication Interfaces: 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C 1 x FSMC, 1 x SDIO, 2 x CAN 1 x USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI and on-chip full-speed PHY 1 x 10/100 Ethernet MAC 1 x 8 to 14-bit parallel camera interface AD & DA converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit) Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP AMS1117-3.3 (on bottom side), 3.3V voltage regulator MIC2075 (on bottom side), onboard USB power management device Power supply switch, powered from 5Vin or USB connection Boot mode switch, for configuring BOOT0 pin Power indicator VBUS LED Reset button 8M crystal oscillator (on bottom side) 32.768K crystal (on bottom side), for internal RTC with calibration JTAG/SWD interface: for debugging/programming USB interface as DEVICE, used for establishing USB communication between PC and the STM32 development board as HOST, connecting to USB devices such as USB flash drive through a USB OTG cable MCU pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion 5Vin pinheader, 5V power supply is required when using USB HOST/OTG USB HOST/OTG jumper short the jumper when using USB HOST/OTG open the jumper to disconnect from I/O port VBAT selection jumper short the jumper to use system power supply open the jumper to connect the VBAT to external power, such as battery VREF selection jumper short the jumper to connect VREF+ to VCC open the jumper to connect VREF+ to other custom pin via jumper wire

---

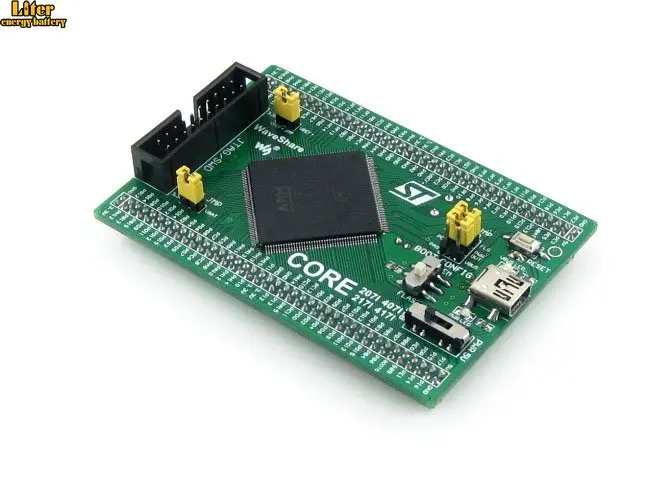

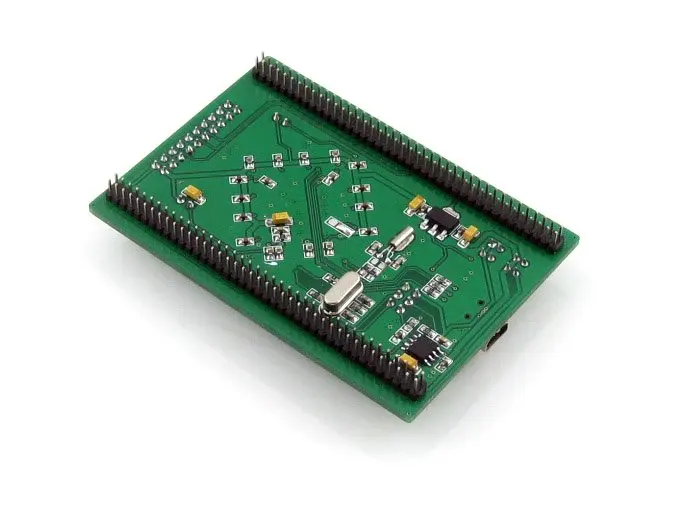

Photos

---

Note:
Core407I provides JTAG/SWD debugging interface, yet does NOT integrate any debugging function, a debugger is required.

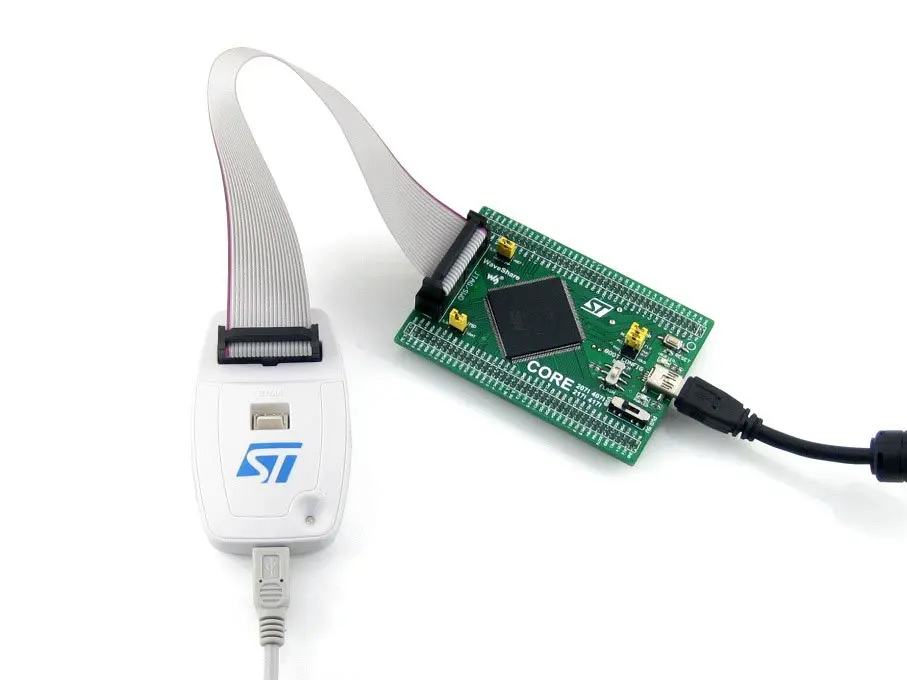

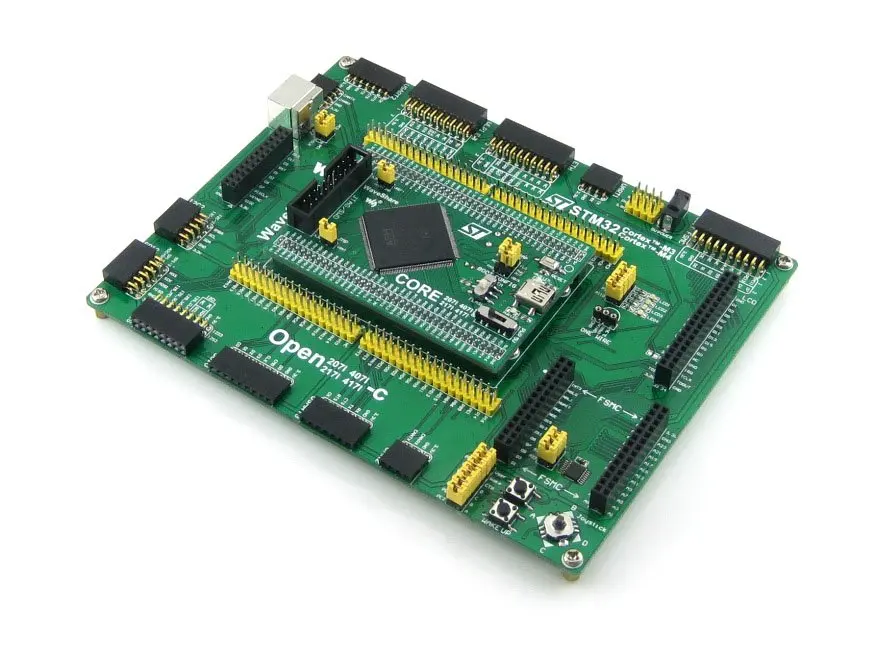

Mother board and programmer/debugger in the photos are NOT included in the price.

---

JTAG/SWD Interfaces

The figure 1, figure 2 shows the header pinout of JTAG, SWD interface respectively

Figure 1. JTAG Header Pinout
Figure 2. SWD Header Pinout

---

Development Resources

Core407I STM32 development board comes with a User Guide CD including development resources listed as below:

Related software (KEIL etc.) Examples in C Schematic (PDF) Development documentations

---

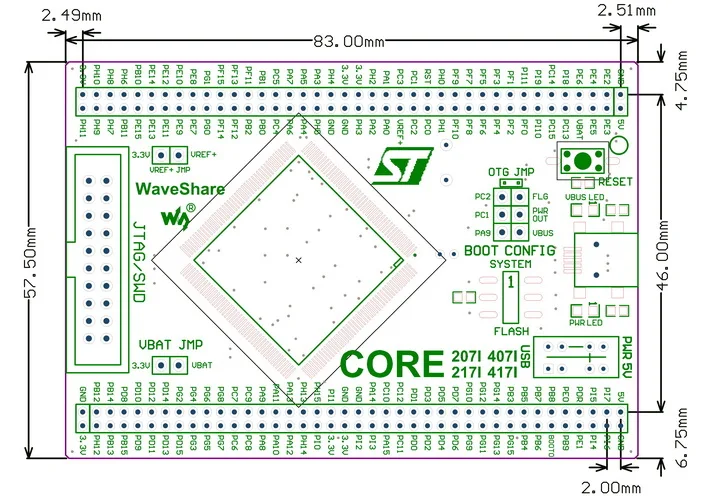

Dimensions

---

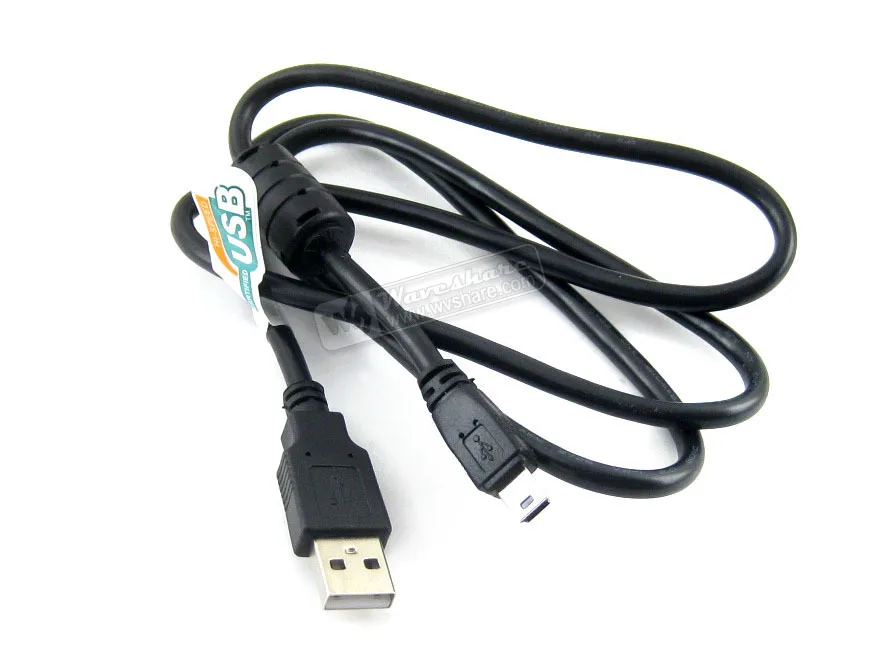

Package Contains Core407I development board x 1 USB type A to Mini-B cable x 1 User guide CD x 1 1 2 3
