Digital Lcd Display Water Flow Sensor Meter Flowmeter Rotameter Temperature Time Record With G1/2 | Электроника

When a flow of water is detected, the stream head animation will begin to show the water droplets.total water consumption, flow rate display.The total water consumption is expressed in litres of L and gallons of gallons, and the unit is passed. When the total water consumption is less than 10000L (or GAL) will be accurate to two decimal places, when the total water consumption is greater than 9999.99 L (or GAL)
The decimal point will be hidden. The maximum measurement 999999L (Note: If the upgrade, if the unit is set.Into the GAL, also count 999999L clear 0, that is, remember to 219969GAL clear 0), after more than.Remeasurement starts at 0.K value setting character (K ​​SETTING)
The K value setting character will be displayed when entering the interface number: 00 for the K value setting interface (K SETING)
Show it
Total Traffic Character (TOTAL).When the system is powered on, the total flow character is displayed on the main screen.three, settings and interface description
DIY Supplies: Plumbing
Measurement Range: 999999L
the temperature
The temperature display range is -99-999 Celsius. Unit C is Celsius and F is Fahrenheit. Temperature unit
It can be switched by pressing the "+" key.
the use of time / flow rate display
When there is water flow, it will automatically jump to the flow rate display, and when there is no water flow, the total time will be displayed. Total time unit DAY
Indicates days, HRS indicates hours, and time units can be switched by long pressing the "+" key.

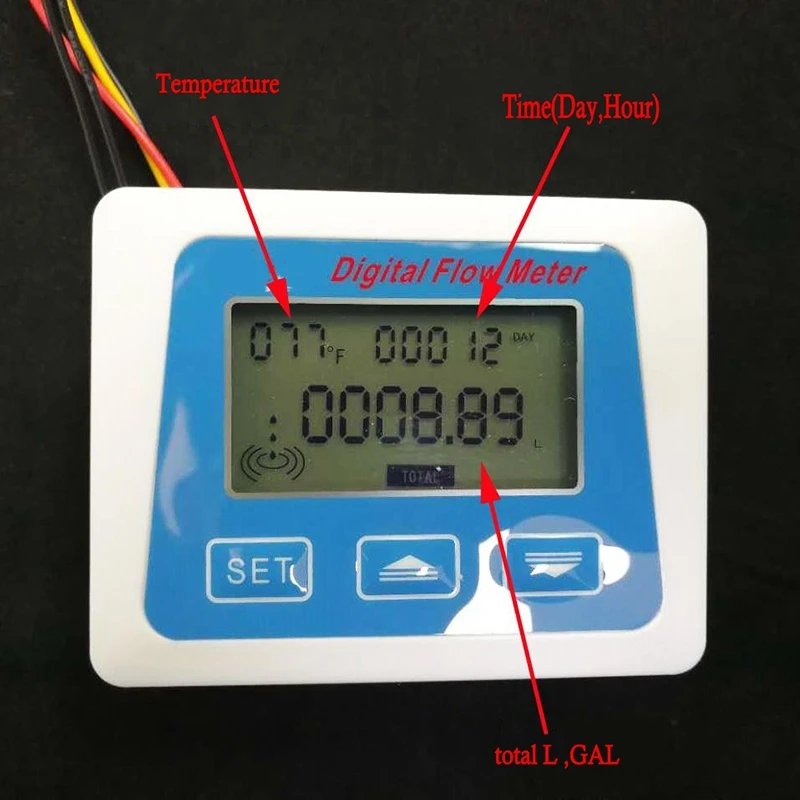

temperature display
Use time/flow rate display
Water flow painting display
Total flow character character TOTAL
Battery indication
Total water consumption
The flow rate unit LPM is "l/min", GPM is "gallon/min", can be short-pressed by "-"
Key switch.
battery prompt
The battery alerticon flashes when the battery is low, prompting the user to replace the battery. In electricity
It will not be displayed if there are sufficient quantities.
water flow painting
how to set the system operating mode
Use the battery three AAA battery interface to power the system.(Not include battery)
the main interface and the main interface settings
colour:white
Material:plastic
Package Contents:

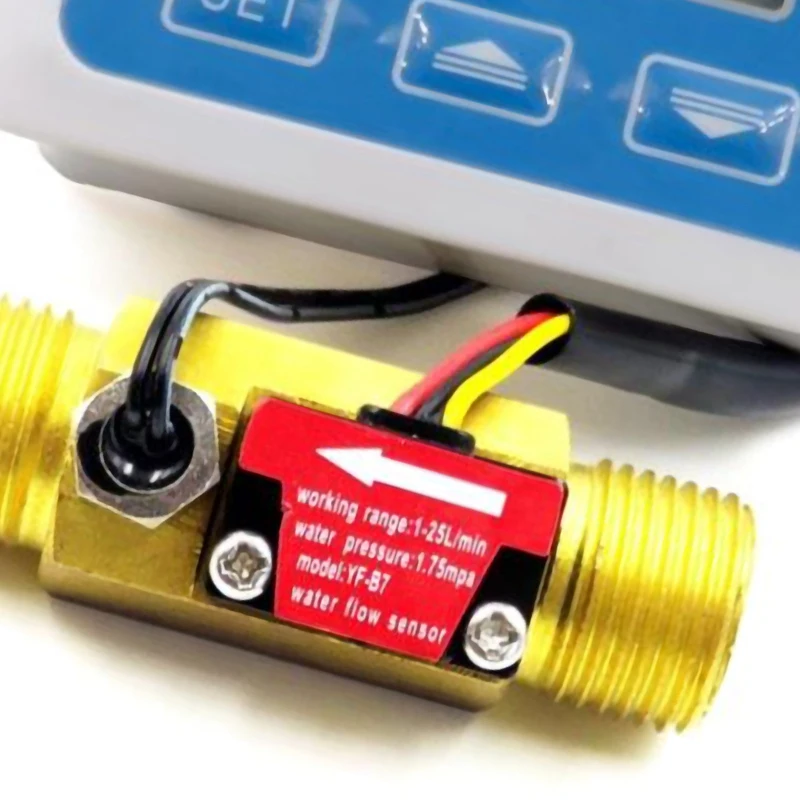

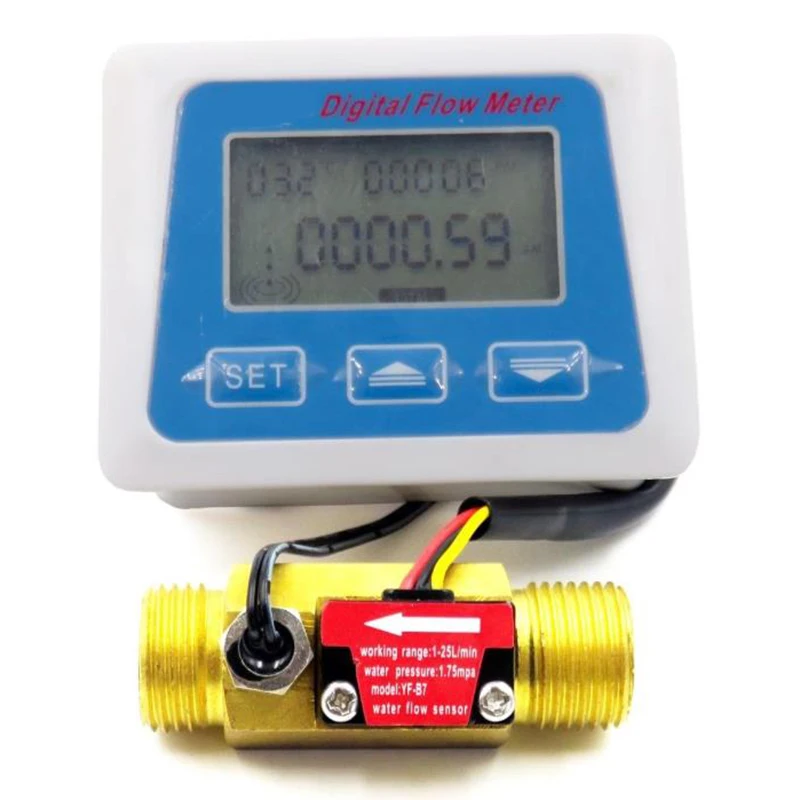

1 * water flow sensor
1 * digital display
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
