Chapter Product introduction

One、Product overview

MBSL8DI4ROModule is8Road Digital Quantity Isolated Input、4Isolated Output Module of Road Relay，By isolationRS485Interface output。Modules adopt standardModbus RTUcommunication，It can be directly adapted to various upper computer configuration software.、PLC、DCSetc.。Module power supply、RS485Communication electrical signals are isolated from each other，Effectively suppress all kinds of serial mode and common mode interference，At the same time, it ensures the stability of the module.、Reliable work。

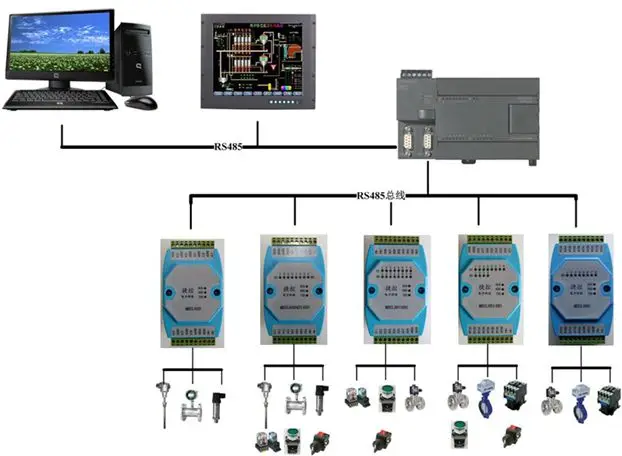

1、UseRS485 MODBUS RTUStandard communication，Configurable Software with Upper Computer、PLC、Industrial touch screen networking、With Communication Status Indicator。

2、Industrial standard：signal control、Power Supply、RS485Electrical signals such as communication are isolated from each other。

3、Lightning Protection for Communication Circuit、Anti-interference design、Polarity Protection of Power Supply。

4、RS485Overvoltage and Overcurrent Double Protection for Communication Signal Output Interface。

5、It can be widely used in signal acquisition and control of industrial field equipment.。

6、Output disconnection protection：When the module slave station detects that the master station has exceeded the set time, it does not send data.，Automatic reset output，Protecting the safety of field equipment。Default uninterrupted network protection function，Options can be set

7、Communication format can be set by software。

Two、Main Technical Indicators

term order

Technical index

Signal input/output

1、Input channel：8Road Digital Quantity Input

2、Output channel：4Circuit relay output

3、Load capacity：Resistive load250V/2A inductive load250V/1A

4、Relay coil and contact isolation voltage：2000V

Communication output

1．Communication protocol：MODBUS-RTU

2．Interface type：quarantineRS485communication，Overvoltage and Overcurrent Double Protection for Output Interface

3．baud rate： 4800bps、9600bps、19200bps、38400bps、57600bps

4．Parity bit：No check、Parity check、Odd parity check

Module size and installation method

1、 Installation mode：standardDINGuide rail installation or screw installation

2、 Outline size：125×73×35mm

work environment

temperature：-10～+60℃ humidity：35～85%（No condensation）

Working power supply

1．Power supply voltage：10V～30VWide range power supply，Polarity Protection with Power Supply

2．Power consumption：less than3W

Three、Interface definition

Terminal name

say bright

Terminal name

say bright

PW+

External power input front end

485A

RS485signalA+

PW-

Negative input end of external power supply

485B

RS485signalB-

DI1

Digital Input Channel1

RY1A

Relay Output Channel1

DI2

Digital Input Channel2

RY1B

DI3

Digital Input Channel3

RY2A

Relay Output Channel2

Digital Input Channel4

RY2B

DI5

Digital Input Channel5

RY3A

Relay Output Channel3

Digital Input Channel6

RY3B

DI7

Digital Input Channel7

RY4A

Relay Output Channel4

DI8

Digital Input Channel8

RY4B

Four、 Schematic diagram of module wiring

Five、Communication instructions

1、Communication parameter description(Factory value)： 9600，N，8，1

parameter

Explain

9600

baud rate

N(No check)

Parity bit

8

Data bits

1

Stop bit

\
\

The second chapter ModbusRegister and Communication Protocol Description

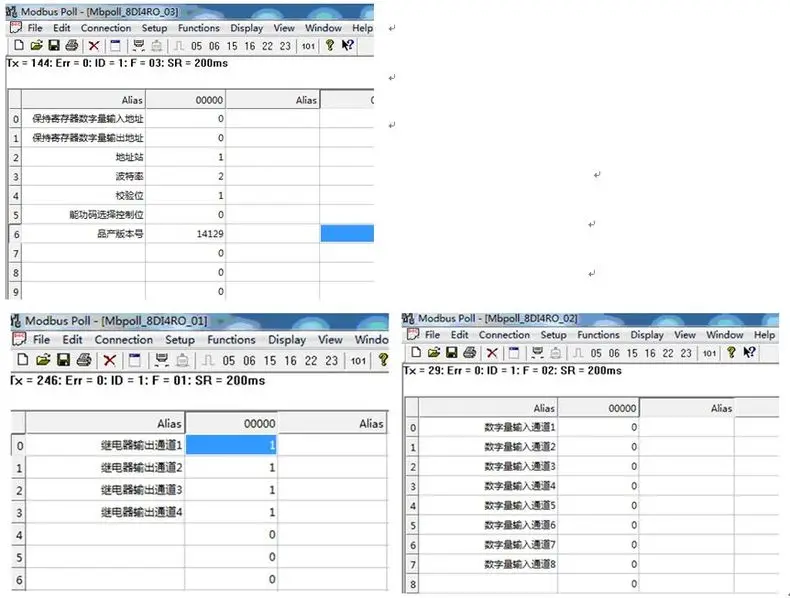

One． Modular supportedMODBUSFunction code and address range

1．Modular supportedMODBUSFunction code

Register type

Address range

Function code

Function Code Description

exercise do

Output Coil Register

00001-00004

0x01H

Read multiple coil registers

Read the value of one or more coil registers

0x05H

Write a coil register

Write the value of a coil register

0x0FH

Write one or more coil registers

Write the value of one or more coil registers

Keep Register

40001-40016

0x03H

Read multiple hold registers

Read the value of one or more holding registers

0x 06H

Write a single hold register

Write a data to the hold register

0x 10H

Write multiple hold registers

Write one or more data to the hold register

Input Digital Quantity

10001-10008

0x0H

Read input discrete quantity

Discrete Input Register
