3D Printing Mosfet High Power Heated Bed Expansion Module Mos Tube For Prusa I3 Anet A8/A6 Printer Parts | Компьютеры и офис

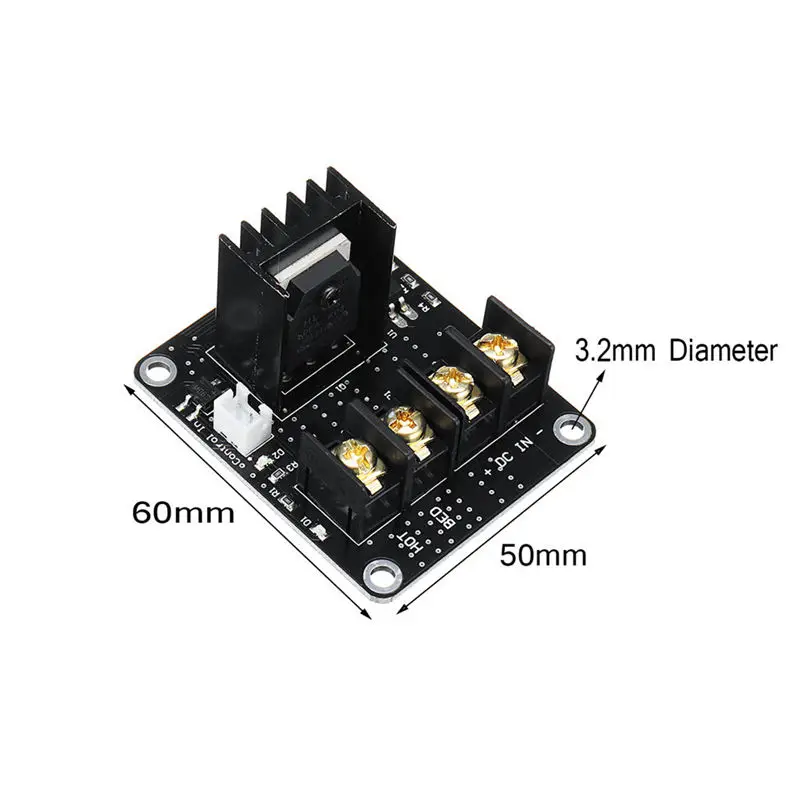

Mounting holes: 3.2mm diameter, for M3 screws
Max Current: 25A (Enhance heat dissipation) safe for prolonged times. Ensure active cooling of the heat sink.
Colour: Black
Material: metal + pc

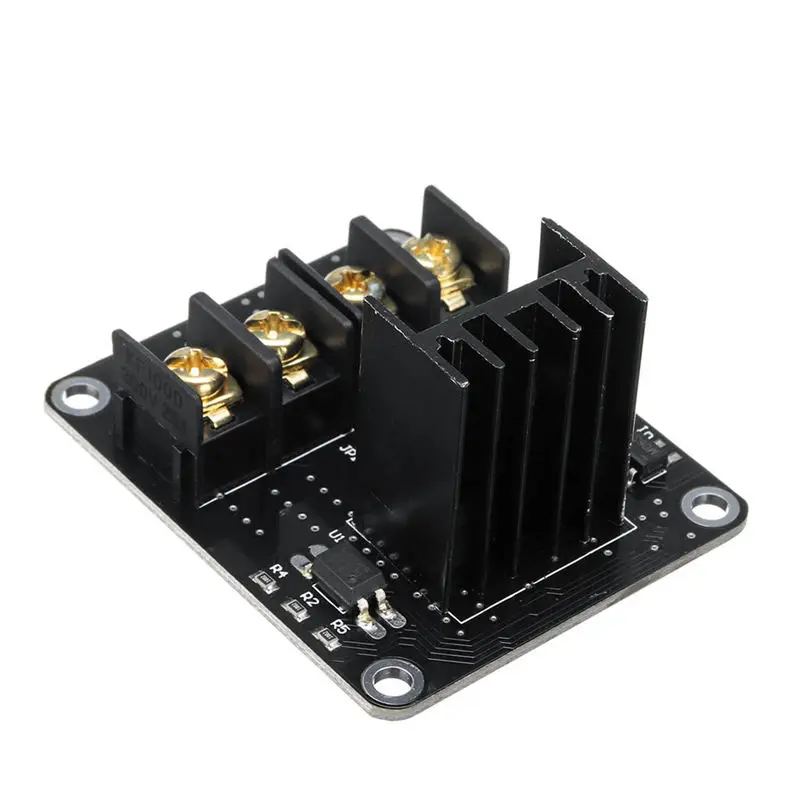

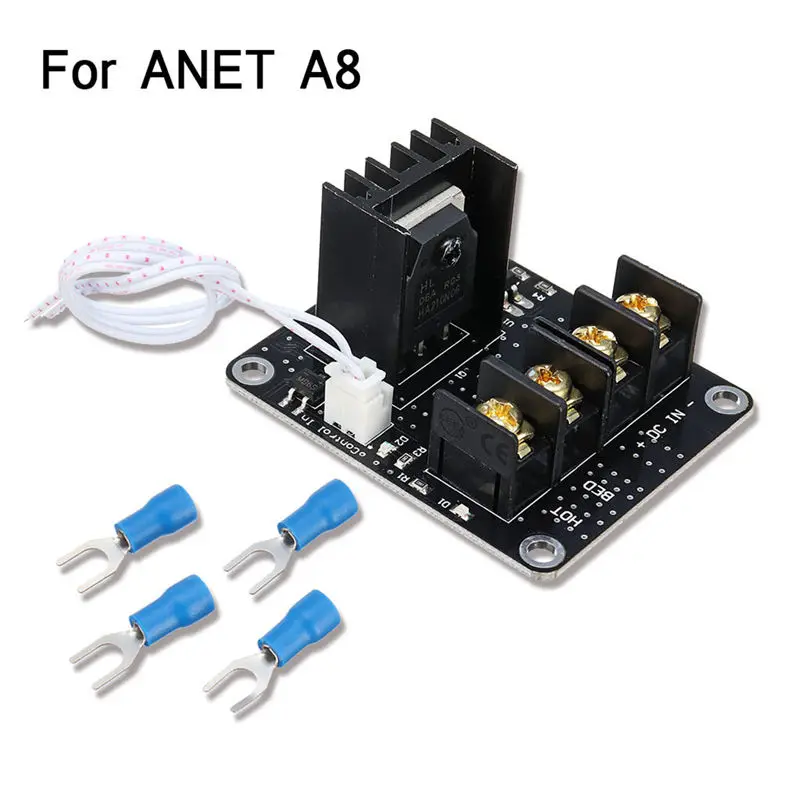

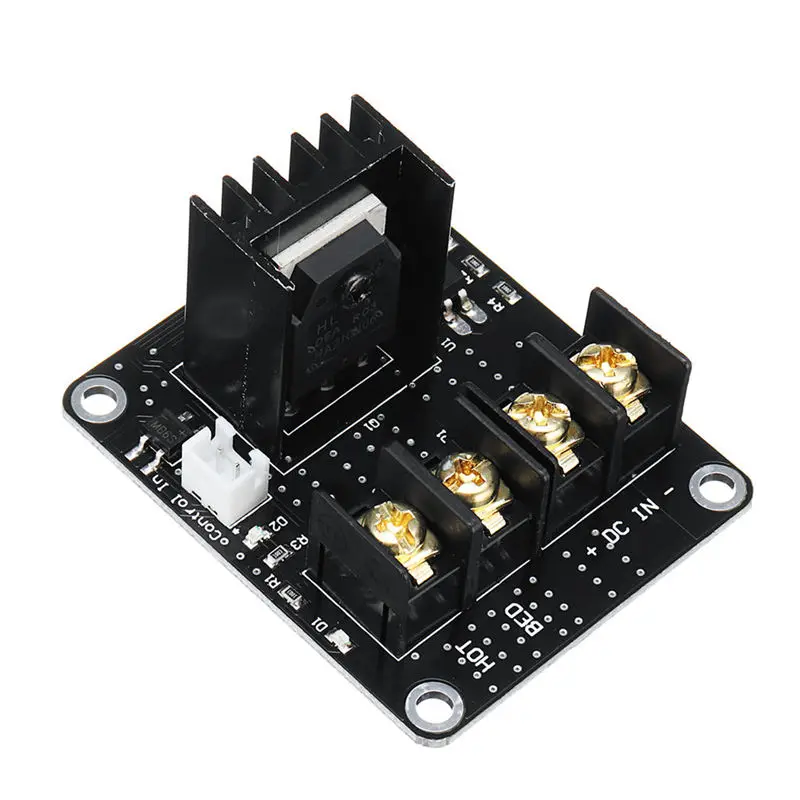

This high power module is a general add-on heated bed power expansion module for 3D printer. It can work with the Anet A8.
The heat bed power module can be used in both Chitu motherboard and other open 3D printer motherboards.
25A maximum current: This high power module helps your 3D printer equipped with the Chitu controller board (capable of max 15A) become even more powerful. With this add-on module to board lead the maximum current up to 25A.
When using heated bed 3D printer for 12V power supply which may cause excessive current during times, with this module, it can well protect the connectors on the controller board from burning.

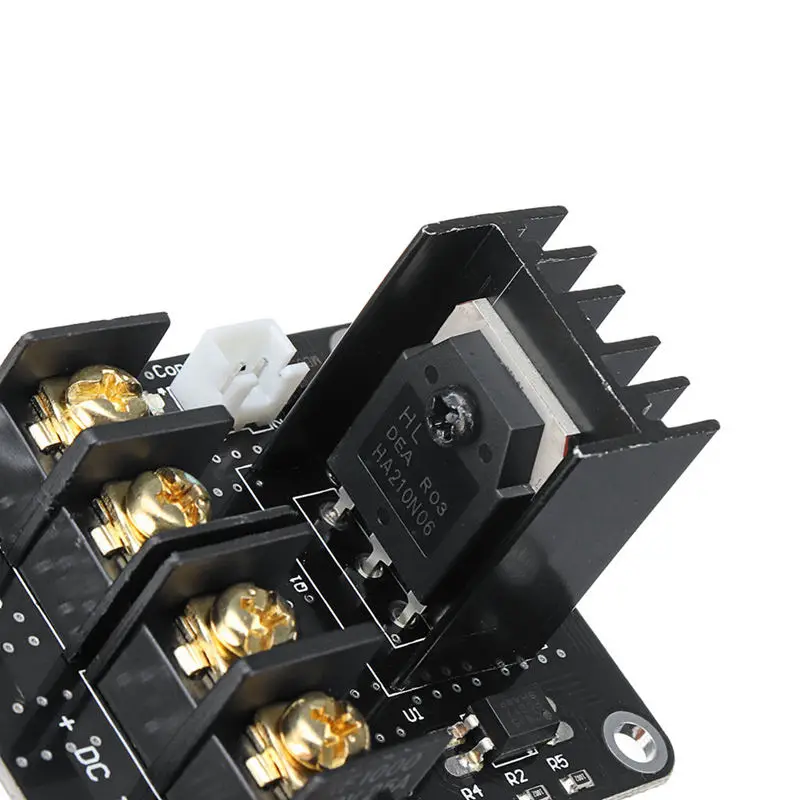

This module is based on power MOSFET and will allow PID control of the heated bed (DC-DC Relays usually do not allow this).

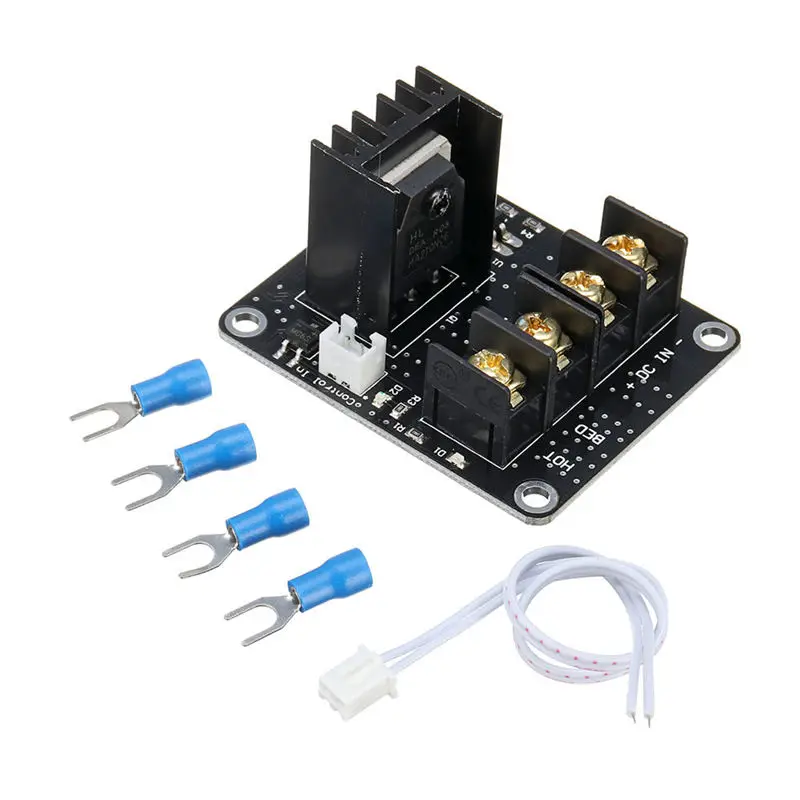

Package included:
1 x module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

<
