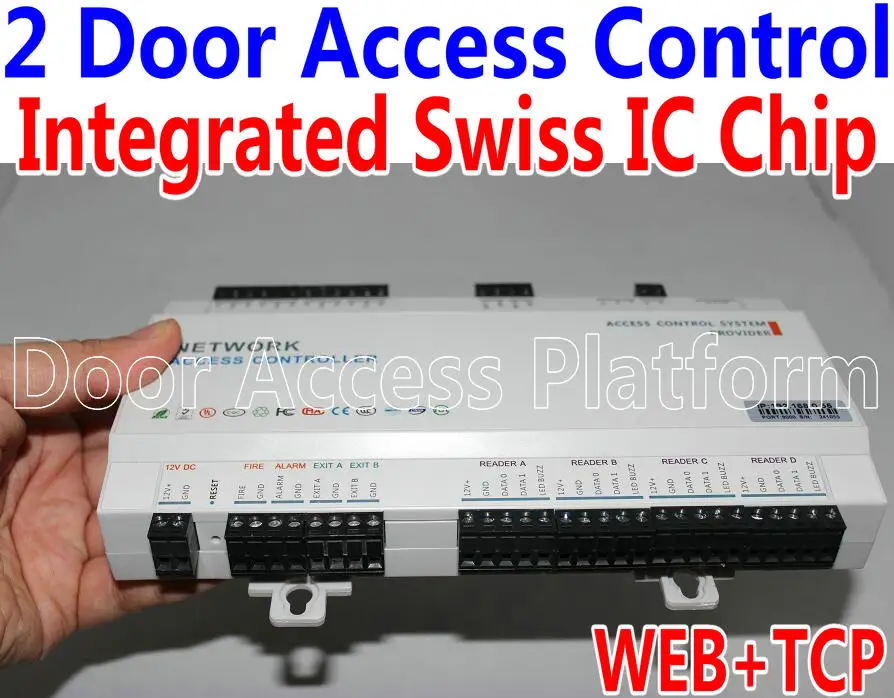

Новинка 2019 2-дверная панель контроллера интегрированная со швейцарской

Новинка 2019 2-дверная панель контроллера интегрированная со швейцарской

IC, Chip, Semiconductor are Made in Swiss,

This 2 Door Controller Panel is 2019 New year version with newest update firmware and it integrated with Swiss Imported Electronic Components &IC Chip with High speed processor,

It is the most stable and excellent quality of all in the field of security access control market in China,

The Panel work with the system by TCP/IP network communication and Web-based platform, The user can manage the door system by remotely control via Browser and realize the real time monitoring for data and record,

The Panel support WG 26/34 interface for many type of WG reader accessing, Such as RFID Card reader, Fingerprint Reader, Password Reader,

What this Controller Panel can do for you???

@ Work with Magnetic Lock,Power Supply,Release Button and Door Access Reader,

@ Work with Turnstile, Tripod Turnstile and RFID Card Reader,

@ Work with Car Parking Barrier Gate,Car Parking One-Card Platform,

@ Work with as Network Terminal /Platform and open the SDK for u development work,

Connection

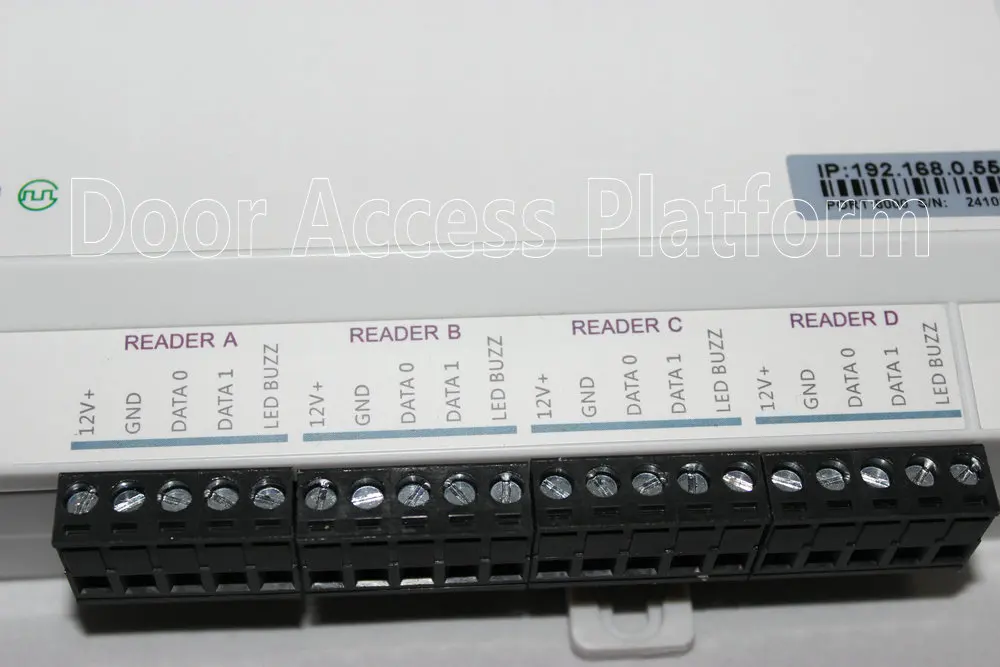

Card readers：

4 pcs （WG 26/34 reader）

Alarm output：

1 pc（1－65535 sec.）

Alarm input：

1 pcs

Fire alarm output：

1 pc

Fire alarm input：

1 pc

Release button：

2 pcs

Door sensor input：

2 pcs

Lock output：

2 pcs

Parameter

Card holder：

30000

Logs：

50000

Alarm capacity：

10000

Communication：

TCP/IP + Web Interface

Communication distance：

100 meters between access controller and HUB

Card reading：

WG 26/34

Communication ：

< 100 meters

Door opening methods:

card,password, card+password, double bard, first card opening,

software, fire alarm, release button,timing door opening

Features

  - Standard 10M Eternet TCP/IP Network Communication

  - Built in Webserver function, Do not need install software, Just inputting IP address of Controller Panels,

  - and proceeding setting and log checking for remote control management

 - Can connecting other multi door access controller via TCP/IP to set up a network and manage in one software

 - Capacity: 30000 cards, 50,000 records, alarm records

- Time zone: 16 groups, and can setting related multi door opening method like card, card + password,

  double card

- Support remote door opening, remote open or close fire alarm, alarm

- Support many alarm events’ output, like invalid card, invalid time, door alarm

  door opening time surpassing

-  Support 4 WG card reader, 2 reader for entry and another 2 for exit,automatically WG 26,34,37 protocal

 - Support 6 output to control door and alarm output together, and timing alarm output

 - Support multi door inter lock, and anti pass back function

PC Software:

Web Interface Show:
