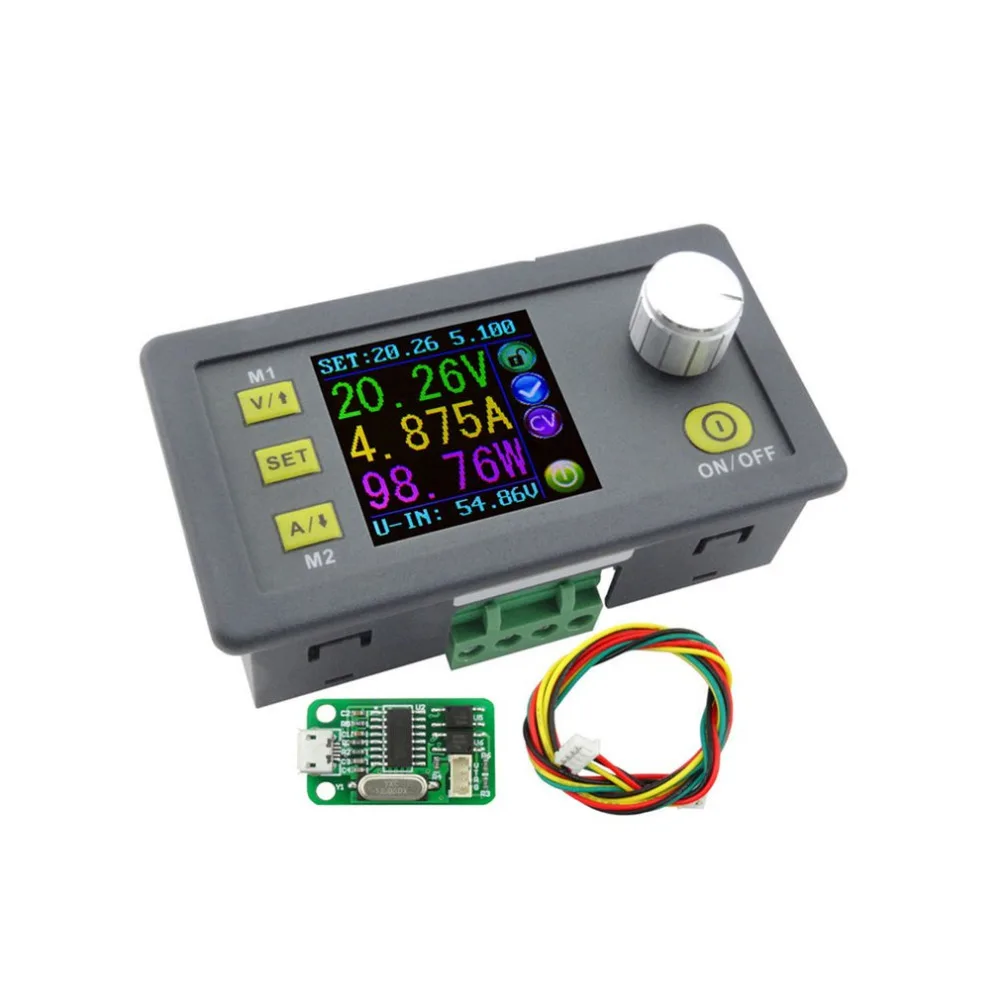

DPS5005 Direct-current Communication Function Constant Voltage Step-down Power Supply Module Voltage Converter Voltmeter

Features:
LCD display on the module has the function digital voltmeter and ammeter.
You can view the preset voltage, input voltage, output voltage, the preset current, output current, output power, etc
The constant voltage and constant current programmable control power supply module put the collection of analog integration and digital control functions in one.
This module has many advantages, small size, advanced function, good visual effect, high-precision, being used independently, being inset into the device and been widely applied.
This module has power-down stored function and can store 10 groups preset value.
And it also has the function of extracting quickly two groups stored value.
Compared with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required.

Descriptions:
On the output state remind area, you can see that output opens or not, the state of constant voltage and constant current, output is normal or not, the key is locked or not, and the current data groups that is being used.
On the setting data interface, you can adjust over voltage value, over current value, over-power value, data set and LCD brightness.

Specification:
Input voltage range: 6.00-55.00V
Output voltage range: 0V-50.00V
Output current: 0-5.000A
Output power range: 00.00-250.0W

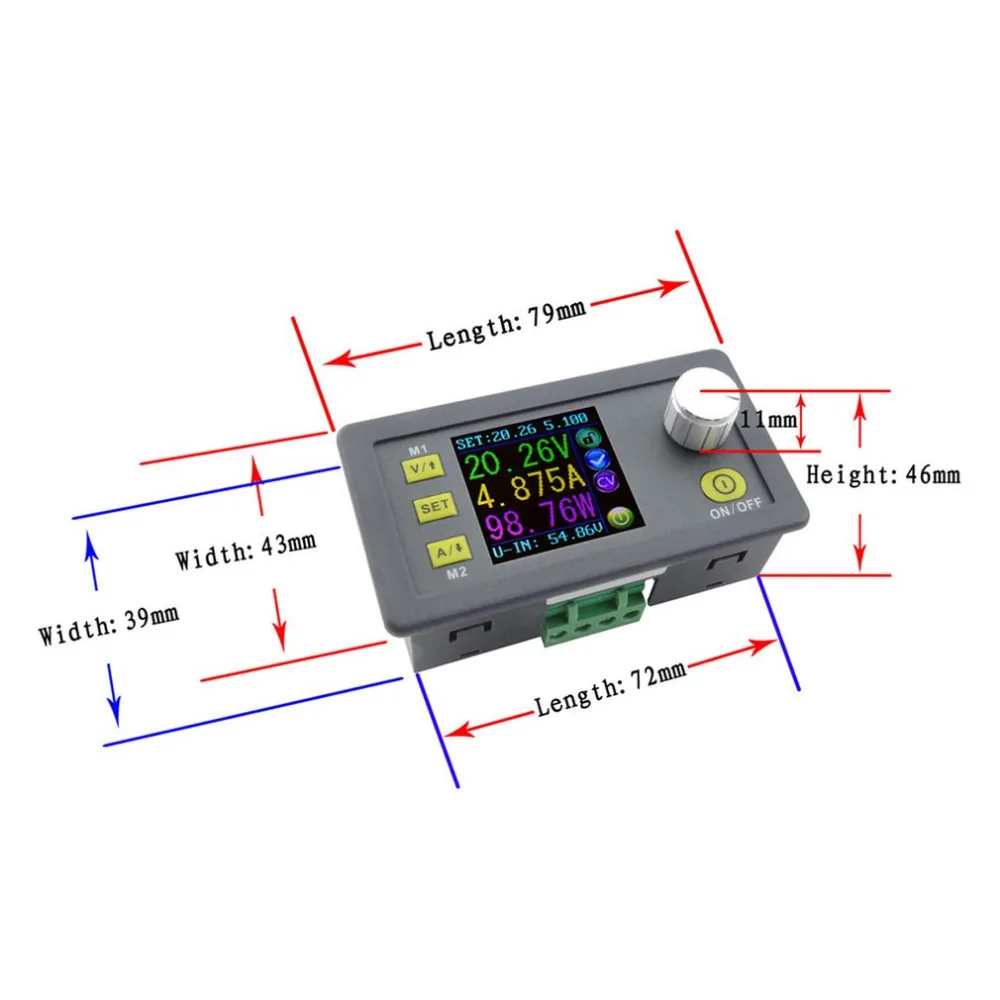

Product Dimension: 79*43*48(mm)
Open size: 71mm*39mm
Output voltage resolution: 0.01V
Output current resolution: 0.001A
Output Voltage accuracy: ± (0.5% + 1 digit)
Output Current accuracy: ± (0.5% + 2 digits)

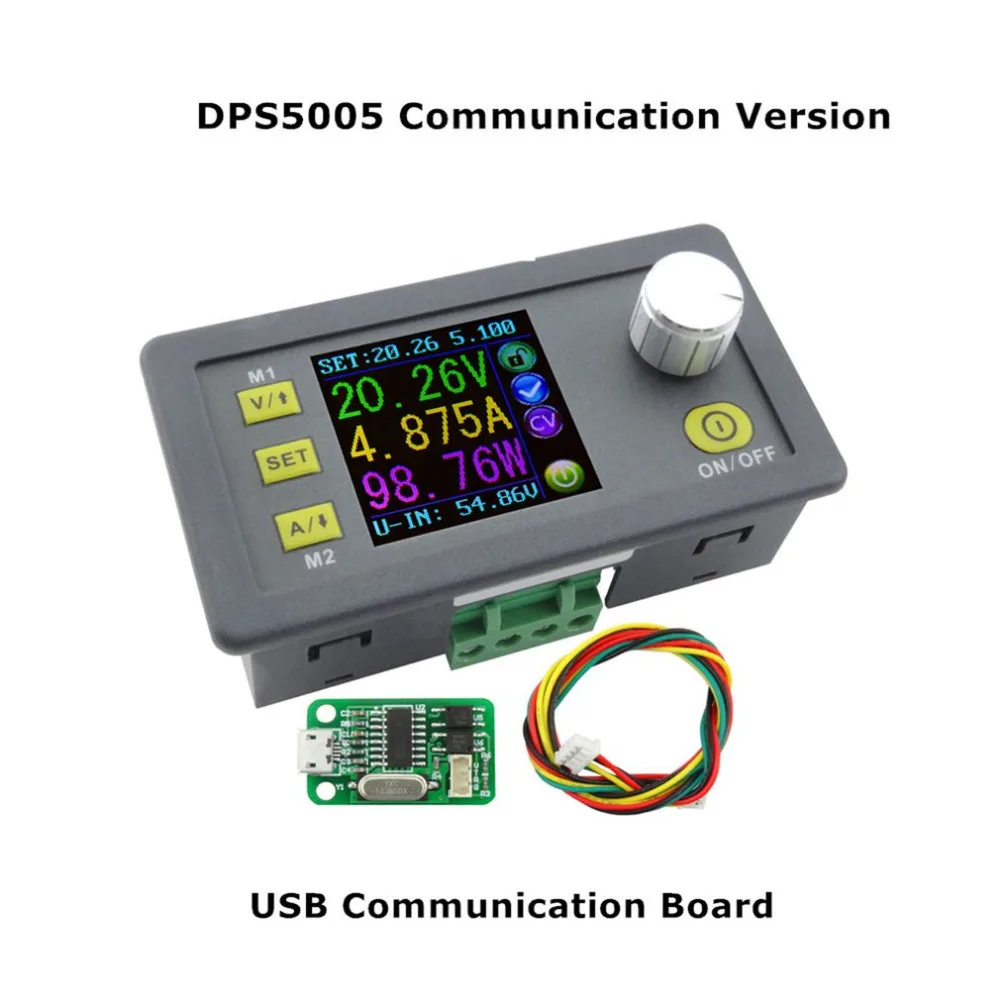

Type: With MODBUS communication protocol/ Without MODBUS communication protocol

Package Includes:
1 x Constant Voltage Step-down Power Supply Module

Notes:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
