  Handheld 25MHz-6GHz RF Signal Source Smart Singnal Generator Adjustable amplitud

    　   Description: Features:

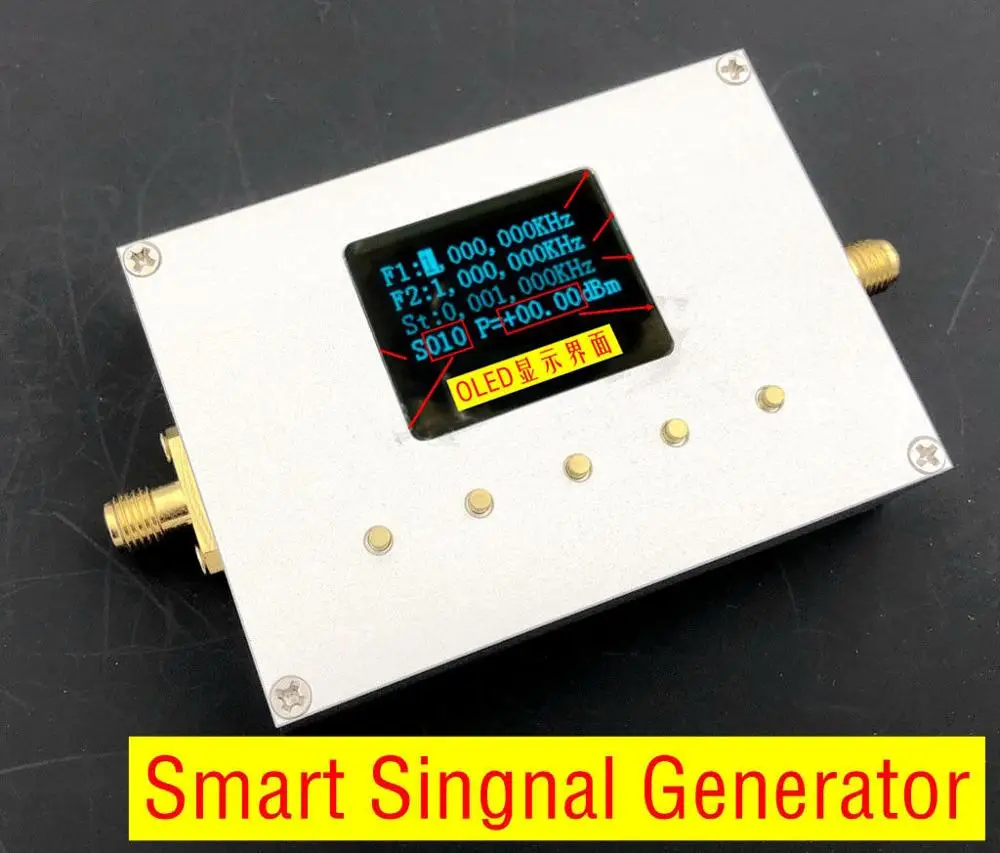

Smart Singnal Generator is a broadband, practical, hand-held, simple RF signal source that uses a PC display and integrates a high-performance frequency synthesizer and amplitude control unit (calibrated) to ensure high performance, small size, low power consumption and high Value for money.
      Smart Singnal Generator uses standard USB 2.0 connector (microUSB) for device communication, suitable for indoor, outdoor and even outdoor environments; because the device is light and compact and comes with a display, it is especially suitable for carrying.

     The Smart Singnal Generator includes a frequency range of 25MHz-6GHz; a minimum frequency step of 1KHz; an amplitude adjustment function with a maximum output amplitude of +10dBm from 25MHz to 3GHz and a maximum output amplitude of -5dBm from 3GHz to 6GHz (refer to the actual measured value). ).

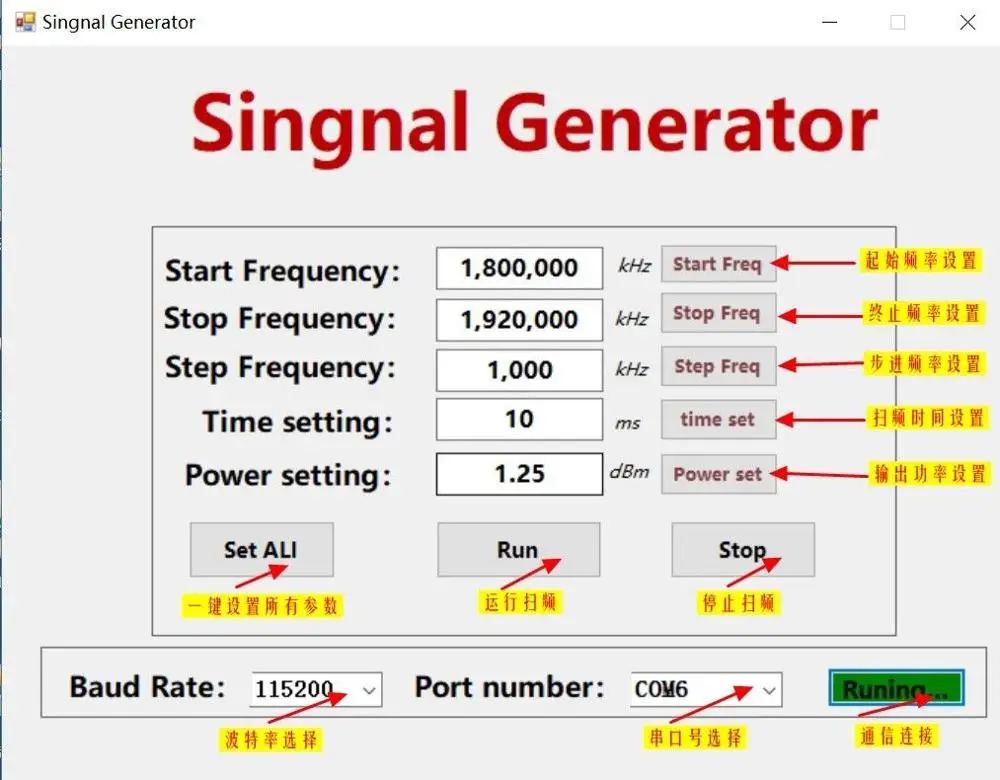

Host computer software, operating instructions, communication protocol download Baidu cloud link:

 //pan.baidu.com/s/1JP1KOA2bXTod9pPoI4adLg


Operation video download Baidu cloud link:

 //pan.baidu.com/s/1hx_FogxEij5-sTl7cLMhWA

Open in your browser after copying

First, product specifications

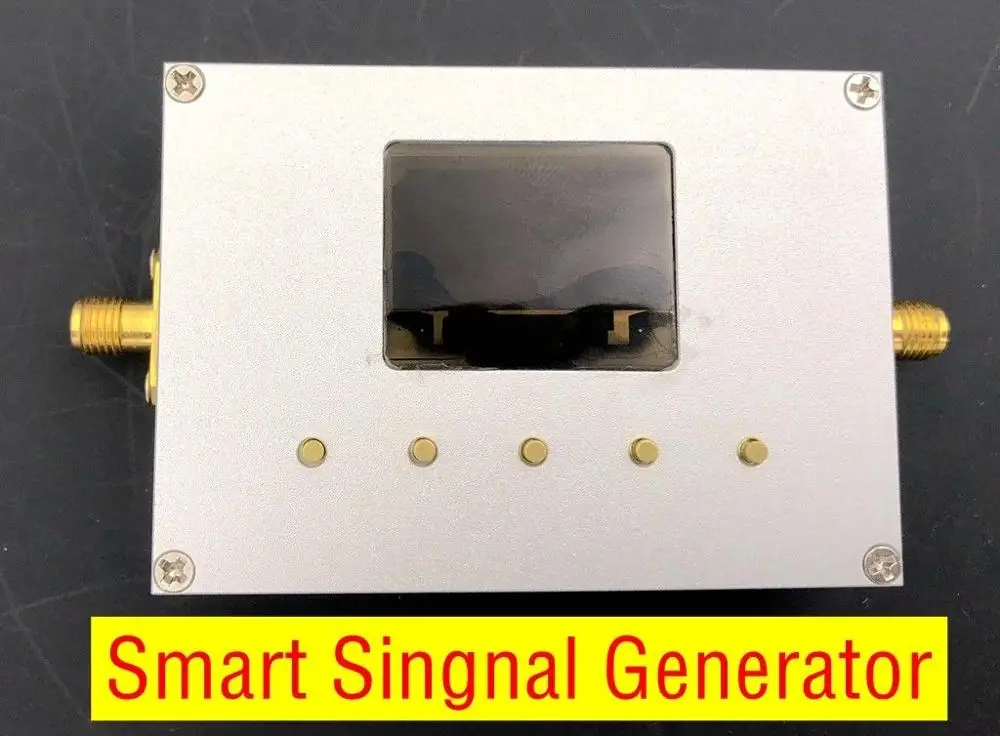

1, the net weight of the host: 90g (using CNC aluminum alloy CNC casing);

2, USB power supply current 300mA;

3. Use PL2303SA serial port to transfer to USB chip for communication. When installing the driver, you can choose to install the driver wizard automatically.

4, function:

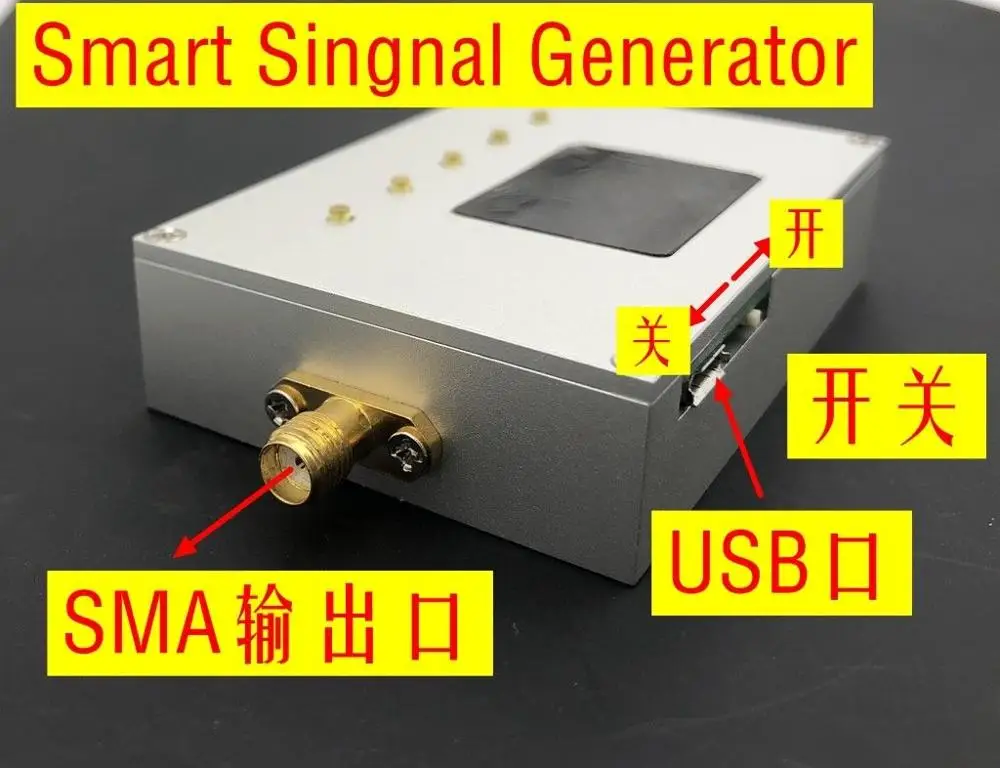

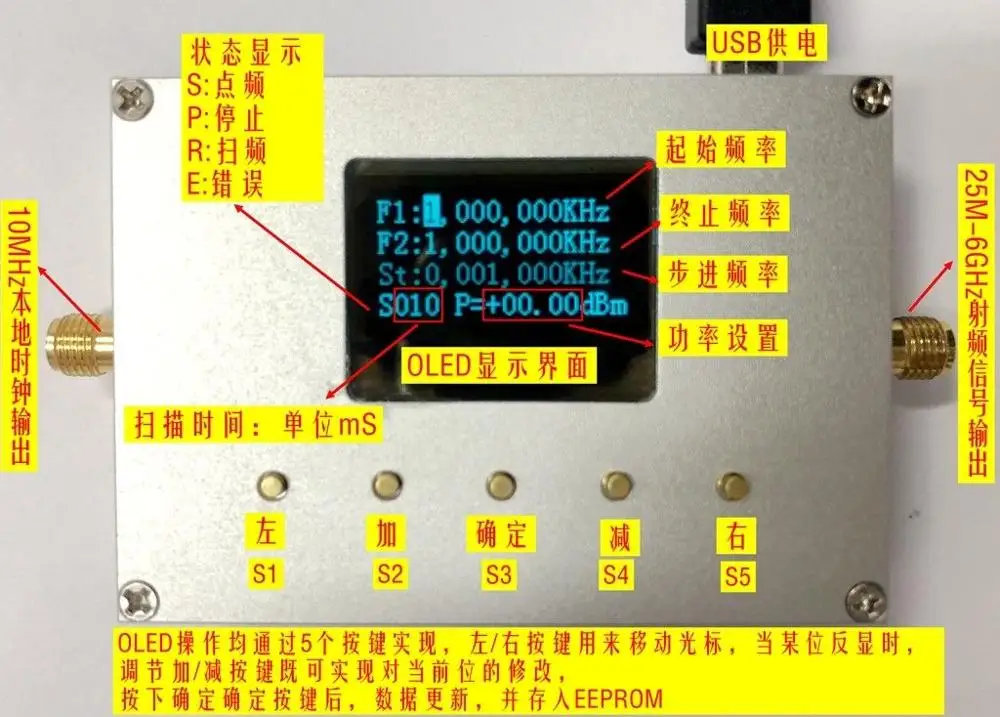

The left SMA port, the default delivery mode is 10MHz, plus or minus 0.1ppm temperature compensation clock source output, can also be configured as an external clock input mode (need to contact the owner to modify);

The SMA port on the right can be set to the point frequency RF source/sweep source by the button/host computer software, and the amplitude can be numerically controlled.

5, dimensions: length, width and height: 68 * 48 * 17mm (excluding the prominent SMA interface);

6, delivery list: microUSB line one + host one.

Second, the RF signal source port indicators

1. Output signal frequency range: 25M-6000MHz;

2, the output signal power range: -25dBm to +10dBm (in the range of 3G) amplitude flatness of each frequency point, specifically look at the measured curve;

3. Frequency resolution: 1KHZ;

4, frequency stability and accuracy (typical): ± 0.1ppm;

5, harmonic 17dBc ( 1GHz);

6, phase noise: phase noise = -104.00dBm / Hz   1GHz 100KHz.



Third, the RF signal source port harmonic and phase noise indicators

1. Harmonic analysis, the output signal is 1GHz, the amplitude is 0dBm output, 16.61dBc for the second harmonic at 2GHz, and 17.68dBc for the third harmonic at 3GHz.




2, phase noise analysis, output signal 1GHz, amplitude is 0dBm output,

Phase noise = -95.73dBm / Hz   10KHz


  Phase noise = -104.00dBm / Hz   100KHz


Fourth, RF signal source flatness test

1. The RF signal source is set to 25M-3000MHz, the sweep output is 100K, the sweep time is 10ms, the power is set to +10dBm output; the spectrum analyzer adopts the maximum hold mode.

2. The RF signal source is set to 25M-3000MHz, the sweep output is 100K, the sweep time is 10ms, the power is set to 0dBm output; the spectrum analyzer adopts the maximum hold mode.


  3. The RF signal source is set to 25M-6000MHz, the sweep output is 100K, the sweep time is 10ms, the power is set to the maximum output; the spectrum analyzer adopts the maximum hold mode.

  4. The RF signal source is set to 25M-6000MHz, the sweep output is 100K, the sweep time is 10ms, the power is set to -10dBm output; the spectrum analyzer is set to the maximum hold mode.


  5. The RF signal source is set to 25M-6000MHz, the sweep output is 100K, the sweep time is 10ms, the power is set to -20dBm output; the spectrum analyzer adopts the maximum hold mode.


Package Contents
100% Brand New
1 x microUSB cable
1X Smart Singnal Generator
