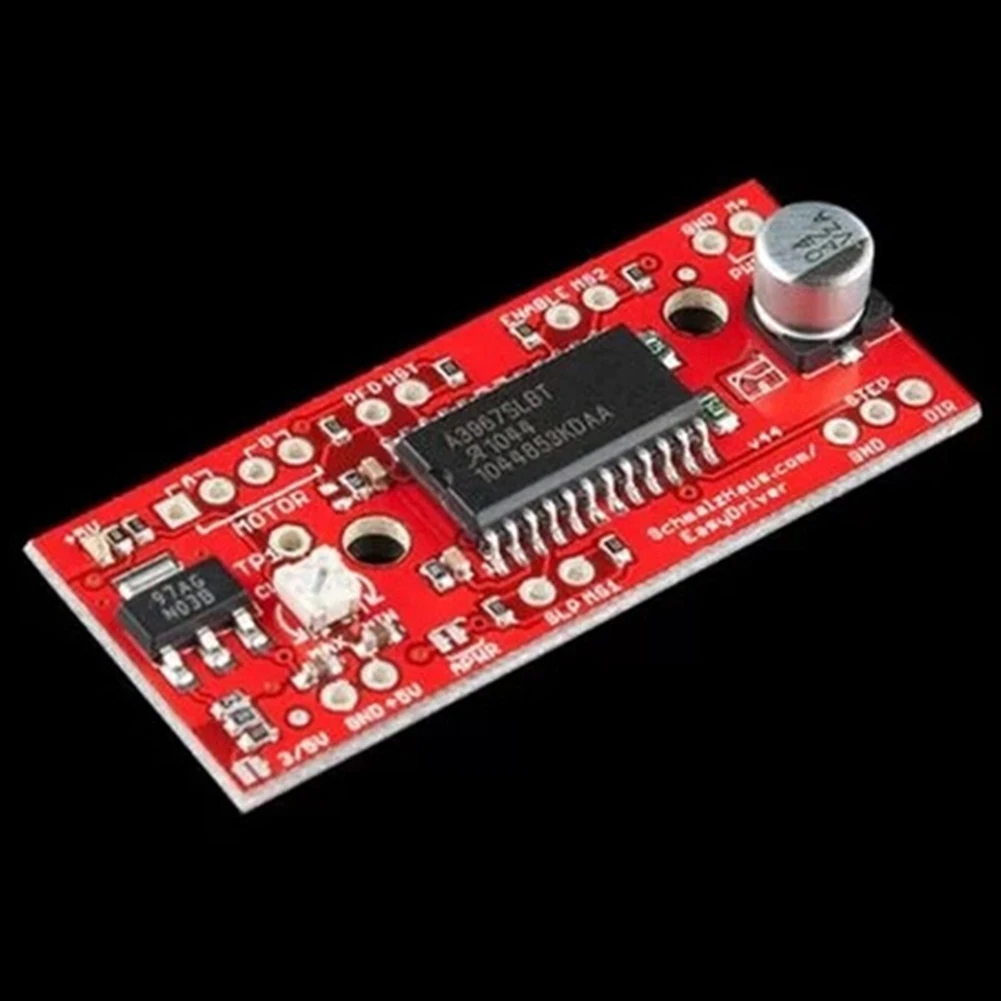

A3967 EasyDriver Shield Stepping Stepper Motor Driver Module For Arduino

The EasyDriver is a simple to use stepper motor driver, compatible with anything that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver).

EasyDriver requires a 7V to 30V supply to power the motor and can power any voltage of stepper motor.

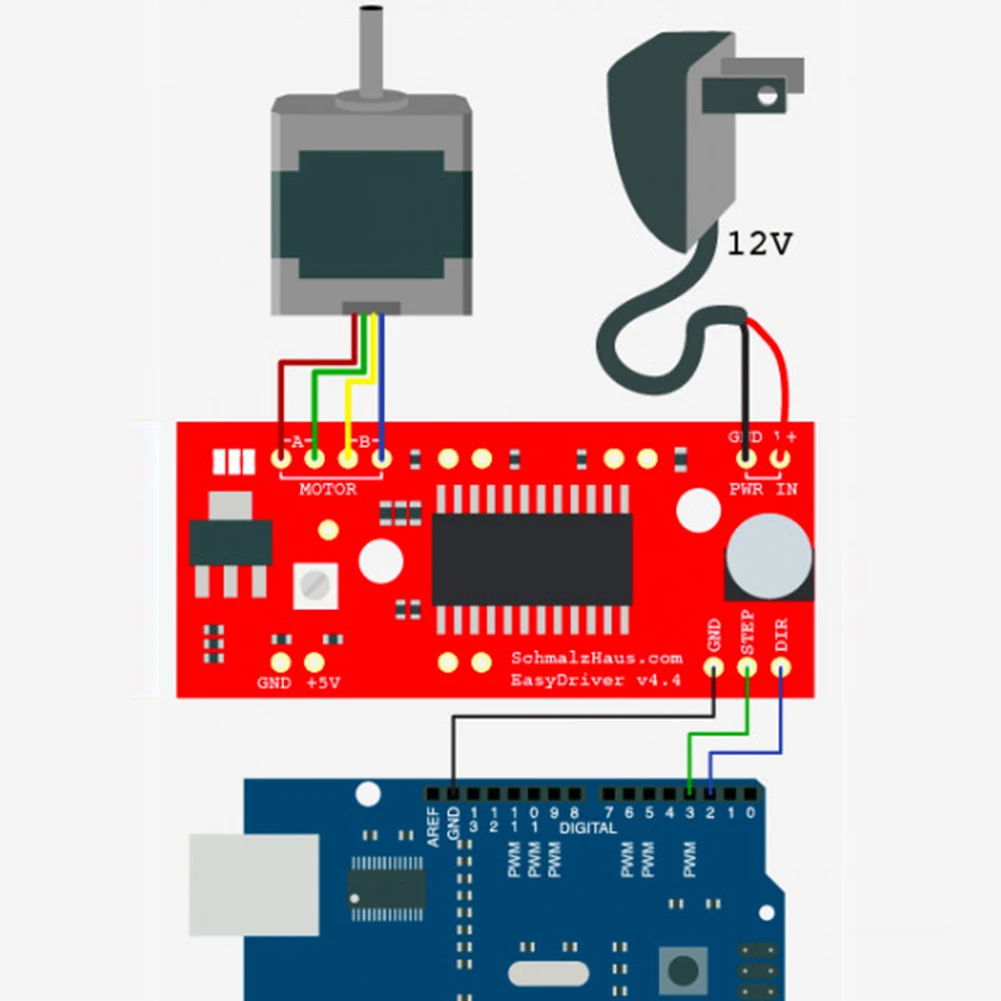

The EasyDriver has an on board voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and you've got motor control!

EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4,6, or 8 wire stepper motors.

On this version (v4.4) we fixed the silk error on the min/max adjustment.

This is the newest version of EasyDriver V4 co-designed withBrian Schmalz.

It provides much more flexibility and control over your stepper motor, when compared to older versions.

The microstep select (MS1 and MS2) pins of the A3967 are broken out allowing adjustments to the microstepping resolution.

The sleep and enable pins are also broken out for further control.

Note: Do not connect or disconnect a motor while the driver is energized. This will cause permanent damage to the A3967 IC.

Features:

A3967 microstepping driver

MS1 and MS2 pins broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth)

Compatible with 4, 6, and 8 wire stepper motors of any voltage

Adjustable current control from 150mA/phase to 750mA/phase

Power supply range from 7V to 30V. The higher the voltage, the higher the torque at high speeds

Package Included:

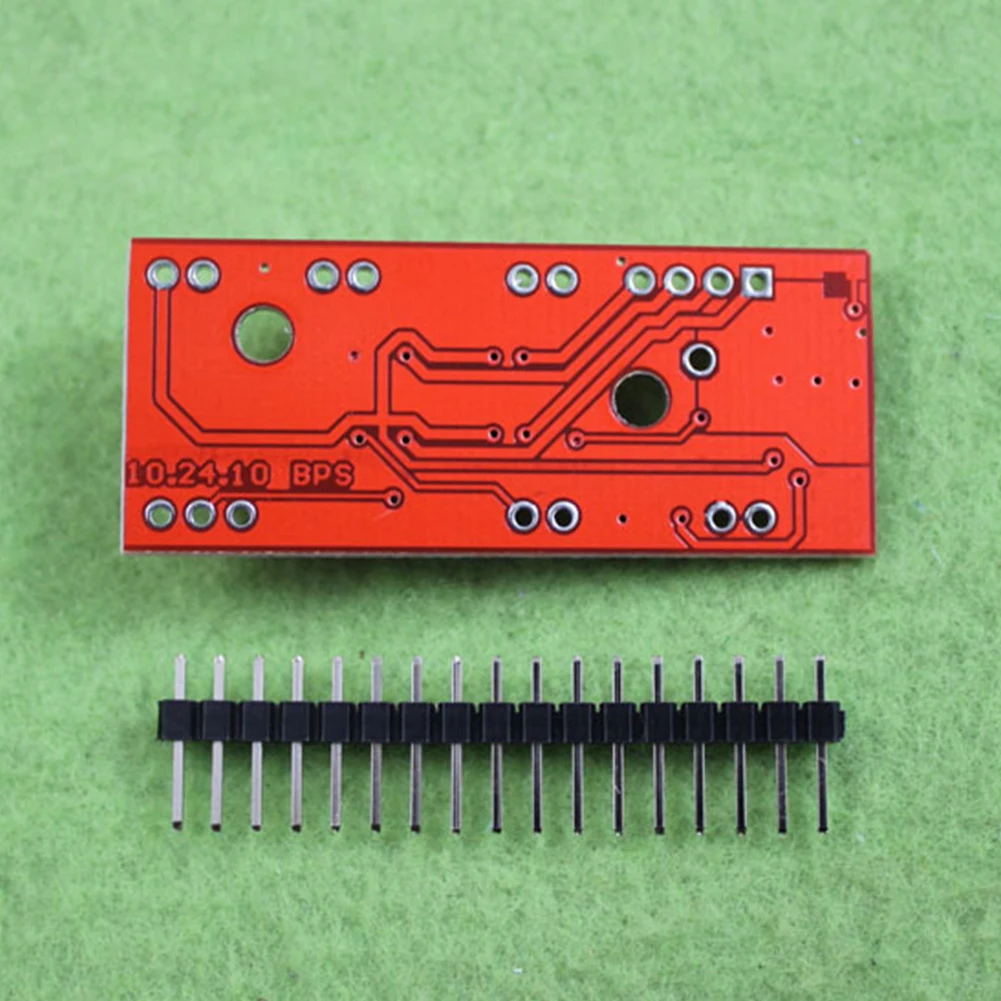

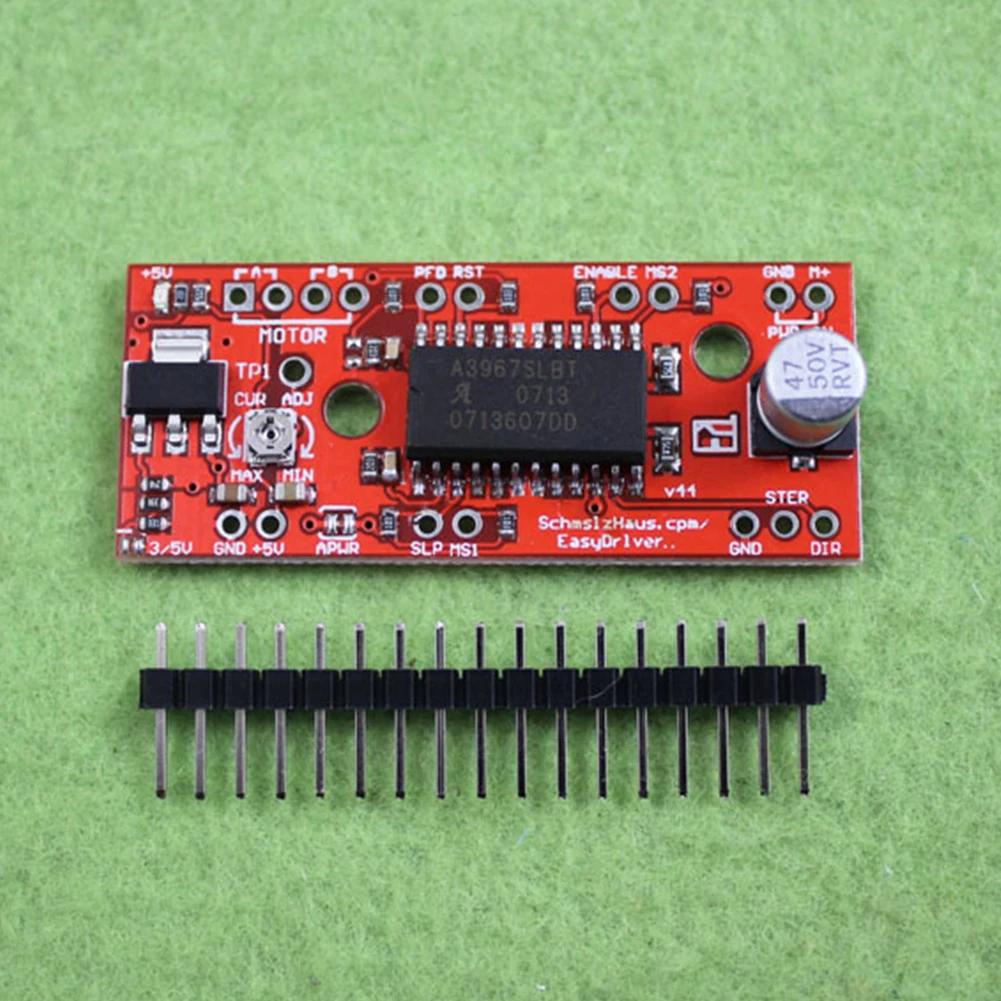

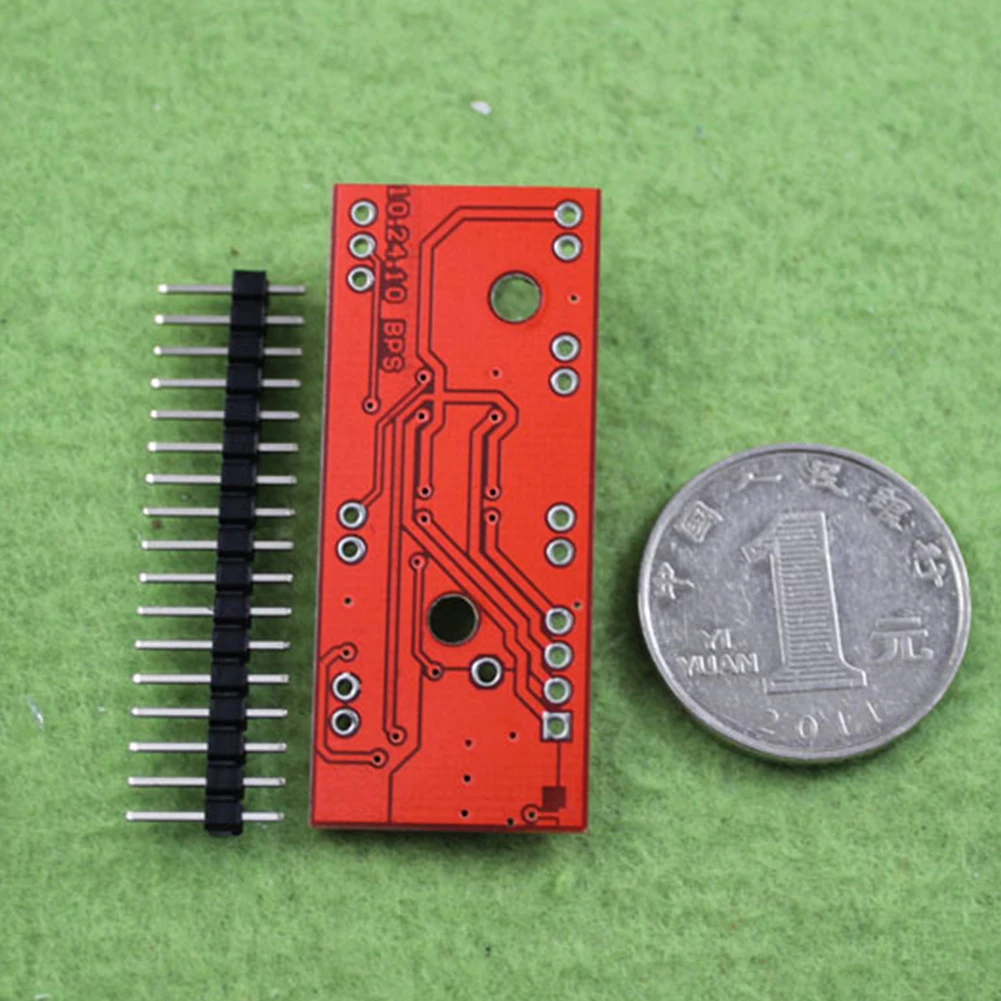

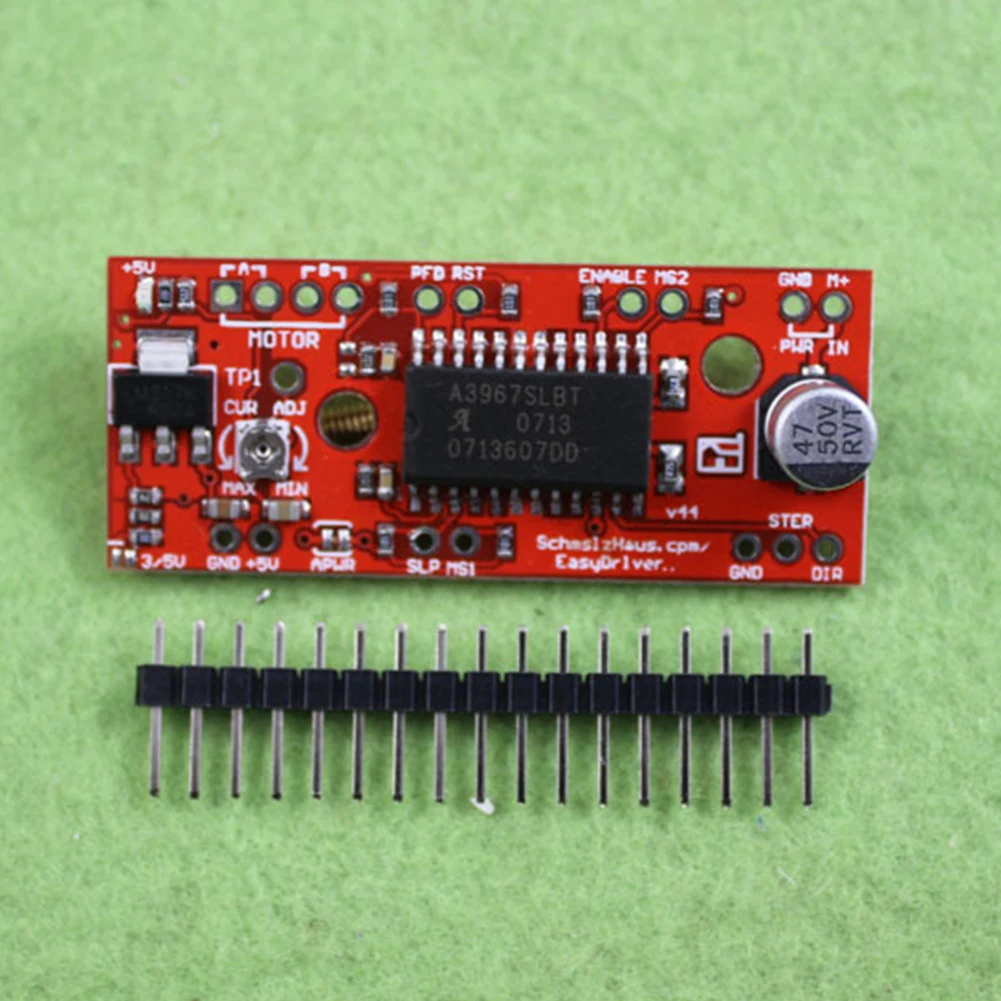

1PC*EasyDriver Shield stepping Stepper Motor Driver V44 A3967 For Arduino
