Product Information:

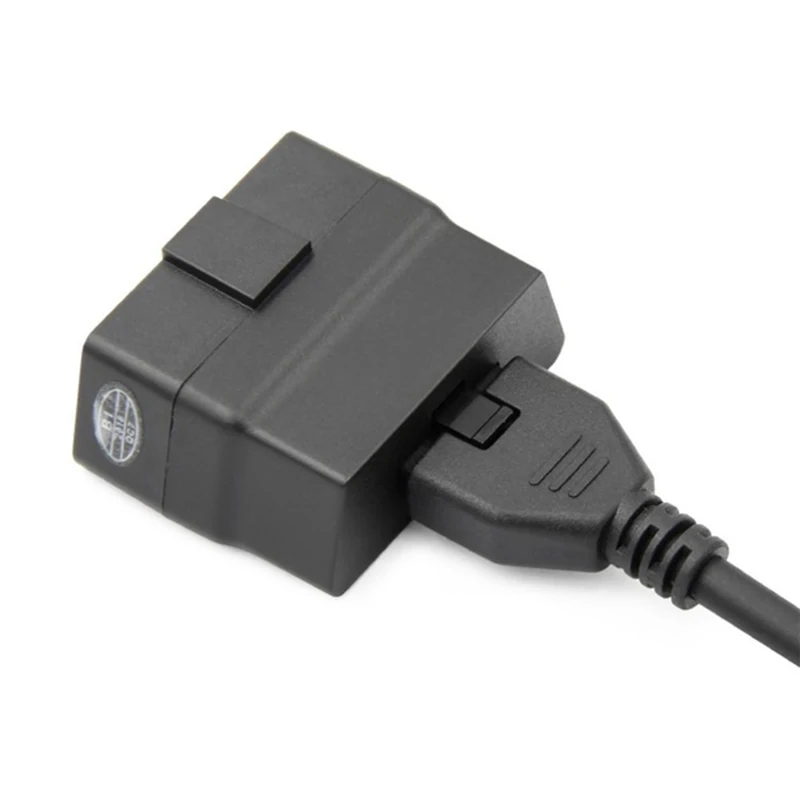

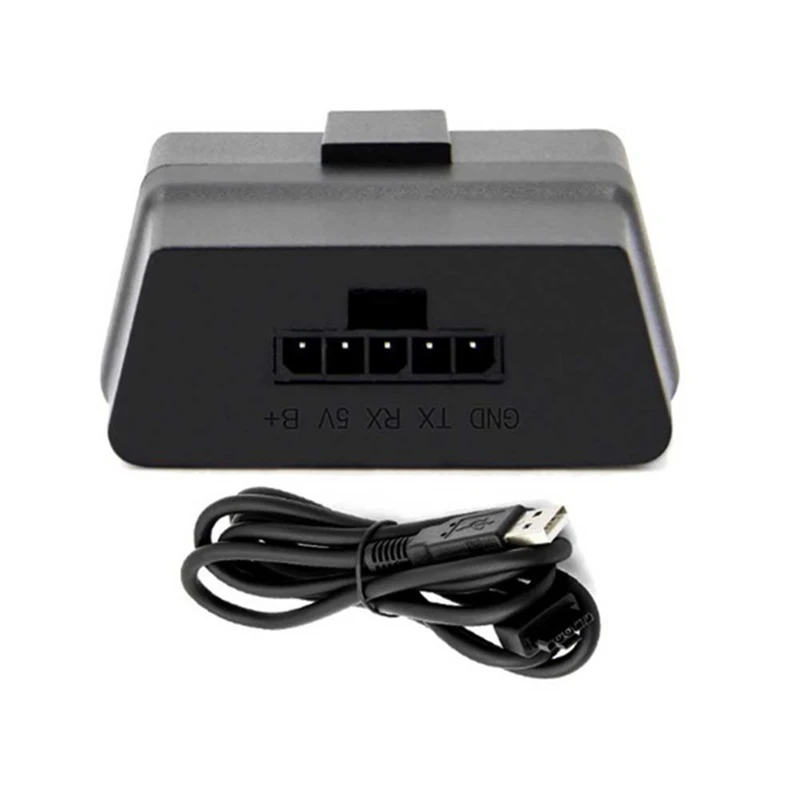

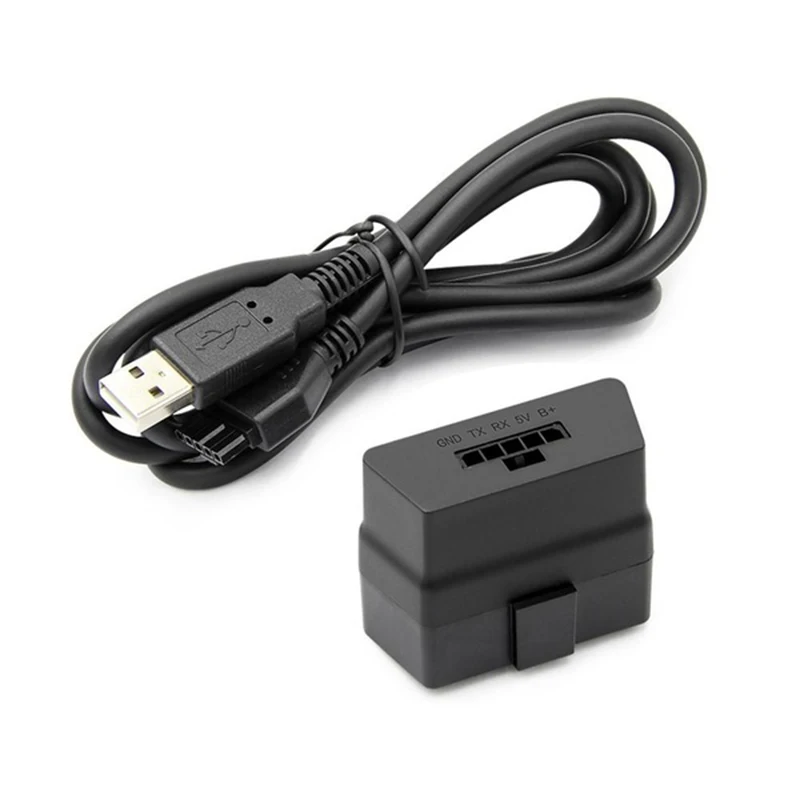

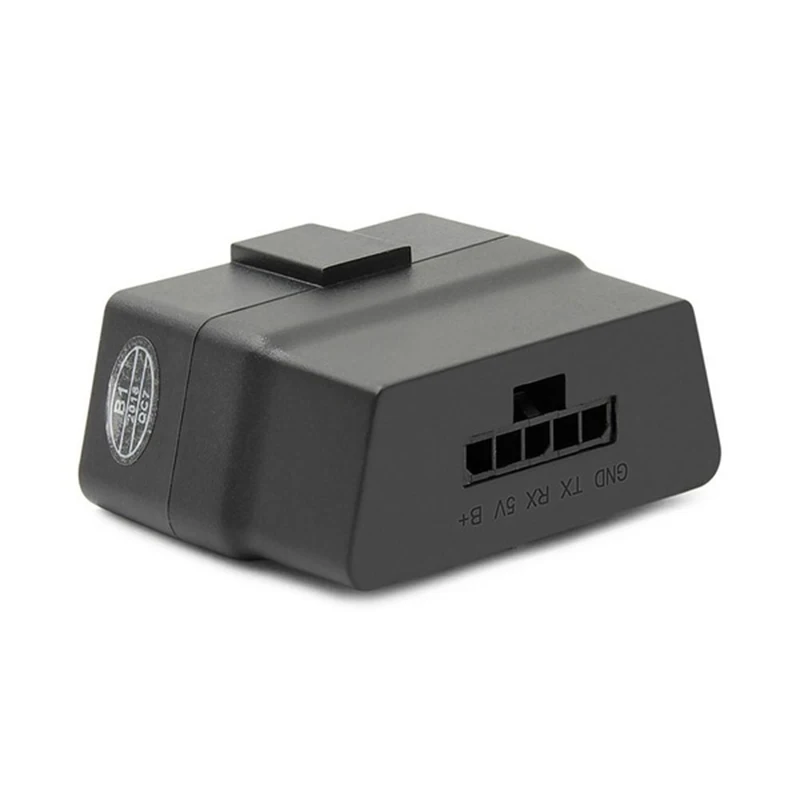

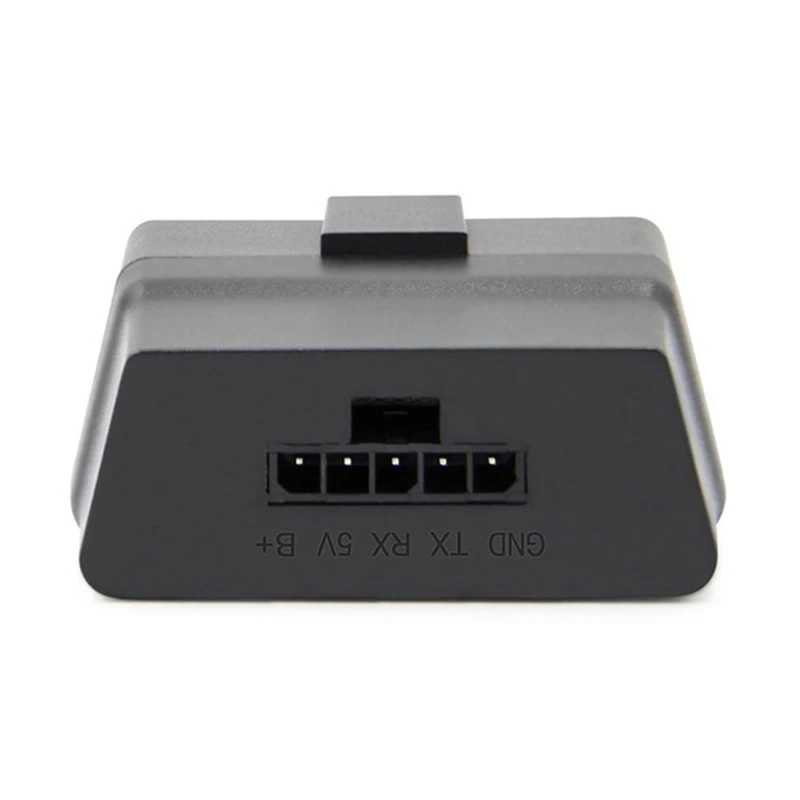

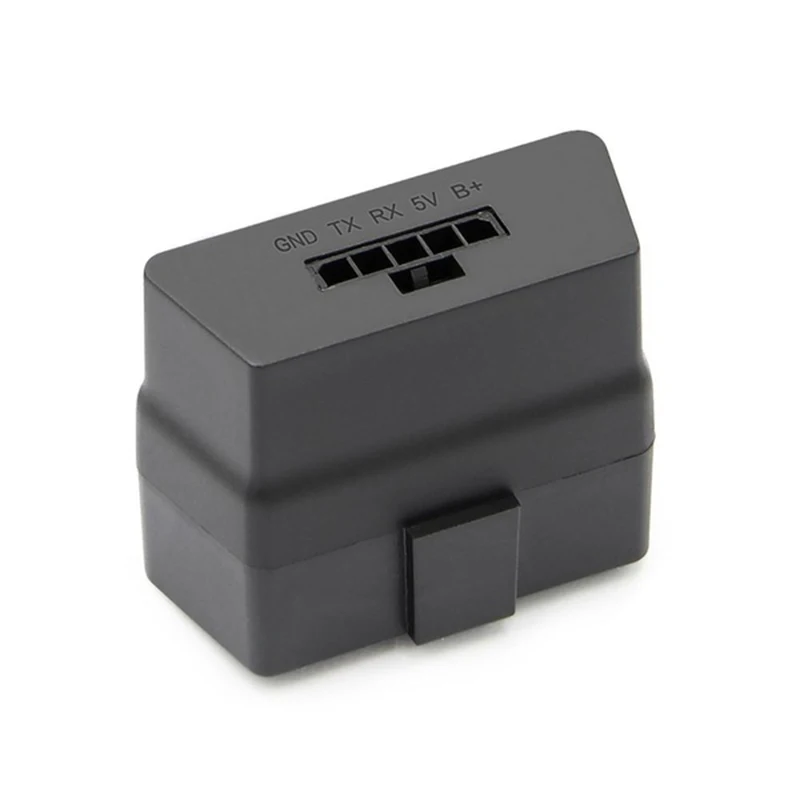

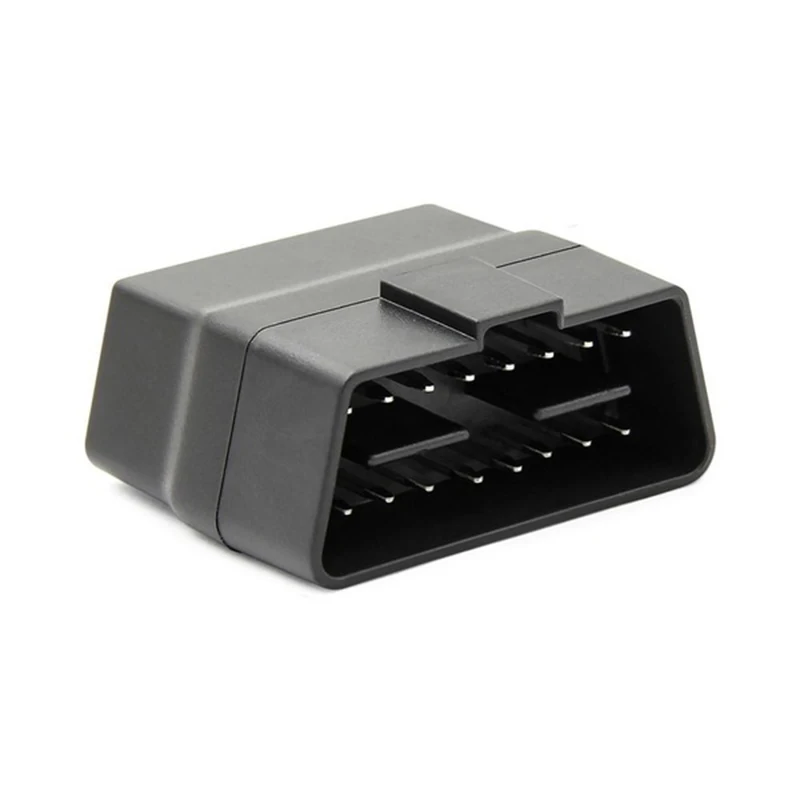

MINI OBDII USB Scanner for Multi-brands CAN-BUS as same as ELM327 USB.MINI OBDII USB V1.1 Scanner for Multi-brands CAN-BUS as same as ELM327 USB supports all OBD2 Protocol works on Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).
Top 3 Reasons To Get MINI OBDII USB V1.1 Scanner : 1. Hardware Version: V1.1. 2. Works with all OBD-II compliant vehicles .3. USB Cable
Supported protocols: 1.SAE J1850 PWM (41.6Kbaud).2.SAE J1850 VPW (10.4Kbaud).3.ISO9141-2 (5 baud init, 10.4 Kbaud) .4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud).5.ISO14230-4 KWP (fast init, 10.4 Kbaud).6.ISO15765-4 CAN (11bit ID, 500 Kbaud) .7.ISO15765-4 CAN (29bit ID, 500 Kbaud).8.ISO15765-4 CAN (11bit ID, 250 Kbaud).9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
Compatible systems:Software support platform: Windows XP, Windows 7/8/10, MAC OS .Compatible software: Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.MAC OS: OBD Auto Doctor(MAC Ver.)
MINI OBDII USB Scanner Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL (""Check Engine"" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others
MINI OBDII USB Scanner Specifications:
Communication: USB Interface
Master Chip: PICI8F25K80
Driver IC: FT232
Support System: Windows
Working Voltage: 9v ~ 16v
Working Current: 15mA
Standby Current: 0mA
Operating temperature: -40 ℃ ~ 85 ℃
Working Humidity: less than 60%
Size: about 45*25* 75mm/1.77*0.98*2.95 inch(Cable Length 1.5M/59.06IN)
Colour: Black
Material: chip
Package List:
1pc*Mini OBD2 USB Diagnostic Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
