 Newest Fiber Laser Marking Machine with Camera System

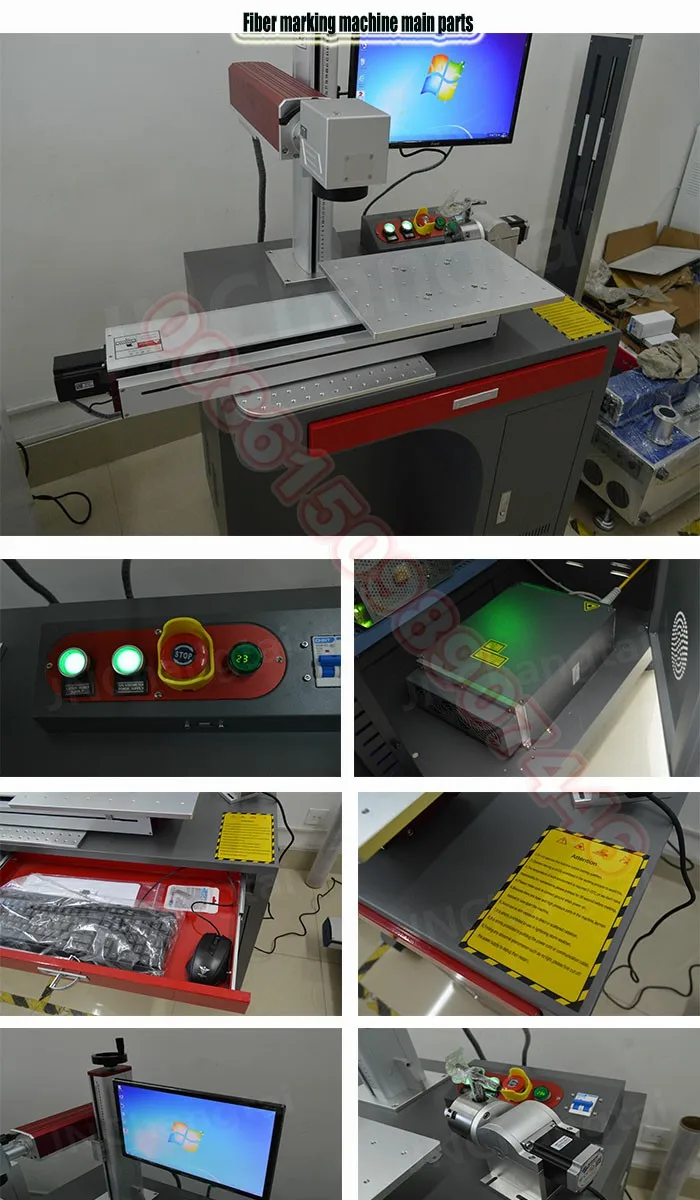

Fiber laser marking machine is mainly composed of three parts, vibration lens, marking card, the production of laser marking machine, fiber laser beam quality is good, the output center is 1064 nm, the whole life in 100000 hours, compared with other types of laser marking machine live longer, electro-optic conversion efficiency of 28% above, relative to other types of laser marking machine conversion efficiency of 2% 10% of the huge advantage, outstanding performance in energy conservation and environmental protection, etc.

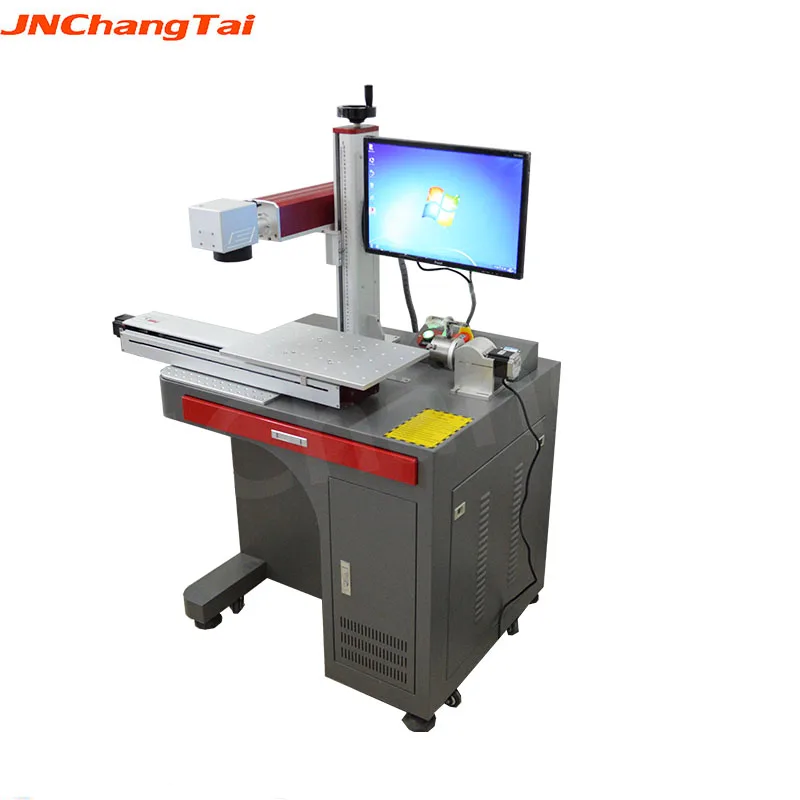

Sliding table: marking larger area

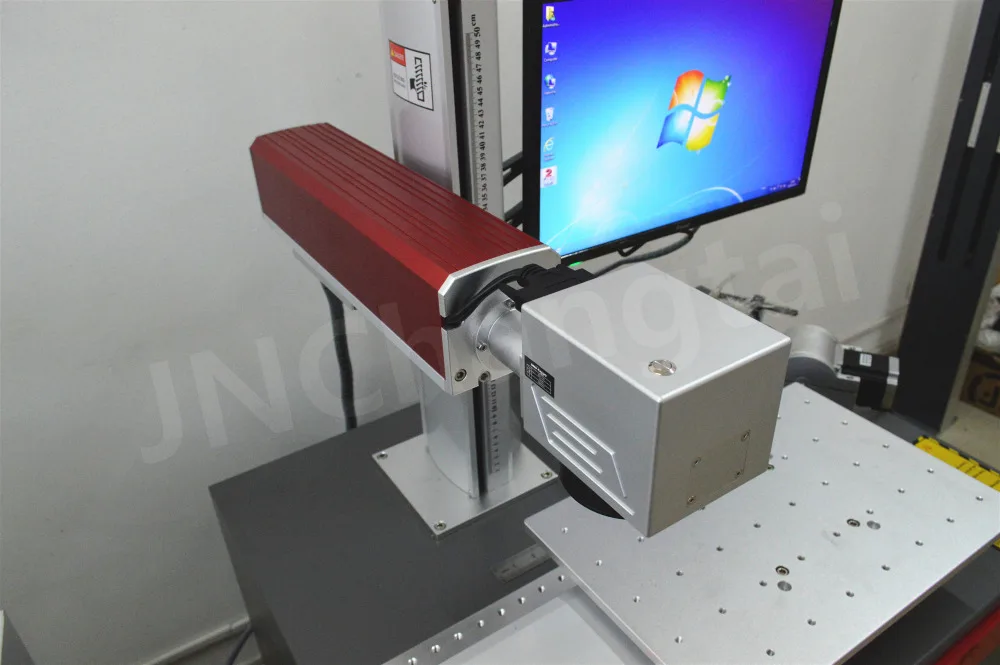

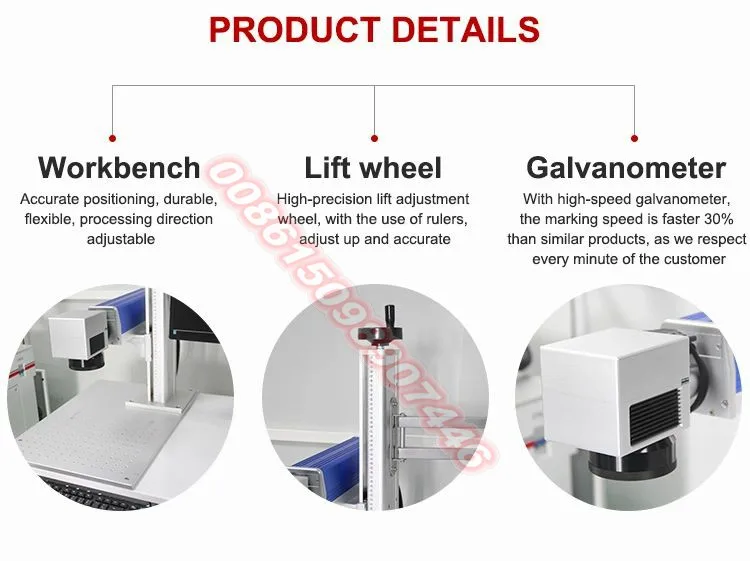

1.High speed with galvanometer

2. Small volume,light weight;

3.Low power, consumption power is less than 500w.

4.Completely air cooling,low energy.

5.No influence of the severe environment and temperature change.If no power,battery and car cigarette lighter can be used for working;

6.Greatly reduce the depreciation cost,satisfying customers'stable large qantities produing.

Model

TPF-20W 30W 50W 60W 100W

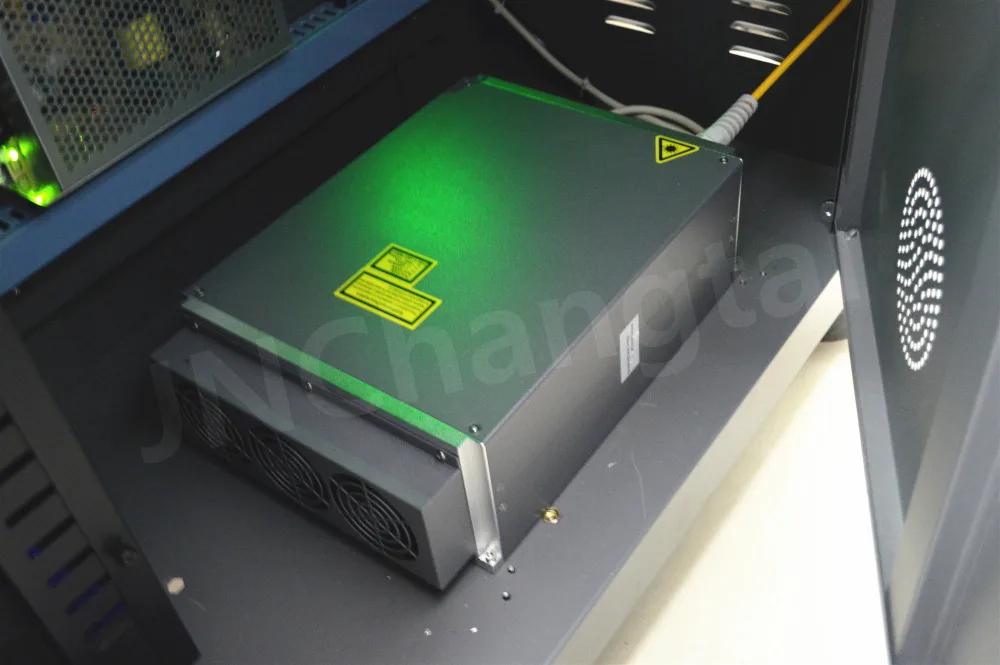

Laser source

Raycus

Laser power

20W,30W,50W,100W

Weave length

1064 nm

Marking area

110*110mm,175*175mm,220*220mm,300*300mm

Laser repetition frequency

20KHZ-80KHZ

Beam quality

M²:1.5

Marking speed

7000-12000mm/s

Marking depth

0.01-1mm

Repetition Precision

0.01mm

Minimum Line Width

0.017mm

Minimum Character

0.2 mm

Cooling Style

Air cooling

Positioning Way

Red light

Laser Module Life

More than 100000 hours

Control software

JCZ EZCAD 2.12 Professional fiber laser marking software

Supported Format

PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG and ETC

Control board

JCZ

Operating Voltage

AC220V/50HZ/2A

Gross Power

≤500W

Supported Windows

Windows XP,7,8,10

Certificate

ISO, CE, FDA

Material can be processed

all metal material and part of non-metal material,such as hard plastic

Others

USB cable for connection, Flash drive with software and English manuals.

After-sales Service

Warranty for 3 years.We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.                                                                                         When you have any questions, no matter machine or operate, you can contact us directly.

If any parts broken, we will replace a new one for you in free.

After warranty we will still supply lifetime maintenance in free. Just with parts cost charging if broken.

Packaging

Wooden box

Packaging Dimension

880*870*1270mm

Gross weight

150kg

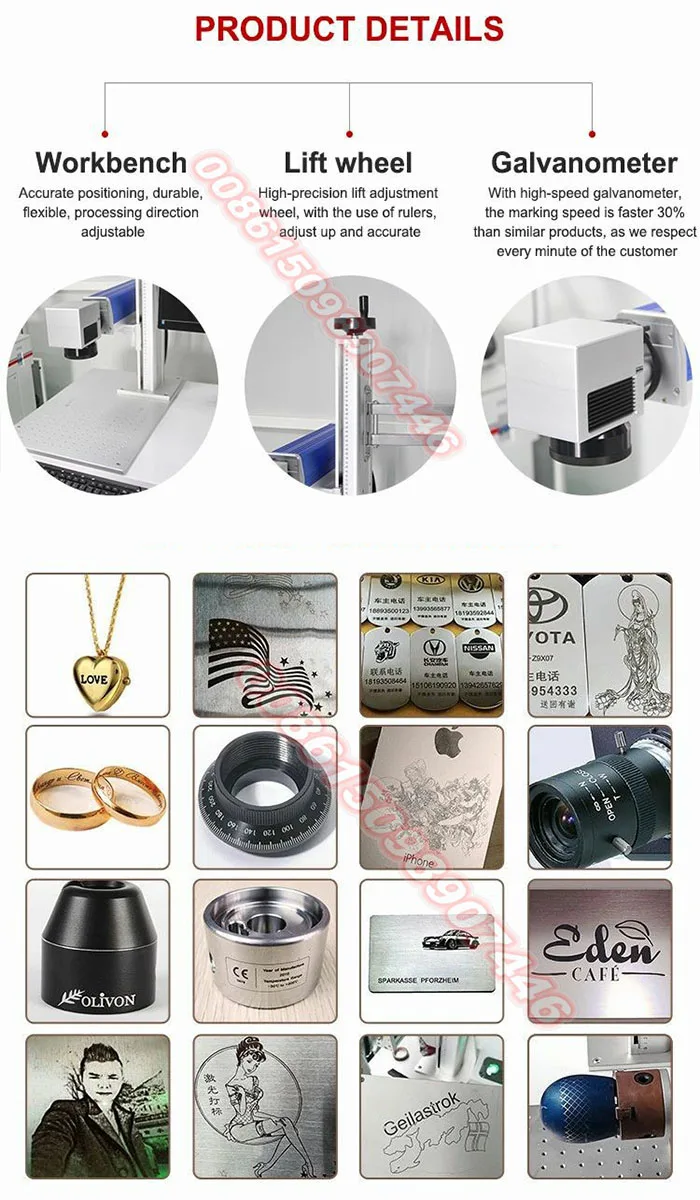

laser marking machine can work with most metal marking applications, such as Gold, Silver,

Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal

materials,such as ABS, Nylon, PES, PVC, Makrolon.

1. Standard wooden cases with sponge filled inside for packing protection
2. The Wooden case is fumigation free which is suitable by sea & by air.
3. Customized Packing as per Customer's requirement.

Q1: I know nothing about this machine, what type of machine should I choose?

We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.

Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q3: If some problems happen to this machine, what should I do?

We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.

Q4: What’s consumables of laser marking machine?

A: It does not have consumable. It’s very economical and cost effective.

1. Warranty

3 years warranty for machine.

2. Technical support

Lifelong technical support online or by email and 18 hours online service to help you use our machine well.

3. Oversea service

Offer oversea service for training,installing, operating if necessary (Buyer need offer food & accommodation, round tickets and engineer charges USD200/day)

4. Tranining service

Offer training at our factory for free (you could visit us and learn)
