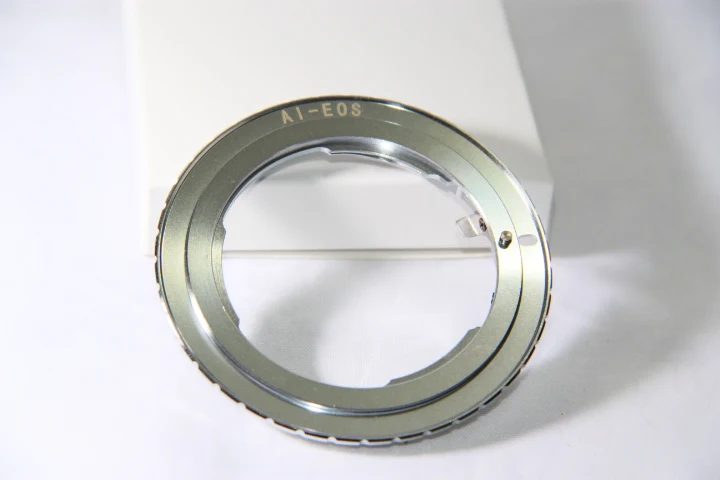

9 Generation EMF AF Confirm adapter ring AI F Lens to EF 60D 6D 7D Mark II 5D III 5D3 7d 650d 100d 750D 760D camera | Электроника

9 Generation EMF AF Confirm adapter ring AI F Lens to EF 60D 6D 7D Mark II 5D III 5D3 7d 650d 100d 750D 760D camera | Электроника

Suitable for:
C a non ef 6d 100d 1100D,600D,60D,1000D,550D,500D,450D,400D,350D,300D,40D,30D,20D,10D and 7D, etc...

all lenses with pentax pk mount

Package including:
emf AF confirm AI- C a non lens mount adapter x1

Before use, the user should first be programmed, set as follows:
Boot, set in M mode, the shutter speed is set to 1 / 60S,
Set the aperture value of F / 64 and press the shutter button once.
Set the aperture value of F / 57 and press the shutter button once.
Set the aperture value of F / 64 and press the shutter button once.
Aperture adjustment toggle button, this time can be adjusted to the maximum aperture F1.0. Description Ring chip has entered the programming mode, you can begin to set the maximum lens aperture, focal length and fine focus mode.

Maximum aperture setting mode:
After setting the time you press the shutter aperture F2.0

Focal length setting mode:
After setting the time you press the shutter aperture F2.2

Fine focus setting mode:
After setting the time you press the shutter aperture F2.5

Specify the aperture value:
After entering the maximum aperture setting mode, toggle the camera aperture dial button to set values to meet the maximum aperture of the lens, and then press the shutter button.

Specify the focal length setting:
The focus range is 1mm - 65535mm, need 5 digit definition, each digit with an aperture value to represent. If the focal length of the value of less than 5, with a value of 0 to fill the vacancy. Each of the selected aperture value (a number), press the shutter (or depth of field preview button) to confirm. The specific case of the numerical aperture value correspondence in the following table:
F2.0 0
F2.2 1
F2.5 2
F2.8 3
F3.2 4
F3.5 5
F4.0 6
F4.5 7
F5.0 8
F5.6 9

A: Specify the fine focus settings:
This connection can be set to fine-tune the focus ring chip set value, from 0mm to 31mm. This setting is defined as two digits, if the fine focus of the set value is less than two digits, only a number, you should insert a '0' in front of this figure, Ex. '01'. Select your desired number of pressing the shutter after each set

B:save the settings to the wafer
Aperture is F57, press the shutter button once.
Aperture is F64, press the shutter button once.
Aperture is F57, press the shutter button once.
Each process can only store a parameter, so you must run three times, respectively, the flow (maximum aperture setting, the focal length setting, fine focus setting)


NOTE:
1, do not set the aperture F1.0, this setting will not be accepted Ring chip.
2, is not recommended for small aperture setting on the aperture value (for example, less than F5.6), this will cause difficulties in focus.
3, if the focal length range of values input process does not comply with the above steps, or outside the specified range aperture selected in the process of input values, or input exceeds the specified range. Ring back into the input process, the input value is discarded.
4, the maximum aperture and focal length data set permanently stored in the Ring chip from outages, until it is changed by the next programmed.
5, fine focus can be set to do not do it, your body is not a professional high-end machine, then there would be no fine focus function itself.

The actual programming, the user first lens parameters written on paper, draw up a table for each set the aperture value, when a one-time programming input, so practice makes perfect, the speed will be much faster, I passed several tests, replace the lens when the basic settings can be completed within half a minute back into shooting.

Example: the lens is 135MM F1: 2.8, then the key data in respect of the focal length parameter is 0,0,2.2,2.8,3.5, translated into the adapter ring can "understand" the language is F2.0, F2.0, F2 .2, F2.8, F3.5, when it should be set up

First, a large aperture settings:
1, start, set in M mode, the shutter speed is set to 1 / 60S, aperture compensation 1 / 3EV
2, F64 press the shutter once;
3, F57 press the shutter once;
4, F64 press the shutter once;
5. Turn the dial can become F1.0 aperture has been properly entered the program (do not press the shutter); then continue to turn the dial and press the shutter aperture of F2.0, focal length Ring enter setup mode;
6, F2.8 press the shutter once; you will be connected to the ring
  Set maximum aperture F2.8;
7, F57 press the shutter once;
8, F64 press the shutter once;
9, F57 press the shutter once;
10, such as ten seconds when the box is not displayed after the viewfinder, you can shut down
11, after the completion of the above 1 to 10, you are a total of eight times pressing the shutter, you already Ring linkage with the body and remember that you now use the maximum aperture of the lens 2.8.

Second, set the lens focal length
1. Power, set in M mode, the shutter speed is set to 1 / 60S, aperture compensation 1 / 3EV
2. F64 press the shutter once;
3. F57 press the shutter once;
4. F64 press the shutter once;
5. Turn the dial can become F1.0 aperture has been properly entered the program (do not press the shutter); then continue to turn the dial and press the shutter aperture of F2.2, focal length Ring enter setup mode;
6. F2.0 Press the shutter once; F2.0 press the shutter once; F2.2 press the shutter once; F2.8 press the shutter once; F3.5 press the shutter once; you pick the ring will be set to a focal length 135MM;
7. F57 press the shutter once;
8. F64 press the shutter once;
9. F57 press the shutter once;
10. Wait ten seconds later when viewing box does not appear, you can shut down
11. After completion of the above 1 to 10, you are a total of 12 times pressing the shutter, your Ring already linked with the body and remember that you are now using the lens is 135MM, the maximum aperture of 2.8.

Third, the fine focus setting mode (can not)
Enter the programming mode: F64 press the shutter once, F57, press the shutter once, F64, press the shutter once
Fine focus setting: F2.5, press the shutter once
Enter the fine focus setting value: F2.5, press the shutter once, F3.5, press the shutter once
Wafer storage parameters: F57, pressing the shutter once F64, press the shutter once, F57, press the shutter once
Fine focus setting value has been set to 25mm
Ring Problem used:

Beginning to use, and then turn the lens focus ring, the focus will be to co-head the same as the automatic prompt, and then press the shutter can shoot. And then press the shutter release such as the need to use a small aperture in the prompt when the aperture ring to adjust the value you need.

Note: It is best to use the maximum aperture of the lens to focus because the maximum aperture of the King was the exact shade of a small aperture if the first advanced on the small amount of light in another scene deep depth of field focus has reacted inaccurate To simulate the use of automatic lens works.
