dual band 5.8G 2.4G router wifi module openwrt ar9344 atheros wireless module

Description:

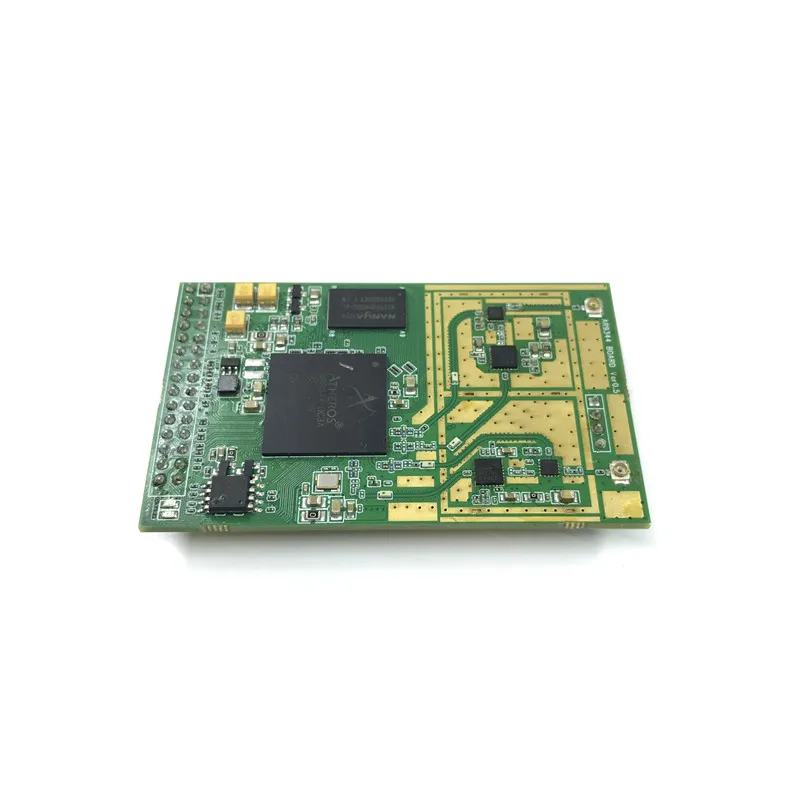

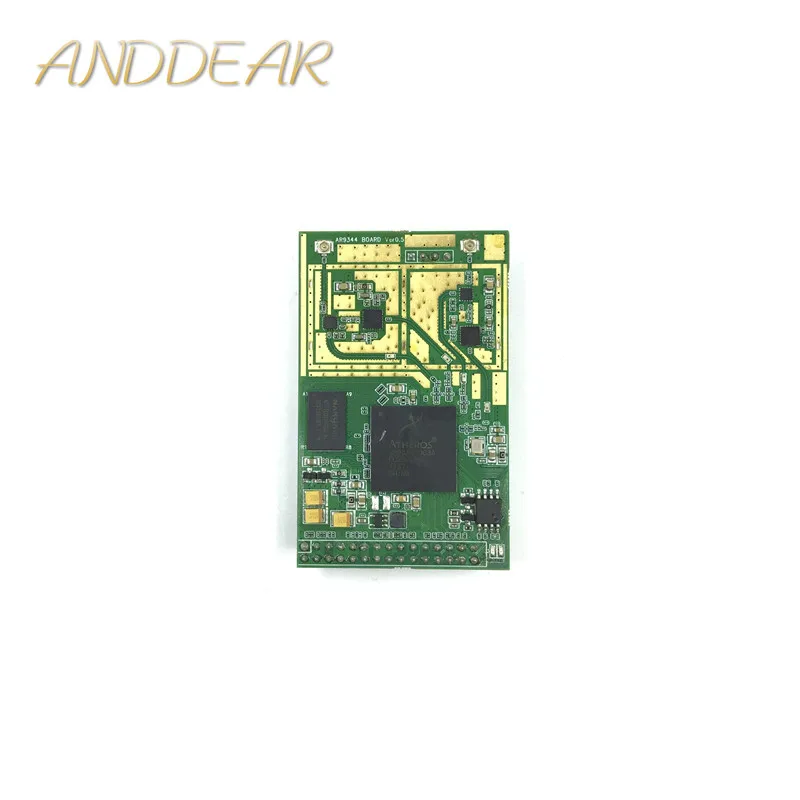

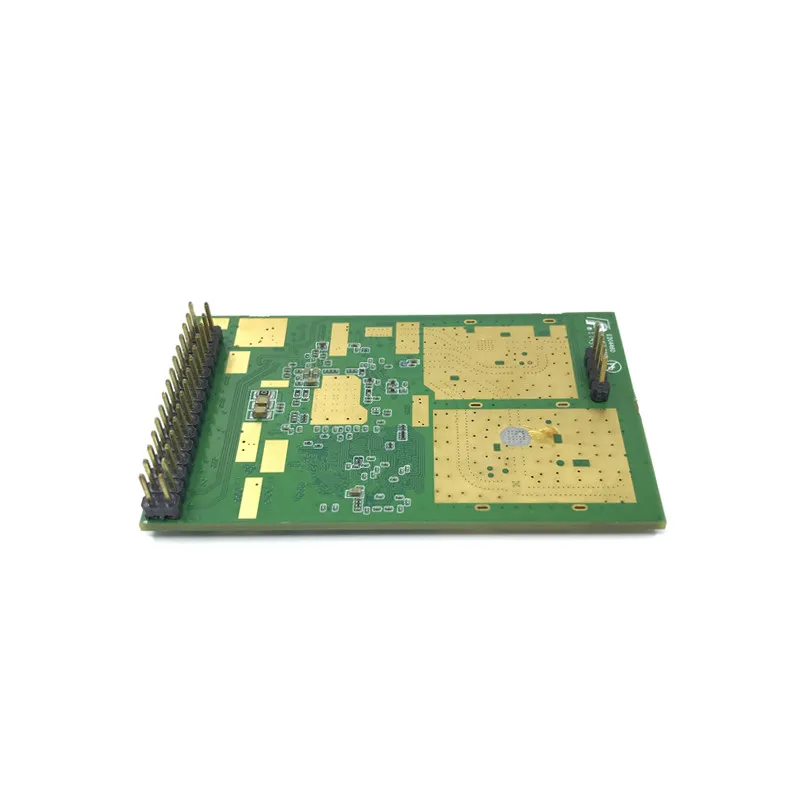

a mini-type wireless router 5.8G high-power core module, based on Qualcomm AR9344 high-power 5.8G

WIFI core module, support large-capacity DDR and high-speed SPI Flash, high performance. In line with the IEEE802.11bgn

wireless network protocol, the module is fixed by positioning the pin and pinned with other board positioning holes for

power supply and other signal applications.

 adopts 2x2 MIMO (Multiple input multiple output) architecture, wireless signal multiplexing, transmission

rate up to 300Mbps; provides three 10 / 100M PHY interface, a USB2.0 and a number of GPIO interface, extended powerful

Widely used in communication system integration, outdoor high-definition network video transmission, UAV and other

products.

Customers can use the external antenna IPEX station to add the antenna. The module provides a complete network

interface. You can achieve WiFi AP, WiFi STA, WiFi Repeater and other functions.

Features:

1) In line with IEEE802.11N / G / B wireless network protocol, wireless transmission rate up to 300Mbps;

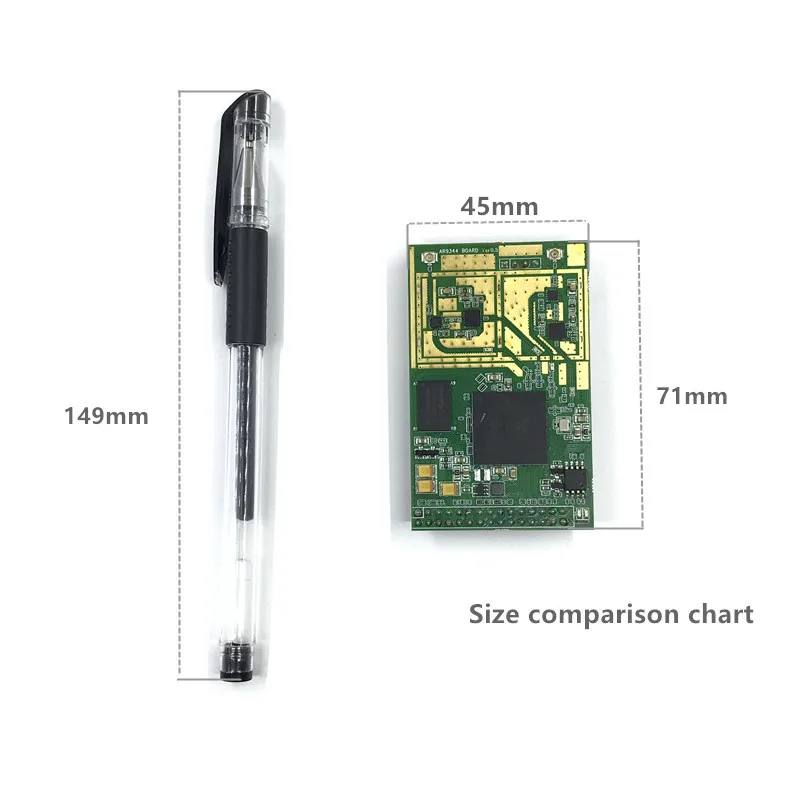

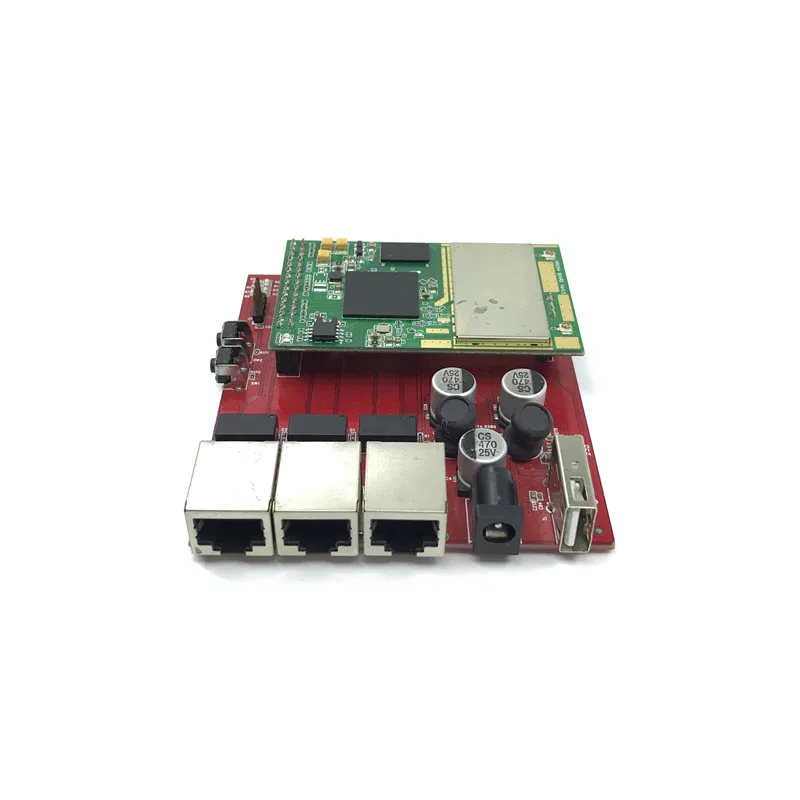

2) Small size, can be connected with the motherboard through the pin;
3) Rich USB, GPIO interface, user-friendly expansion of WiFi embedded applications
4) US SKYWORKS industrial grade power amplifier chip 5004
5) Using industry-class chip Qualcomm AR9344 and industrial-grade high-speed modern memory
6) Stable performance, powerful, scalable
7) System software can be customized to meet a variety of application needs;
8) Provide a variety of communication interfaces and debugging interface;
9) DC 3.3V single and 5V PA inputs;
10) The system supports OpenWRT, QSDK, LSDK
11) Customers can be the second development, custom services
