QI Wireless Charging Tester Detector 15 w10w7.5 w5w Fast Instrument Aging Receiving Test | Обустройство дома

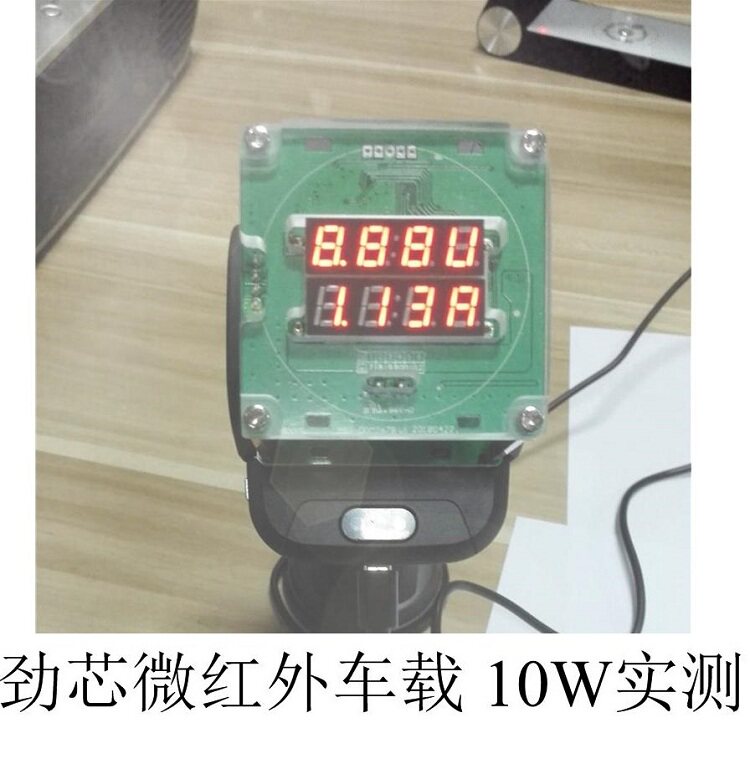

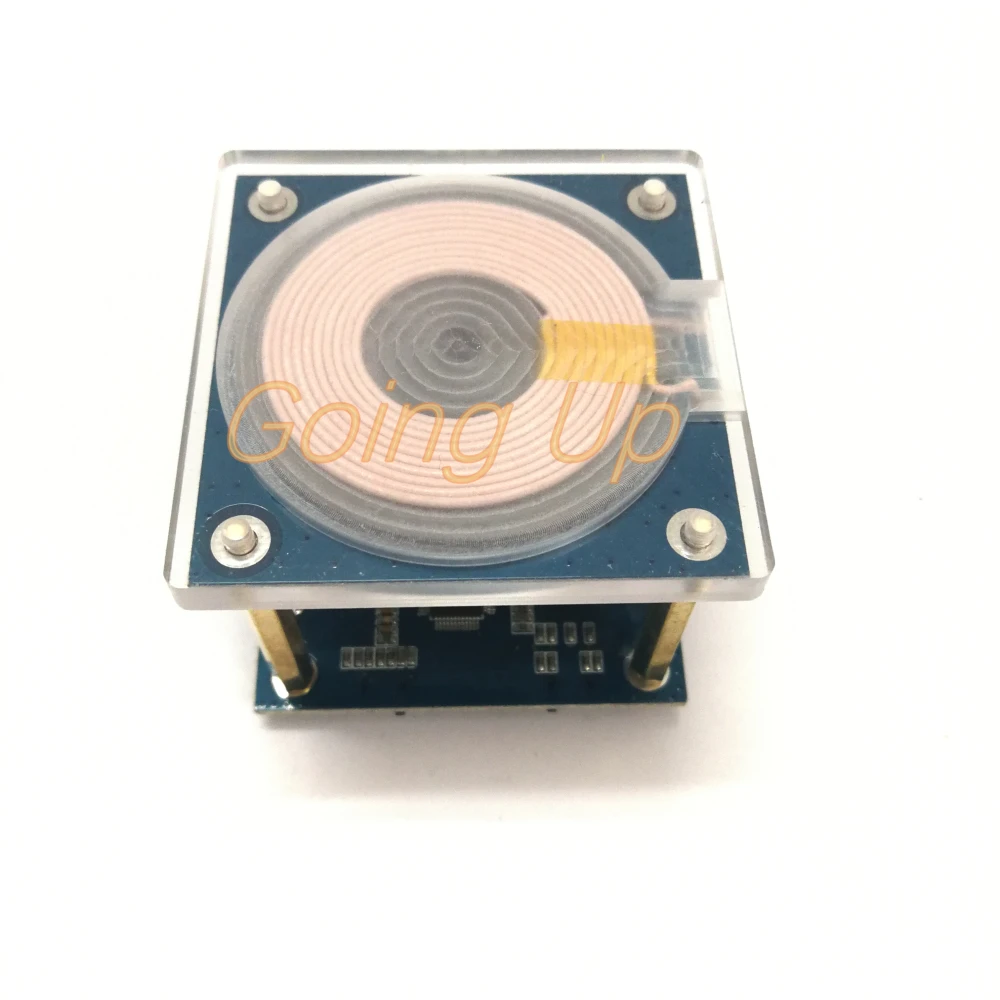

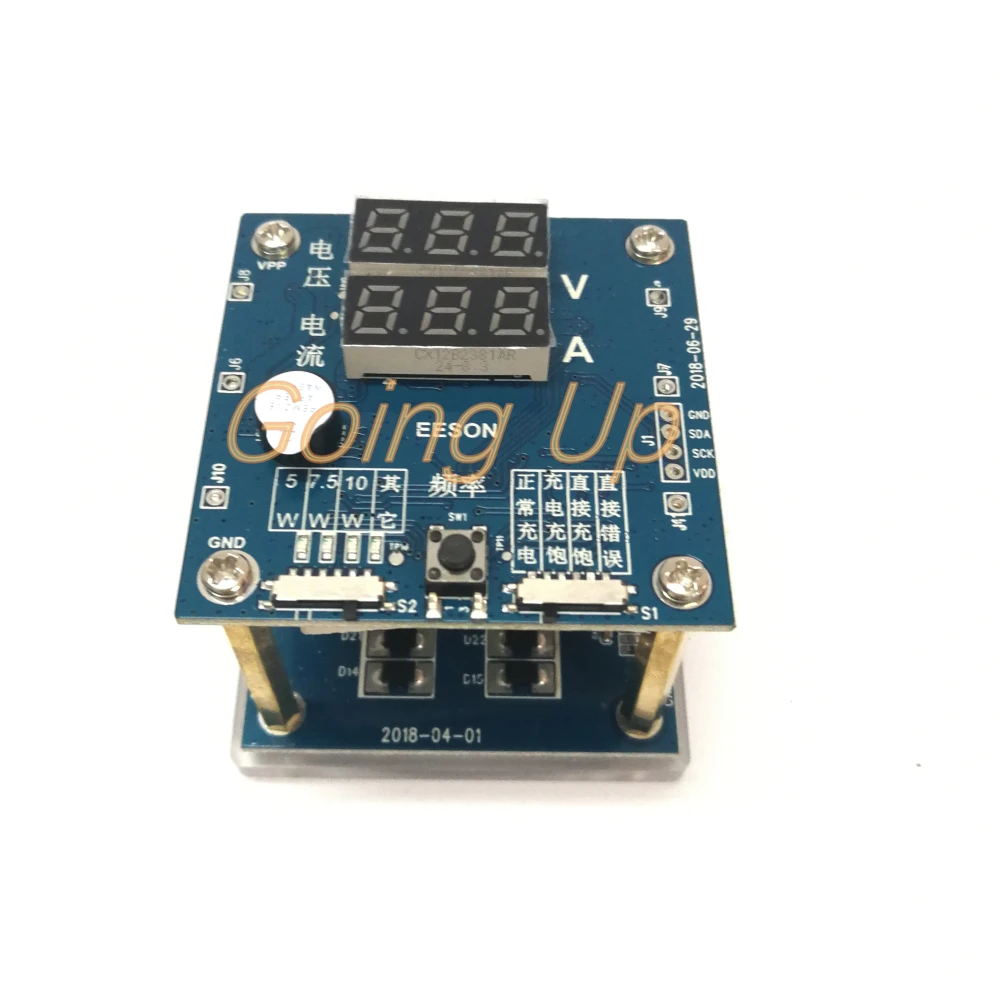

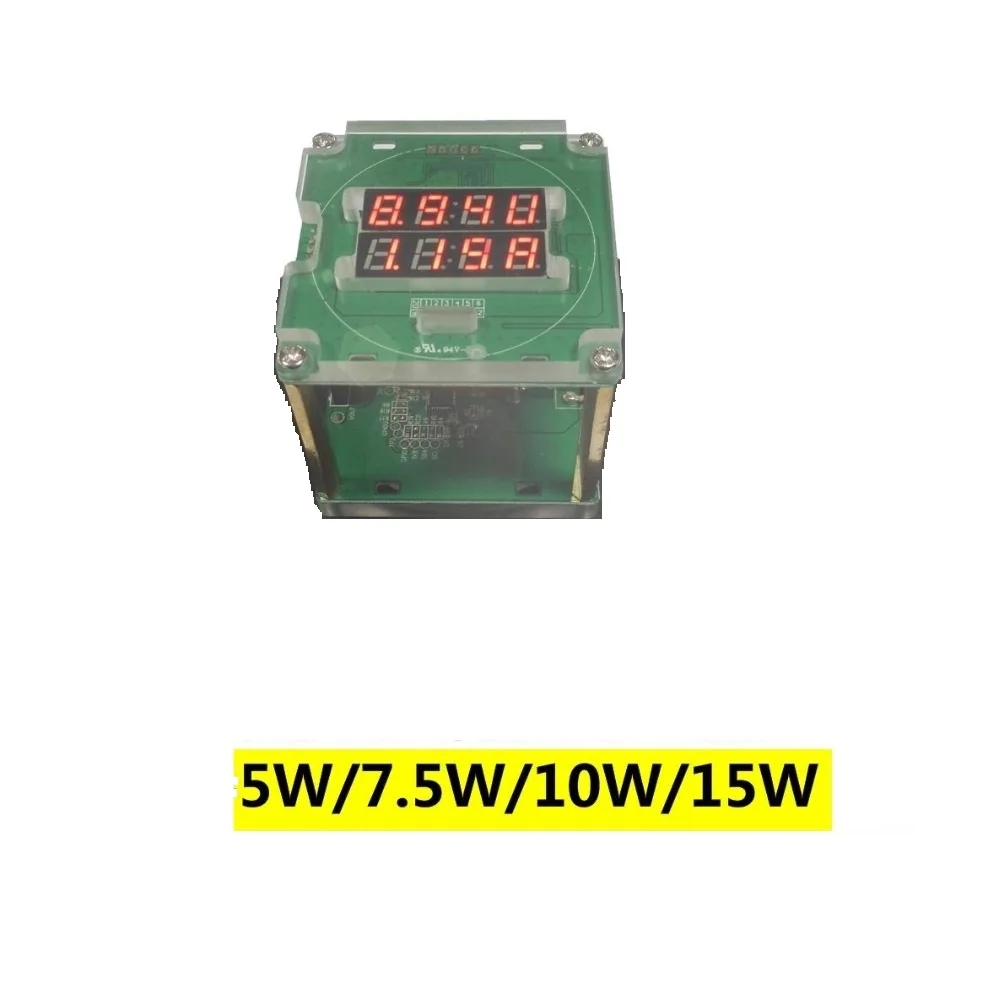

1.5W/7.5W/10W test stand (basic version) 2.5w7.5w10w test stand luxury version 3.5w7.5w10w15w super version 4.5w7.5w10w15w Supreme Edition   Note  ：Does not include charging base     [Product Introduction] The wireless charger test stand adopts the industry-leading wireless charging receiver scheme, fully complies with WPC wireless charging standards, and can provide 5W/7.5W/10W/15W receiving power. It has many functions, such as strong compatibility, sensitive reaction, automatic detection and so on. It can be widely used in the functional detection of wireless charger in the R&D stage and aging test of factory output. The testing tool is designed with two PCB boards, each of which is supported by a copper column at the four corners. The two PCB boards are overhead to facilitate heat dissipation. There are two digital tubes on the upper PCB board, which represent voltage and current respectively, and display test data accurately through high-precision ADC sampling module. The bottom of the test tool is a Qi standard A11 receiving coil module. The coil is hidden in the transparent acrylic panel. The design is exquisite and the workmanship is excellent. The upper and lower PCB boards are designed to be disassembled and connected by four conductors. [Product type and model] - 5W/7.5W/10W Testing Frame (Basic Version): Support 5W/7.5W/10W Automatic Detection and Aging - 5W/7.5W/10W Testing Frame (Deluxe Version): Support 5W/7.5W/10W Manual Switching Detection, Full Automatic Detection and Aging - 5W/7.5W/10W/15W test stand (super version): support 5W/7.5W/10W/15W manual switching detection and aging - 5W/7.5W/10W/15W Test Frame (Supreme Edition): Support 5W/7.5W/10W/15W manual switching detection, automatic detection and aging [Functional description] - Main Applications: Used for fast test or aging test of wireless charged transmitter - Test subjects: various wireless charging emitters - Receiving function: This device contains fast charging and receiving function, which is more convenient for fast charging test. - Test power: 5W, 7.5W, 10W, 15W four power modes - Test pattern: automatic recognition - Parameter Detection: Real-time Monitoring and Displaying Voltage and Current Values - Display mode: digital tube display - Abnormal mode: Abnormal working buzzer will buzz - Product size: 50mm x 50mm x 50mm The most important test index of wireless charging test stand is compatibility, because there are many wireless charging schemes on the market at present, and many test stand can only test one or several wireless charging schemes, which greatly limits the universality of the test stand. We have collected as many wireless charging solutions as possible on the market and tested the compatibility of our test stand. The following is the actual test results. A lot of tests show that our test stand is very compatible. This product is compatible with these and is not limited to the schemes already listed: Yingji core, Lingyang, Huarun Xike, Fuda, ST, Xintang, Jinxinwei, Easy Chong, Xinjie, Weigeese, Toshiba, IDT, New Page, Lianzi, Huawei, etc.
