2.Functional Feature

1   Color is While

2 Router mode supports PPPoE/DHCP/ static IP

3   Support port-based rate limitation and bandwidth control;

4   In compliant with IEEE802.3ah Standard

5   Up to 20KM transmission Distance

6   Support data encryption, group broadcasting, port Vlan separation, etc.

7   Support Dynamic Bandwidth Allocation (DBA)

8   Support ONU auto-discovery/Link detection/remote upgrade of software;

9   Support VLAN division and user separation to avoid broadcast storm;

10   Support power-off alarm function ,easy for link problem detection

11  Support broadcasting storm resistance function

12   Support ACL and SNMP to configure data packet filter flexibly

13   Specialized design for system breakdown prevention to maintain stable system

14  Support software online upgrading EMS network management based on SNMP ,convenient for maintenance

3.Hardware Specification

Item

Parameter

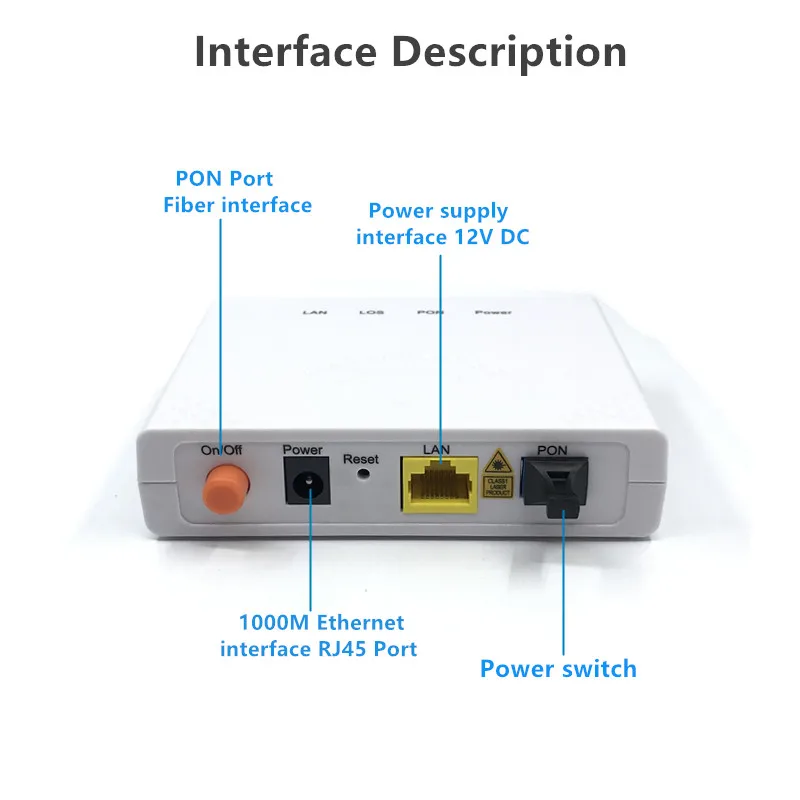

Interface

            PON Interface

1 EPON optical interface

Meet 1000BASE-PX20+ standard

Symmetric1.25Gbpsupstream/downstream

SC single-mode fiber split ratio:1:64

Transmission distance 20KM

    User Ethernet

      Interface

1*10/100/1000M auto-negotiation

Full/half duplex mode

RJ45 connector

Auto MDI/MDI-X

100m distance

          Power Interface

12V DC Power supply

   Performance

     Parameters

PON Optical Parameter

Wavelength: Tx 1310nm, Rx1490nm

Tx Optical Power: -1～4dBm

Rx Sensitivity: -27dBm

Saturation Optical Power: -3dBm

Connector Type: SC

Optical Fiber: 9/125ɥm single-mode fiber

Data Transmission

Parameter

PON Throughput: Downstream 950Mbps; Upstream 930Mbps，

1000Mbps

Packet Loss Ratio:<1*10E-12 latency: <1.5ms

Gateway

 Router mode supports PPPoE/DHCP/  static IP WAN support Route rand Bridge  mode

 WAN support Internet、VoIP、IPTV、TR069

 LAN supports DHCP and  static IP Support NAT and  NAPT

  Support UPnP

Business

Capability

Layer 2 wire speed switching

Support VLAN TAG/UNTAG，VLAN conversion

Support Port-based speed limitation Support Priority classification Support storm control of broadcast

Network

Management

Management

Mode

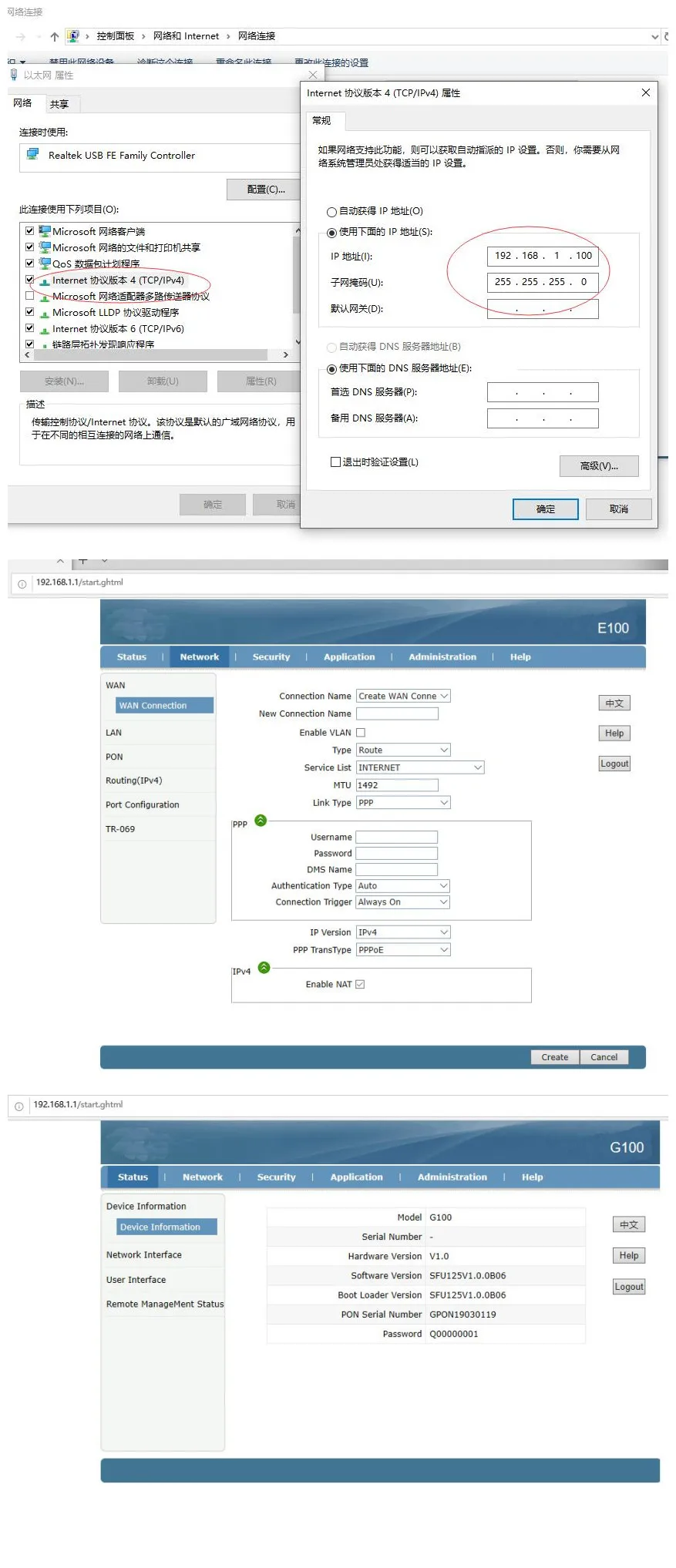

 Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet

 Local management

Management

Function

 Status monitor, Configuration management, Alarm  management, Log management

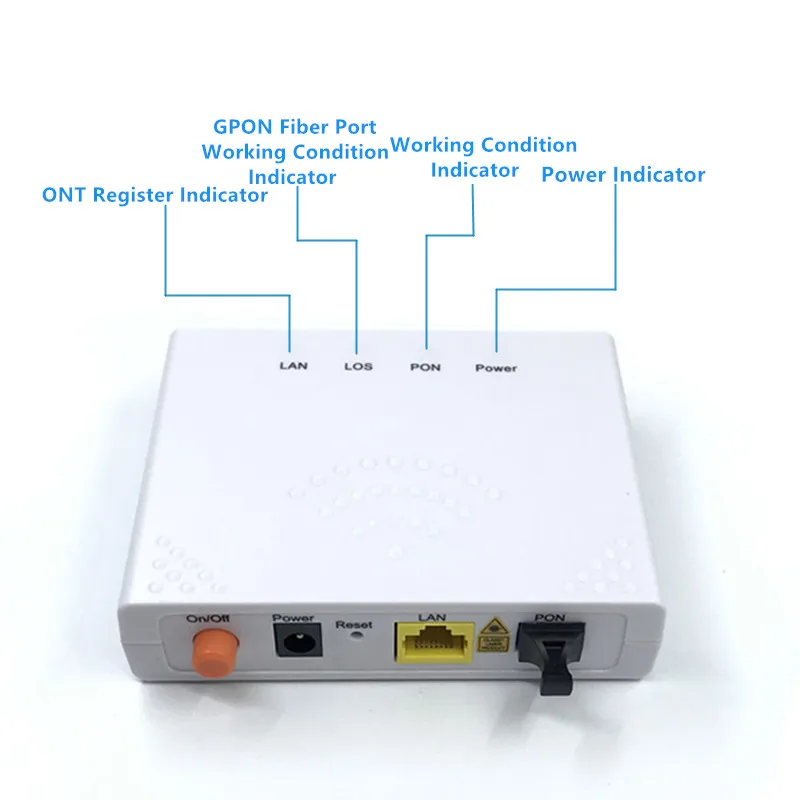

Indicator

LED Indicator

PWR: Power up or down SYS: System instructions LOS: Optical Link Status

PON：ONU Registered

LINK/ACT: Link Status of Ethernet Interface

Physical Features

Shell

Plastic casing

Power

External 12V 0.5A AC/DC power supply adapter

Power consumption: <2W（FD101HC）,<2.3W(FD111HC)

Physical

Specifications

Item Dimension：130mm(L) x 100mm(W) x 26mm (H)

Item weight：0.1kg

Environmental

Specifications

Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC

Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing)

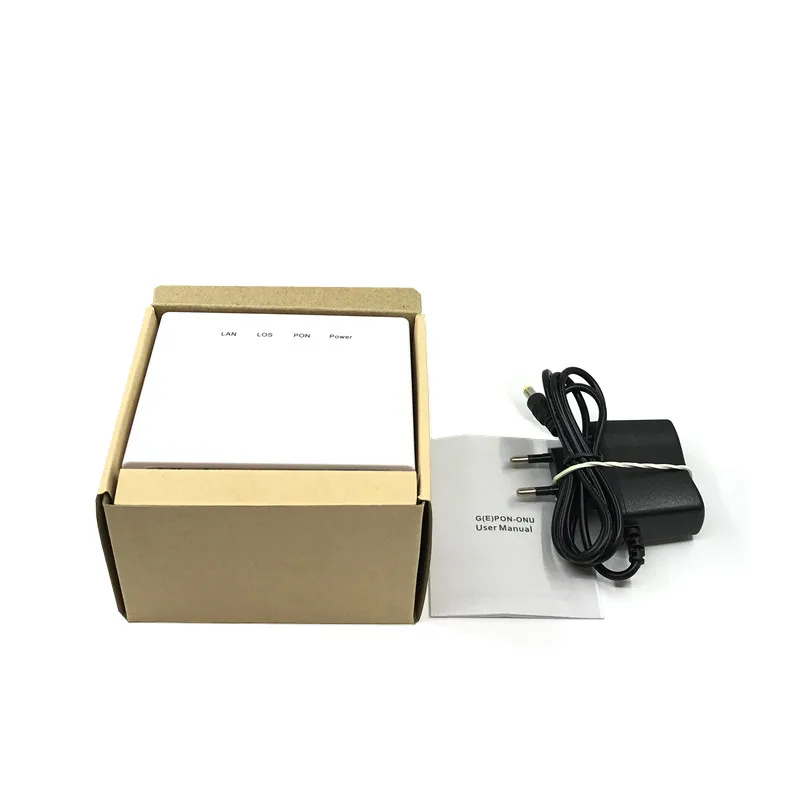

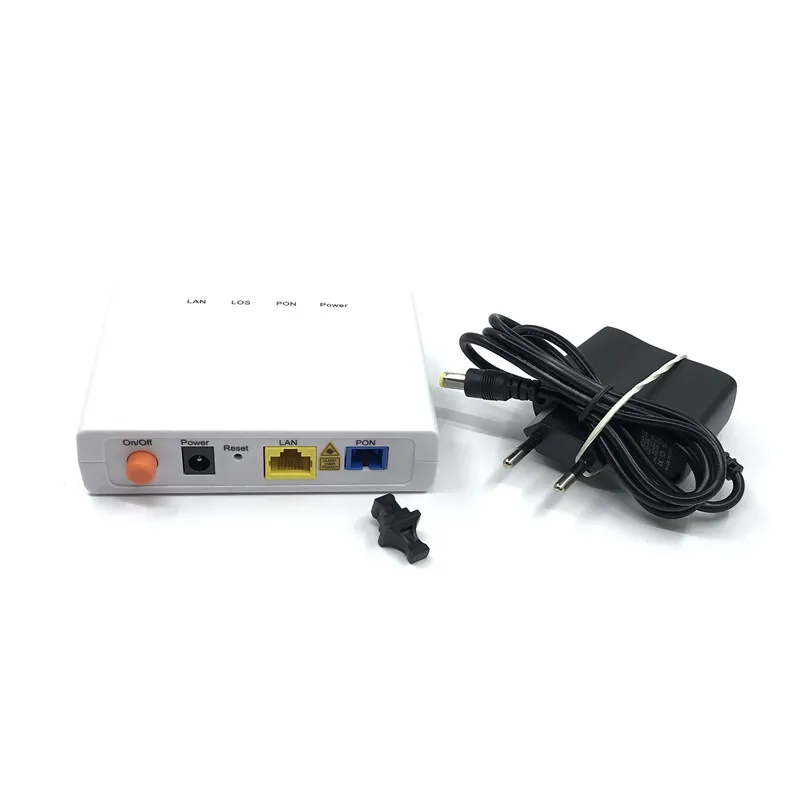

Package includes:

1.EPON ONU*1PCS

2.Power Adapter*1PCS
