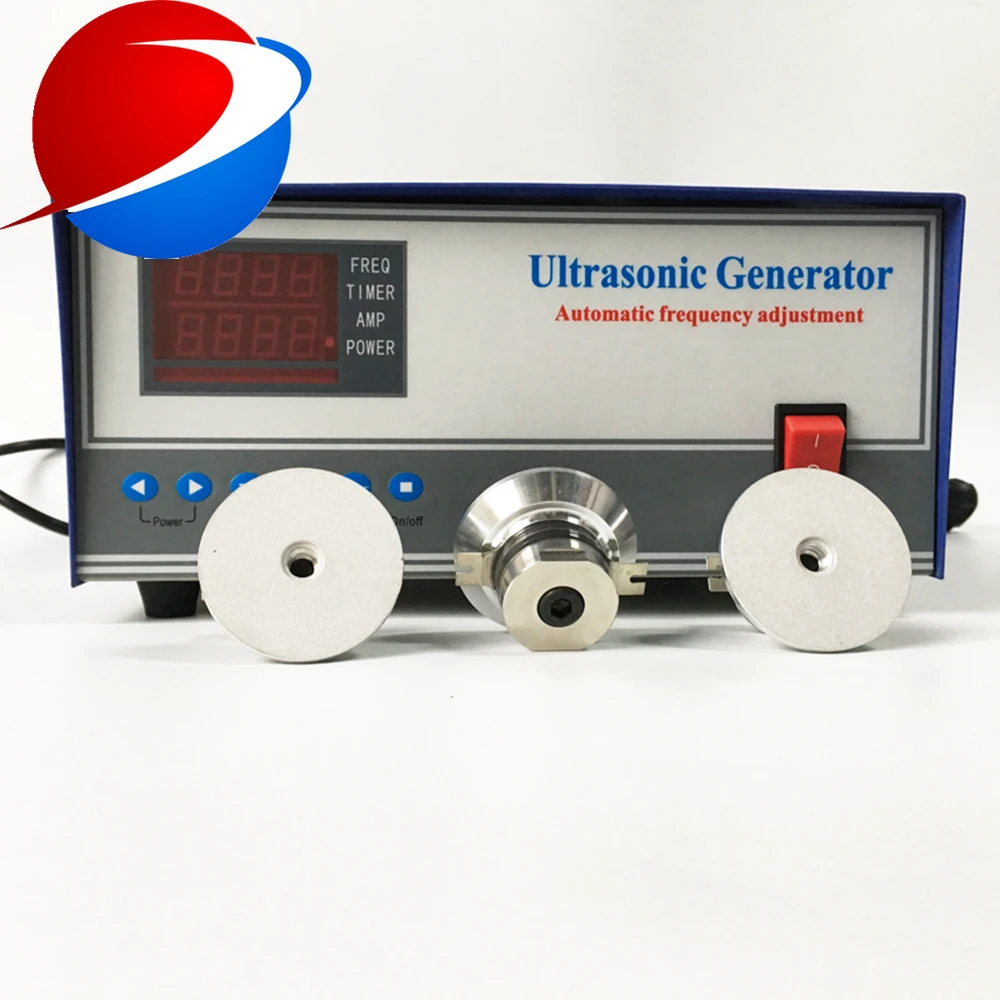

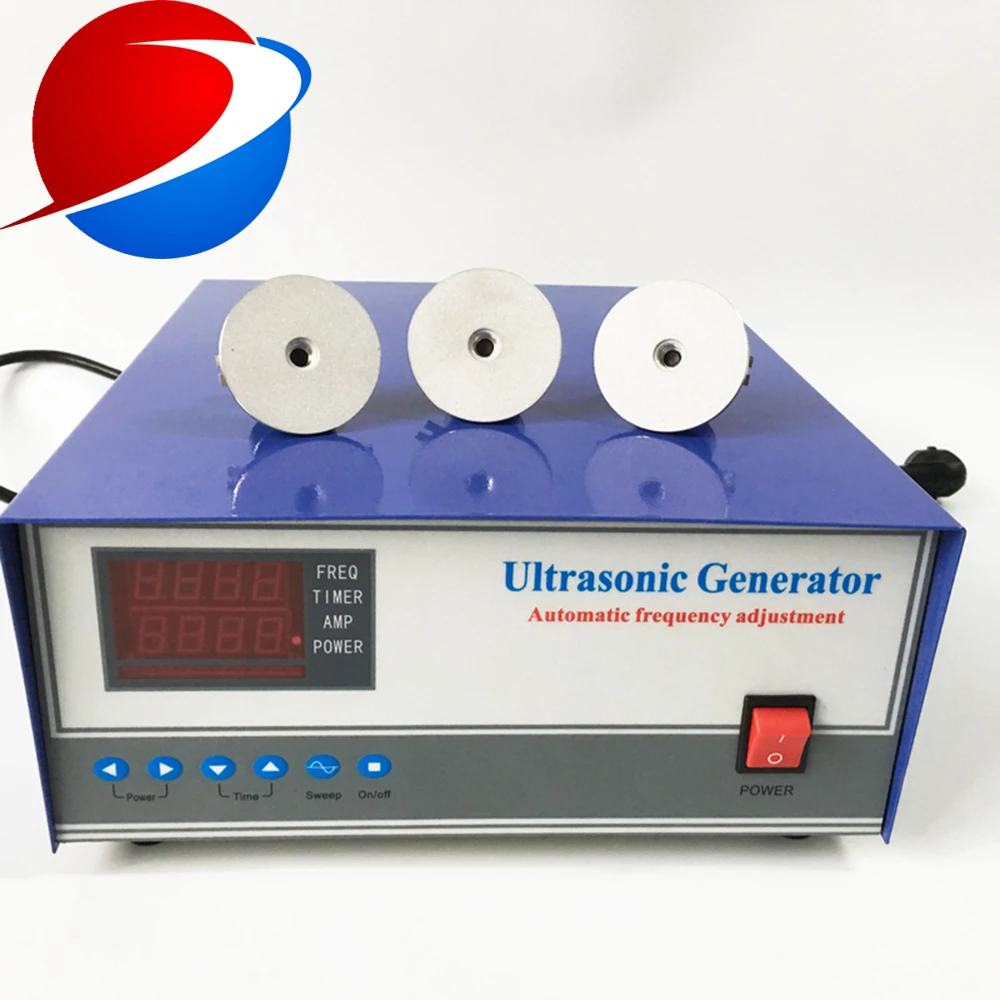

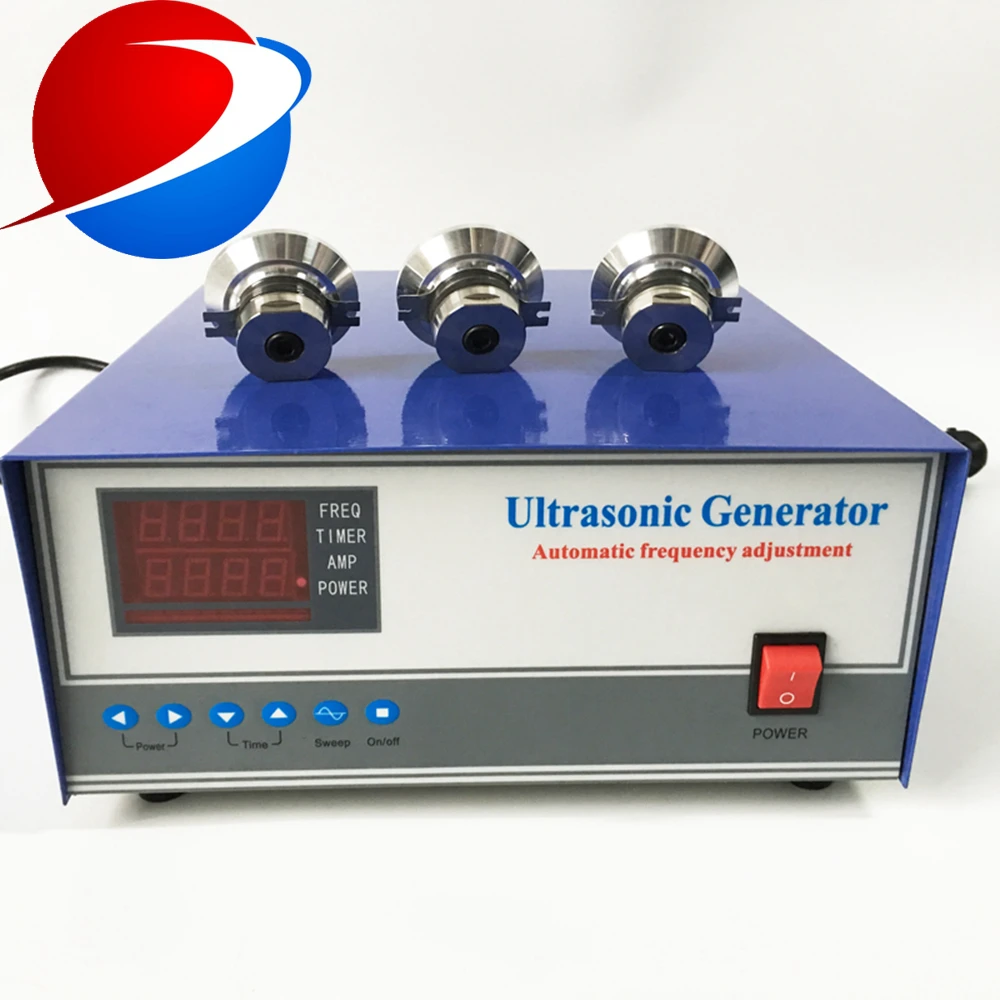

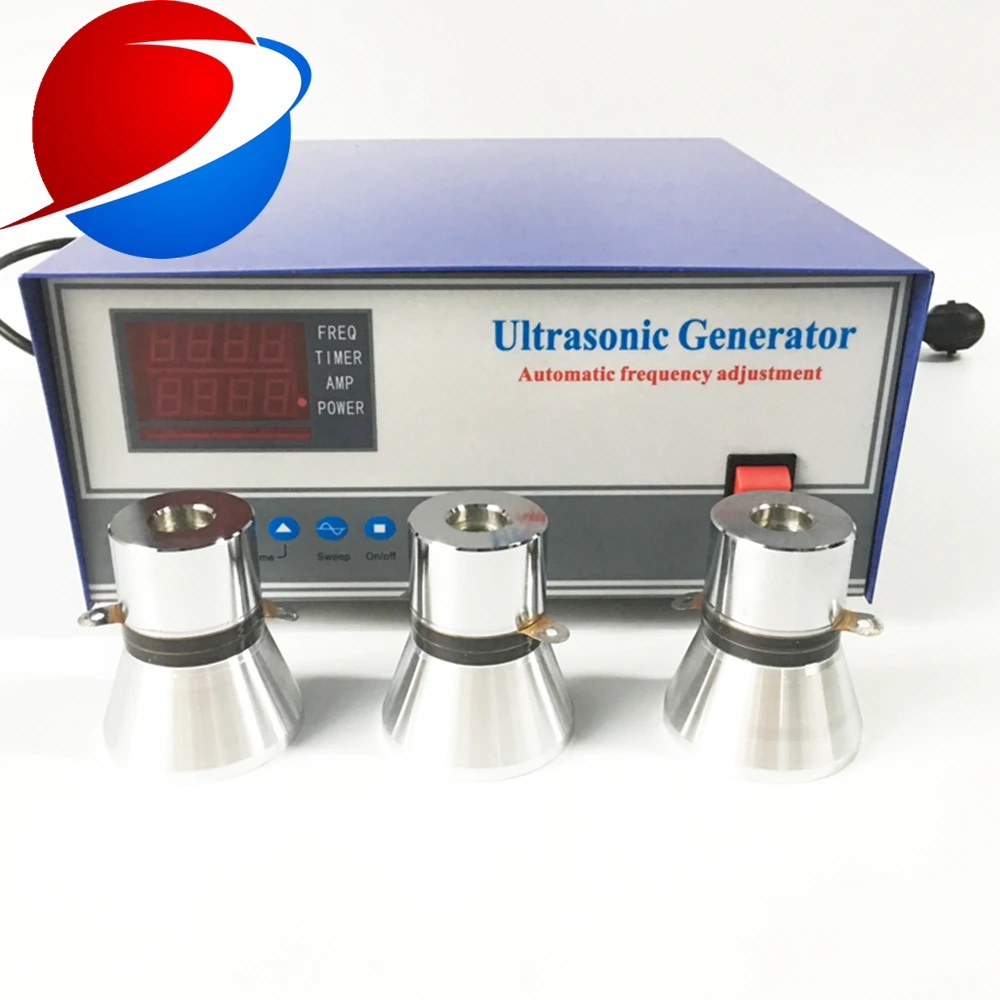

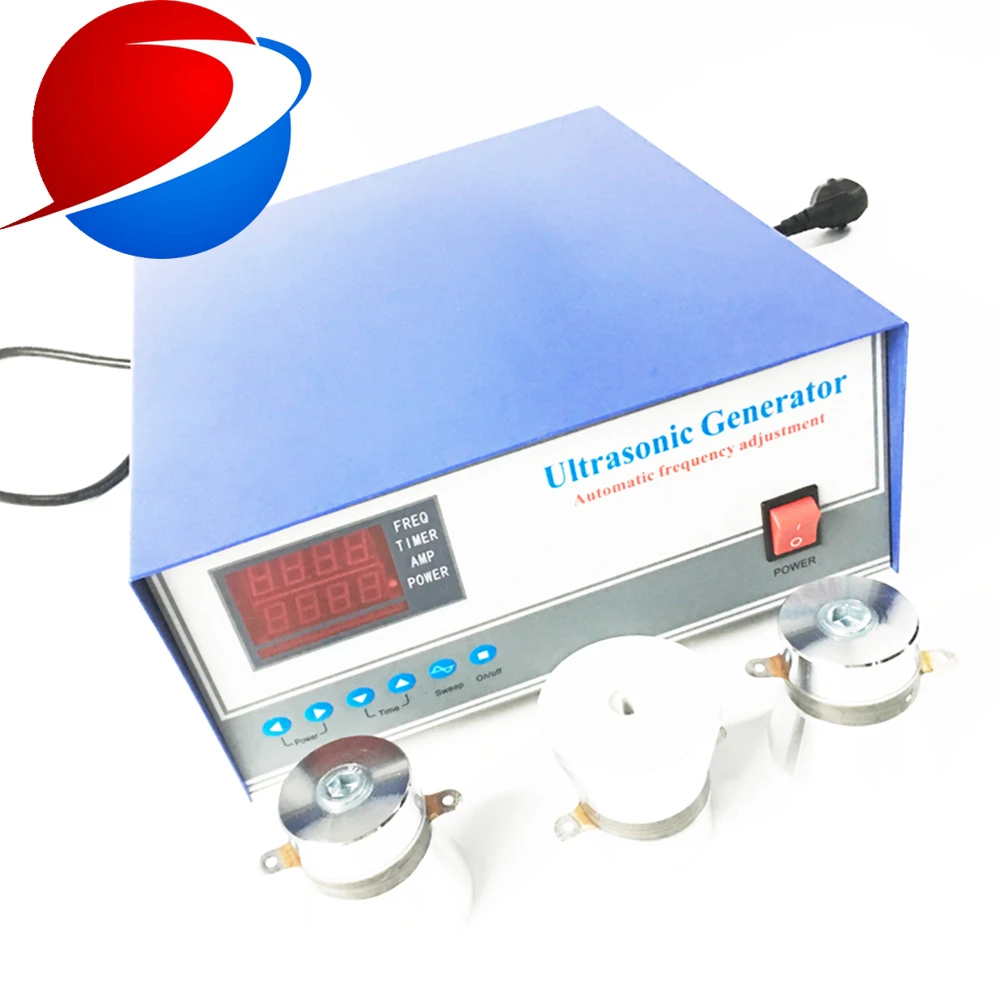

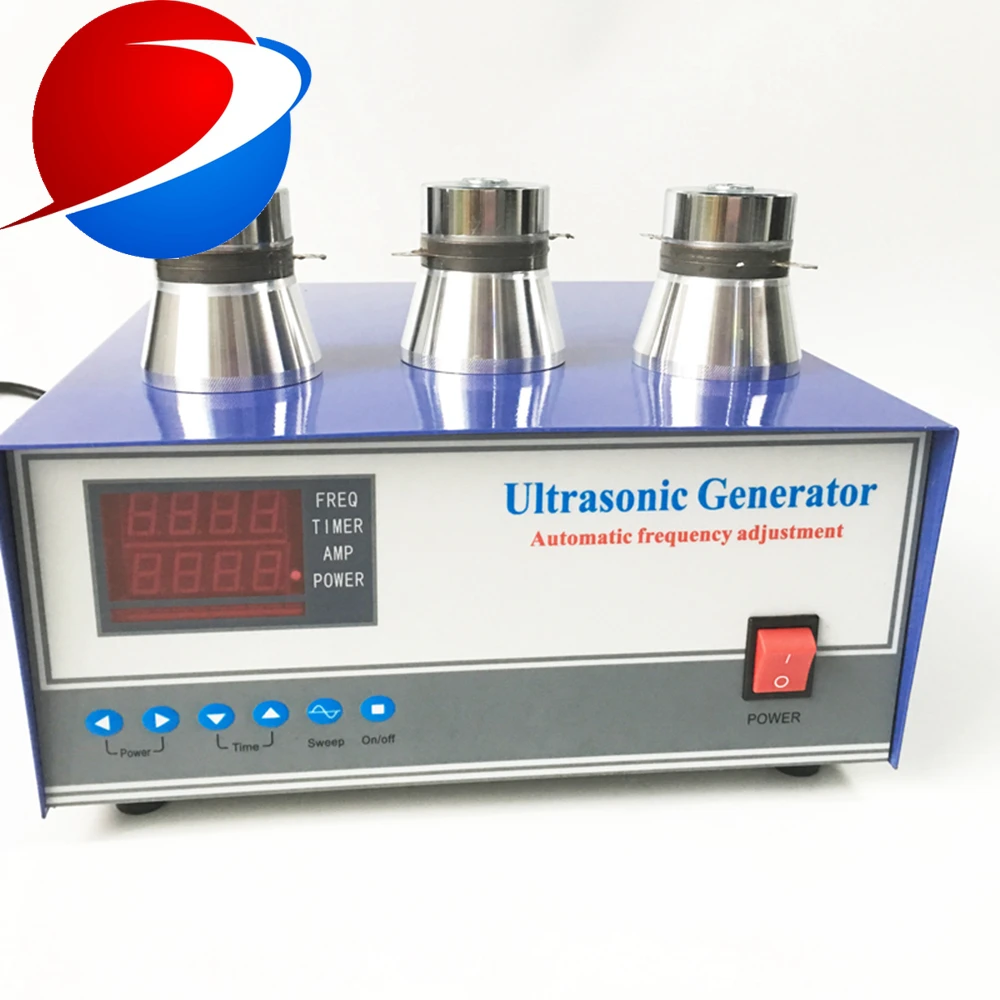

Ultrasound Power Supply Electronic Box for 28khz 40khz 2400W ultrasonic power cleaning machine in Industrial Medical Laboratory

price not including transdcer

UCE Ultrasonic Generator 50W, 100W, 300W, 600W, 900W,1000W,1200W, 1500W, 1800W, 2000W, 2400W
AC 110V-240V, 50/60HZ CE and FCC Certified，Hundred percent by EMC and EMI test。

The ultrasonic generator can monitor the working frequency and power of the high power ultrasonic system.
According to the different requirements of users, we can adjust various parameters in real-time, such as power, amplitude, running time and so on.
Frequency fine tuning: adjusting the frequency makes the ultrasonic transducer always work in the best condition, the efficiency reaches the maximum, and the adjustment range is 2%.
Automatic frequency following: once the device has completed its initial setup, it can operate continuously without the need to regulate the generator.
Amplitude control: when the transducer changes during the working process, it can automatically adjust the driving characteristics to ensure that the tool head has a stable amplitude.
System protection: when the system works in an unsuitable operating environment, the generator will stop working and display the alarm and protect the equipment from damage.
Amplitude adjustment: the amplitude can be increased or reduced instantly in the working process, and the setting range of amplitude is 0%~100%.
Automatic frequency search: it can automatically measure the working frequency of tool heads and store them.

Quality assurance:

1. Our machine is equipped with world advanced engine and components.Some parts of machine owned patents by ourselves. 2. Whole set of pure water processor line featured with RO anti-saturation and advanced testing devices 3. Manufactured in China.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
