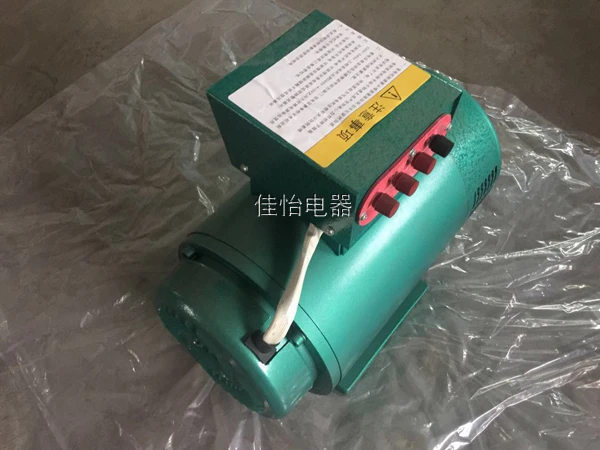

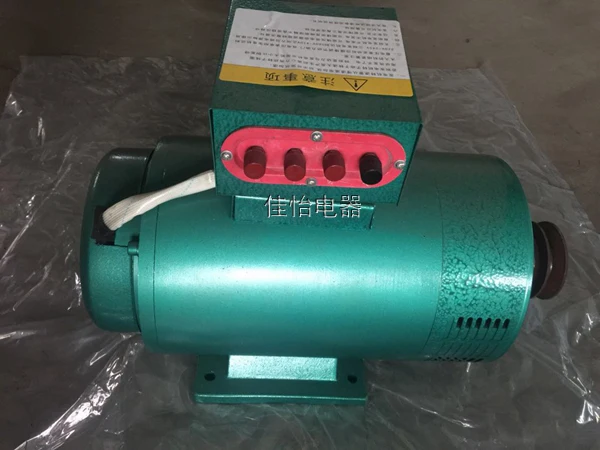

  This product is single-phase/three-phase brushed excitation synchronous alternator. It adopts Japan NSK brand high-speed bearing, which is sturdy and durable. It has small resistance, full copper wire core winding, compact body, light weight and convenient installation. The output voltage is 380V. Frequency is 50Hz, rated speed: 3000 rev / min, suitable for lighting. TV. Fan. Refrigerator. Washing machine. Air conditioner. Induction cooker. Water pump. Electric welding machine and other electrical equipment, strong applicability, widely used. There is built-in voltage regulator, with automatic voltage regulation function, no need to match the voltage regulator, adjust the speed and voltage can be used. The power of the diesel engine should be 1.3-1.5 times larger than the generator power (1 horsepower is equal to 0.736KW) ).

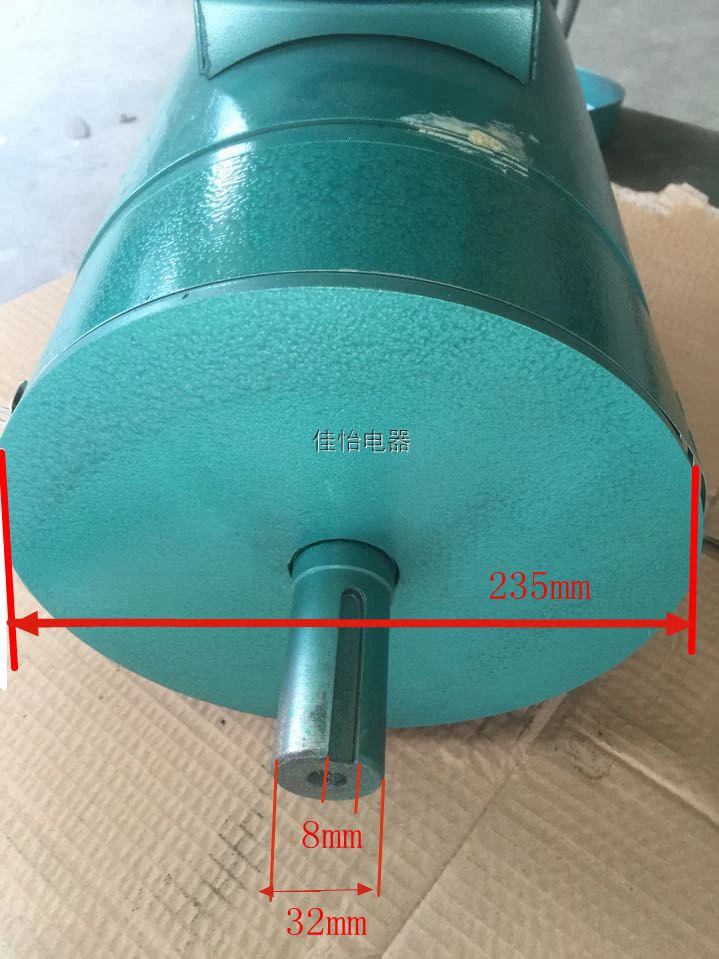

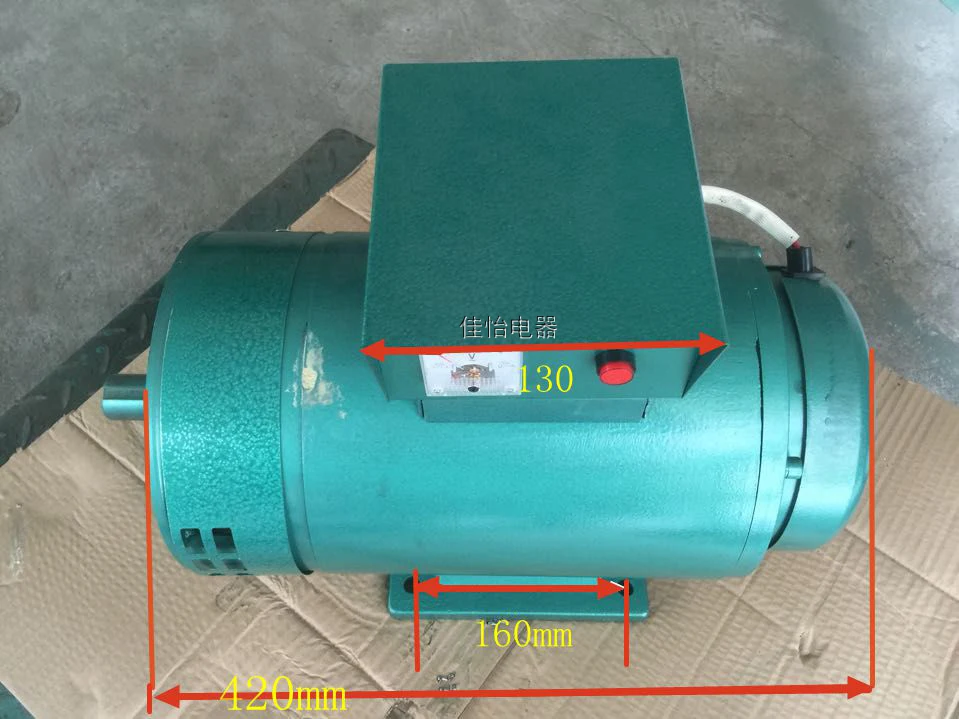

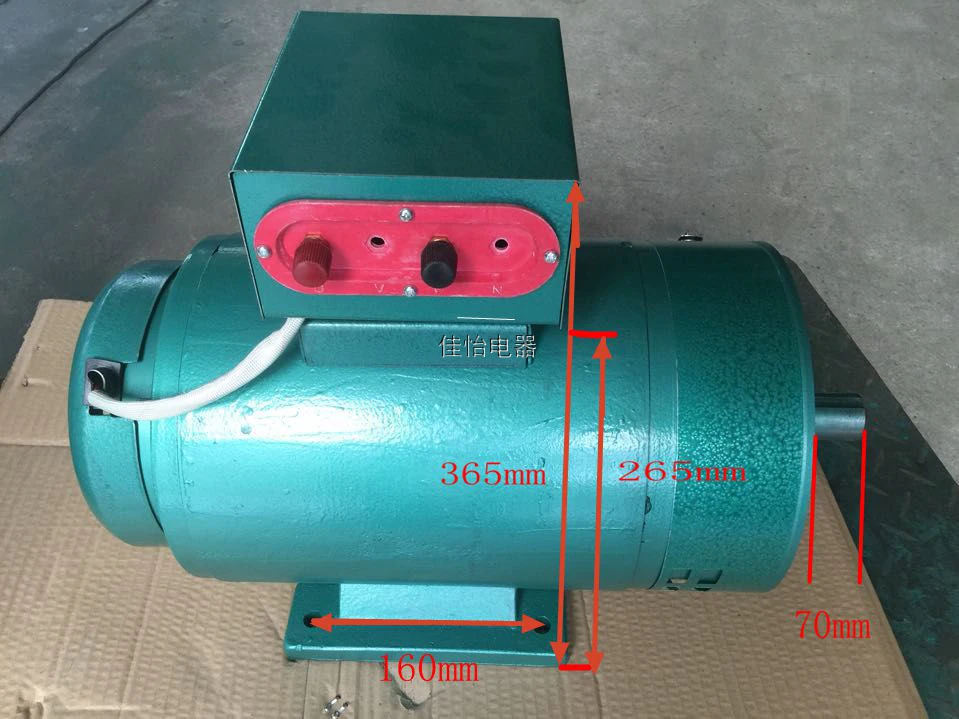

 The following are 7.5KW model specifications: length 490MM, width 230MM, height 365MM, shaft diameter 32MM, shaft length 70MM, according to the hole diameter 13MM. Output voltage 220V/380V, frequency 50Hz, rated power 7.5KW, maximum power 8KW, rated current 34.1A/19.8A, rated speed: 3000 rev / min, normal power generation in both the forward and reverse directions. Suitable diesel engine power is more than 12 horsepower.

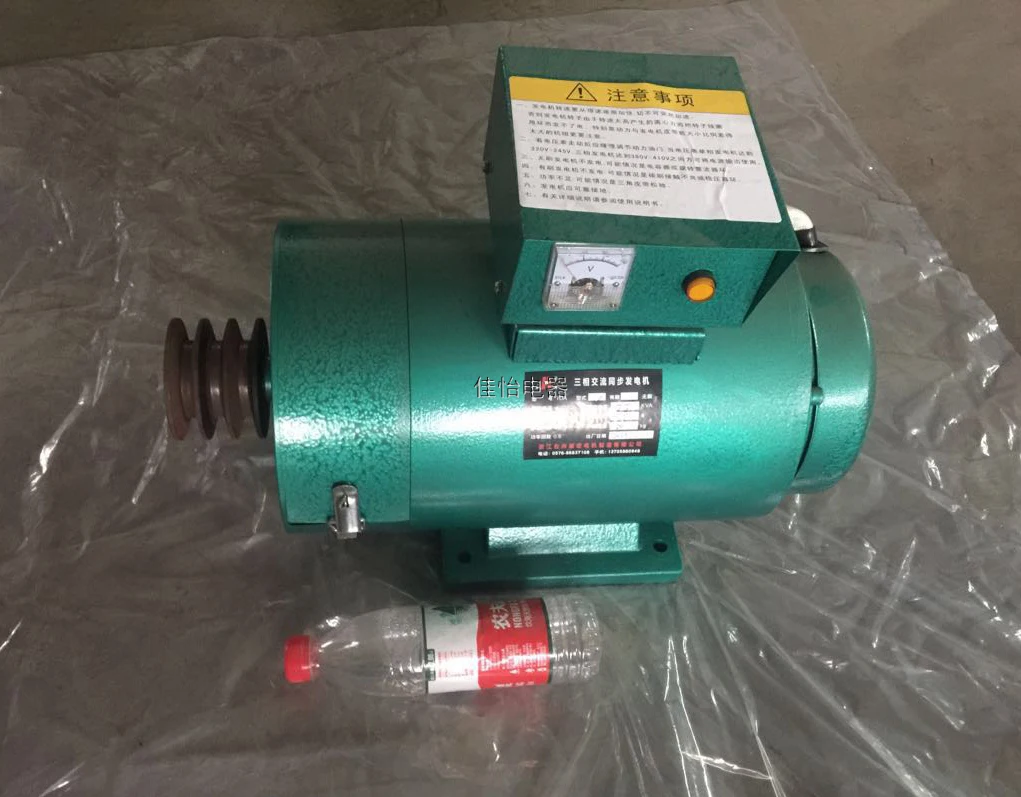

    Please note the model of the generator pulley that needs to be configured when photographed: A戓B type, the default is B type.

    Pulley outer diameter: 80MM, inner diameter: 32MM. Type A is a narrow groove (double groove: the maximum width of the groove is about 13MM); type B is a narrow groove (three grooves: the maximum width of the groove is about 16MM).
