Definition

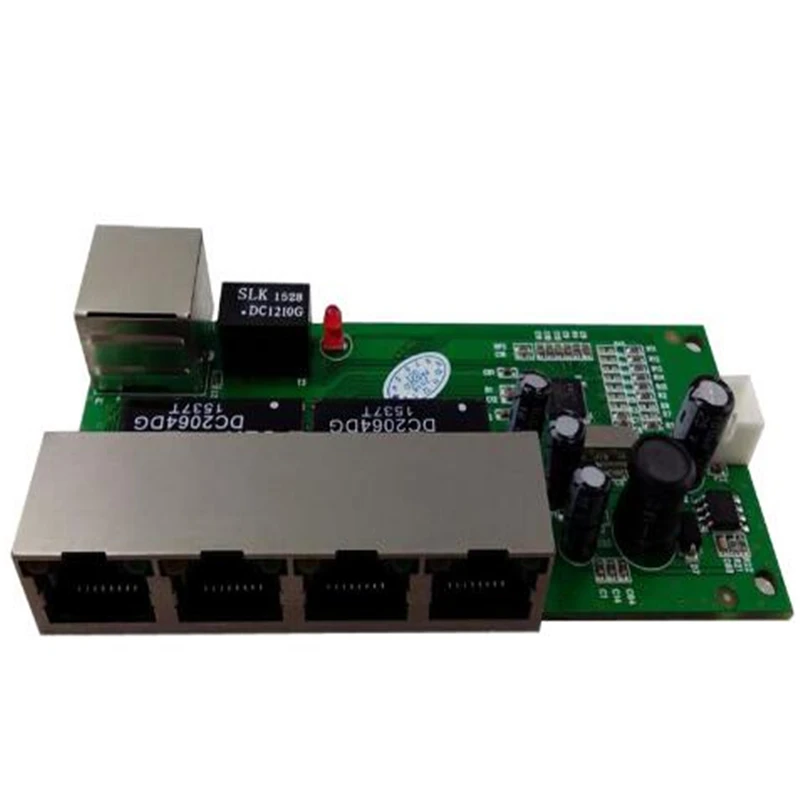

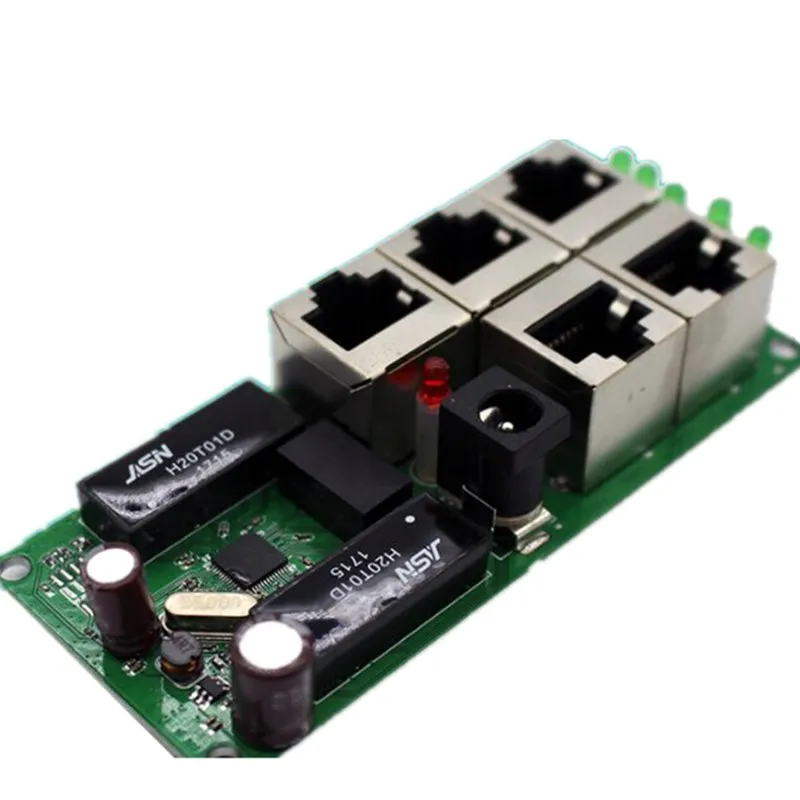

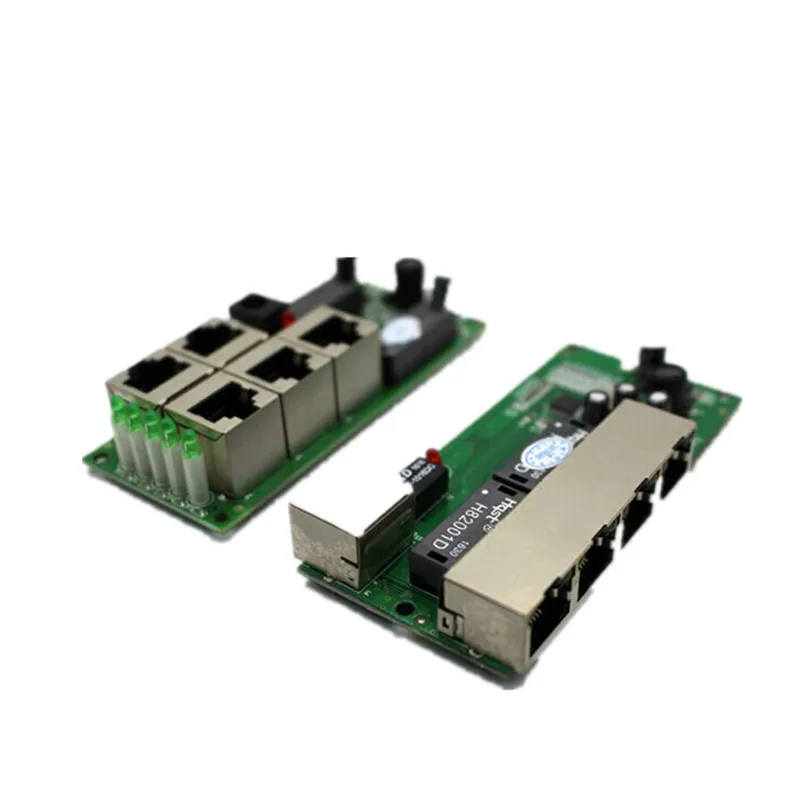

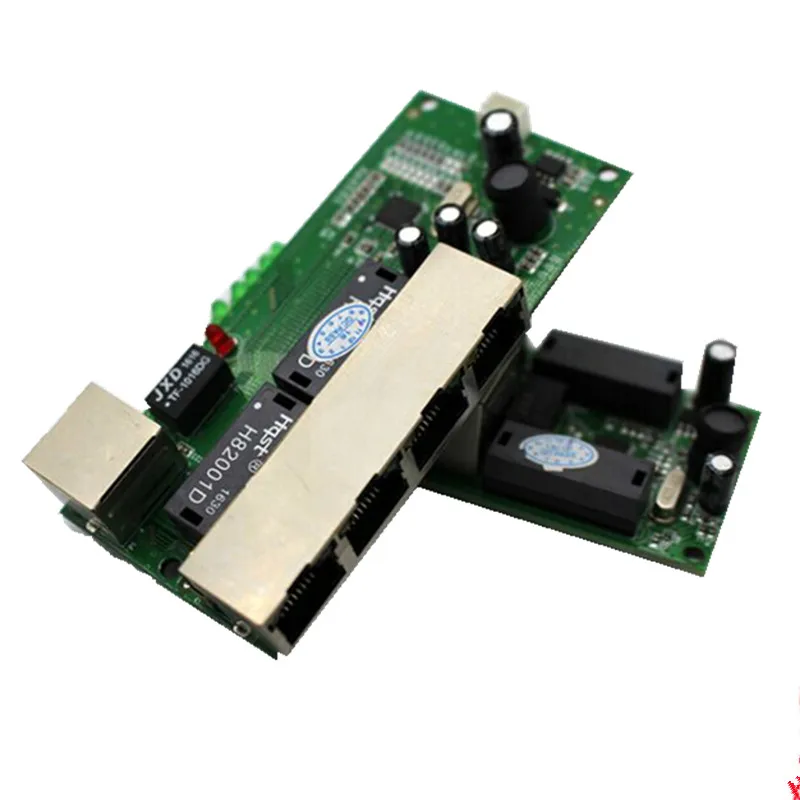

5 Port Ethernet Switch Module

Simple Features

1 5 port Ethernet switch module

2 10/100mbps

Description

this is a high-performance 5ports 10/100Mbps Ethernet switch module. It provides a simple network connection to your workgroup or a server,Easy plug and play, flexible non-blocking architecture, users can be exempted from the restrictions of bandwidth and media networks.

The 5 10/100Mbps Ethernet switches module each port to support Auto-Negotiation function. For Broadband local area network provides an economical, practical, cost-effective 10/100Mbps LAN sharing, The same times, for connect to each end-user on the LAN to provide stable performance and High-Throughout data transfer, each port support store-and-forward mode, it can effectively isolate the broadcast storms, reducing the packet error and the wrong packet, to avoid network congestion and conflict.

The switch module provides half-duplex flow control and full-duplex mode backpressure mode on all ports, It can to improve bandwidth server and network protocol compatibility. The same time, the LED indicator to diagnose the operating status of each port and the entire system,This switch energy saving and environmental protection.

Applications

The switch module widely use network cabling and cabling distance extend of the network cabling boxes, multimedia cabling boxes and other

Features

Complies with IEEE 802.3 and IEEE 802.3u standards

5port 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port

Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput

Support MAC address auto-learning and auto-aging

LED indicators for monitoring power, link/activity

Mini cabling size design, PCBA size:95x41.5x18mm

DC input range 5-12v

Specifications

Standards

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3x flow control

protocol

CSMA/CD

Fibering and Transmitting speed

Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port
Fast Ethernet 100Mbps (half duplex),200Mbps (full duplex);100BASE-TX :148800pps/port

Topology

Star

Network Medium

10Base-T:Cat 3 or above Cat.3 UTP(≤100m)

100Base-TX:Cat 5 UTP(≤100m)

Number of Ports

5port 10/100M RJ45 ports

UPLINK

Any port (support Auto-MDI/MDIX function)

Transmits Method

Store-and-Forward

Temperature

Operating Temperature 0 C~40 C (32 F~104 F)

Storage Temperature -40 C~70 C (-40 F~158 F)

Humidity

Operating Humidity 10%~90% non-condensing

Storage humidity 5%~95% non-condensing

Switch capacity

1G

LED Indications

1* power LED(Power: Red)

5* port LEDs(Link/Act: Green)

Dimension(W x H x D)

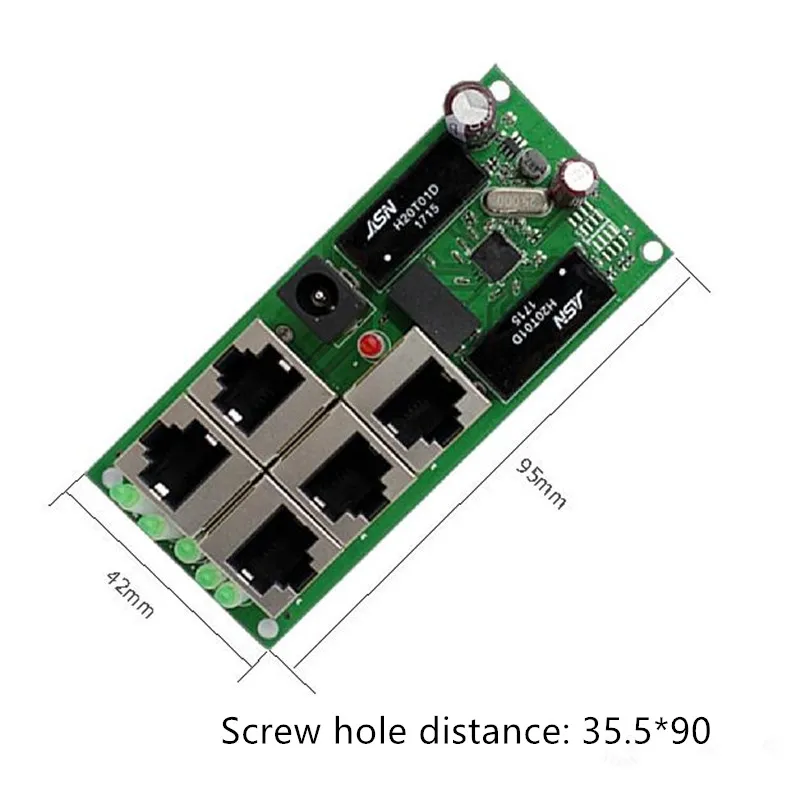

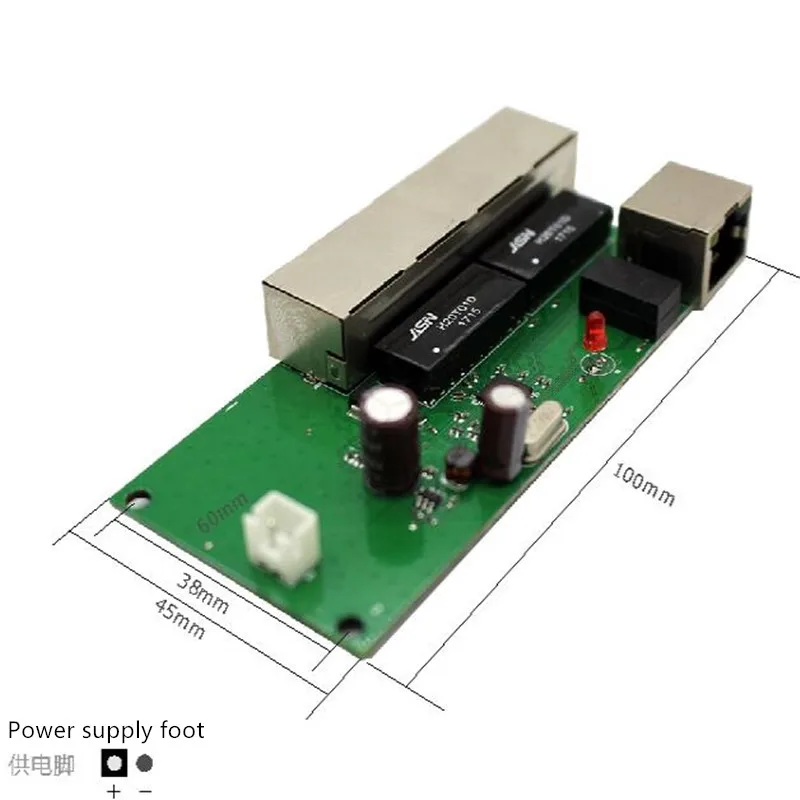

sizi1:95*42*18mm     sizi2:100*45*18mm

Power Supply

DC input range 5-12v

Case Material

no

certificate

CE RoHS

Unit weight: 55g
