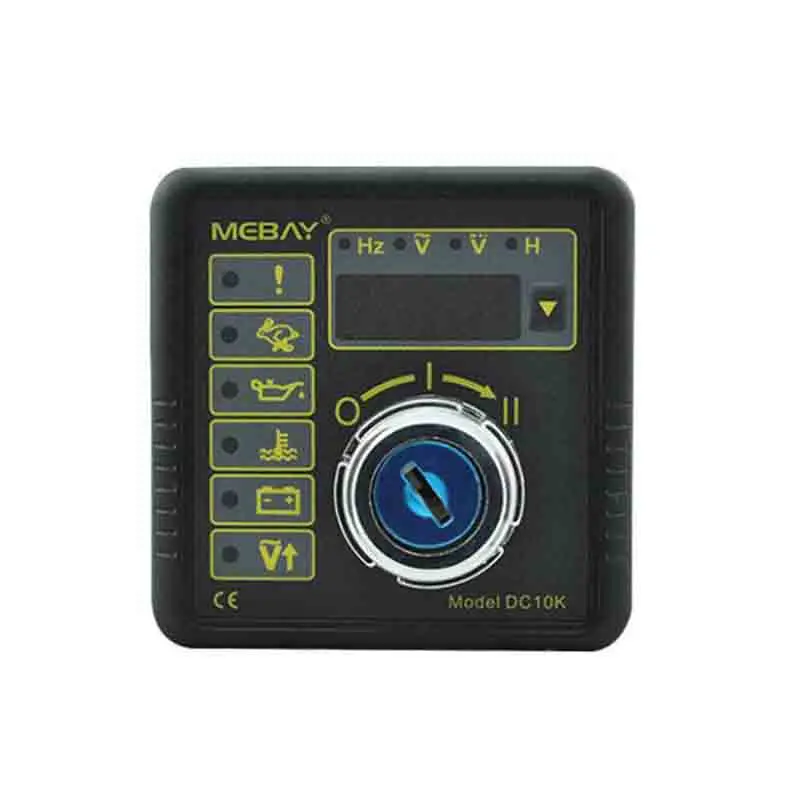

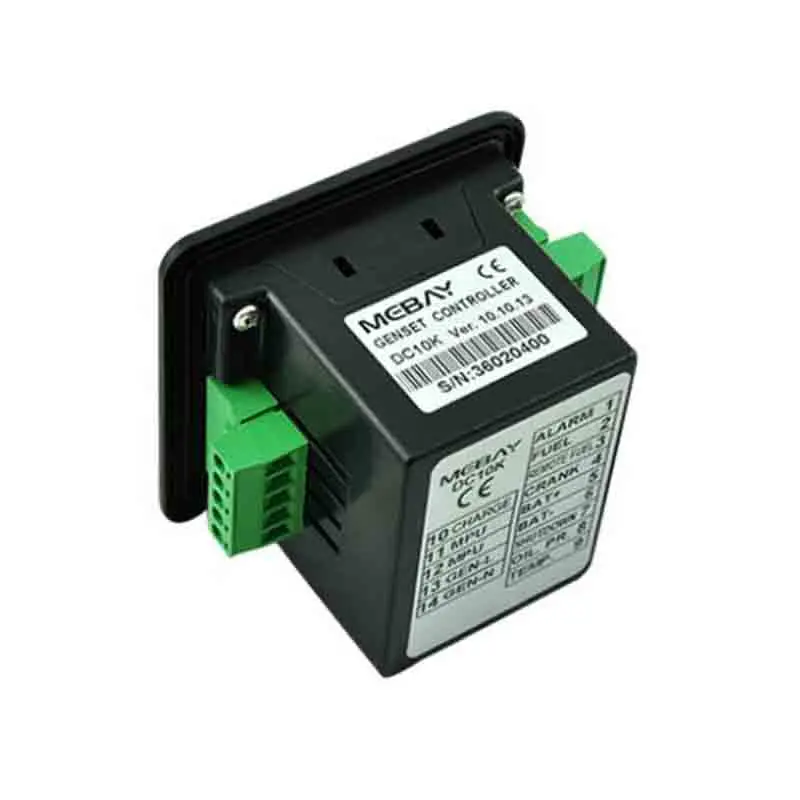

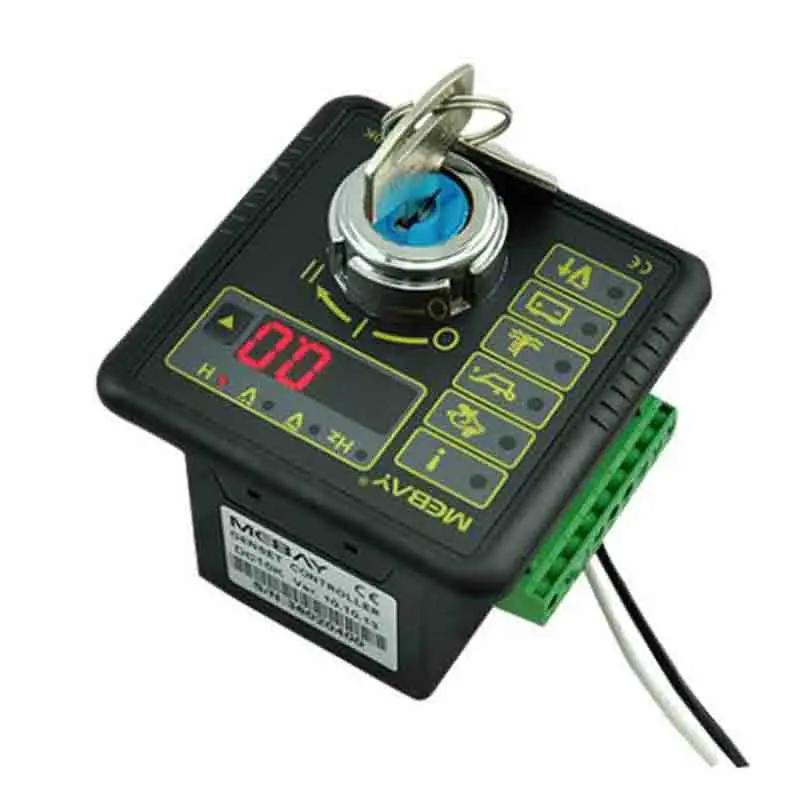

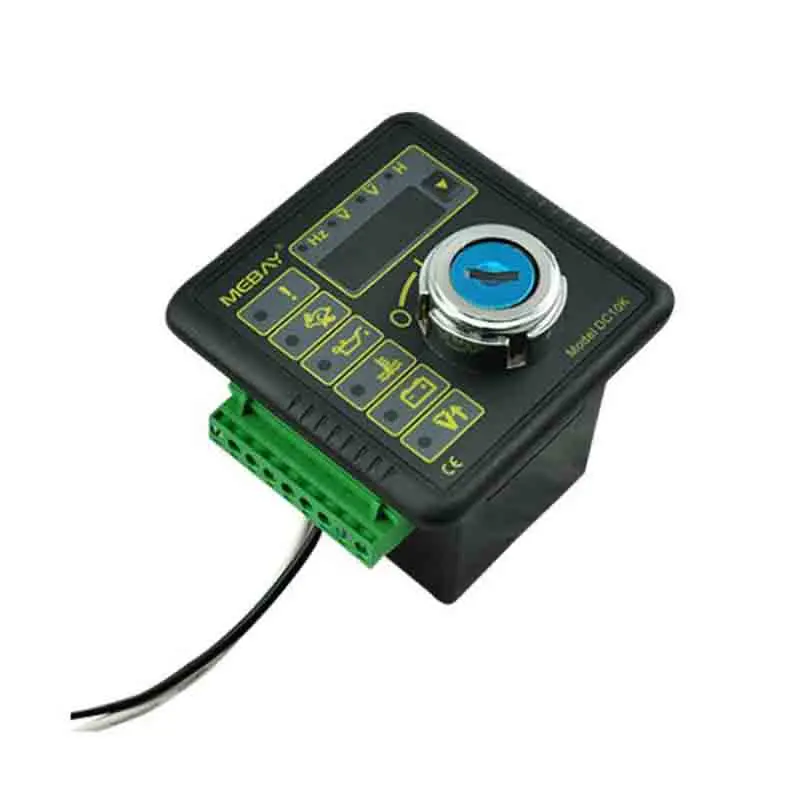

description: The DC10KE is a controller for manual start and stop of the engine. The 4-digit LED digital tube displays the engine speed, battery voltage, current running time, and accumulated working time. It has various parking protection and alarm indication functions, which can conveniently monitor the engine working status. The controller can be connected to the computer through the data cable, and the controller parameters can be set by software to easily match more specifications of the engine.   main feature:   Controlled by 32-bit imported high-performance single-chip microcomputer;   4-digit digital display, which can be switched automatically or manually;   Durable with a vehicle starter key;   With parameter setting function, the parameters can be set through the computer connection;   A variety of alarm protection features;   Waterproof ring is standard, and the rear panel is equipped with splash-proof function;   All wiring is completed through European-style terminal blocks. It is very easy and convenient to assemble, connect, repair and replace the equipment.   Parameter display   Engine speed RPM;   Engine battery voltage V;   The running time H;   Cumulative running time H;   Alarm protection   emergency pull over   Speeding   Low oil pressure   High water temperature   External instant parking alarm   Charging failure warning   Specifications:   Power input: 8-33VDC   Power consumption: MAX 2W   Speed input: Freq 300Hz ~ 10kHz   Oil valve output: MAX 16A   Motor output: MAX 10A   Excitation output: MAX 80mA   Alarm output: MAX 16A   Working temperature: -30-75 °C  Storage temperature: -40-85 ° C   Dimensions: 78 × 78 × 72mm   Opening size: 67×67mm   Weight: 280g   Note: - Due to lighting effects, monitor's brightness , contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item. - Please allow 1-2mm differs due to manual measurement, thanks.
