5-port 100M and Gigabit switch motherboard supports customizable screw hole location network PBC factory direct design | Компьютеры и

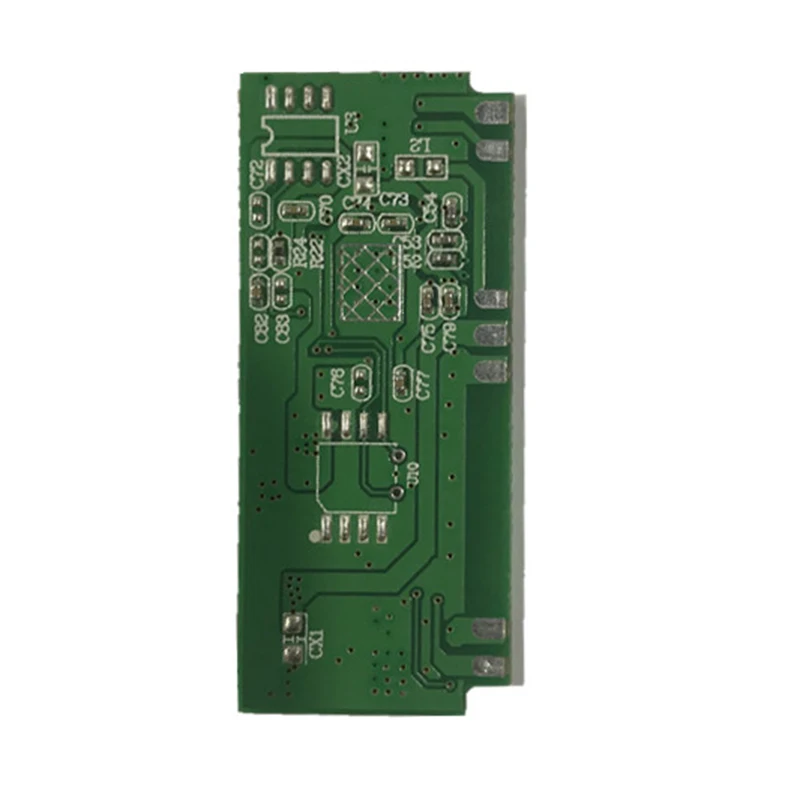

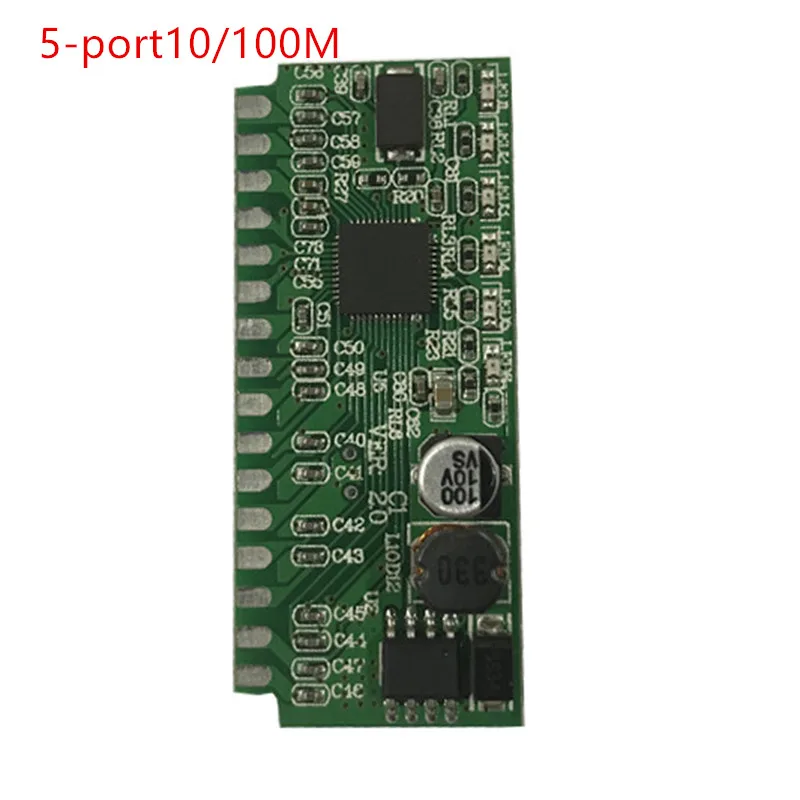

5-port10/100M  (Support OEM,if you have requirements for screw holes, the structure drawing is required,please leave a message at any time,here you can fix the screw hole position according to your requirements,feel free to leave a message for me)

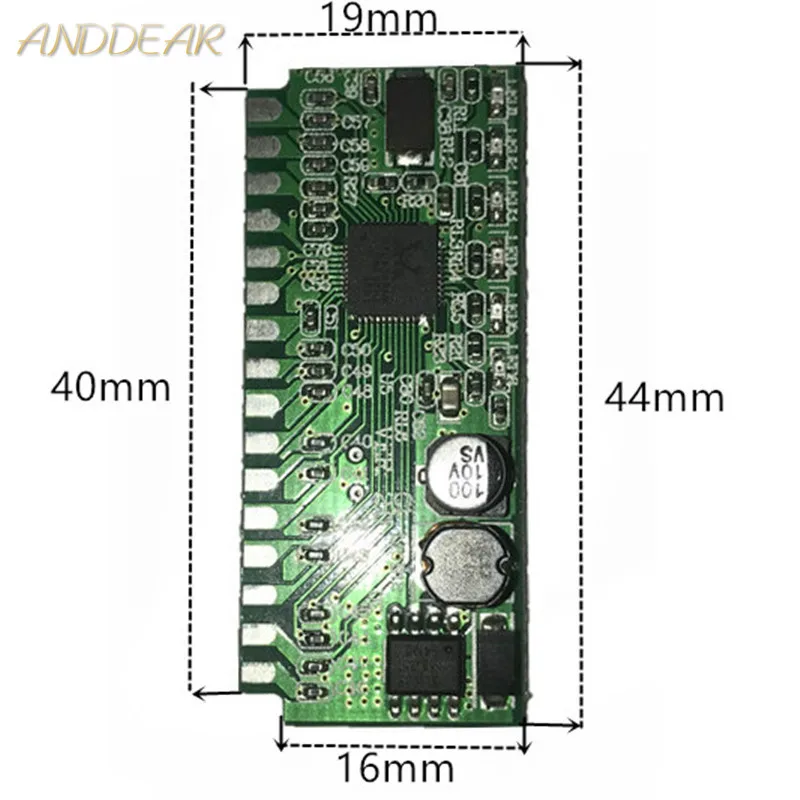

Each ports supporting Auto-MDI/MDIX.Supports storage-forwardSupports Full Duplex flow control mode and backpressure for half-duplex modeSupports MAC address auto-learning and auto-agingEach port provides independent bandwidth providing true non-blocking transmissionLED indicators for monitoring power,link,activitySmall size to reduce network cabling costsNetwork protocol  IEEE802.3 10Base-T,IEEE802.3 10Base-TXNetwork Media(Cable),10Base-T: UTP category 3, 4, 5 cable(maximum 100m),EIA/TIA-568 100Ù STP(maximum 100m),100Base-Tx:UTP category 5,5e cable (maximum 100m),EIA/TIA-568 100Ù STP(maximum 100m)Swiching capacity  1GLED Indicators:100Mbps Link/ActTransfer Method:  Store-and-ForwardMAC Address Learning  Automatically learning, automatically UpdateFrame Filtering and Forward Rate  10Mbps:14880pps,100Mbps:148800ppsupport IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all portNon-blocking switching architecture that forward and filter packets at wire-speed for maximum throughputSupport MAC address auto-learning and auto-agingLED indicators for monitoring power, link/activityMini cabling size design,PCBA size:50*45*1.6mmExternal supply power adapter DC 5V/1A

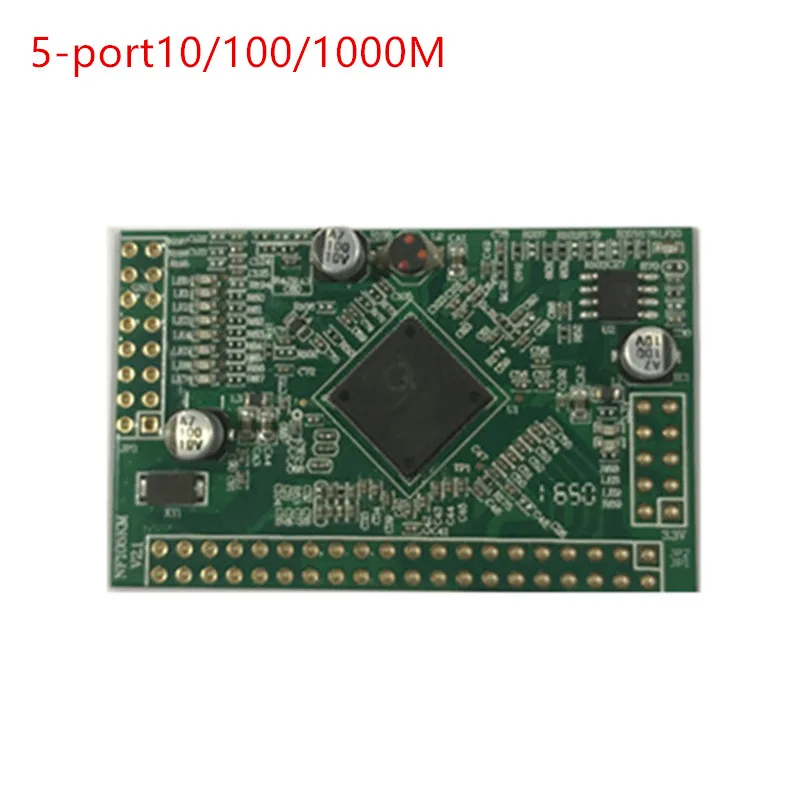

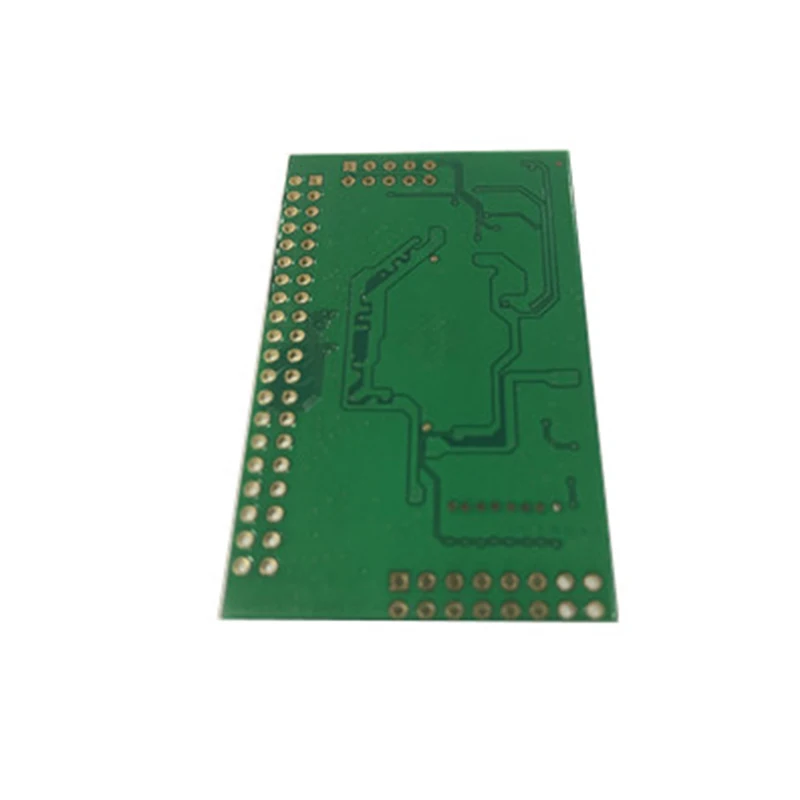

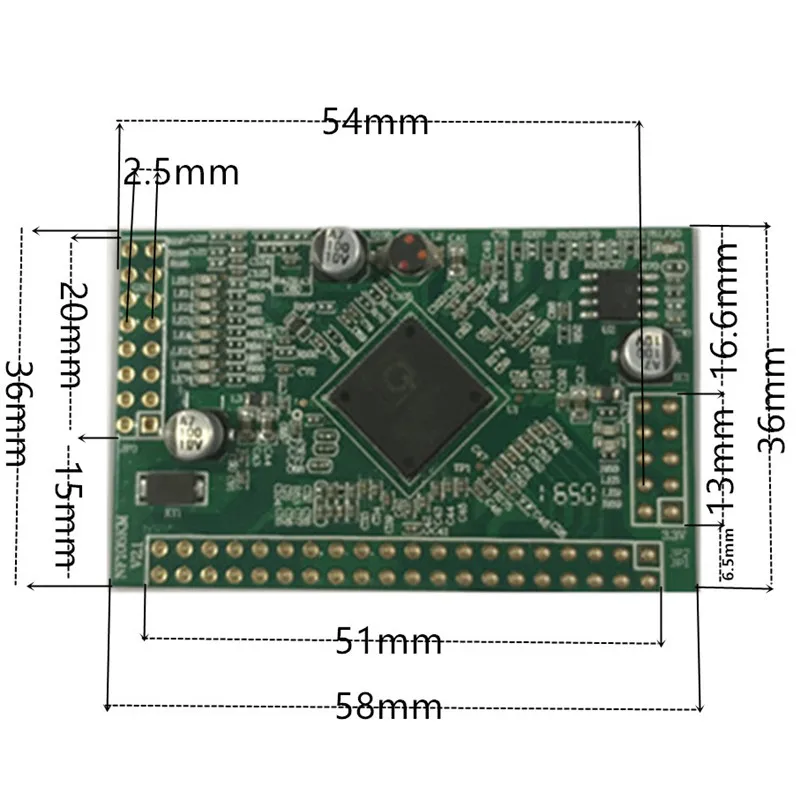

5-port10/100/1000M  (Support OEM,if you have requirements for screw holes, the structure drawing is required,please leave a message at any time,here you can fix the screw hole position according to your requirements,feel free to leave a message for me)

Complies with IEEE802.3,IEEE802.3u standards5 10/100/1000Mbps Auto-NegotiationEach ports supporting Auto-MDI/MDIX.Supports storage-forwardSupports Full Duplex flow control mode and backpressure for half-duplex modeSupports MAC address auto-learning and auto-agingEach port provides independent bandwidth providing true non-blocking transmissionLED indicators for monitoring power,link,activitySmall size to reduce network cabling costsNetwork protocol  IEEE802.3 10Base-T,IEEE802.3 10Base-TXNetwork Media(Cable),10Base-T: UTP category 3,4,5 cable(maximum 100m),EIA/TIA-568 100Ù STP(maximum 100m),100Base-Tx:UTP category 5,5e cable (maximum 100m),EIA/TIA-568 100Ù STP(maximum 100m)Swiching capacity  5GLED Indicators:1000Mbps Link/ActTransfer Method:Store-and-ForwardMAC Address Learning  Automatically learning,automatically UpdateFrame Filtering and Forward Rate  10Mbps:14880pps,100Mbps:148800ppsupport IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all portNon-blocking switching architecture that forward and filter packets at wire-speed for maximum throughputSupport MAC address auto-learning and auto-agingLED indicators for monitoring power, link/activityMini cabling size design,PCBA size:50*45*1.6mmExternal supply power adapter DC 5V/1A~12V1A
