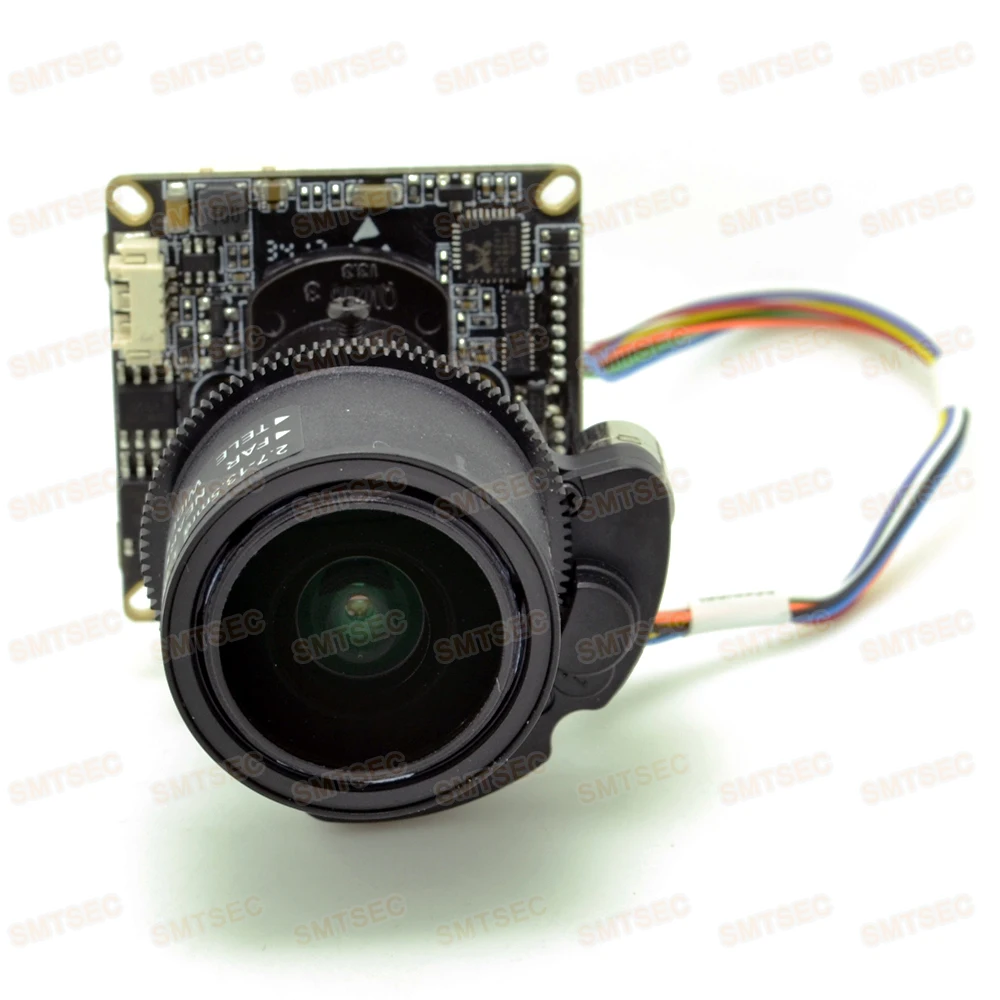

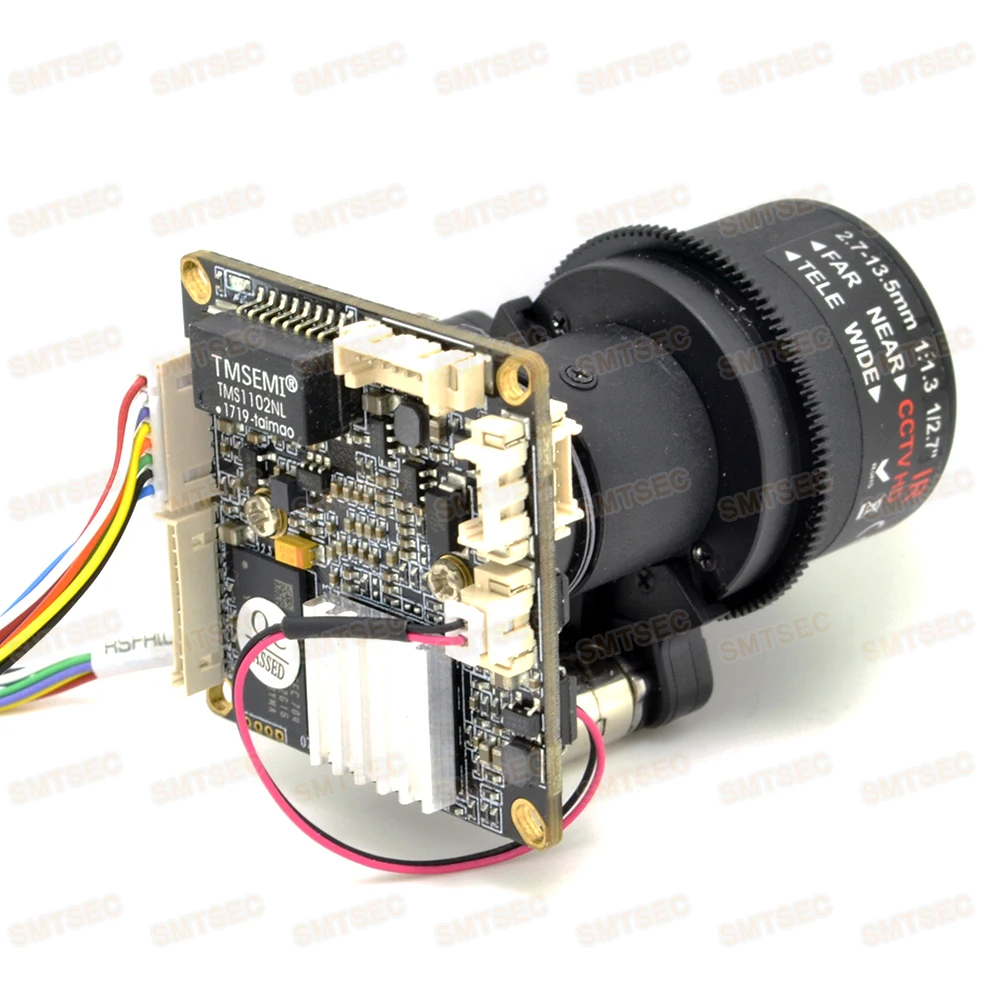

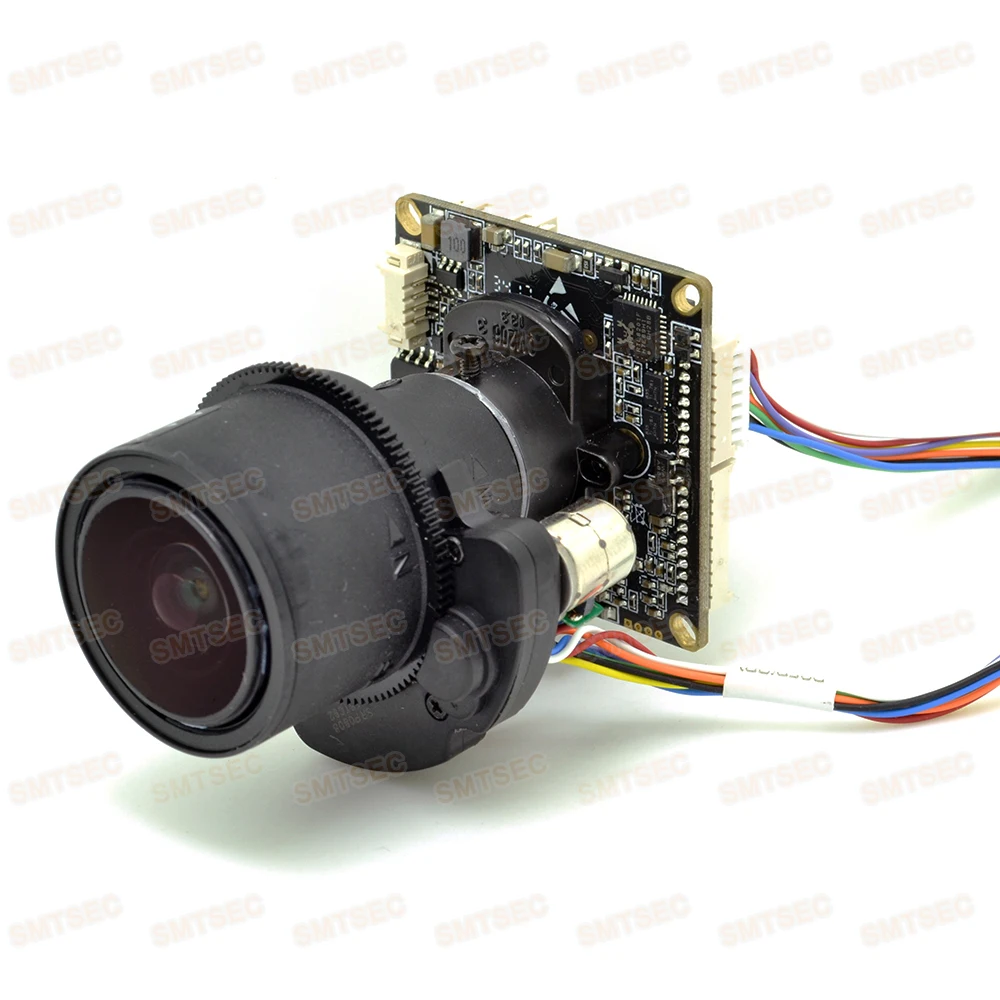

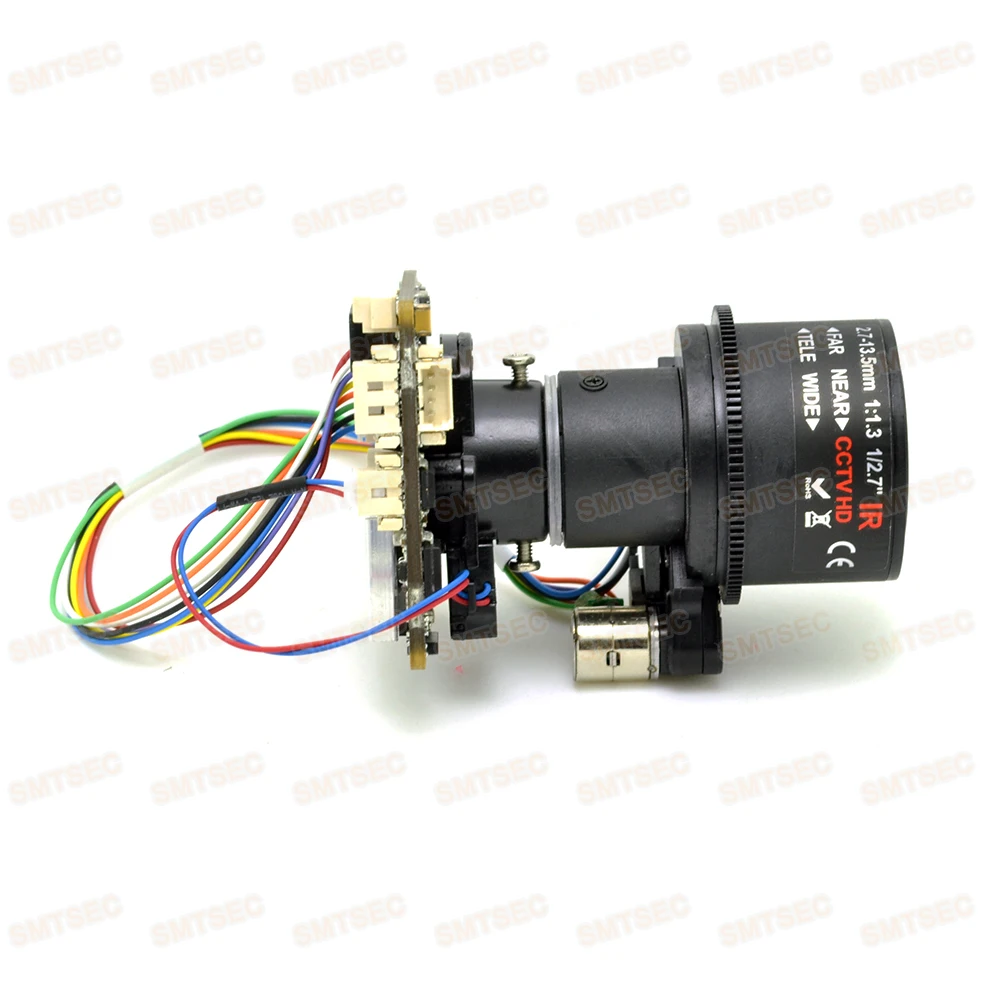

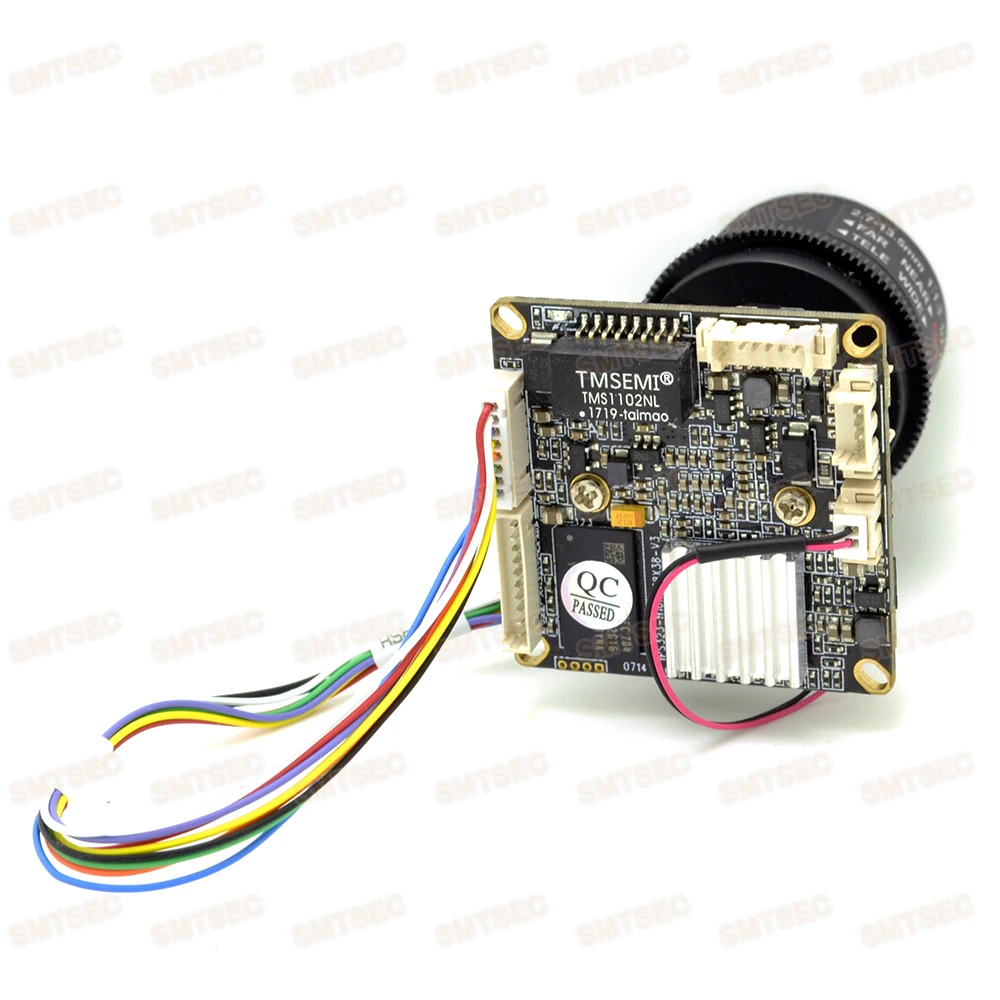

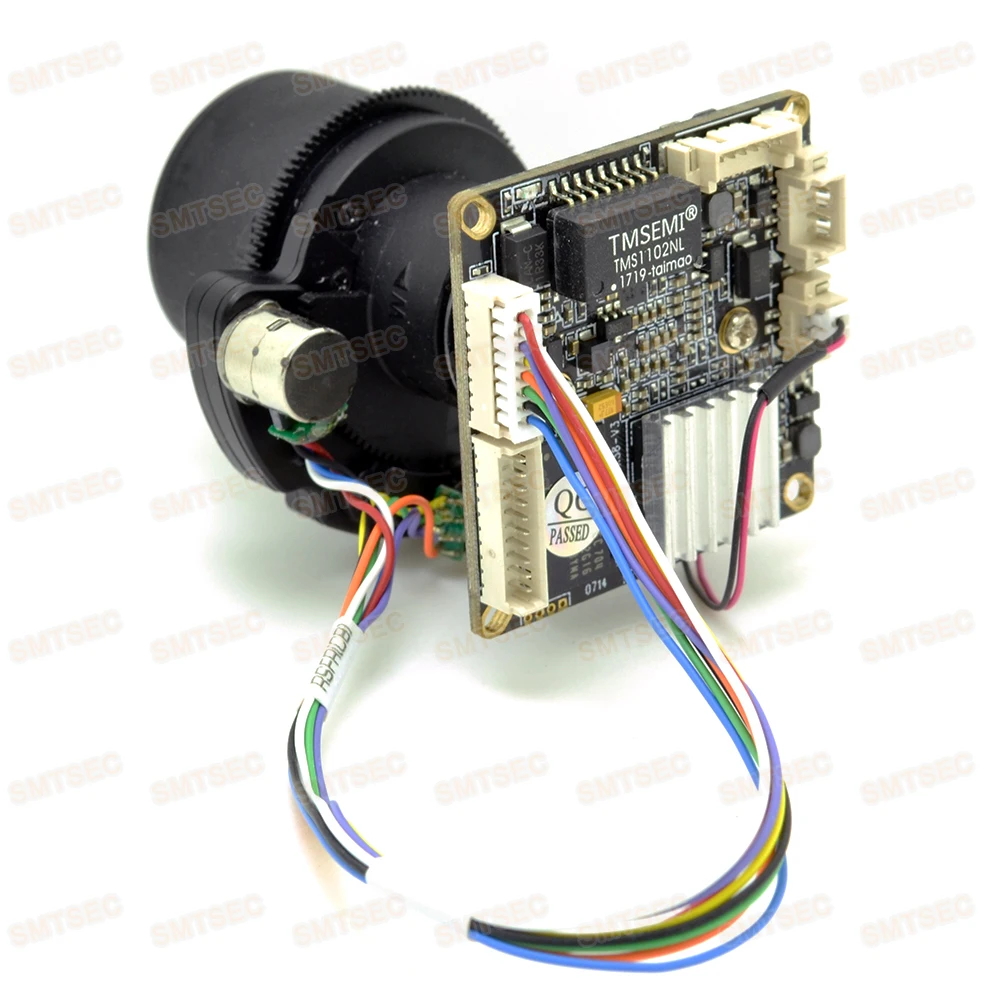

2.7-13.5mm 5x Video Zoom WDR 2MP IP Camera Module Sony IMX290 Hi3516CV300 1080P CCTV Security Main Board PCB SIP-E290CVML-27135 |



   2.7-13.5mm 5x Video Zoom WDR 2MP IP Camera Module Sony IMX290 Hi3516CV300 1080P CCTV Security Main Board PCB

Model:  SIP-E290CVML-27135

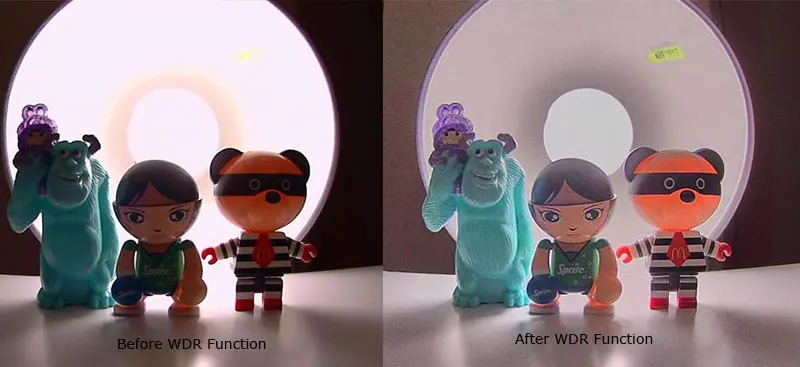

Model SIP-E290CVML-27135 Camera Type 5x Zoom Auto Focus lens+WDR 2MP IP Camera Module Camera   Image Sensor  1/2.8" Square Pixel Array Color CMOS Image Sensor IMX290 DSP Hisilicon 3516CV300 Effective Pixels 1945 (H) X 1097 (V) Approx. 2.13M pixels Scanning System Progressive Electronic Shutter Speed Auto (1/25 ~ 1/10000s) Min. Illumination Color 0.01Lux/F1.2,B/W 0.001Lux/F1.2 S/N Ratio ≥50dB(AGC OFF) WDR WDR >120db IR-Cut Support Day/Night Auto(ICR)/Color/B/W White Balance Auto Gain Control Auto Noise Reduction 3D-DNR Privacy Masking Up to 4 areas Image parameter Bir/Con/Hue/Sat/Acu/Gamma Image basic Mirror/Flip/LSC/CTB/AntiFogging Lens   Lens Type HD 2MP Auto Focus 5X Zoom Lens E.F.L. 2.7-13.5mm Electric zoom Support Focus Auto Focus Format 1/2.7" Mount Type Φ14 Video/Audio   Video Compression H.265+/H.265/H.264/Mjpeg Dual-stream encoding Resolution Main Stream:1920X1080,1280X720  (1~25/30fps) Sub Stream:D1,VGA,CIF,(1~25/30fps) Frame Rate 1~25/30fps Bit Rate 30Kbps~16Mbps, support VBR, CBR Text Overlay Channel, Date & Time, Bit Rate Audio Compression G.726/G.711A/G.711U Audio bit rate 16000 Sampling rate 8K Network   Data Storage Video record, Picture format Trigger Manual, Automatic(motion detection, alarm, schedule, cycle ) Alarm data transmission FTP, E-mail, Browser, CMS Protocol TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP ONVIF ONVIF V2.4 Max. User Access 8 users, IE, Google, Firefox Smart Phone Support iPhone, iPad, Android View Interface   Audio 1ch Audio MIC input/ line input, 1ch output BNC Video out I CH Analog CVBS Video Out USB* 1pcs USB(MAX128G),support Micro SD/TF card storage Or WiFi expansion Reset Support Optional function#   Memory Card Slot# Support Micro SD/TF Card (MAX128G) POE # IEEE802.3af General   Power Supply DC12V Power Consumption <3W Working Environment  -20°C~+55°C , Less than 90% RH   Product Size 38 x 38 x 15mm Net Weight 0.15kg #Remark: POE,Memory Card functions are optional . If you need POE,Memory Card functions, please consult with us.  *--USB/ Micro SD Card Slot Only Can Choose One

1.the POE Module

38X38mm PoE module   IEEE802.3af/at protocol

POE power: 12W (12V/1A) POE: 1,2+/3,6- and 4,5+/7,8- adaptive transmission





2.the TF/SD Memory Card Slot Board

Expansion  TF Card Support 128G TF Card TF Card storage,Only suitable for  Single board (Extend via USB), Add TF then no USB

The Kit Of This Link Default With A RJ45+DC Cable,

Please Choose The Right Cable OR Consult With Us If Need Other Network Cable









​
