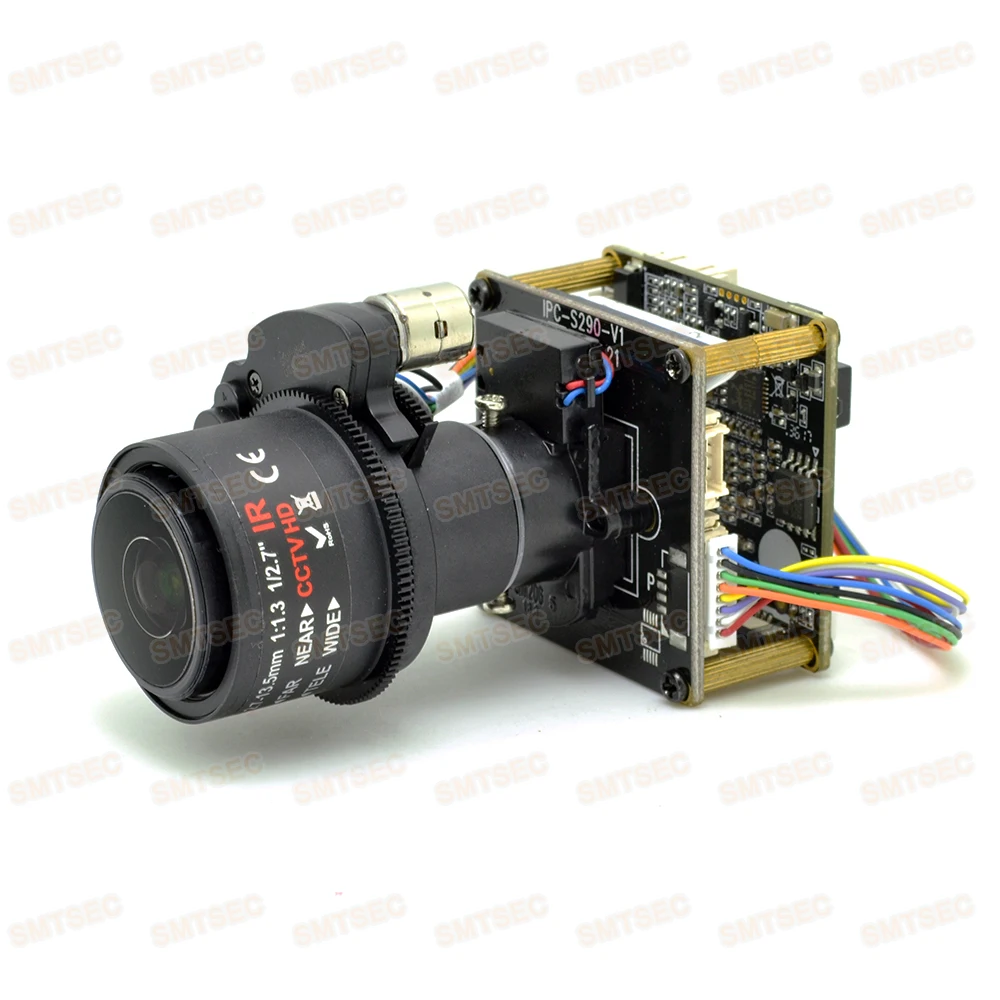

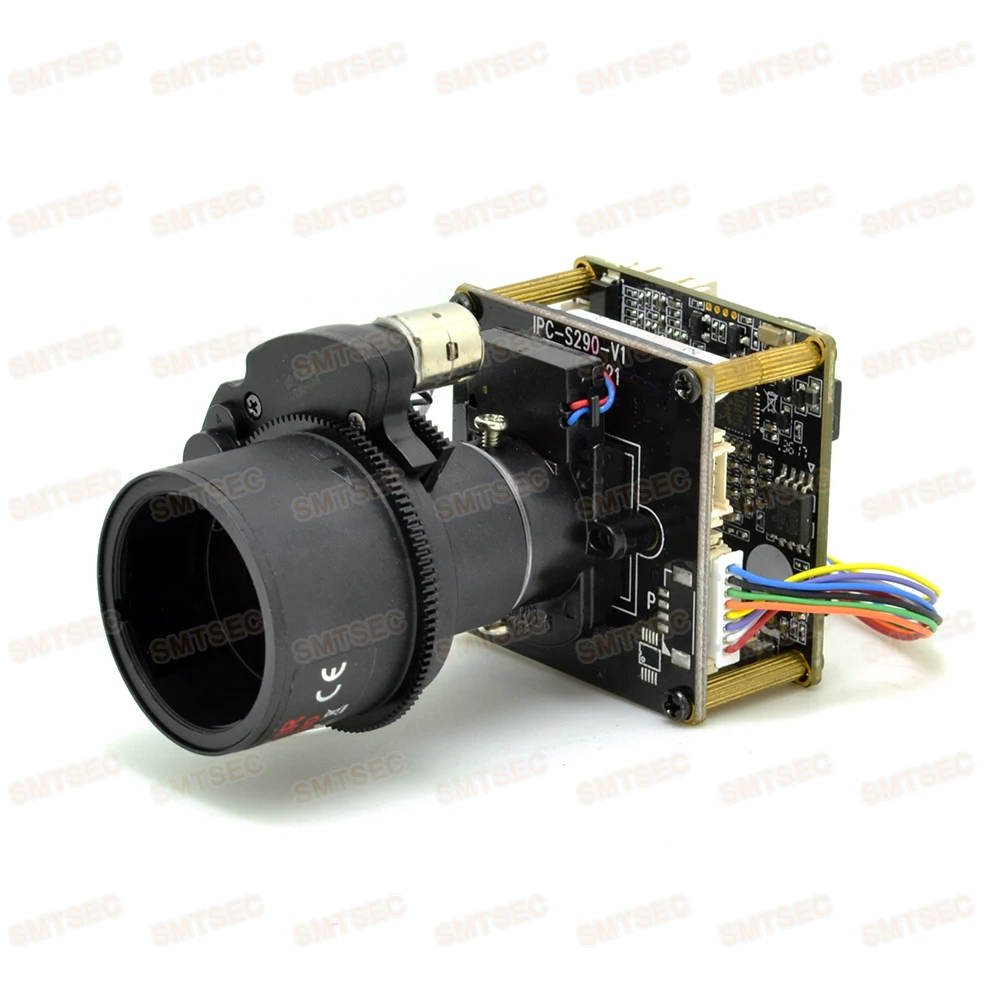

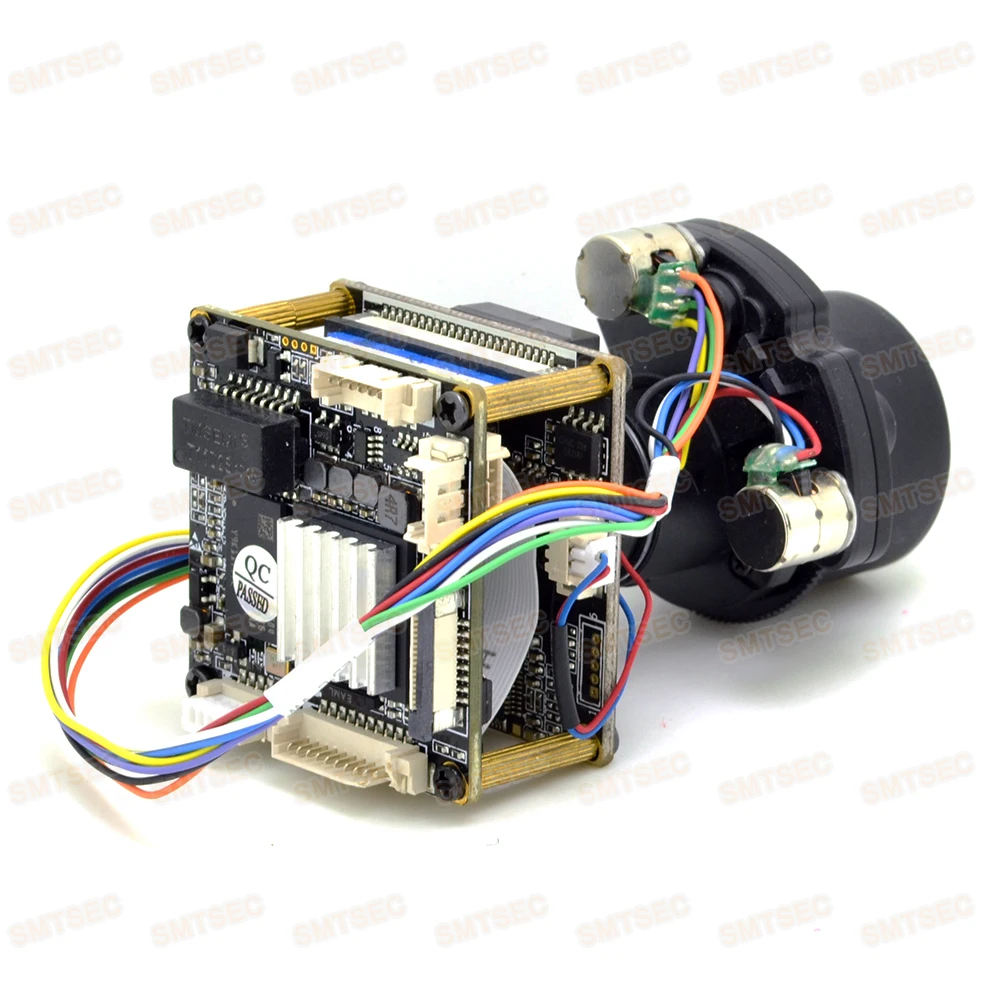

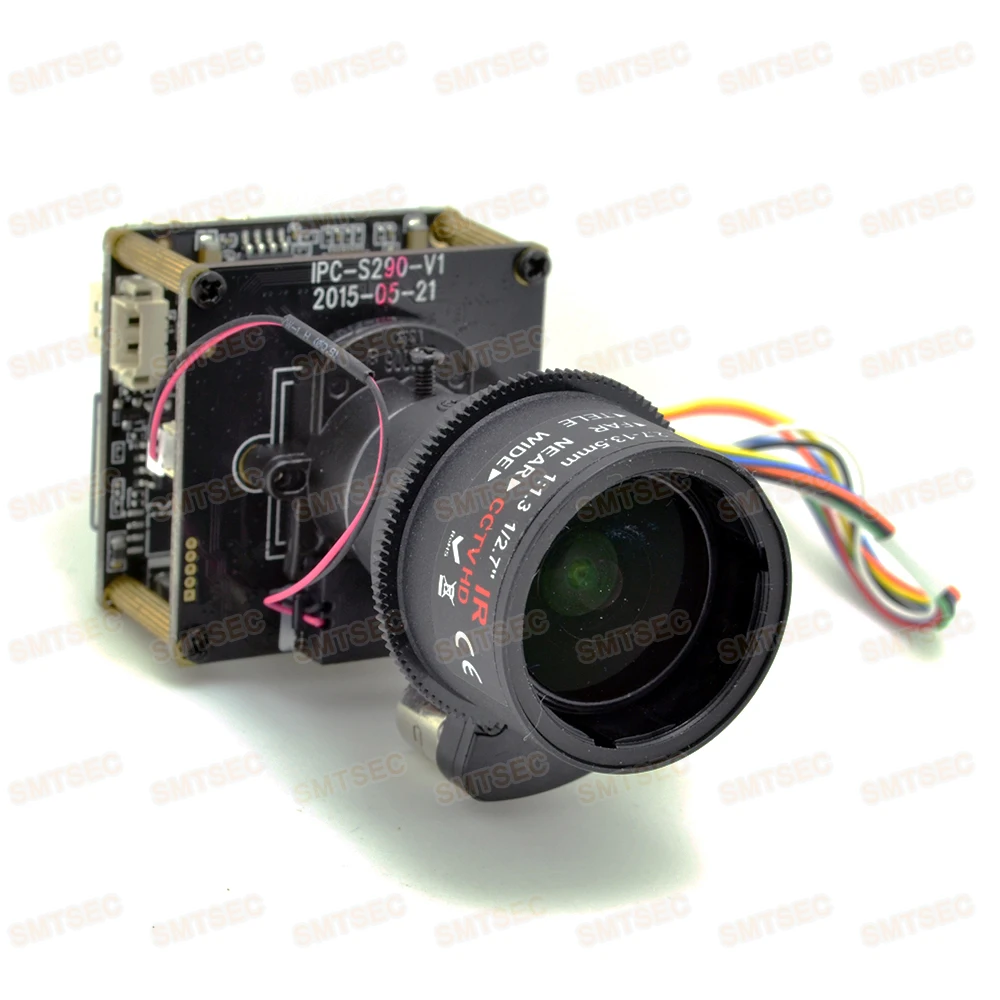

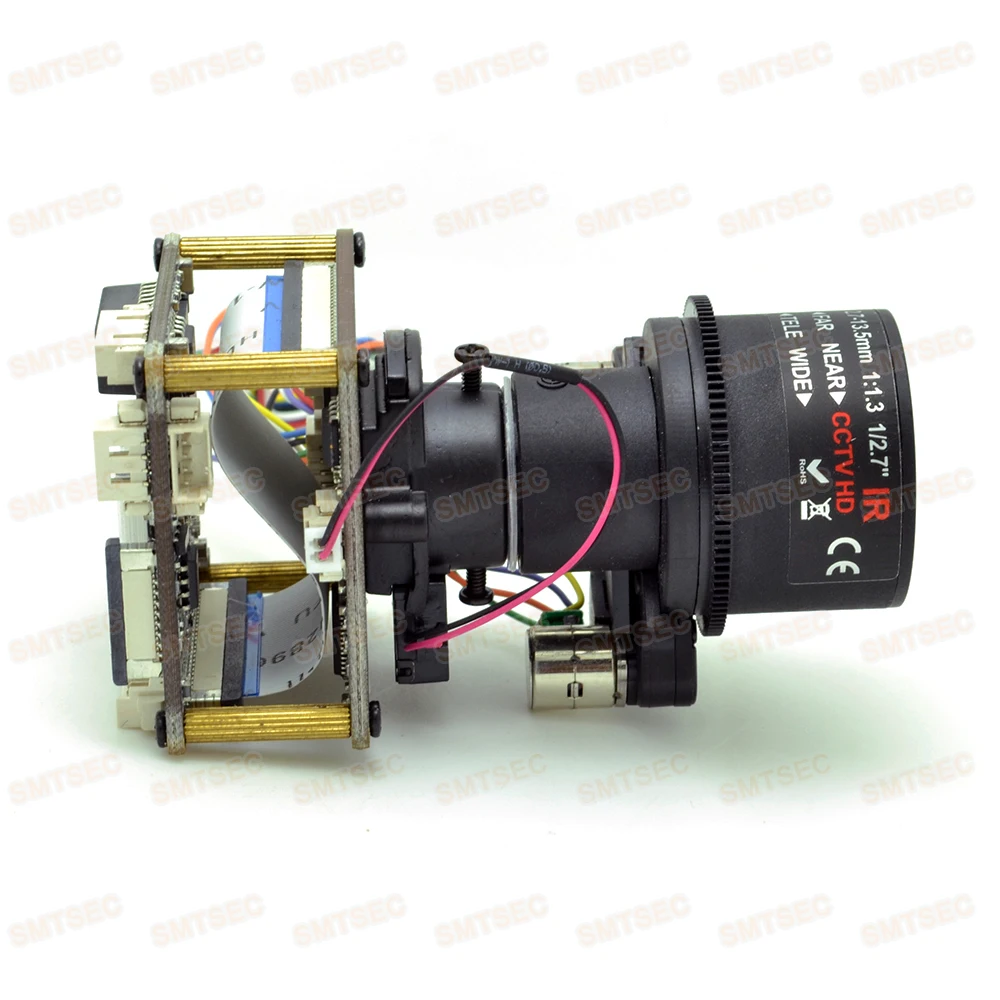

2.7-13.5mm 5X Video Zoom Auto Focus 4MP IP Camera Module OV4689 New CCTV Smart Security Main Board PCB SIP-E4689DML-27135 | Безопасность



2.7-13.5mm 5X Video Zoom Auto Focus 4MP IP Camera Module OV4689 New CCTV Smart Security Main Board Camera PCB

Model:  SIP-E4689DML-27135

Model SIP-E4689DML-27135 Camera Type 5x Zoom Auto Focus Lens+4MP IP Camera Module Camera   Image Sensor 1/3" Color CMOS 4-megapixel Image Sensor OV4689 DSP Hisilicon 3516D Effective Pixels 2688x1520 Scanning System Progressive Electronic Shutter Speed Auto (1/25 ~ 1/10000s) Min. Illumination Color 0.6Lux/F1.2,B/W 0.08Lux/F1.2 S/N Ratio ≥50dB(AGC OFF) IR-Cut Support Day/Night Auto(ICR)/Color/B/W WDR Digital WDR  >80db White Balance Auto Gain Control Auto Noise Reduction 3D-DNR Privacy Masking Up to 4 areas Image parameter Bir/Con/Hue/Sat/Acu/Gamma Image basic Mirror/Flip/LSC/CTB/AntiFogging Lens   Lens Type HD 4MP Auto Focus 5X Zoom Lens E.F.L. 2.7-13.5mm Electric zoom Support Focus Auto Focus Format 1/2.7" Mount Type Φ14 Video/Audio   Video Compression  H.265+/H.265/H.264/Mjepg Dual-stream encoding Resolution Main Stream:2592X1520 (1~15fps), 2048X1520,1920X1080  (1~25/30fps) Sub Stream:D1,VGA,CIF,  (1~25/30fps) Frame Rate 4.0mp 1~15fps, 3.0mp 2.0mp 1~25/30fps Bit Rate 30Kbps~16Mbps, support VBR, CBR Text Overlay Channel, Date & Time, Bit Rate Audio Compression G.726/G.711A/G.711U Audio bit rate 16000 Sampling rate 8K Network   Data Storage Video record, Picture format Trigger Manual, Automatic(motion detection, alarm, schedule, cycle ) Alarm data transmission FTP, E-mail, Browser, CMS Protocol TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP ONVIF ONVIF V2.4 Max. User Access 8 users, IE, Google, Firefox Smart Phone Support iPhone, iPad, Android View Interface   Audio 1ch input, 1ch output BNC Video out 1CH Analog Video output, Support CVBS standard, PAL/NTSC Optional RS485 1ch  USB 1ch (Support 128G USB flash/WIFI/3G Extended) Alarm 1ch input Reset Support Optional function#   Memory Card# Support Max 128G Micro SD/TF Card,1ch alarm output WIFI # 802.11b/g/n POE # IEEE802.3af General   Power Supply DC12V Power Consumption <3W Working Environment  -20°C~+55°C , Less than 90% RH Product Size 38 x 38 x 25mm Net Weight 0.2kg #Remark: WiFi,POE,TF Card functions are optional,If need,please consult with us.

1.the POE Module

38X38mm PoE module   IEEE802.3af/at protocol

POE power: 12W (12V/1A) POE: 1,2+/3,6- and 4,5+/7,8- adaptive transmission





2.the TF/SD Memory Card Slot Board

Expansion  TF Card, alarm out

Support 128G TF Card





3.the WiFi Board Module

80mW, WIFI module (3dBi containing small antenna, feeder, SMA interface),

IPEX antenna interface, support 802.11BGN

  The Kit Of This Link Default With A RJ45+DC Cable,  Please Choose The Right Cable OR Consult With Us If Need Other Network Cable









​
