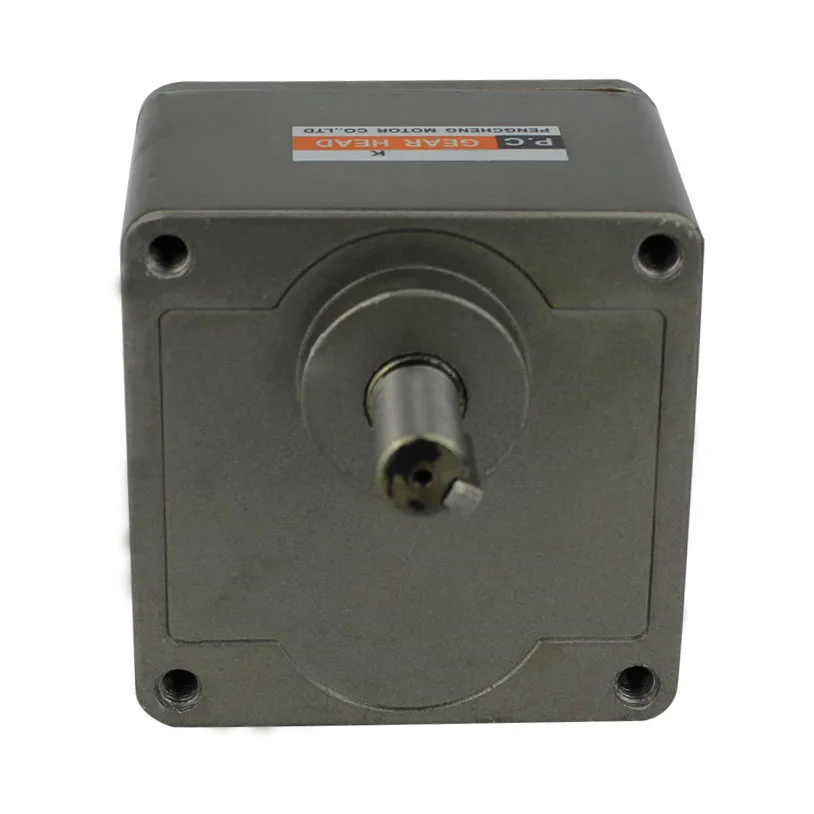

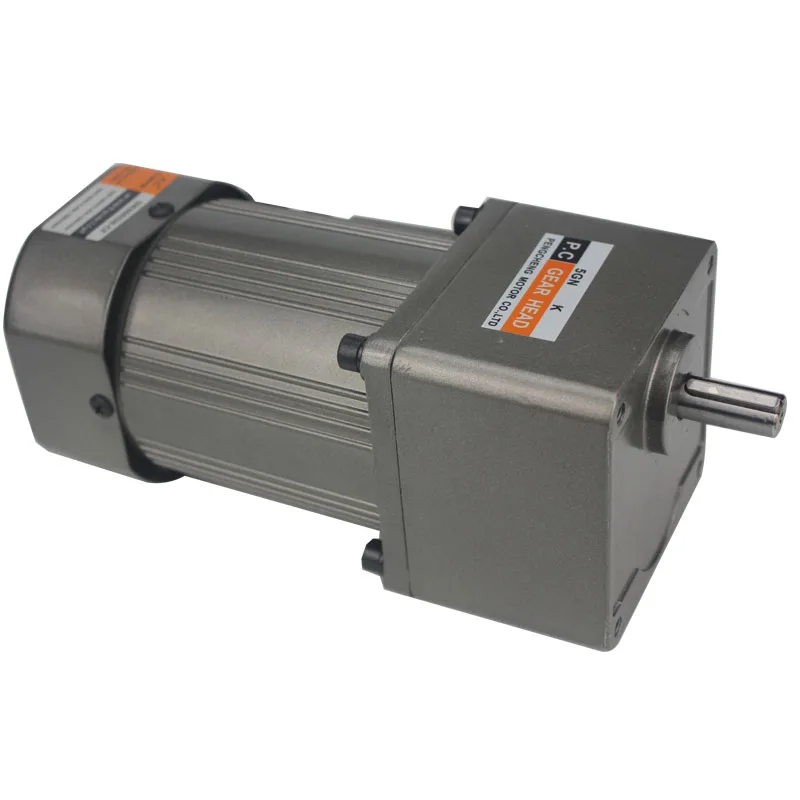

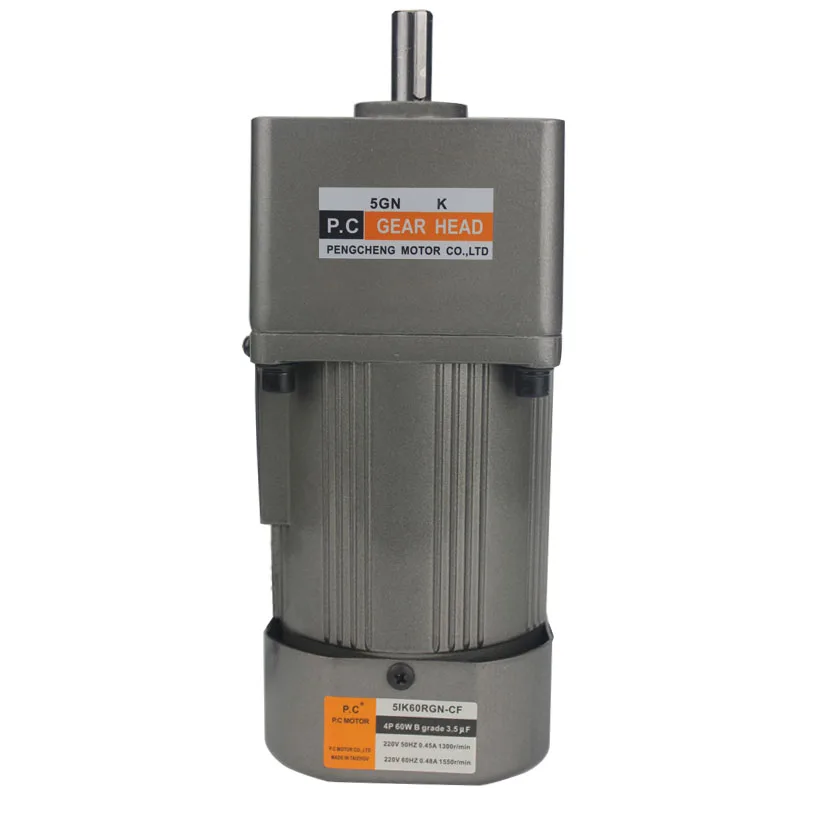

220V 60W gear reducer motor speed asynchronous 5IK60RGN-CF | Обустройство дома

   Small gear reducer

            Easy to install, the threaded hole on the front of the gearbox is directly fixed         Power: 60W              Installation method: horizontal vertical          Speed ​​reduction mechanism: gear reduction          The motor and the gearbox housing are die-casted with high-strength alloy. The gearbox housing and the bearing chamber are die-cast and integrated.          The precision automatic CNC machine tool is integrally processed, which replaces the splint strut of the transmission and is more suitable for withstanding large moments and impact negative          Contained.          The gear is made of alloy structural steel and is forged, and the tooth surface is hardened and then imported into the high-precision rolling and shaving machine.          The gold tool is made by micro-rolling and shaving, and the high-precision spiral helical gear transmission is adopted to improve the impact resistance and wear resistance of the gear.         Model: 5IK60RGN-CF         Power: 60W         Voltage: 220V (can be customized 110V 380V)         Motor shaft: 12MM         Reduction ratio: 3 5 7.5 10 12.5 15 18 20 25 30 36 40 50 60 75 100 120 150 180 200 250 300         Each reduction ratio has a corresponding speed range. Please quote the required reduction ratio when purchasing, compare the list below.
