Newly Multi-Channel Temperature Meter Gauge AT4508 Can Measure 8 Channels Thermometer LCD Display Thermocouple J/K/T/E/S/N/B/R

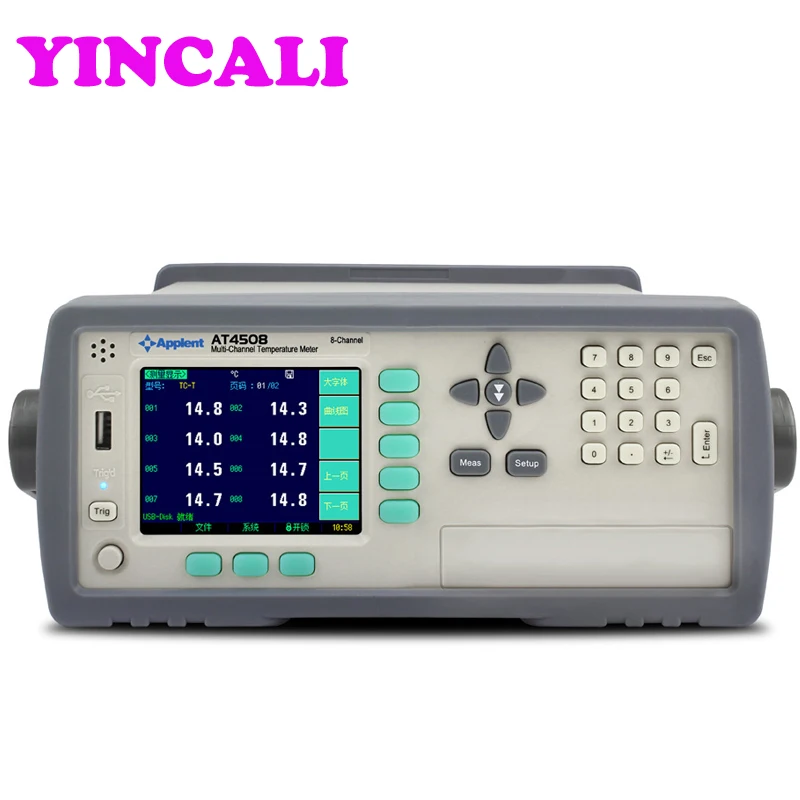

The AT4508 is easy to set up and reconfigure from the front panel. AT4508 has bi-directional communication via RS-232C, which enables control from a host computer.


The AT4508 offer easy portability along with applent's built-in signal conditioning and Universal Input Module, at a price to fit your budget.


AT4508 is tested to stringent shock and vibration standards. AT4508 sturdy metal chassis effectively shields against electromagnetic interference, maintaining high measurement accuracy on low level signals. The analog circuitry is also isolated from the digital

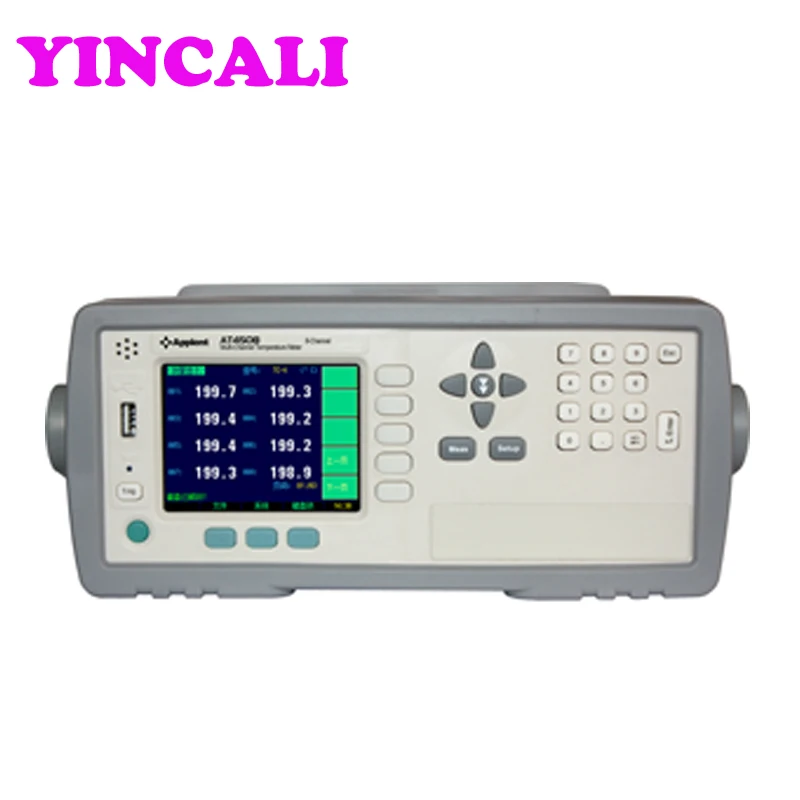

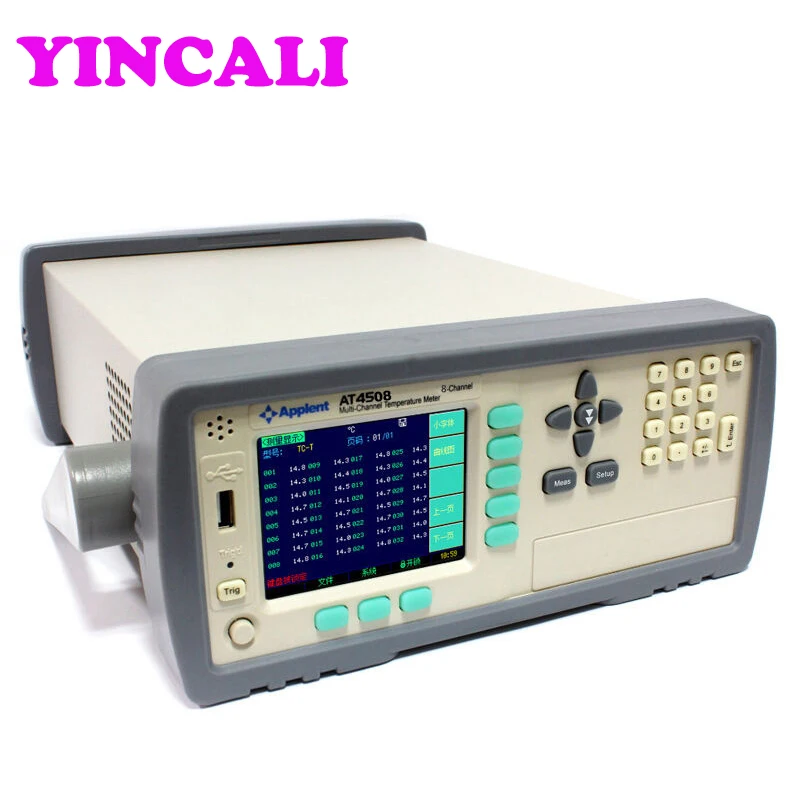

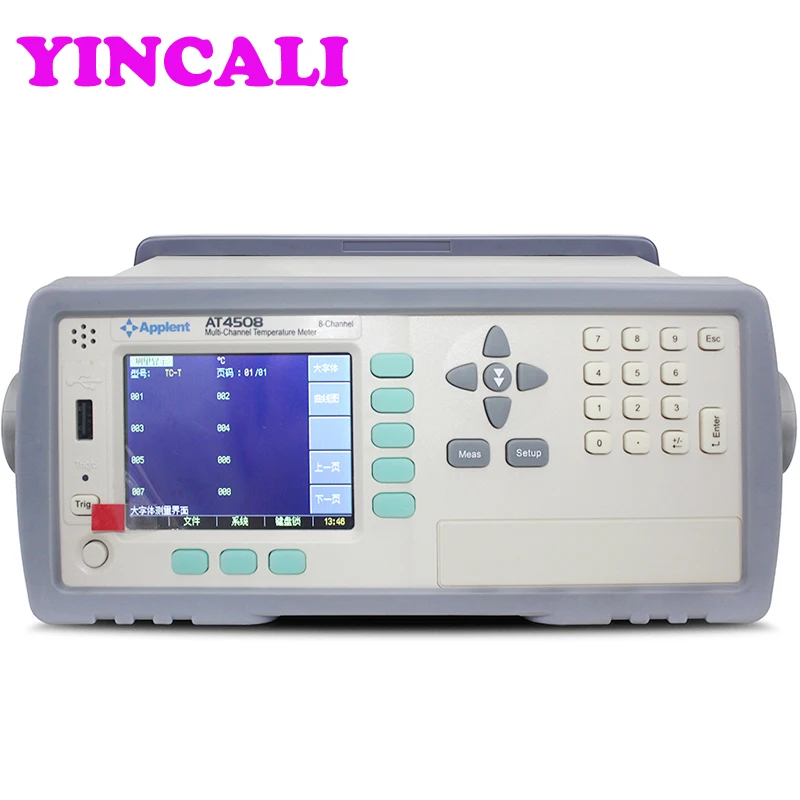

AT4508 Multi-channel Temperature Meter

SPECIFICATIONS

Graduation

thermocouple: J/K/T/E/S/N/B/R

Accuracy

0.2°C±2 digits

Measurement Range

-200°C~1300°C  (Variation depend on graduation)

Resolution

0.1°C

Channels

8 channels

Can be expanded to 128 channels

Speed

Fast: 100ms/channel Medium: 500ms/channel  Low: 1s/channel

Correction

Error correct for each channel

Comparator

High/low beep Individual setting high/low value for each channel

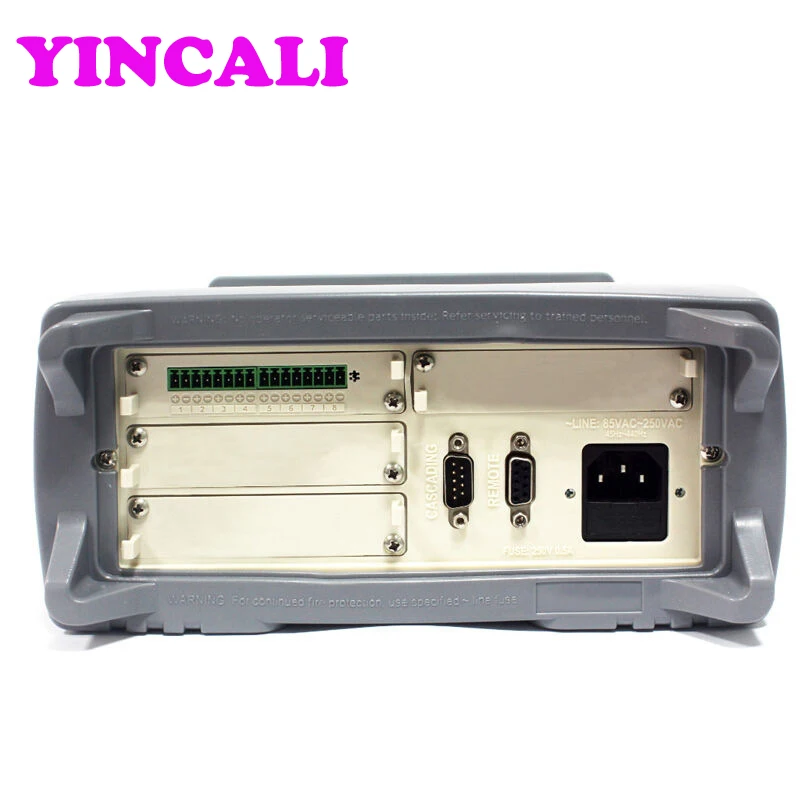

Interface

RS232C interface, U-disc interface and USB communication interface

Optional Interface

Mini printer interface

Software

ATS45 data acquisition function

Cold junction compensation

Accuracy: 0.5°C

Others

TFT-LCD True-color LCD display,broken thermocouple check function

GENERAL FEATURES

Power Supply

Voltage: 85VAC~260VAC  Frequency: 50Hz/60HzPower: 10VA

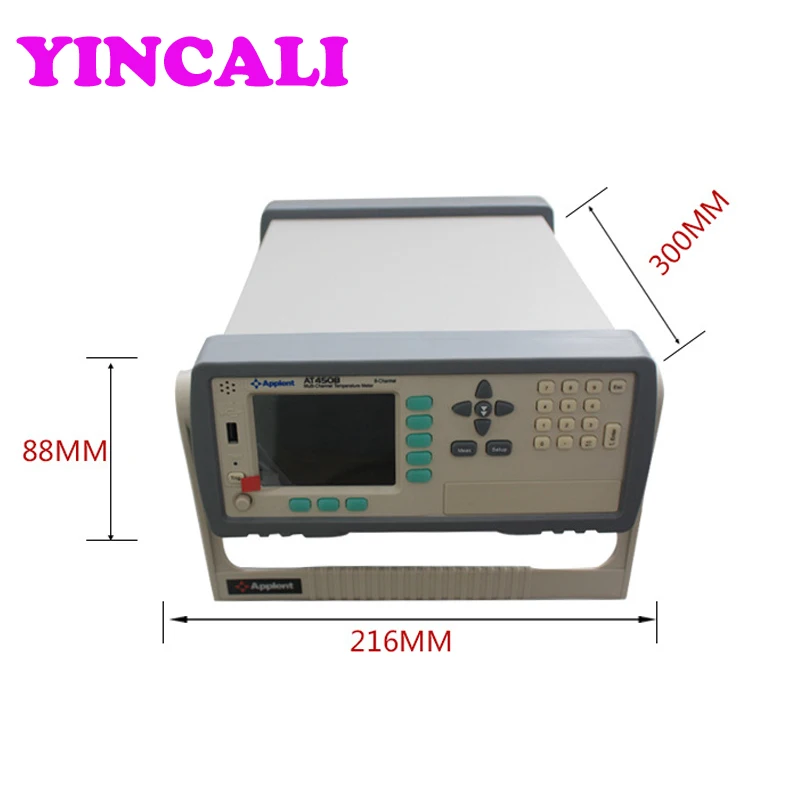

Dimension & Weight

216mm(Width)x88mm(Height)x300mm(Depth) 4kg
