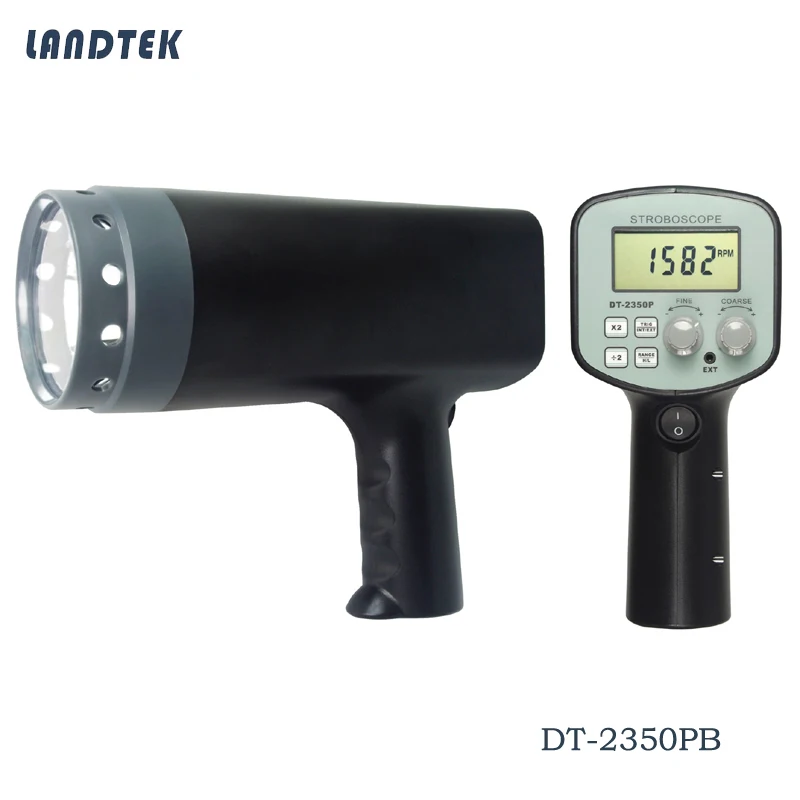

Digital Stroboscope Strobe 50-40000 FPM Wide range High Resolution DT-2350PB

Spec：

The Stroboscope is capable to provide image of single, two or multiple stillness for the vibration object, rapidly rolling object, can also use to observe the movement tracks.

Display LCD Range DT-2350PA 50~12,000 FPM DT-2350PB 50~40,000 FPM DT-2350PC 50~20,000 FPM DT-2350PD 50~30,000 FPM DT-2350PE 50~2,000 FPM(Fit Print and Textile) Resolution 0.1 FPM(50~999.9 FPM) 1 FPM(Over 1000 FPM) Accuracy ±(0.05%n+1d) Sampling Time 0.3 Seconds Internal / External Triggering Conversion External Trigger Level 3~24 V H/L Range Flashing Light is much Brighter at Low Range than at High Range With x2 , ÷2 for Fast Check Flash Tube Life 100 Millian Times Operating Conditions Temperature:0~40ºC Humidity:<85%RH Power Supply AC 220V(Optional AV 110V) Power Consumption About 50W Dimensions 215x85x180 mm Weight Abou 1000 g Standard Accessories Main Unit Carrying Case(B08) Operation Manual Optional Accessories Sqare Flashing Tube Rechargeable Battery only for DT-2350PA/DT-2350PE

Features:
* Digital display gives exact reading with no guessing or errors; Wide measuring range and high resolution.
* Automatic stop flashing to save electricity and improve flash tube lifetime.
* Internal / external triggering fast conversion; x2 and ÷2 button for fast adjustment.
* Use photoelectric signal while external triggering, achieve automatic tracking function of the pattern.
* Use microcomputer technology, emerging technologies, anti-jamming technique and other advanced technology, it can measure the rotative velocity without contacting the object.

Model & Ranges:

Model Range DT-2350PA 50 ~ 12,000 FPM DT-2350PB 50 ~ 40,000 FPM DT-2350PC 50 ~ 20,000 FPM DT-2350PD 50 ~ 30,000 FPM DT-2350PE 50 ~ 2,000 FPM （Fit for Print and Textile）
