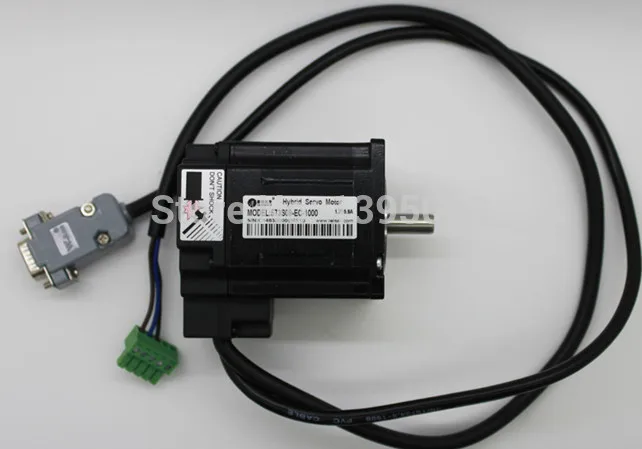

5Sets/Lot HBS57 Professional 300W Closed Loop 3-phase Hybrid Servo Drive Kit + 573S20-EC-1000 Motor | Обустройство дома

5Sets/Lot HBS57 Professional 300W Closed Loop 3-phase Hybrid Servo Drive Kit + 573S20-EC-1000 Motor | Обустройство дома

Features:


The HBS series offers an alternative for  applications requiring high performance and high reliability when the servo was  the only choice, while it remains cost-effective. The system includes a 3-phase  stepper motor combined with a fully digital, high performance drive and an  internal encoder which is used to close the position, velocity and current loops  in real time, just like servo systems. It combines the best of servo and stepper  motor technologies, and delivers unique capabilities and enhancements over both,  while at a fraction of the cost of a servo system.

1.Broader operating range - higher torque and  higher speed
2.Closed-loop, eliminates loss of  synchronization
3.Reduced motor heating and more efficient
4.Do not need a high torque margin
5.Fast response, no delay and almost no settle  time
6.Smooth motion and super-low motor noise
7.No Tuning and always stable
8.High torque at starting and low speed, high  stiffness at standstill

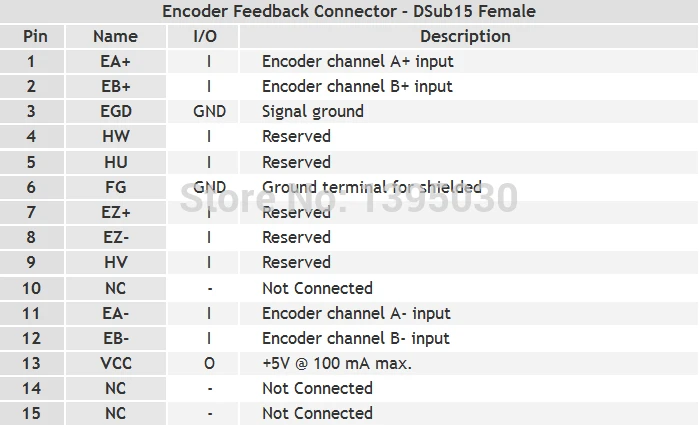

Specification:
