     This is a great set of easy-reassembling LCD controller kit which is used to turn a bare LCD panel into a desktop/PC monitor. It will be a surprise that you give a second life to your old LCD screen. If you are a fans of Raspberry Pi, it is a good chance that you can make a monitor with HDMI input for it .

      Plug&play kit, no need soldering.

     Notice: this kit is designed for M185B1-L02, if your lcd model number is different from it, please remember to contact us for suggestion.

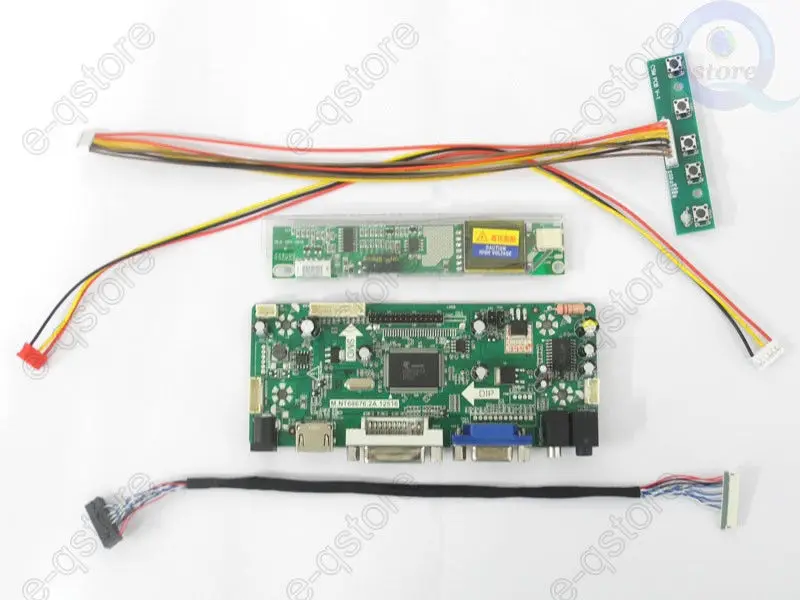

     Necessary Accessories for turning a bare LCD  to desktop monitor:

1. LCD Controller board

  2. Inverter

  3. LVDS cable

  4. Keypad

  5. VGA cable/DVI Cable/HDMI cable (not included)

  6. Power Adapter (not included)

   If you have already had a VGA cable/DVI cable/HDMI cable and a power adapter (Ouput 12V,4A -- it is for small size lcd from 10.1inch to 22inch), this kit is a great choice for you, else there are some other kind of kits in our store for options, please feel free to contact us for suggestion.

 LCD Controller Board  M.NT68676.2A:

M.NT68676.2A is a monitor control board, which can support LED/LCD panels. It can support resolution up to 2048X1152.

M.NT68676.2A can synchronize with computer automatically. Synchronization requires the synchronous signal which horizontal and vertical sync are separated.

M.NT68676.2A can support dynamic contrast control, headphone input and digital volume control simultaneously.

Size of controller board: 139mmX58mmX17mm

Have a try and you will get great surprise!

Then, are you going to get this kit?

   Notes:

   1. Please make sure that your LCD is ok before bidding this item, else you will be responsible for the incompatibility.

   2. If you concern much about resolution setting, please reconsider before bidding!

   3. If you are not specialized in electronics or have doubts in operation, please contact us for instruction, as we are not able to responsible for wrong operation.

   4. After finishing the connecting, please don't rush to power on! First, use multi-meter to test whether the GND of the LCD is connected with the GND of the controller board. If not, please check the connection again. If yes, please test whether there is a short circuit between the red wires and black wires of the LVDS cable. If there is a short circuit, it means opposite connection or other errors. Any problem, please feel free to contact us. DIY needs a certain professional knowledge, please kindly take the responsibility of the risk. No metal contact is allowed when powering on the controller board, otherwise short circuit may occur, which may cause unavailability of the controller board.
