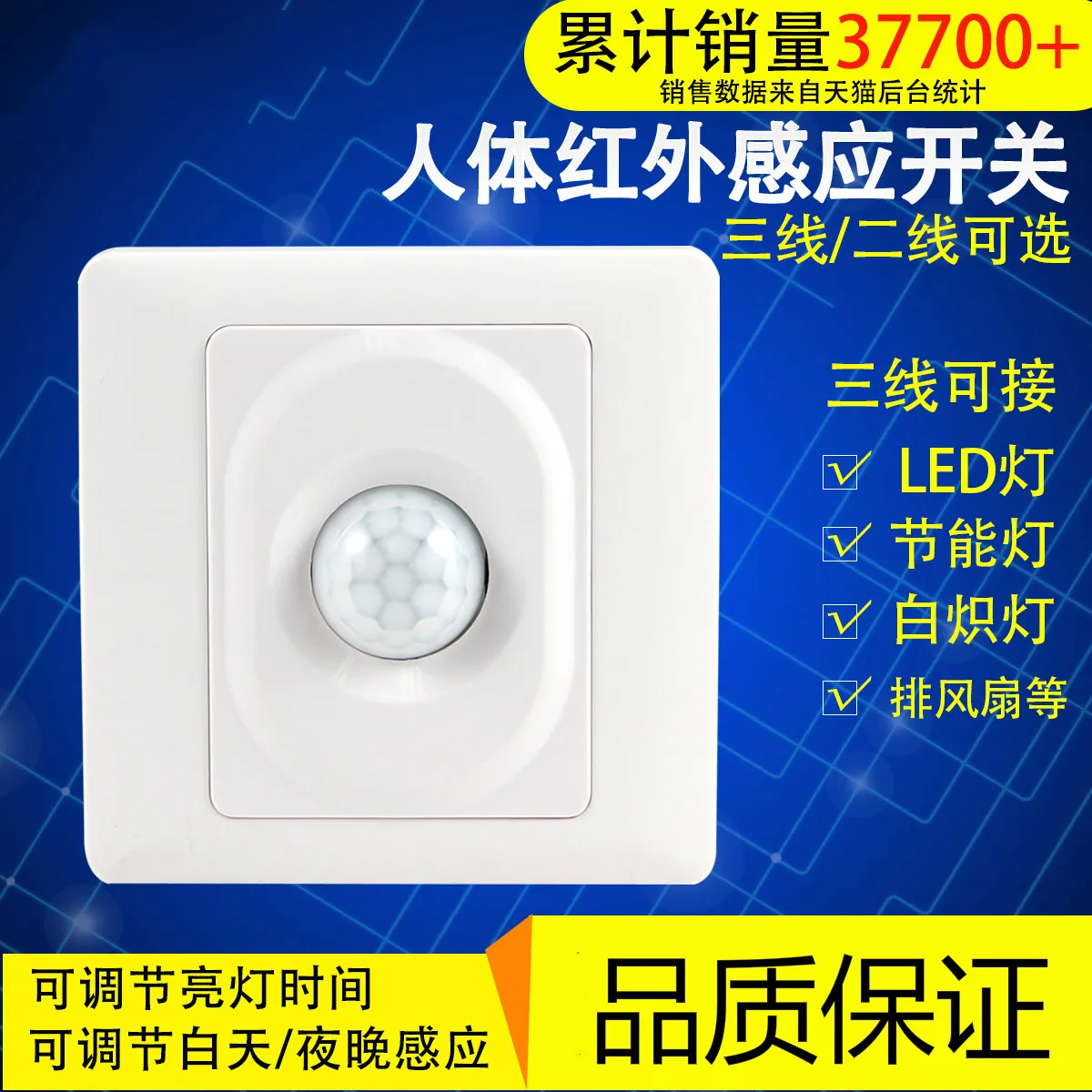

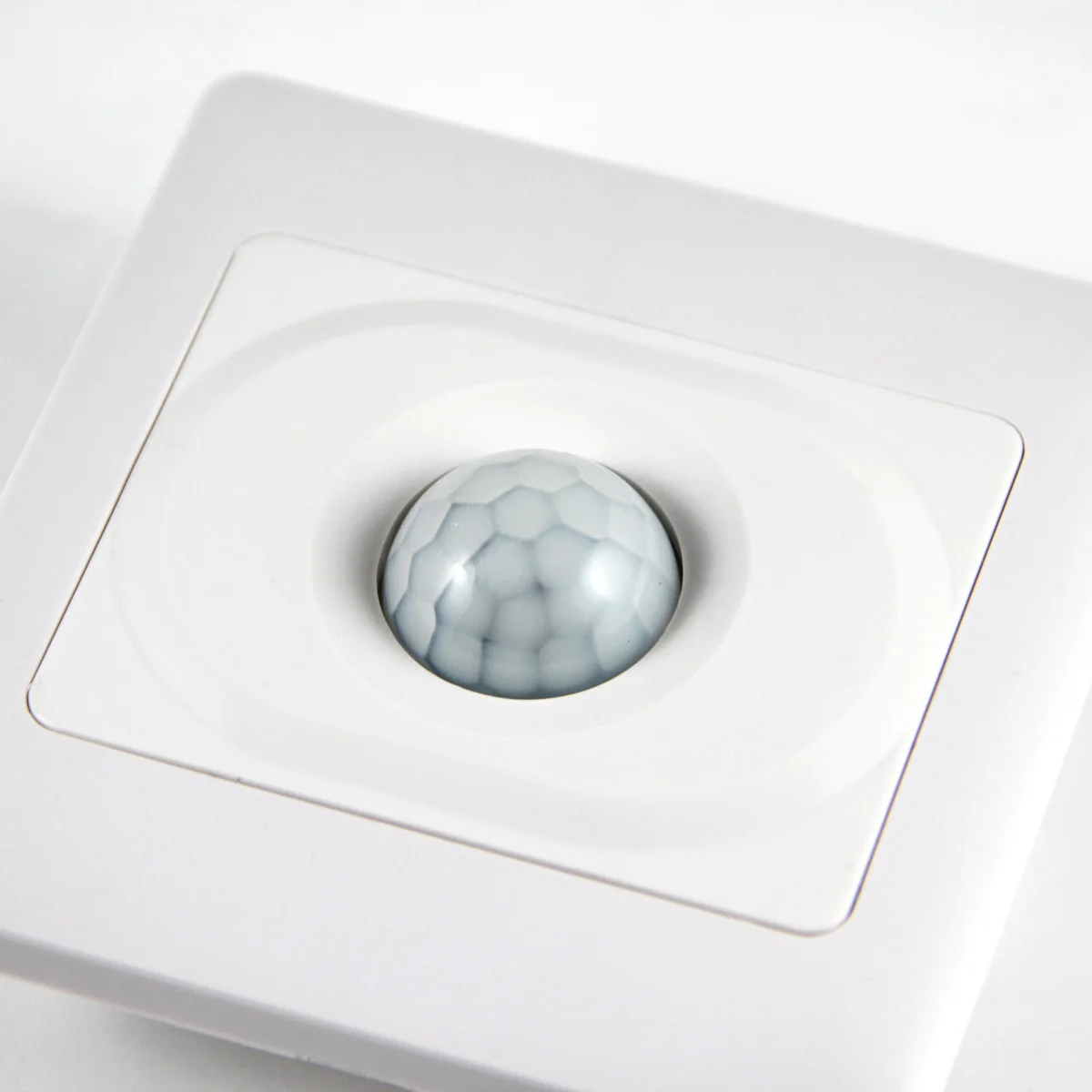

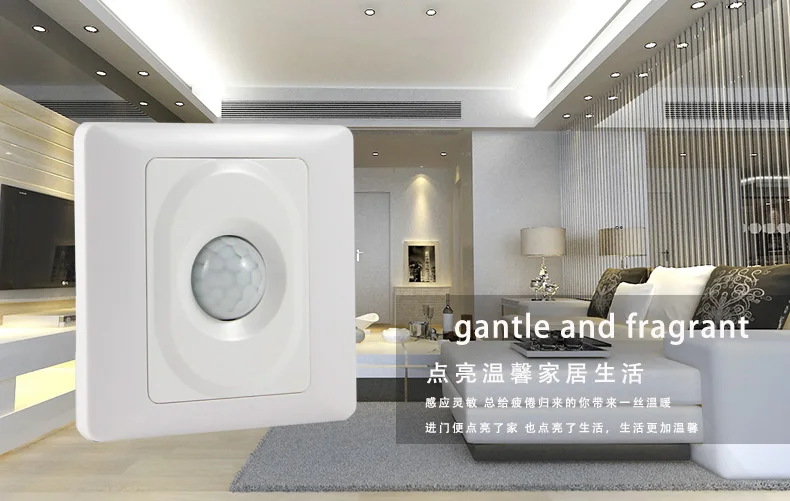

Human body induction switch

People turn to lights and people go out of the lights.

PIR sensor chip is used for human body inductive switch.

Smart switch, ordinary switch price, what are you waiting for?

Switch supports any lights, lighting time may be adjusted, working mode adjustable.

Convenient and adjustable

The whole board is strong blue insulation, and the protection switch will not cause trouble due to moisture.

With overcurrent fuse to prevent component burning caused by short circuit.

Without contact, the trigger distance can reach up to 10 meters.

No sound triggering

To solve the problem of sound and light controlled switches need to clap, stamp and shout.

Unlike acoustic light controlled switches, they are triggered by unrelated sounds such as car ringing, firecrackers and dog calls.

Automatic control based on infrared technology has high sensitivity, high reliability, intelligence and humanization. The unipolar design of the switch can directly replace the wall manual switch, voice control switch and touch switch without changing the original wiring and is convenient to use. It can receive all kinds of lamps, fans and other loads. Delay and sensitivity can be adjusted.

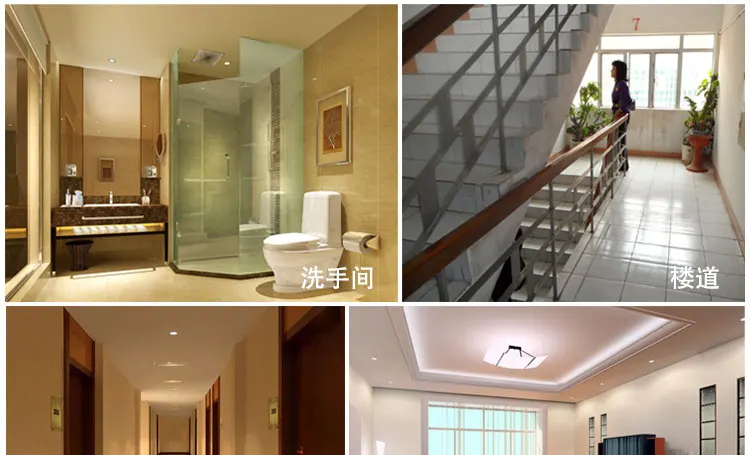

It is suitable for all kinds of loads such as incandescent lamp, energy-saving lamp, LED lamp, electronic fluorescent lamp, exhaust fan, etc. It is a wise choice for lighting switches in corridors, stairs, toilets, basements, garages and other places.

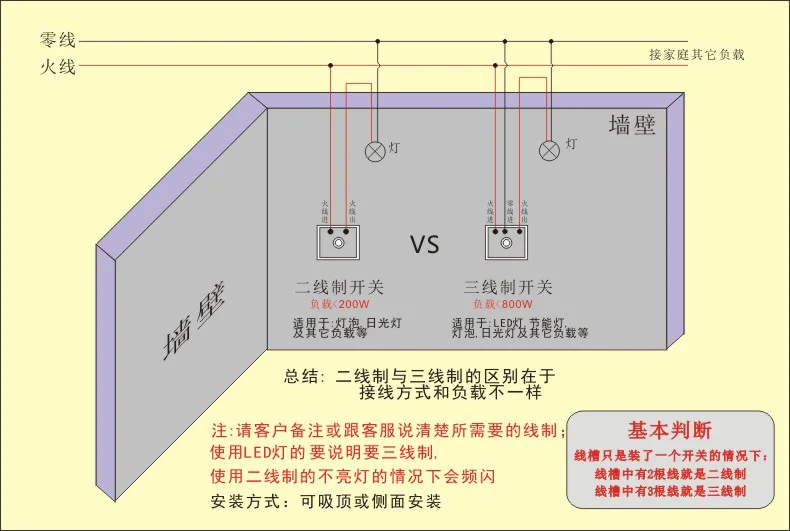

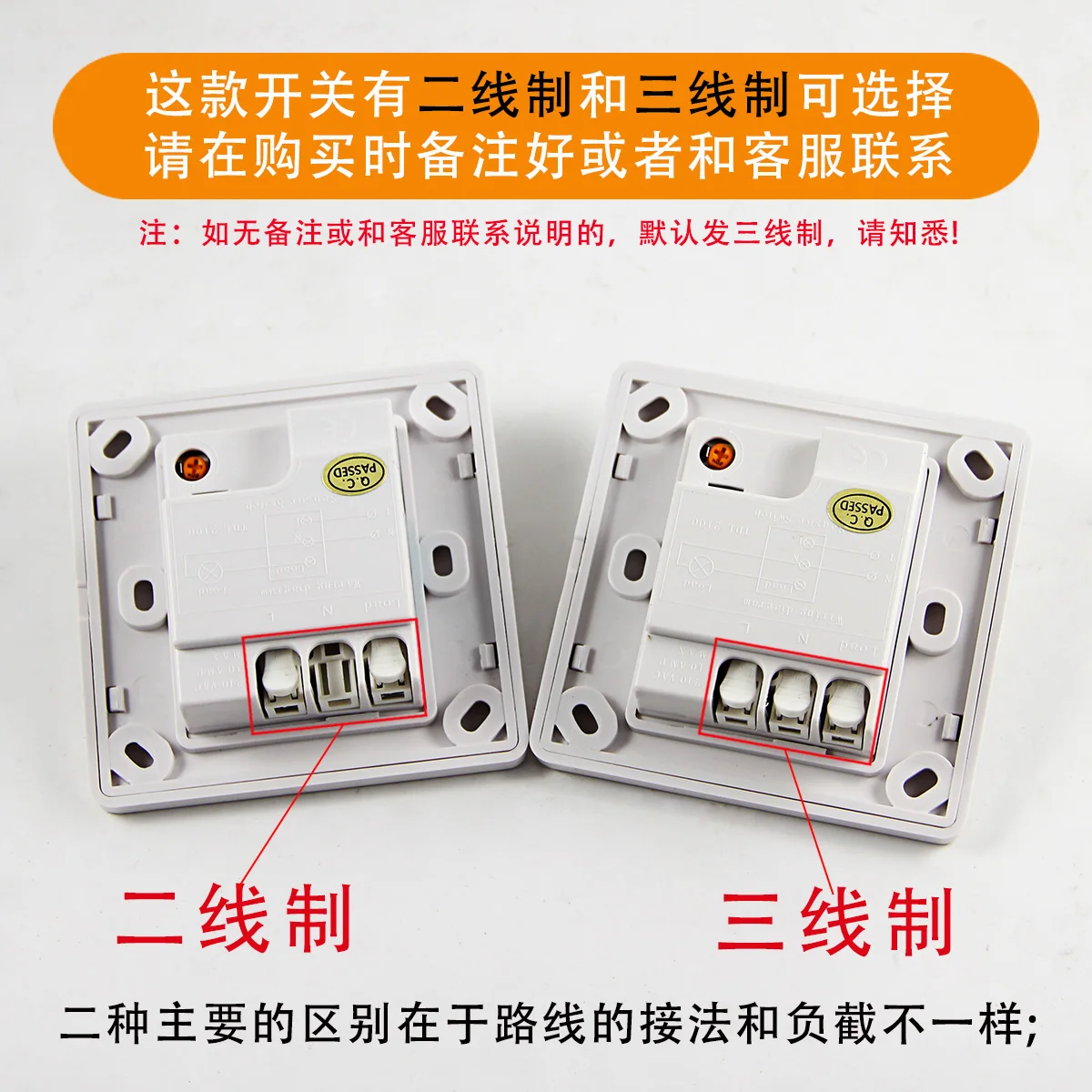

Note: the induction switch must be connected.LED lampAWe must choose three wire system.Oh, this is decided by the nature of LED (electricity on the bright side). When used in the two-wire system, the LED lamp is connected.Flicker occurs.The situation! Please know your customers!

Fully automatic induction

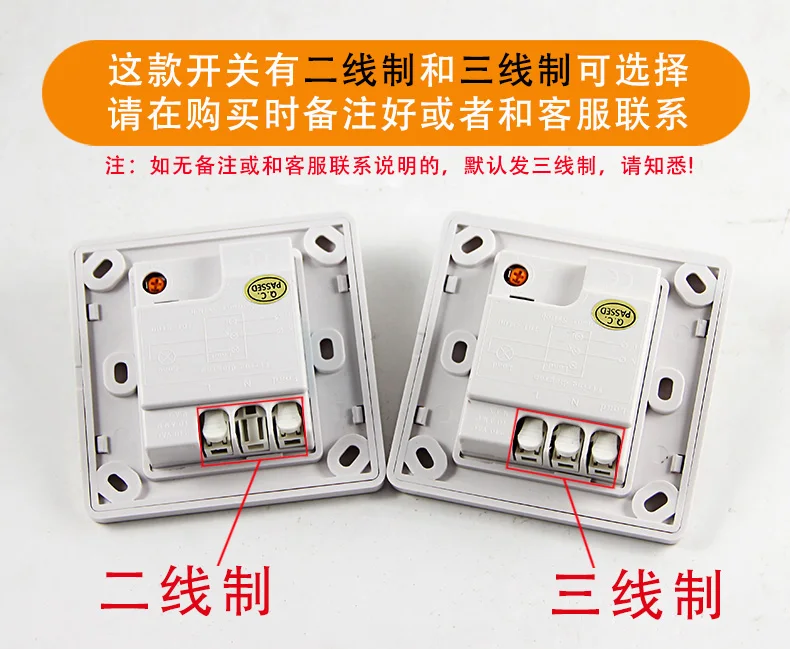

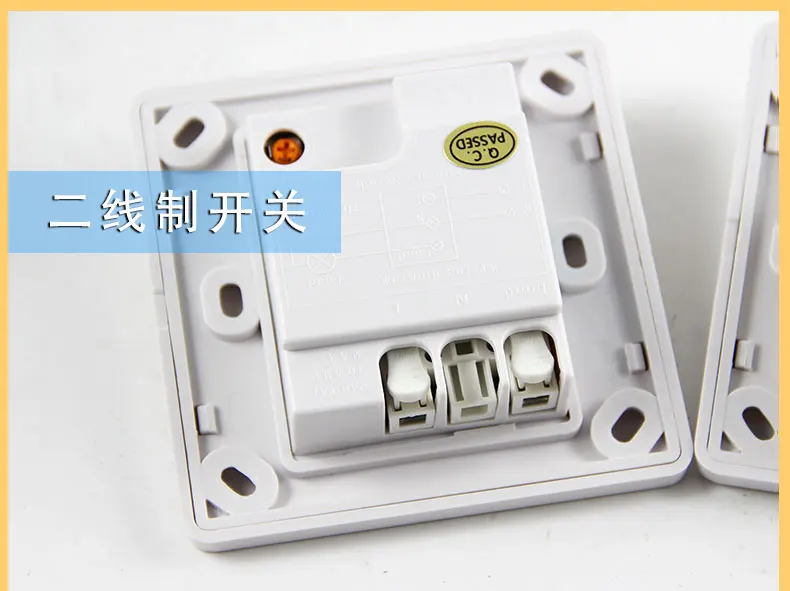

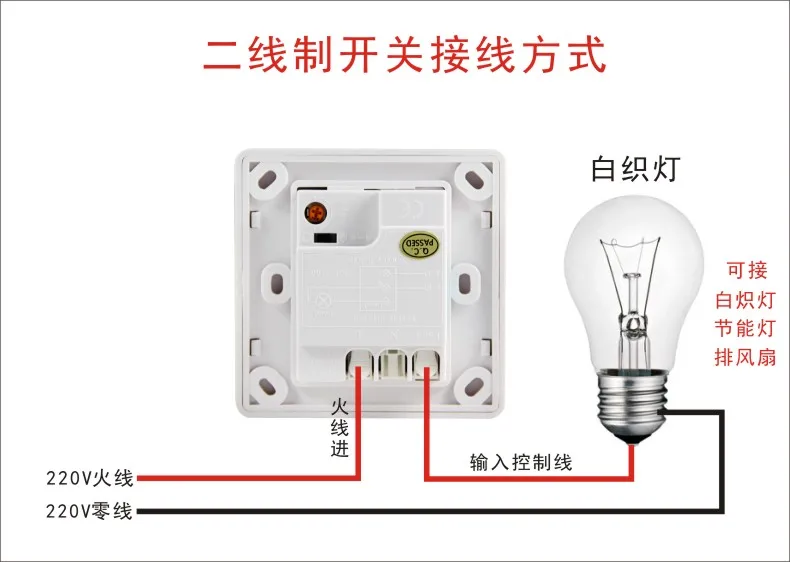

The two-wire switch is made ofSilicon controlled by imported componentsInduction switches are adequate for normal household use.

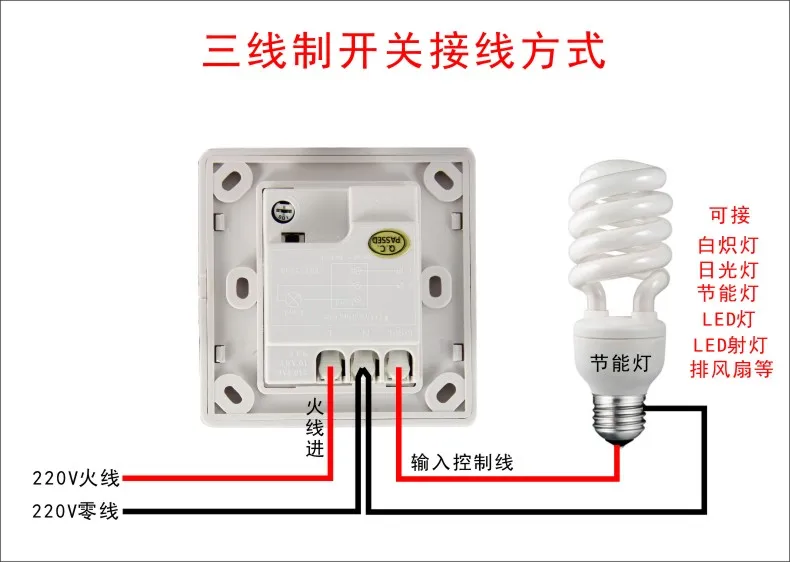

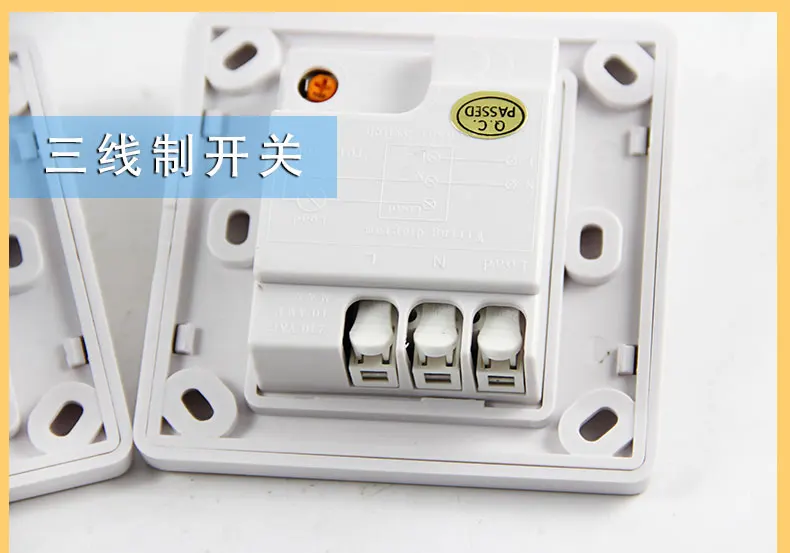

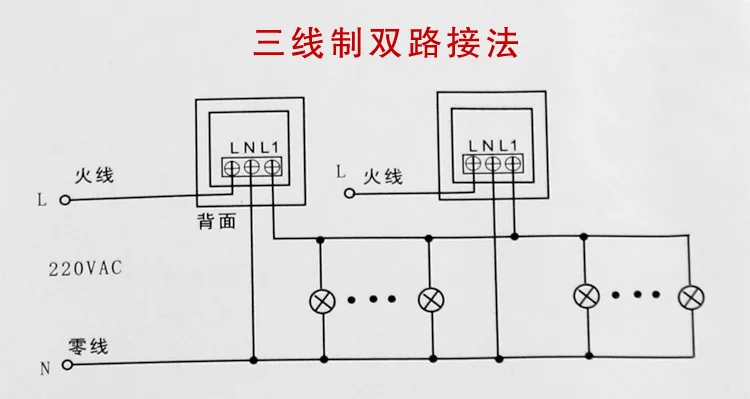

The three wire system is adopted.RelayInduction switches, which can be connected to more high-power lamps, can be used in a wider range.

Free from external noise interference

This product adopts infrared technology, special sensor detects the change of infrared spectrum of human body and opens automatically, so it is not disturbed by noise such as firecrackers, barking dogs, car calls and so on. Its performance is superior to voice control switch and touch switch.

Automatic photometry

With photosensitive control, it can not be sensed in daytime or under strong light, but at night or under weak light. It can also be sensed under any light.

Automatic delay

This switch circuit design has a repetitive trigger memory function.After the switch is connected,That is to say, as long as someone is active in the detection area, the switch will be triggered continuously and the delay time will be re-delayed continuously. Therefore, the calculation of the delay time should start from the last trigger before the human body leaves the detection area.

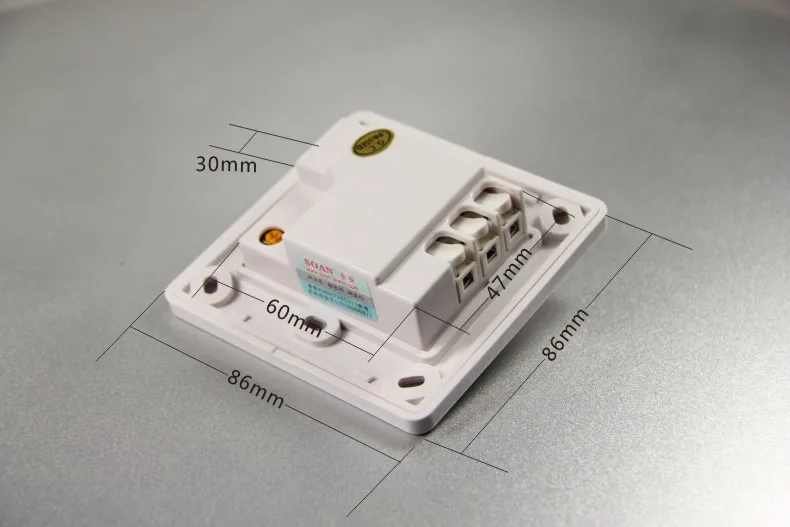

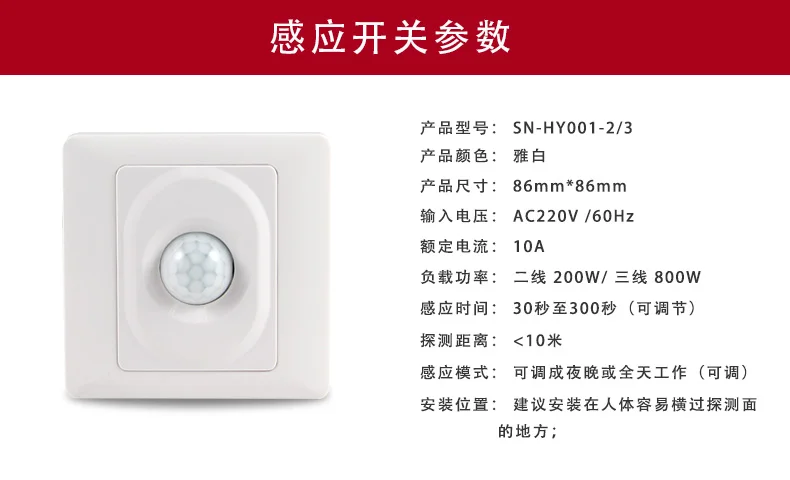

Switch parameter specification

Working voltage:200V AC--250V AC

Second line load:200WThree line load:800W(part of the load capacity of the model is different, product specific).

ambient temperature-10 C --40 C;

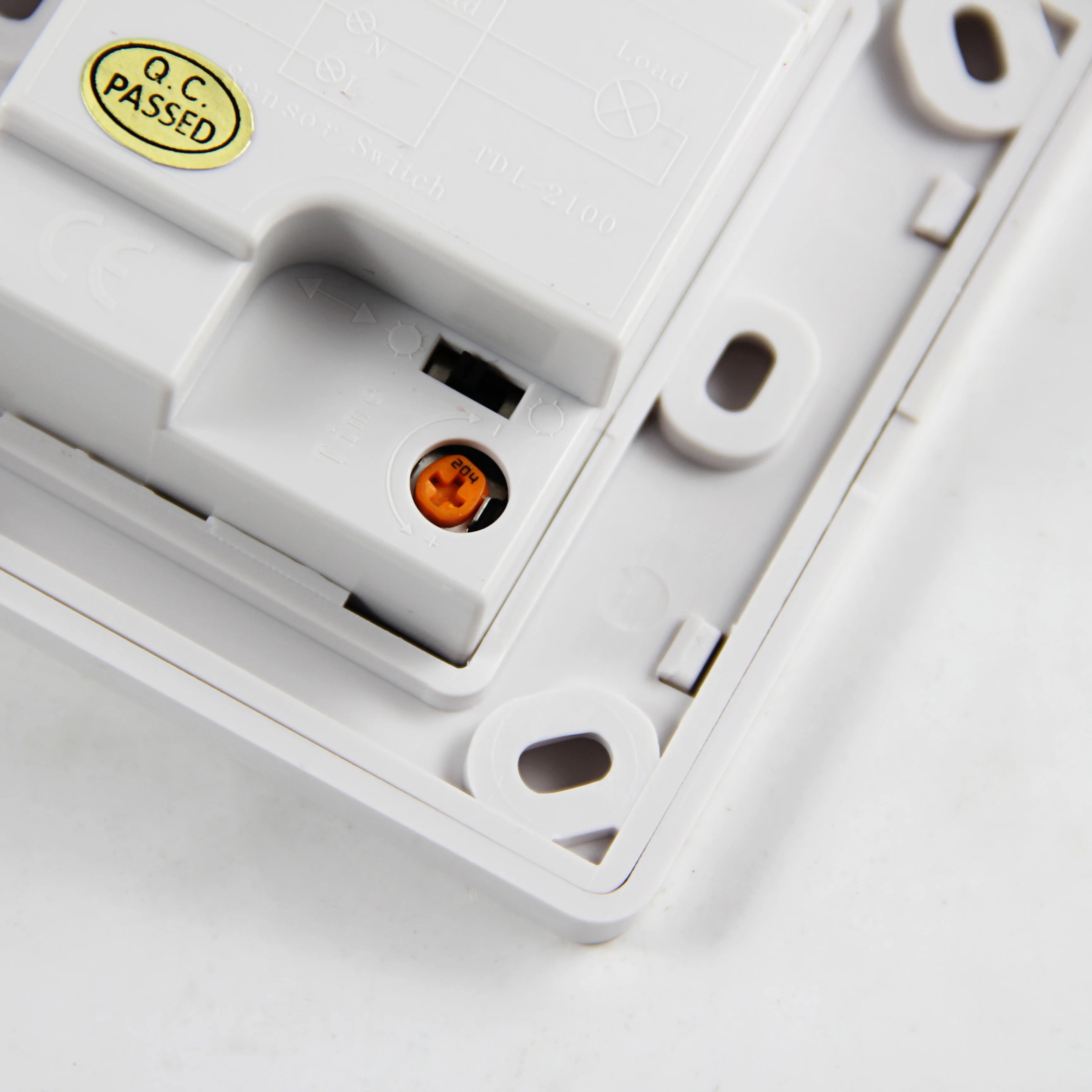

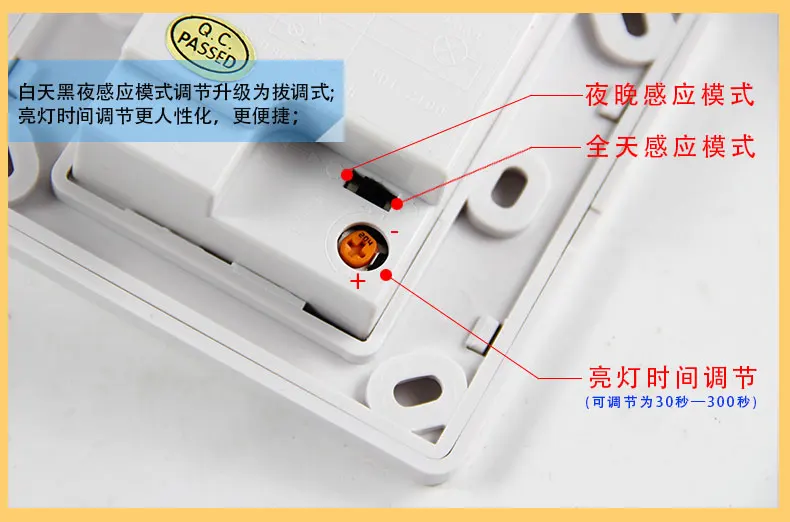

Delay closing time adjustment range:30 seconds to 300 seconds.(adjustable)

Detection range:distance<10Rice, angle140Centigrade conical angle(some models are closer).

Light perception range:From 10LUX to daytime continuousCan be adjusted to night or full-time work.

Recommended installation location: recommended for installation in the human body easily across the detection surface.

This switch circuit has the function of repetitive trigger memory, that is, as long as someone is active in the detection area, the switch will be triggered continuously and the delay time will be re-delayed. Therefore, the calculation of the delay time should start from the last trigger before the human body leaves the detection area.

Reminder:

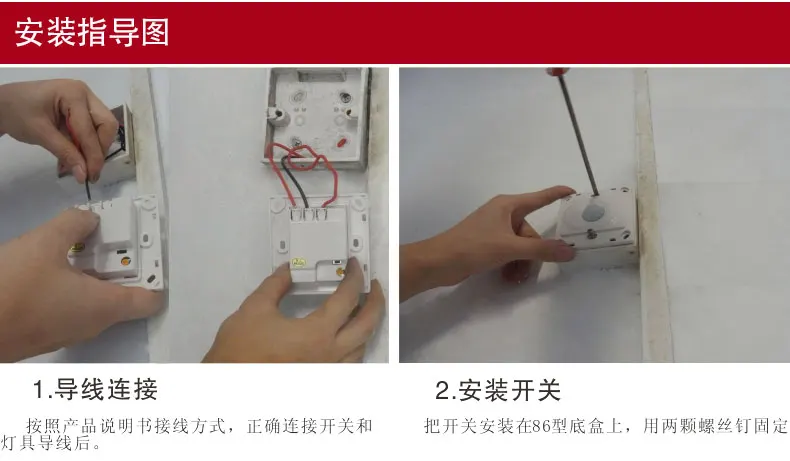

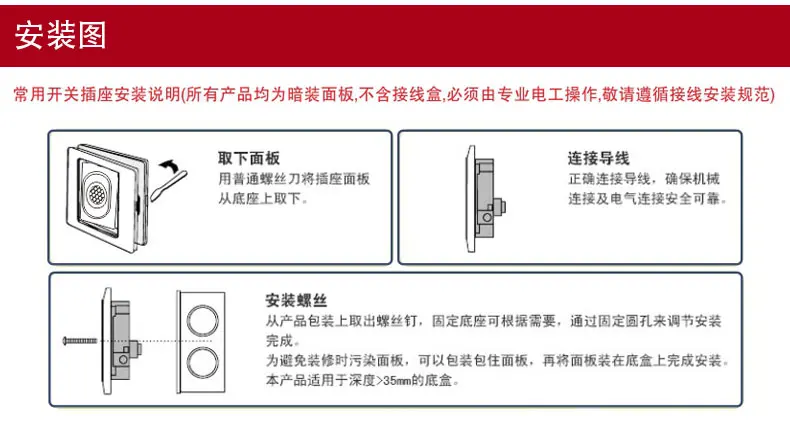

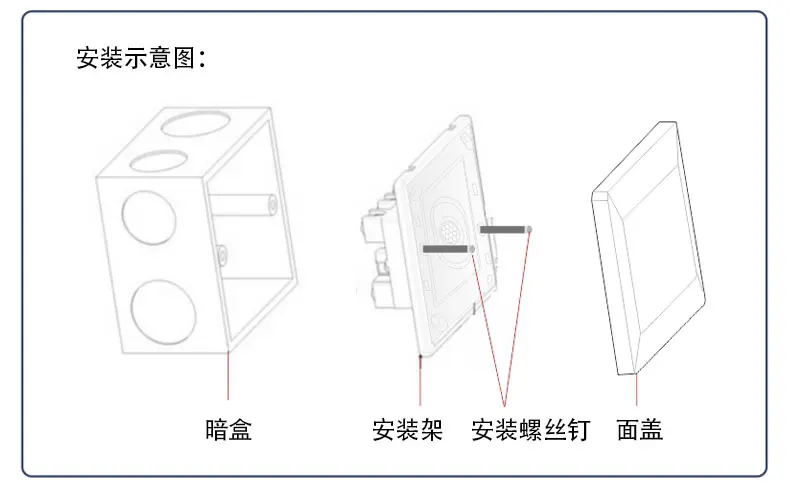

Installation notes:

1, the initial use of power will have 1-3 minutes initialization time.

2. Do not install near the space location with air conditioning, electric fan, etc. Because hot/cold air will lead to false alarm of infrared induction switch, so it is not suitable to install infrared induction switch in places with large air flow.

3. Do not approach the equipment with large electromagnetic radiation (e.g. where there are radio, walkie-talkie and antenna). Electromagnetic radiation will interfere with infrared induction switch and induction switch and cause frequent false alarm, which will result in waste.

4. When installing the infrared induction switch, try to avoid direct sunlight and strong wind blowing on the switch. Otherwise, it is easy to cause misoperation.

5. Install it in a relatively open place in the induction area as far as possible, and there should be no shielding, otherwise it will affect the induction distance and scope.

6. Attention should be paid to the human walking direction as vertical as possible with the illumination direction of the infrared induction switch. The sensitivity of the infrared induction switch moving along the illumination direction is low.

{two} common faults and solutions:

1After the switch is activated, the switch is automatic.(Detection and on-off3second)There is no induction.

Solution: first, use hand or cloth to cover the sensing head and switch on.

2.105The locator is switched counter clockwise and half switch on.

2After the switch is switched on, it keeps shining.

Solution: 1. If the shell is dismantled, please install the shell and cover the induction headlamp with cloth or other things.

If you have adjusted the delay locator, please reset the locator to its original position.

(3) Overload causes relay to suck in and out. Please use small load to test whether the switch is normal and small load is normal. Load should be reduced to the applicable range.

3No automatic switch after switch on.(Detection and on-off3second

Solution: please check whether the power of the switch is connected.

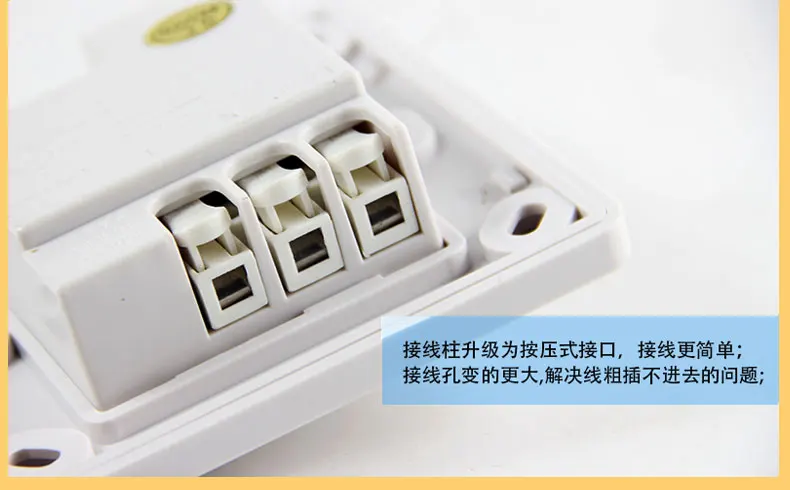

Different lines are connected.

'
