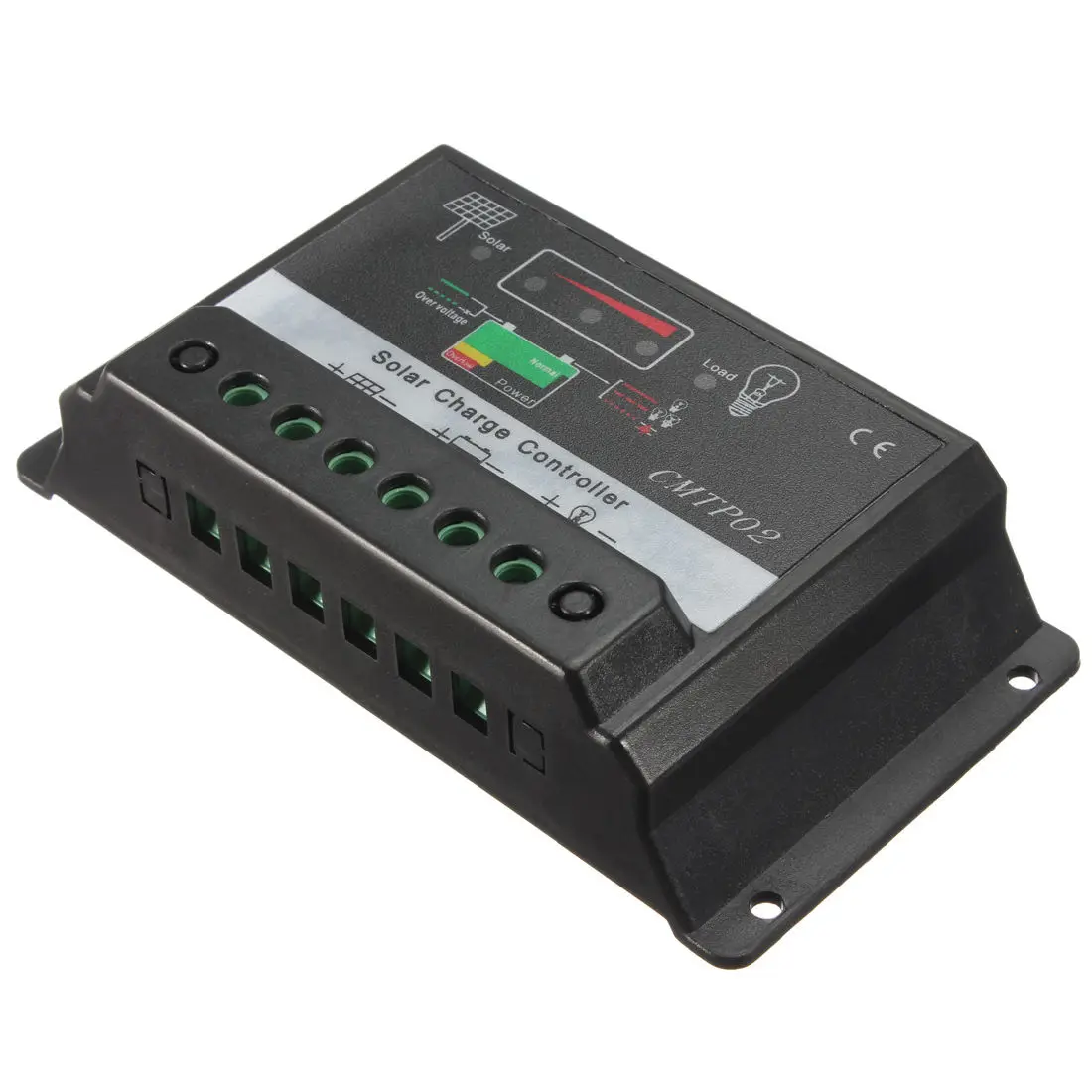

30A PWM Solar Panel Battery Regulator Charge Controller 12V/24V Auto

Electronic protection. Fully automatic operation.
PWM charge mode(SOC).
Micro-controller digital accuracy.
Suitable for all 12/24V DC lamps.

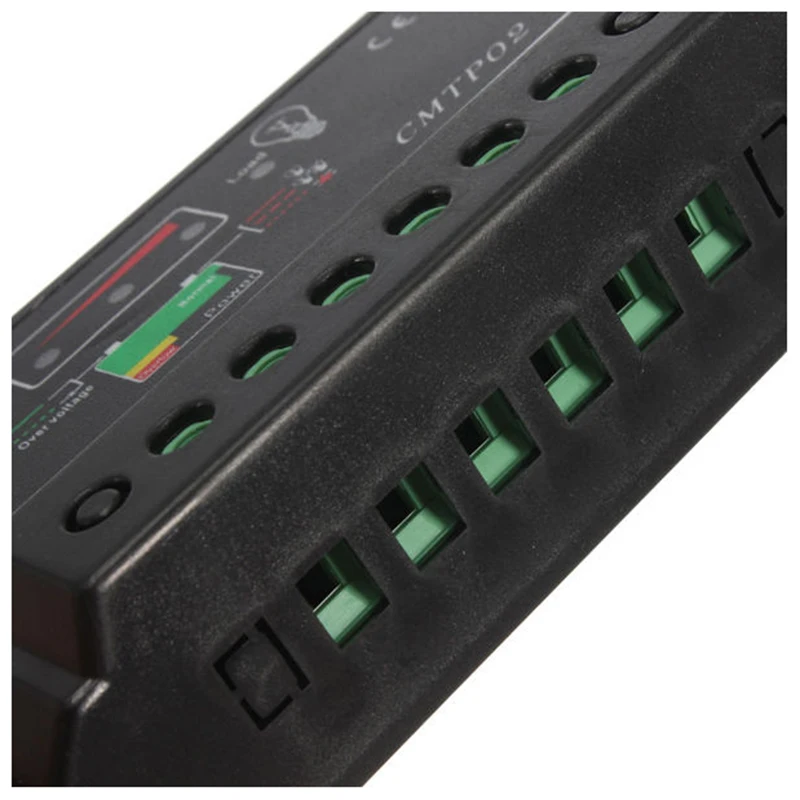

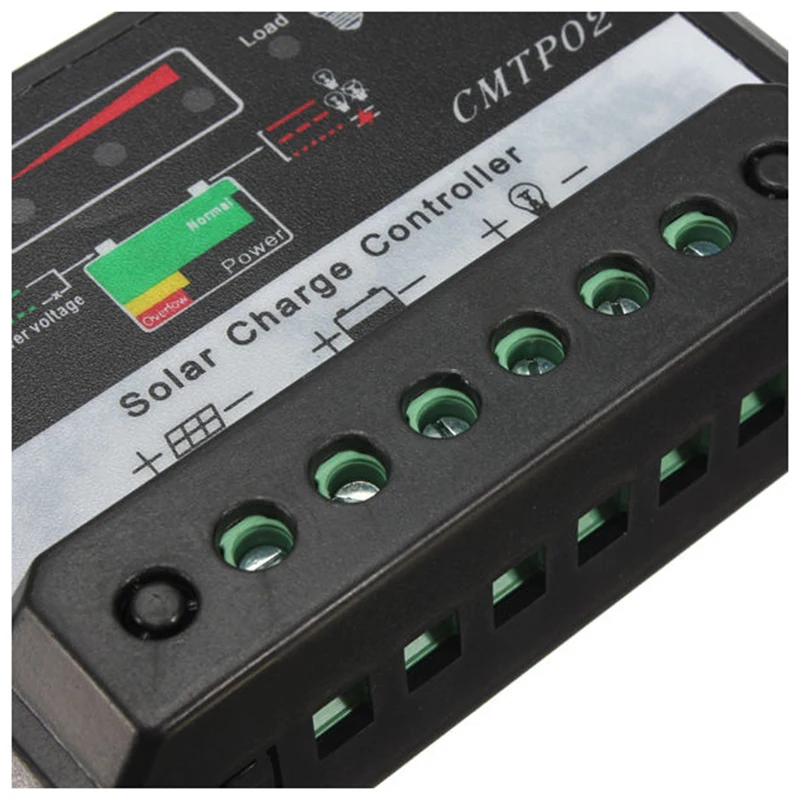

Big terminals,big distance between terminals.
Style: 30A
When the battery voltage is low,the controller will automatically cut off the load from the system.If the voltage of
battery is back to normal and the load will restart working.
Thunder protection
According to the battery voltage grade,the controller can automatically set charge-off voltage,the load-off voltage,
the load- restore voltage.(The parameter is default under 25° condition,locked by the CPU procedure,cannot adjust.)
The controller will automatically compensate the temperature of the charging voltage according to the changes of
ambient temperature.
Warning:
Before connecting to the solar panel,please connect the controller to the battery; do not use solar panel supply power
to the loads directly.
Notes:
Do not use lamplight to charge the solar panel (lamplight is too weak to charge)
DC power source to replace the solar panel will cause troubles to controller.

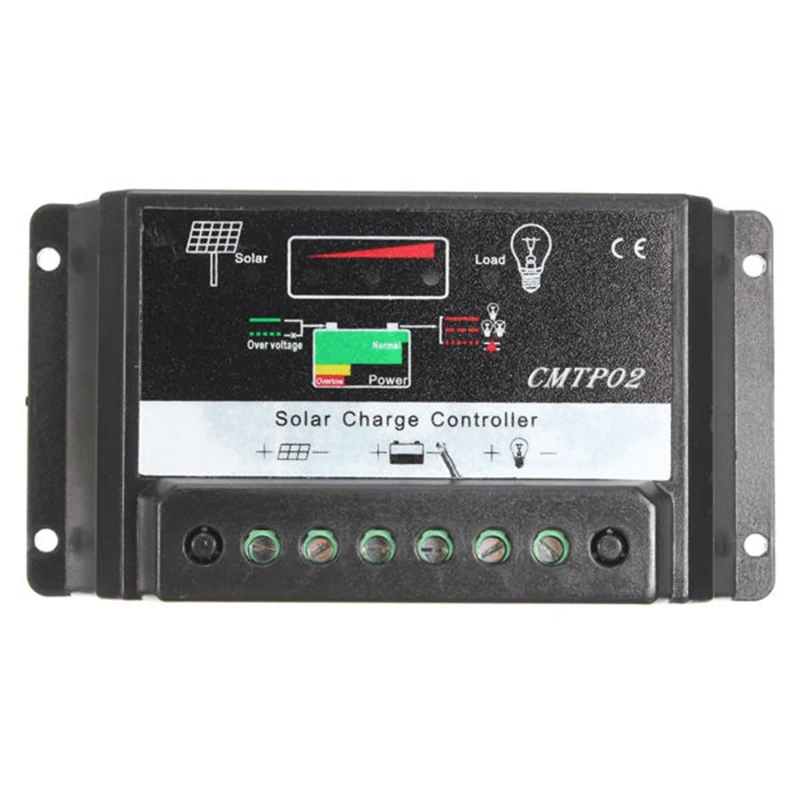

INDICATE LIGHT AND BUTTON.
When Red LED (CHARGE) is on,battery is charged up strongly; When Red LED is flickering,battery is PWM
charged up in constant voltage; when Red LED is oft charge off
.When Green LED (LOAD) is on,loads are working; when Green LED (LOAD) is off,loads stop working.
.Three Battery LED ,When 0~1 LED light up,it indicates low voltage,3 LED light up indicate battery full charged,
2 LED light up indicate normal status.

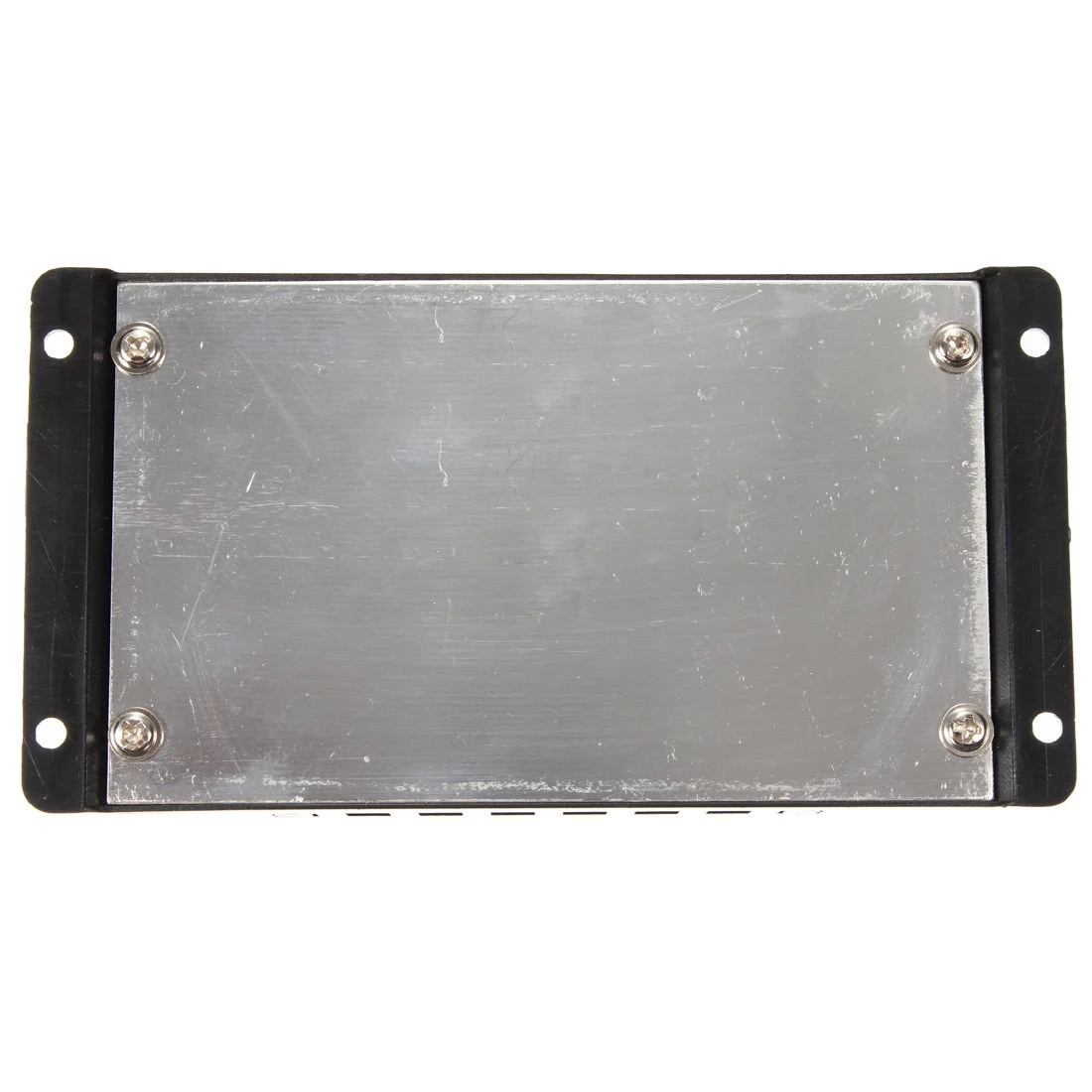

Material: metal
Package Content:
1*PWM Solar Charge Controller
1*User Manual
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/-1-3cm.
