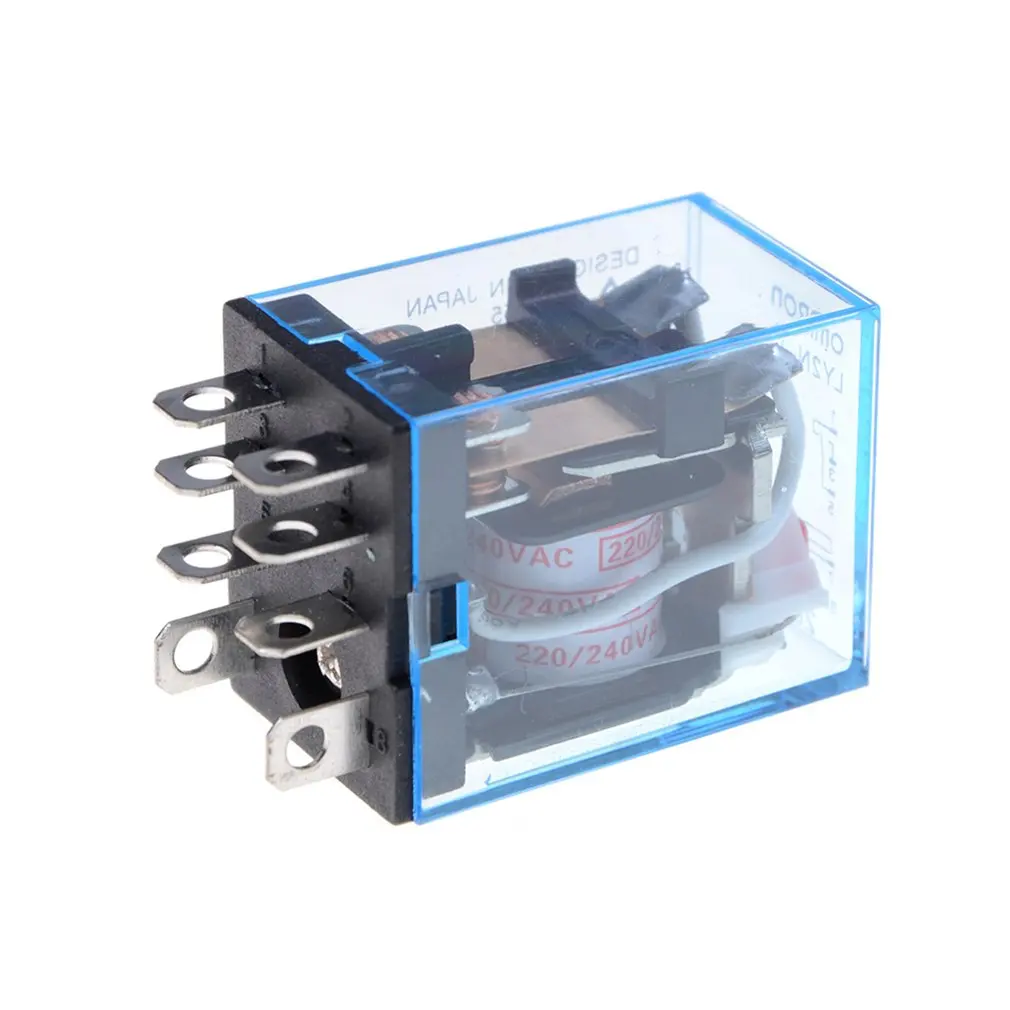

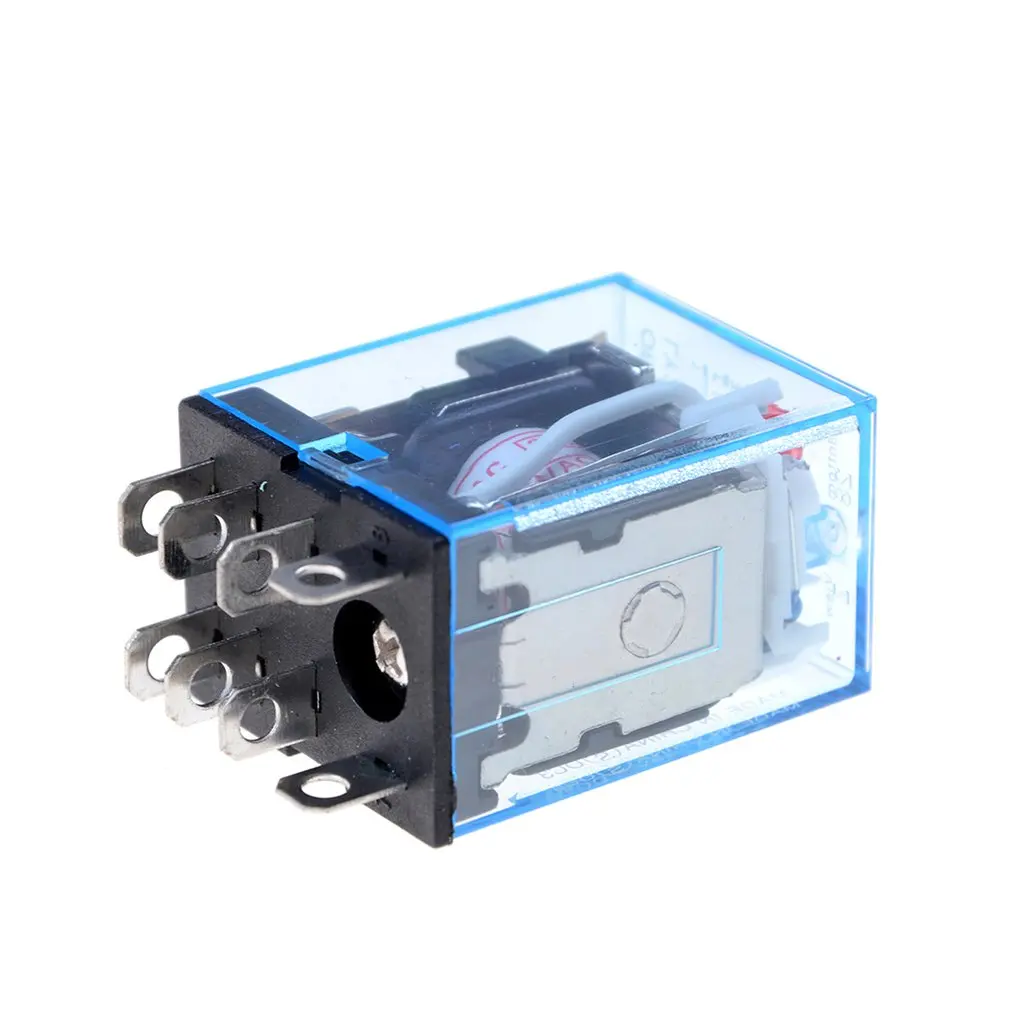

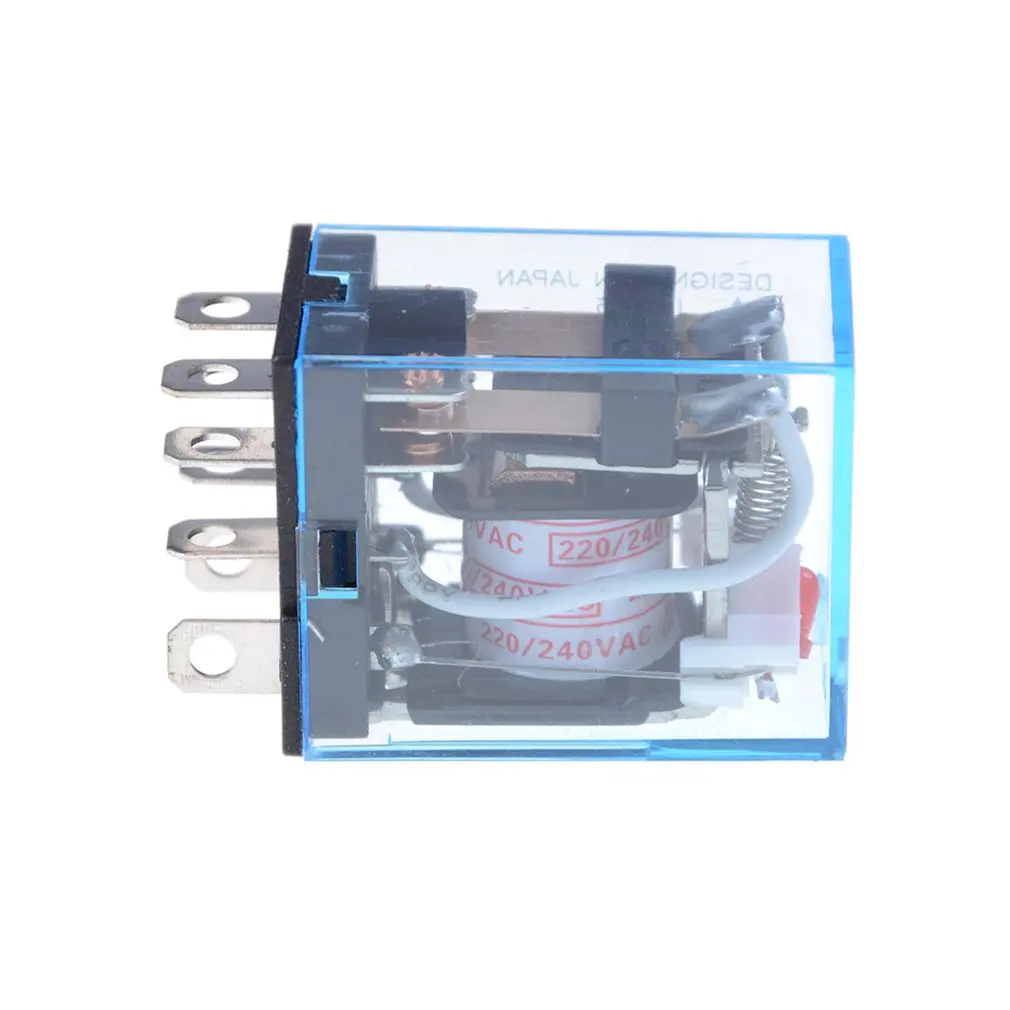

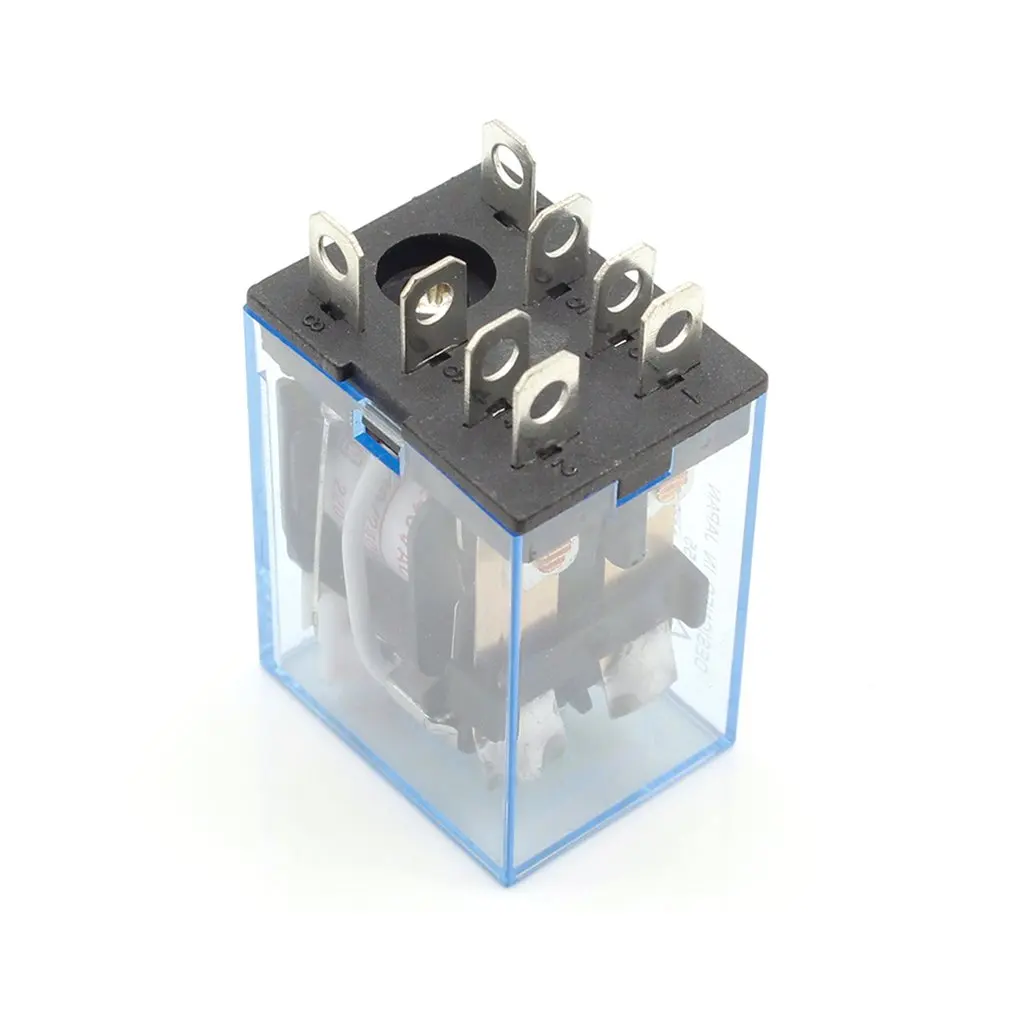

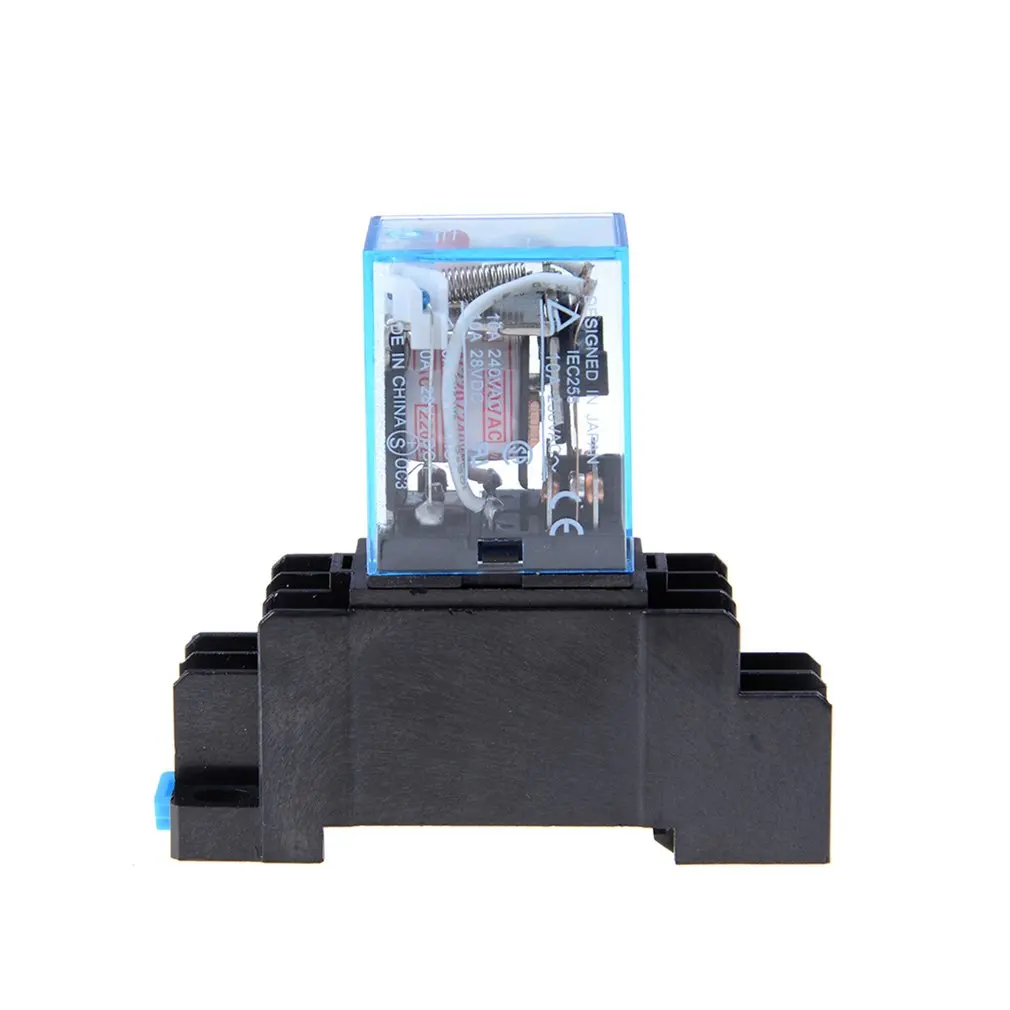

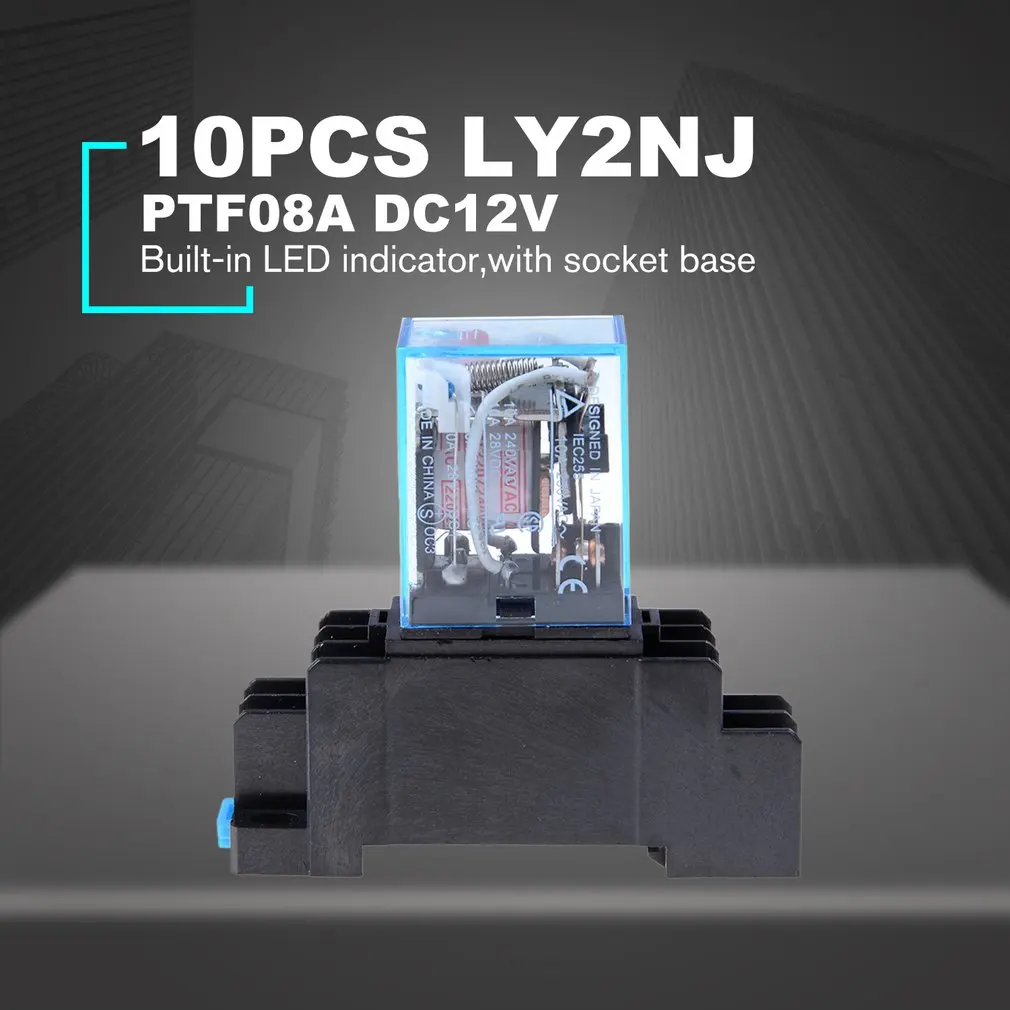

10PCS Coil Power Relay LY2NJ DPDT 8 Pin PTF08A JQX-13F Socket Base

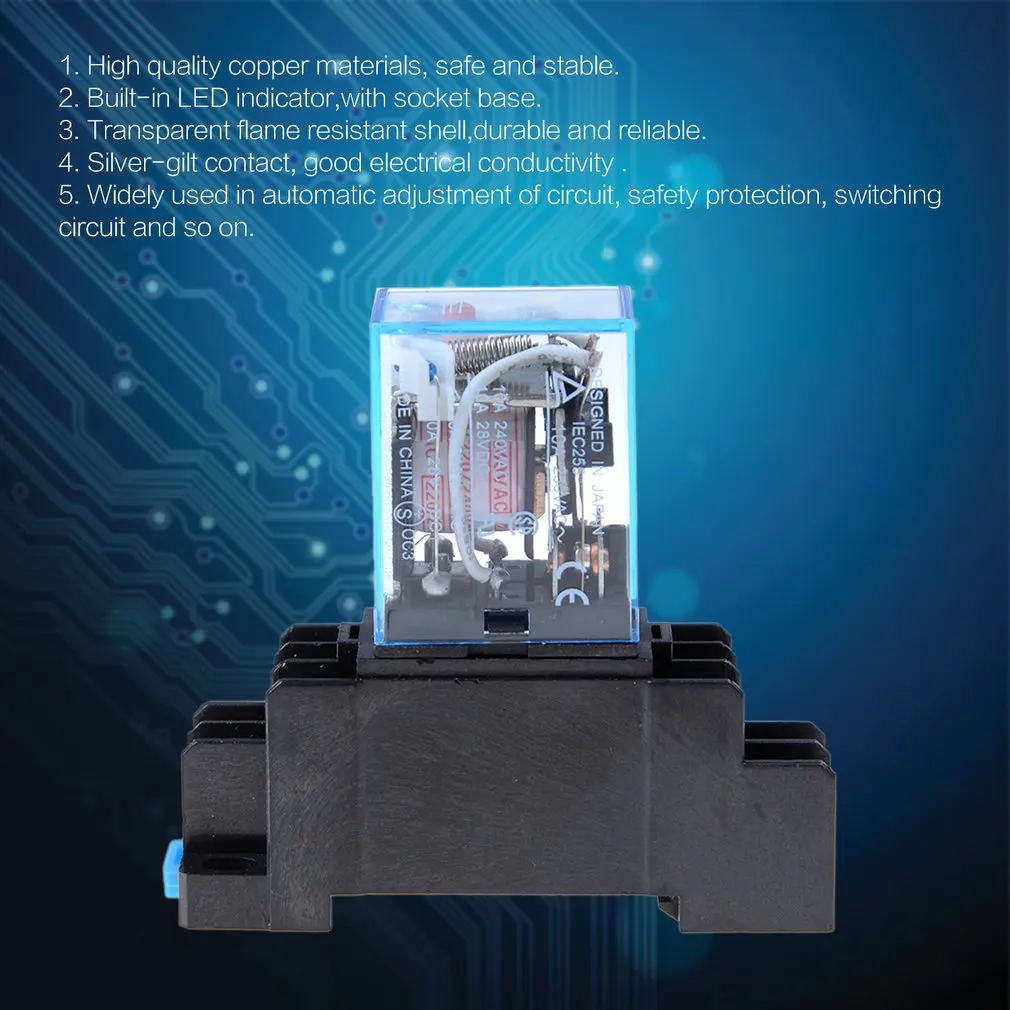

Features:
1. High quality copper materials, safe and stable.
2. Built-in LED indicator,with socket base.
3. Transparent flame resistant shell,durable and reliable.
4. Silver-gilt contact, good electrical conductivity .
5. Widely used in automatic adjustment of circuit, safety protection, switching circuit and so on.

Description:
1. The coil power relay with socket base has stable perfomance using copper materials.
2. Widely used in automatic adjustment of circuit, safety protection, switching circuit and so on.
3. It is suitable for factories, workshops, high-rise buildings, residential buildings and other places.

Specification:
Model: LY2NJ
Color:black
Coil voltage: DC 24V
Coil Power: DC (W): ≤0.9AC (VA): ≤1.2
Contact Structure: 8 pins 2 normally open 2 normally closed
Contact capacity: 10A 250VAC
Pull-in voltage: ≤80% (V)
Release voltage: DC: ≥10% (V), AC: ≥30%
Contact resistance: ≤50 (mΩ)
Insulation resistance: ≤100 (mΩ)
Terminals form: Socket
Action time: 20ms or less
Reset Time: 20ms or less
Operating frequency:
Mechanical 18,000 cycles / hour
Electrical 18,000 times / hour

Package Information:
Package size:170 x 180 x 30mm/6.69 x 7.09 x 1.18in
Package Weight: 500g/17.64oz

Package Included:

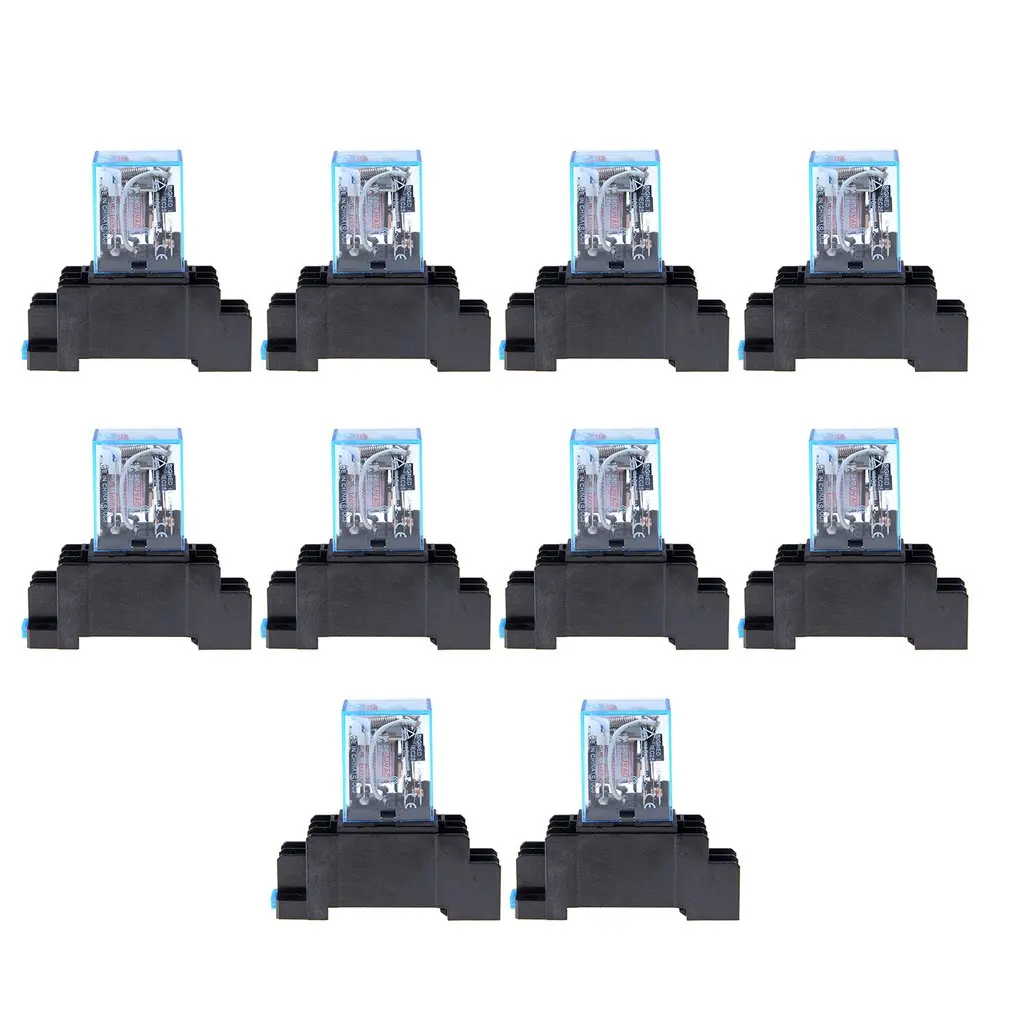

10 x Coil Power Relay LY2NJ
10 x Sockets Base
