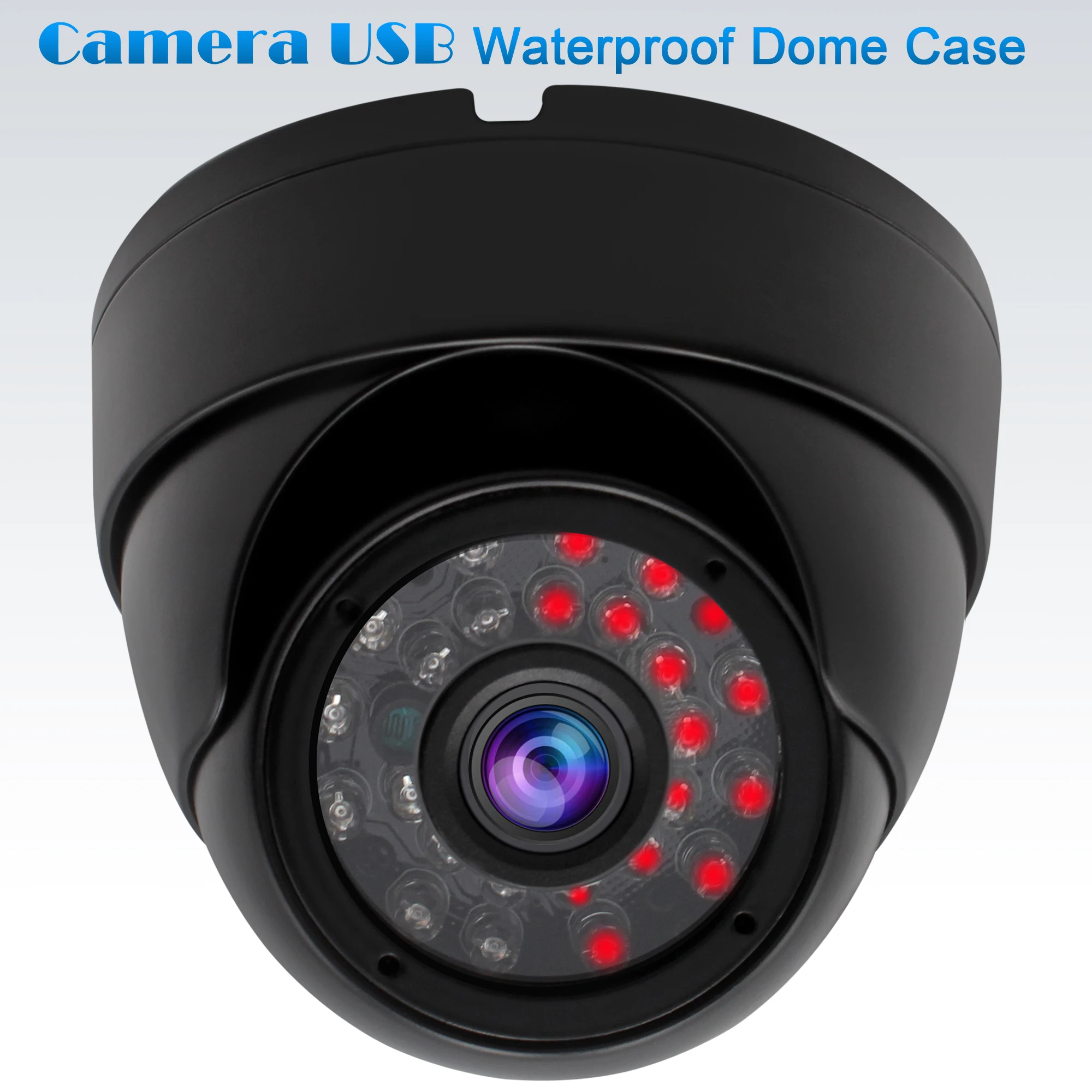

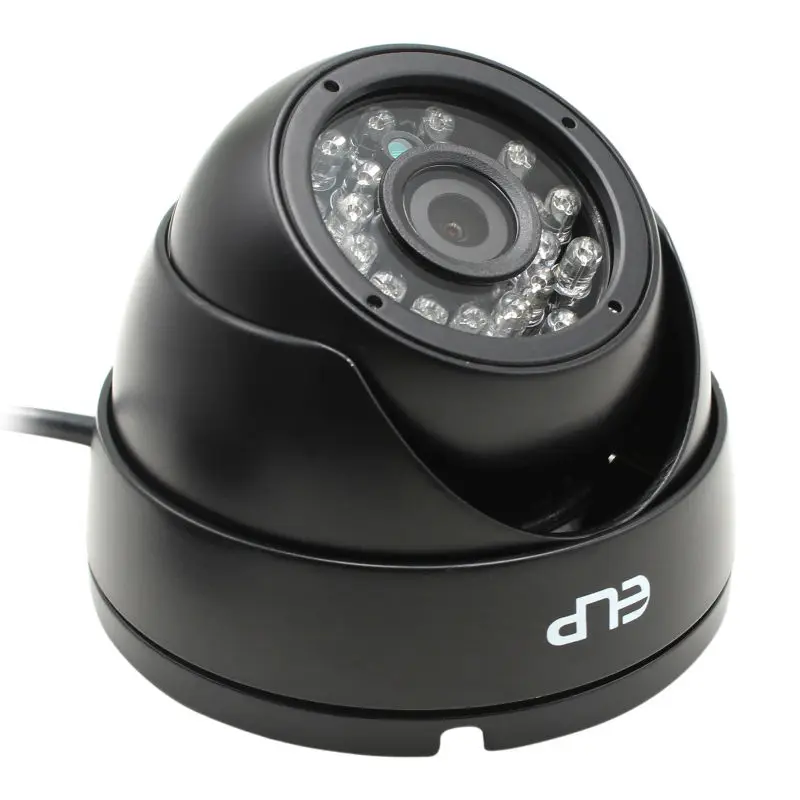

5.0Megapixel night vision USB Camera 2592x1944 Aptina MI5100 CMOS outdoor dome USB camera

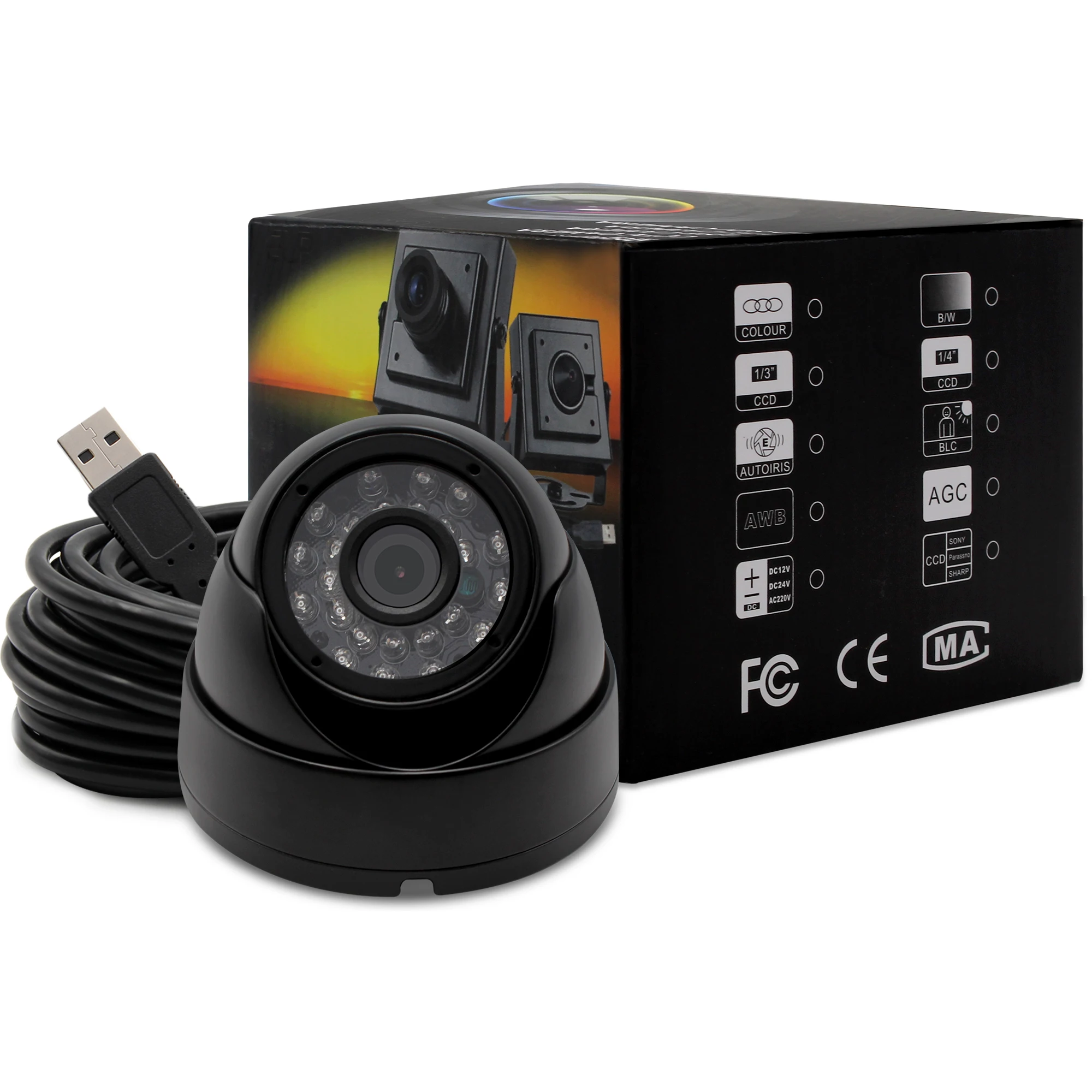

Package include:

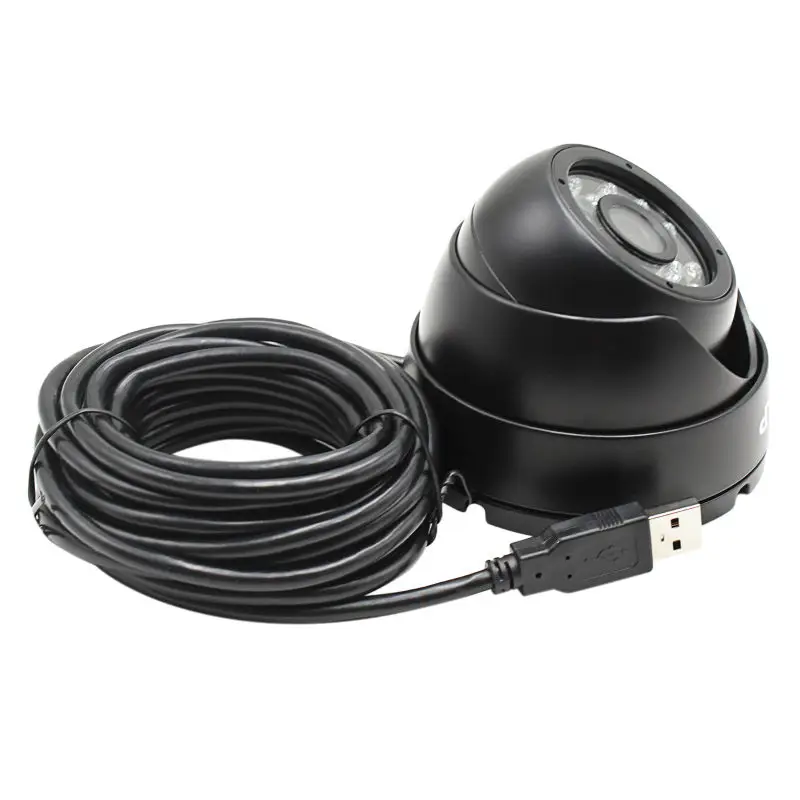

1) 1PC 5mp usb camera with 3.6mm lens

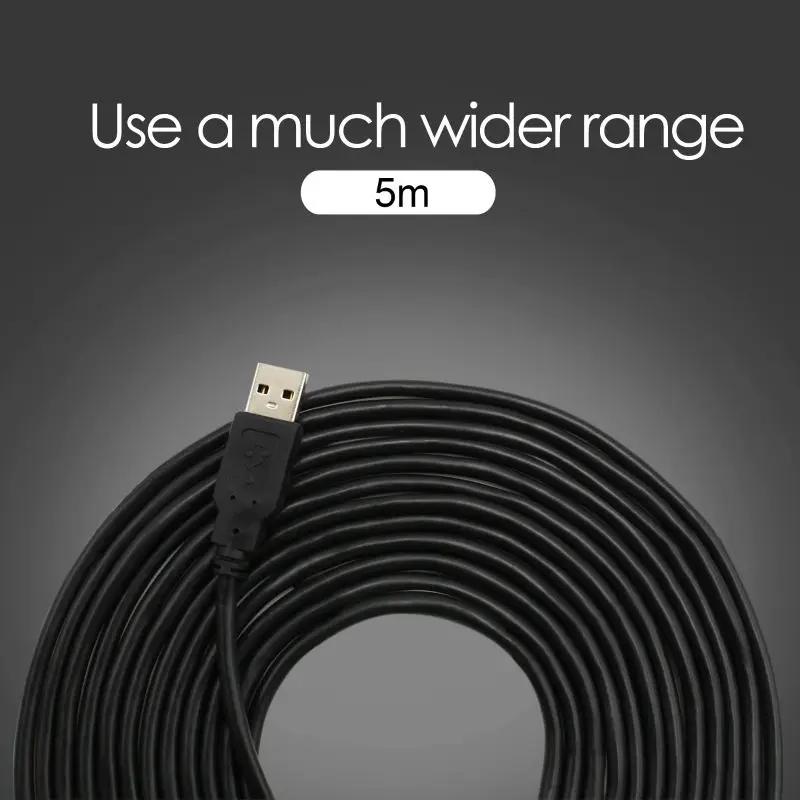

2) 1PC 5m usb cable  ( 1m/2m/3m cable optinal)

*Super high resolution 5mp USB  camera module
*Can used for micro endoscope camera
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance-ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate-30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

Model                      ELP-USB500W05G-L100 (100degree no distortion lens)

Sensor                    Aptina MI5100

Lens Size                1/2.5 inch(4:3)

Pixel Size                2.2um

image area              5.7mm x 4.28mm

Max. Resolution        2592(H) X 1944(V)

Compression format   MJPEG / YUV2(YUYV)

Resolution & frame    2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG

                            1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG

                            1920x1080 @ 30fps MJPEG / 1280x720  800x600

S/N Ratio                38dB

Dynamic Range        70dB

Sensitivity              1.4V/lux-sec@550nm

Mini illumination        0.1lux

Shutter Type           Electronic rolling shutter / Frame exposure

Connecting Port type USB2.0 High Speed

Free Drive Protocol    USB Video Class(UVC)

OTG protocol           USB2.0 OTG

AEC                       Support

AEB                       Support

AGC                       Support

Button camera         Support

Adjustable parameters      Brightness,   Contrast, Saturation, Hue, Sharpness, Gamma,

                                    Gain, White balance, Backlight Contrast, Exposure

Lens Parameter                     Size:  1/2.5,       Iris: F2.4,  Focus:  3mm,  FOV:  100 Degree

LED board control interface    Support 2P-1.25mm socket

LED board power connector   Support 2P-2.0mm socket

Power supply                       USB BUS POWER   4P-2.0mm socket

Operating Voltage                 DC5V

Working current                    150mA~200mA

Working temperature             -10~700C

Storage temperature             -20~850C

Board size                           38X38mm(compatible 32X32mm)

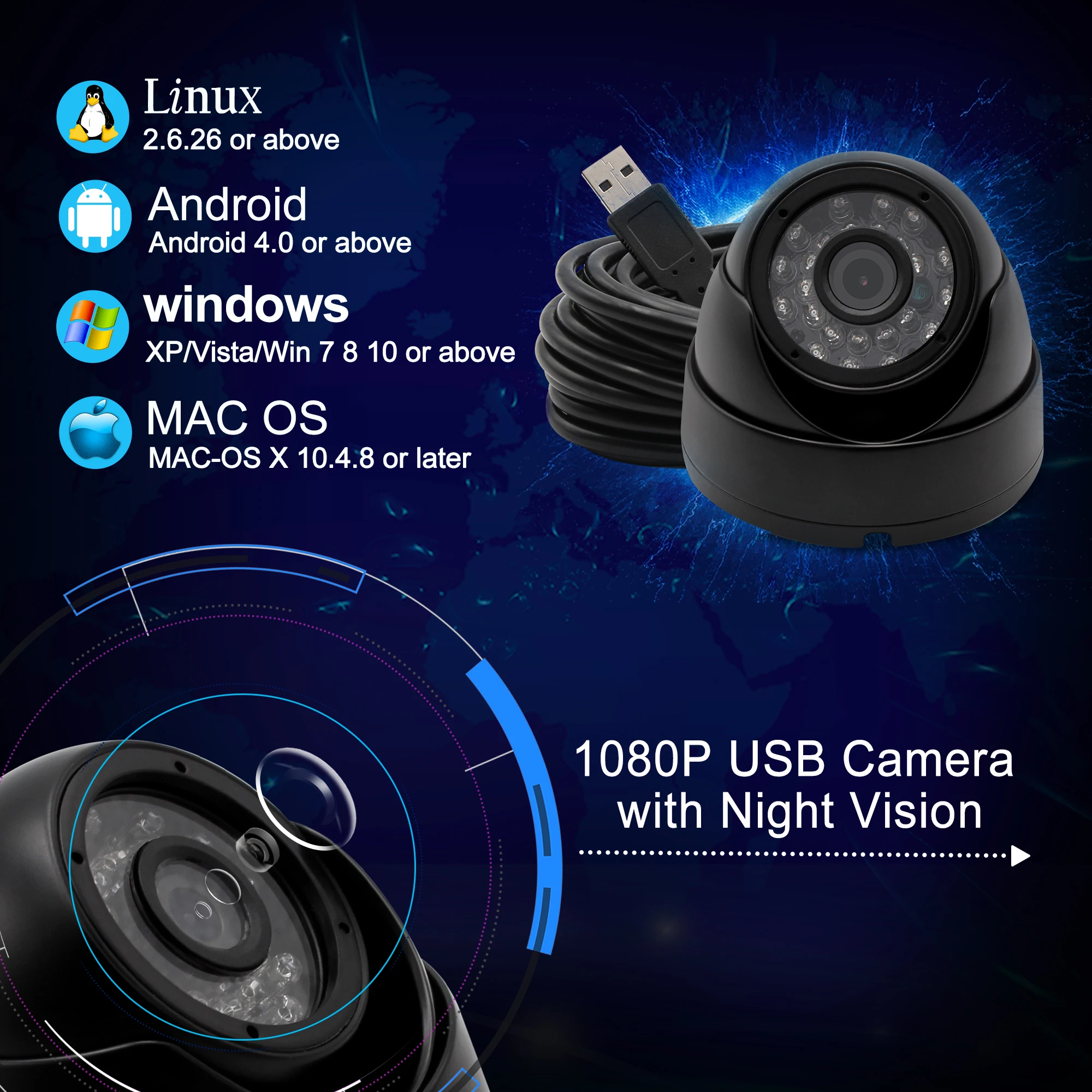

Operating system request       WinXP/Vista/Win7/Win8

                                          Linux with UVC(above linux-2.6.26)

                                         MAC-OS X 10.4.8 or later

                                         Wince with UVC

                                        Android 4.0 or above with UVC

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental
monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance,  micro HD surveillance, endoscope, Medical auxiliary equipment, etc.

effect

Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
